KOZ Single ST 75-100 Kabelklem K005

Product number: K005
Brand: KOZ Products
Check icon
Fast delivery
Check icon
20 years of expertise and experience
Check icon
Own brand of high quality
Phone icon Need help? Call us +31 10 522 33 51
Height
Suitable for pipe diameter
Width

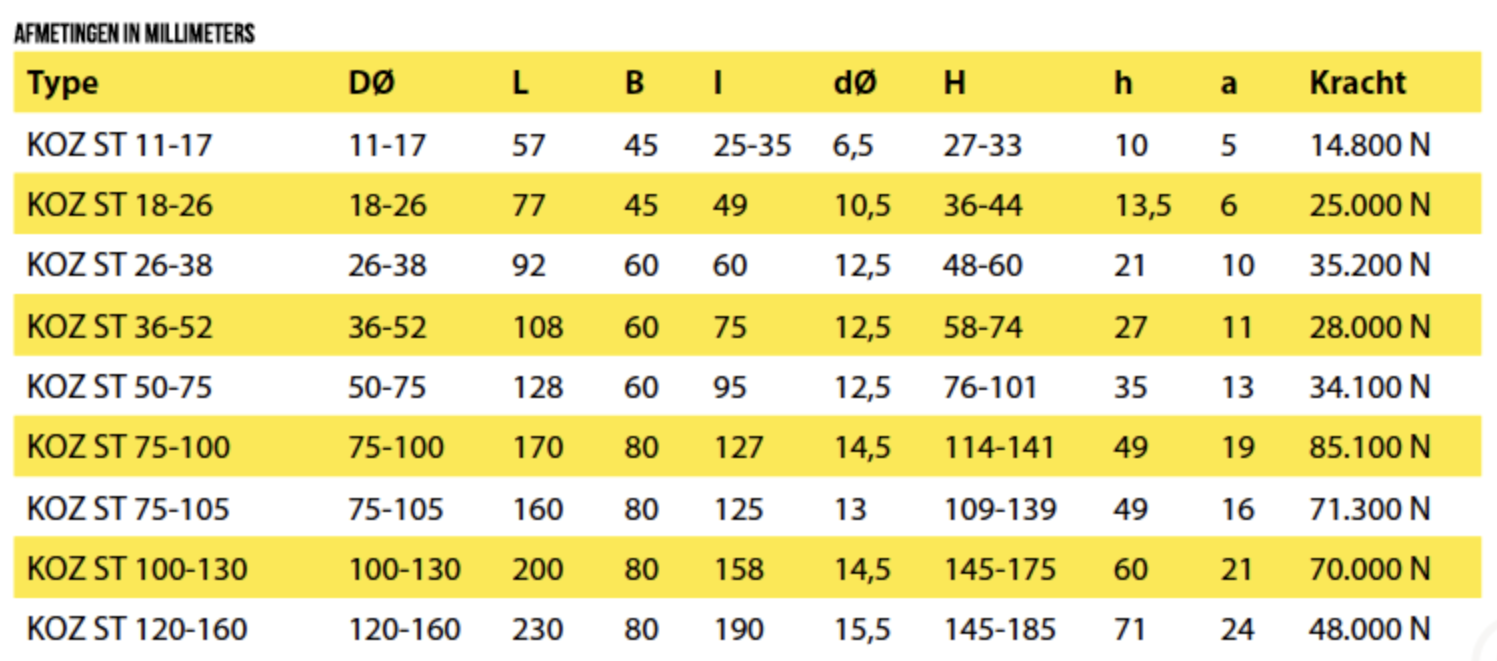

Variations

Product number
K001
Number of pipes
Width
For pipe diameter
Height
Number of pipes:
1
Width:
57 mm
For pipe diameter:
18 - 26 mm
Height:
44 mm
Product number
K002
Number of pipes:
1
Width:
92 mm
For pipe diameter:
26 - 38 mm
Height:
60 mm
Product number
K003
Number of pipes:
1
Width:
108 mm
For pipe diameter:
36 - 52 mm
Height:
74 mm
Product number
K004
Number of pipes:
1
Width:
128 mm
For pipe diameter:
50 - 75 mm
Height:
101 mm
Product number
K005
Number of pipes:
1
Width:
170 mm
For pipe diameter:
75 - 100 mm
Height:
141 mm
Product number
K124
Number of pipes:
1
Width:
200 mm
For pipe diameter:
100 - 130 mm
Height:
174 mm
Product number
K407
Number of pipes:
1
Width:
160 mm
For pipe diameter:
75 - 105 mm
Height:
139 mm
Product number
K428
Number of pipes:
1
Width:
57 mm
For pipe diameter:
11 - 17 mm
Height:
33 mm
Product number
K627
Number of pipes:
1
Width:
230 mm
For pipe diameter:
120 - 160 mm
Height:
185 mm

Product information

Suitable for pipe diameter : 75 - 100 mm
Closed : Yes
Material : Plastic
Material quality : Polyamide (PA)
Surface protection : Untreated
Connectable : Yes
Max. number of tubes : 1
Type of fastening : Screw hole
With inlay : No
With wall gasket : No
Colour : Black
Working temperature : -80 - 120 °C
Halogen free : Yes
Voor montage van enkel- en meerdradige kabels met een buitendiameter van 75-75mm. Bevestigingsmateriaal (2x M14X180 draadeind 4x bouten M14 en 4x moeren M14) niet inbegrepen.

Application: This ST series is suitable for the installation of single- and multi-core low-, medium- and high-voltage cables with an outer diameter ranging from 11 mm to 160 mm.

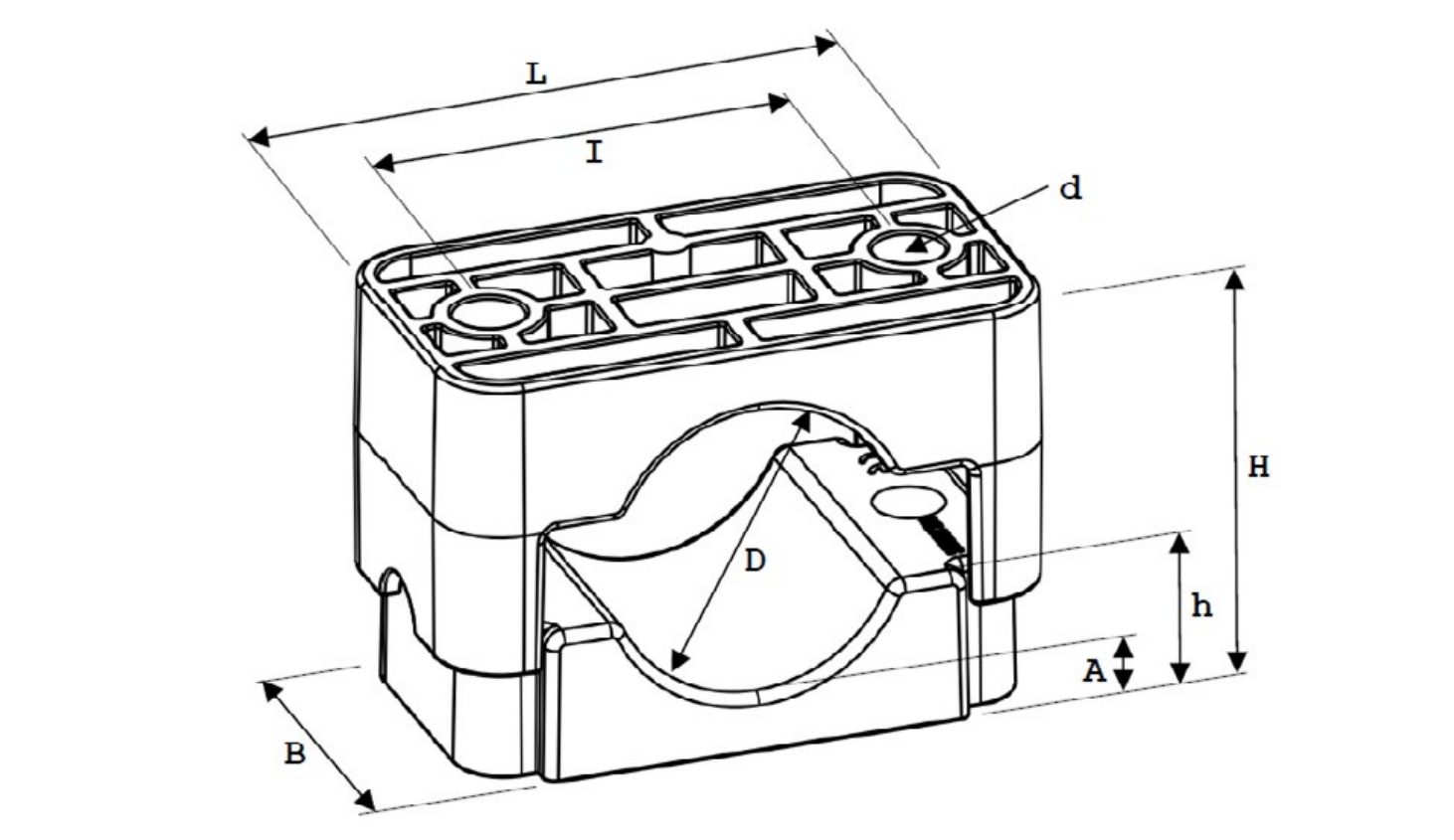

Design: The ST clamp consists of two parts: a lower shell and an upper shell. They are designed to allow easy cable installation. Thanks to the unique design, the clamps meet the highest possible requirements and are therefore highly suitable for applications where high resistance to short-circuit forces is required. The ST clamps feature two mounting holes for threaded rods or tap bolts. In addition, the upper shell has integrated chambers that retain the nuts, eliminating the need for separate fastening of the lower shell.

Tightening torque for the fastening material: 5 – 8 Nm
(depending on the specifications of the cable manufacturer).

Advantages:

  • Resistant to oils, greases, frost, heat, UV, ozone, salt water, salts, acids and aggressive chemicals.
  • No oxidation or corrosion.
  • Non-magnetic and non-conductive.
  • Halogen-free and no sharp edges.
  • Flame-retardant V-0 (UL94).
  • Temperature range from -80 °C to 120 °C (220 °C short-term).
  • Lifetime warranty.
  • Easy installation.
  • Available worldwide.
