Universele Balk Klem M16 EG
Productnummer:
ESP16
Merk:
Eurostrut
Snelle levering
20 jaar kennis en ervaring
Eigen merk van hoge kwaliteit
Productinformatie
| Materiaal : | Staal |
|---|---|
| Oppervlaktebescherming : | Elektrolytisch verzinkt |
| Klembereik : | 1 - 35 mm |
| Toegestane werkbelasting : | 9000 N |
| Geschikt voor strutprofielen : | Ja |
| Breedte rail : | 41 - 41 mm |
| Boutmaat (metrisch) : | 16 |
| U-vormige klembout : | Nee |
Universele Balkklem M16, Elektrolytisch Verzinkt

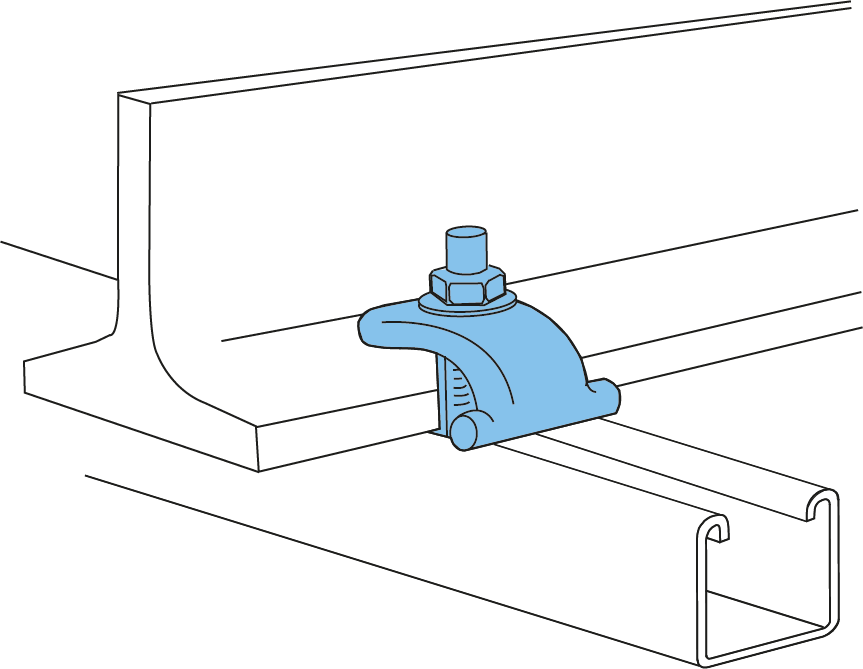

For fixing profiles and cross-members to supports, hanging pipes and channels on steel beams.
Clamping range up to 35 mm (ESP12 & ESP 16)
Universal use
Material: White malleable cast iron GTW 45, zinc plated
The breaking forces are determined using a hex head bolt and nut (grade 8.8). They are divided by the appropriate safety factor to obtain the value for the rated load.
Normal safety factor: 10
ESP10-12-16_INFO
