Bend 45° Cable Tray ECT100 150mm HDG
Variations
Product information
| Change of direction : | Horizontal |
|---|---|
| Angle : | 45° |
| Construction type : | Bend rigid |
| Bend model : | Segmental bend |
| For connection with screws : | Yes |
| For screwless connection : | No |
| With cover : | No |
| Inner radius : | 50 mm |
| Suitable for cable tray height : | 100 mm |
| Suitable for cable tray width : | 150 mm |
| Material thickness : | 1 mm |
| Side perforation : | No |
| Bottom perforation : | Yes |
| Model : | Integrated connector |
| Material : | Steel |
| Material quality : | Rustproof and acidproof steel |
| Surface protection : | Hot-dip galvanised |
| Colour : | Zinc |

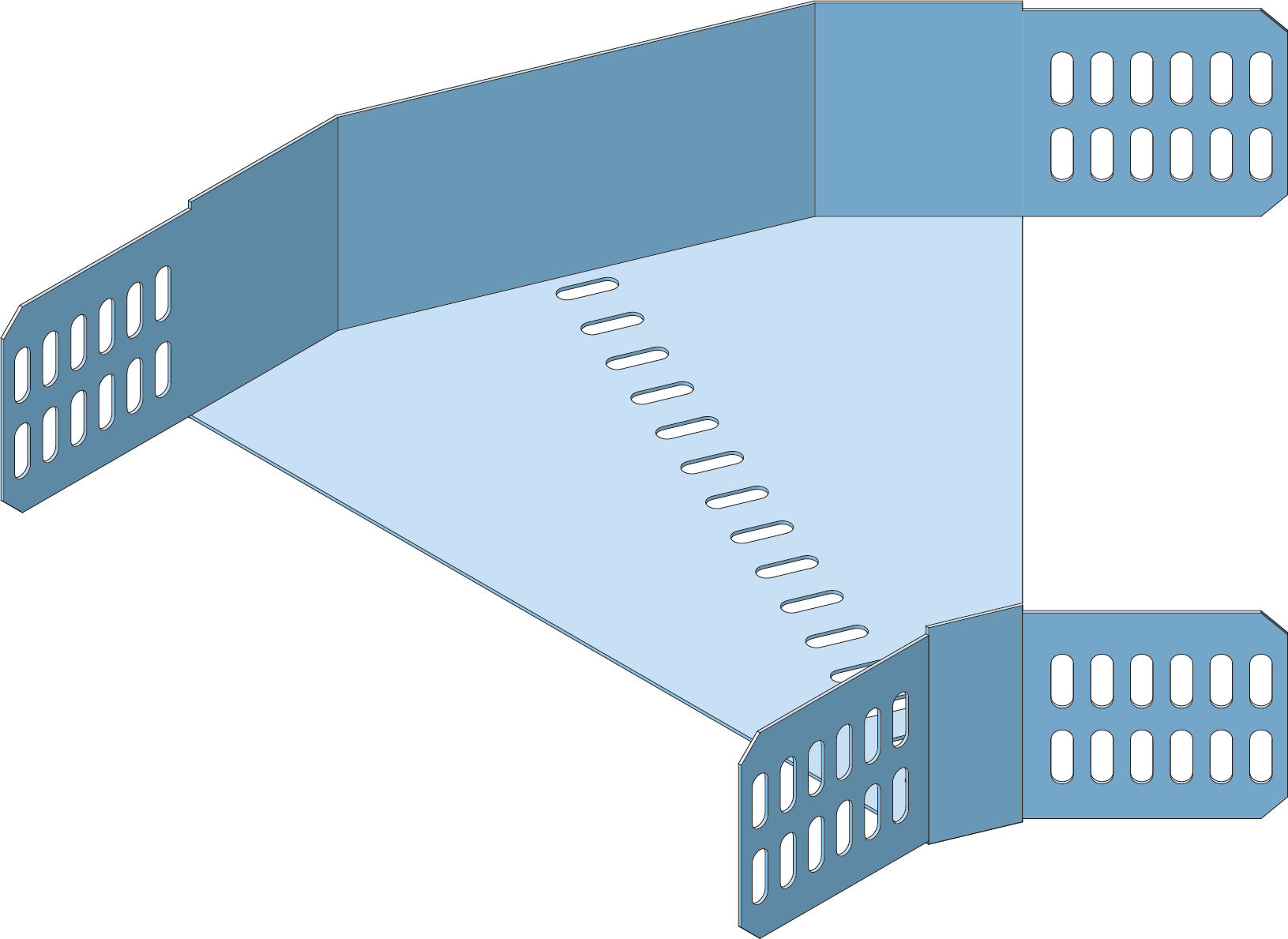

Bend 45° for cable tray ECT100 with sizes H = 100 mm, W = 145 mm, E (thickness) = 1.0 mm, 45°, Carbon Steel, Hot Dip Galvanized according to NEN-EN-ISO 1461, minimum layer thickness 60 µm, with 16x EFS08x15-GEO Eurostrut Fixingset (Bolt M08x15, Nut and Washer).
Bend ECTB100-45 is an accessory for the ECT100 cable tray system and is used to create a horizontal change of direction within cable routes. The 45° bend enables a gradual transition, allowing cables to be routed without sharp bending and reducing mechanical stress on the cabling. This accessory is suitable for heavy industrial, utility, and infrastructure installations.
The standard version is manufactured from hot dip galvanized carbon steel according to NEN-EN-ISO 1461, with a minimum zinc coating thickness of 60 µm, suitable for heavy industrial and outdoor environments. The hot dip galvanizing process is applied after fabrication and provides full surface protection, including cut edges and fixing holes. This makes the accessory suitable for applications with increased corrosive and mechanical loads, in accordance with IEC 61537 and installations compliant with NEN 1010.
The bend is designed as a fixed horizontal bend with an angle of 45° and a standard radius of 50 mm. The execution is equipped with integrated connectors, including 16x EFS08x15 fixing set (carriage bolt M08x15, nut, and washer), enabling fast and alignment-stable installation. The accessory is fully compatible with ECT100 cable trays and other system components.
Technical Specifications
- Product type: Fixed horizontal bend for cable tray
- System: ECT100
- System height: 100 mm
- System width: 100 to 600 mm
- Material thickness: 1.0 to 1.5 mm
- Angle: 45°
- Radius: 50 mm

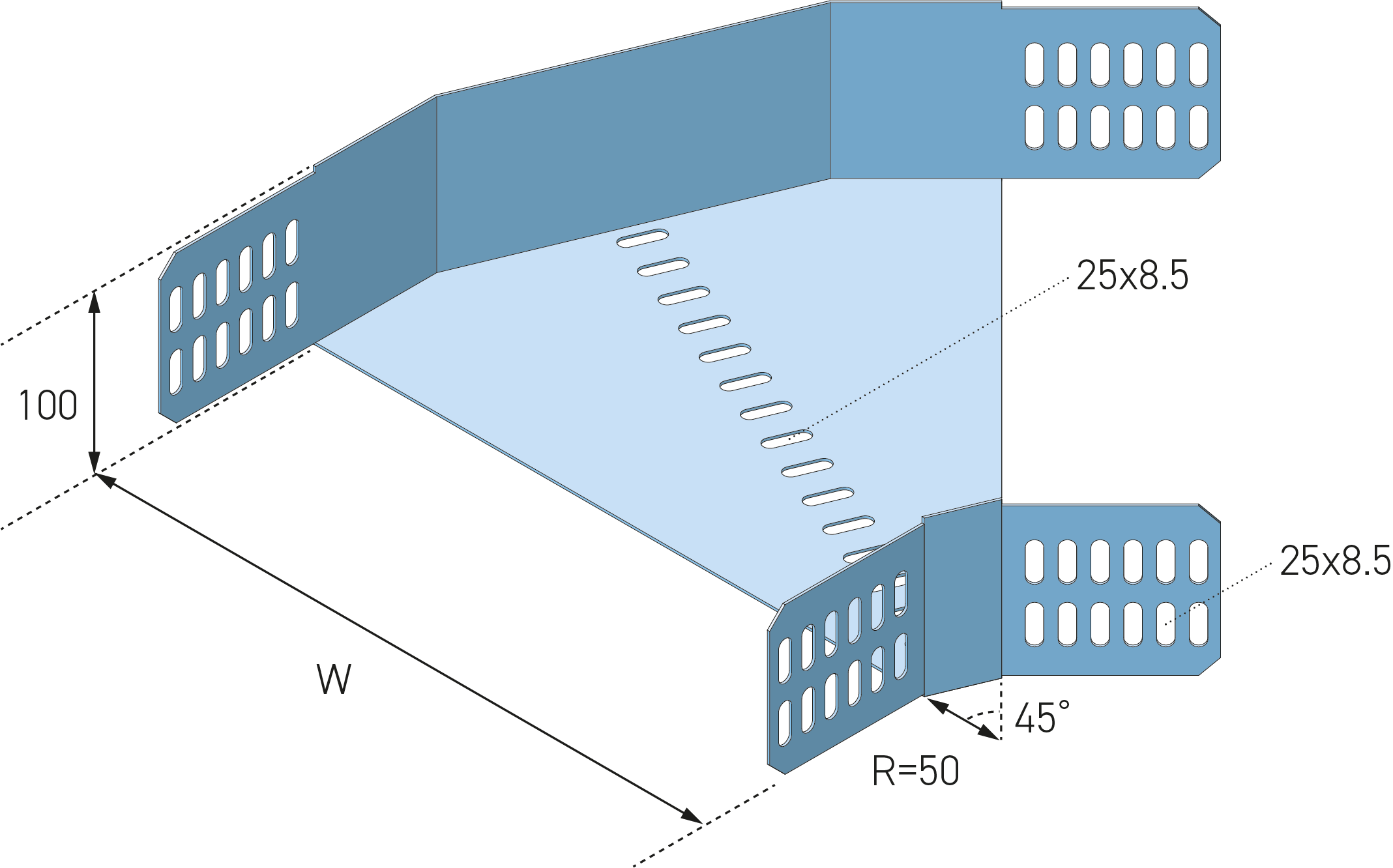

- Connector perforation: 25 x 8.5 mm
- Bottom perforation: 25 x 8.5 mm
- Material: Carbon steel
- Surface finish: Hot dip galvanized according to NEN-EN-ISO 1461
- Zinc coating thickness: minimum 60 µm
- Connection method: Bolted
- Execution: With integrated connectors, including 16x EFS08x15 fixing set (carriage bolt M08x15, nut, and washer)
- Standards: IEC 61537, applicable within installations compliant with NEN 1010
- Direction change: Horizontal
- Construction type: Rigid bend
- Bend type: Smooth bend
- Top cover: No
- Side perforation: No
- Bottom perforation: Yes
Typical Applications

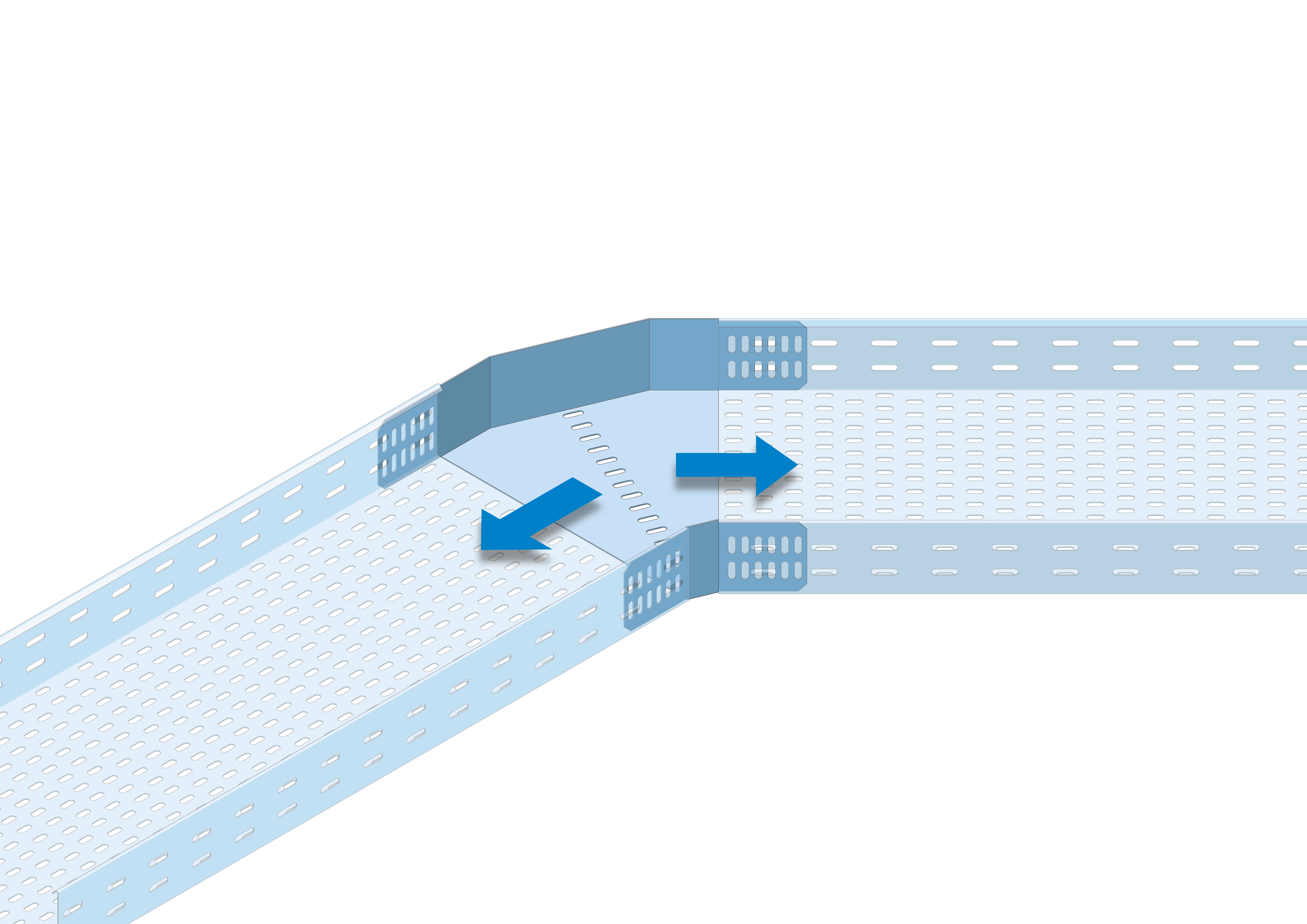

- Horizontal direction changes in cable tray systems
- Cable routing with controlled bending radius
- Heavy industrial and outdoor installations
- Utility and infrastructure cable routes
Available Material Variants
- HDG: Hot dip galvanized carbon steel according to NEN-EN-ISO 1461, with a minimum zinc coating thickness of 60 µm, suitable for heavy industrial and outdoor environments.
- PG: Pre galvanized carbon steel according to EN 10346, suitable for dry indoor environments and light industrial applications.
- Stainless steel 304 (A2 / 1.4301): Stainless steel for indoor environments and lightly corrosive conditions.
- Stainless steel 316 (A4 / 1.4404): Stainless steel with enhanced corrosion resistance for chemical, maritime, and offshore applications.
Complementary Products
For a complete installation within the ECT100 system, the following components are relevant:
- Cable trays: ECT100 cable trays in various widths
- Couplers: For longitudinal connections
- Brackets: Wall, ceiling, and trapeze brackets
- Covers and clamps: For protection and fixation
These components together ensure a safe, compatible, and maintenance-friendly installation.
Other widths, radii and angles available on request.
