Bend 45° Open Cable Protection Tube 30mm HDG
Product number:
SRBO-45-30-FT
Brand:
Eurostrut
Fast delivery
20 years of expertise and experience
Own brand of high quality
Variations
Product number
Inner diameter
Outer diameter
Bend angle
Material quality
Inner diameter:
27 mm
Outer diameter:
30 mm
Bend angle:
45 °
Material quality:
Hot dip galvanized
Product number
Inner diameter
Outer diameter
Bend angle
Material quality
Inner diameter:
27 mm
Outer diameter:
30 mm
Bend angle:
45 °
Material quality:
Stainless Steel 316
Product number
Inner diameter
Outer diameter
Bend angle
Material quality
Inner diameter:
27 mm
Outer diameter:
30 mm
Bend angle:
45 °
Material quality:
Stainless Steel 304
Product information
| Material : | Metal |
|---|---|
| Material quality : | Steel |
| Surface protection : | Hot-dip galvanised |
| Surface polished : | No |
| Colour : | Other |
| Model : | Rigid |
| Shape : | Outer - and inner side plain |
| Inner diameter : | 27 mm |
| Outer diameter : | 30 mm |
| Bend angle : | 45 ° |

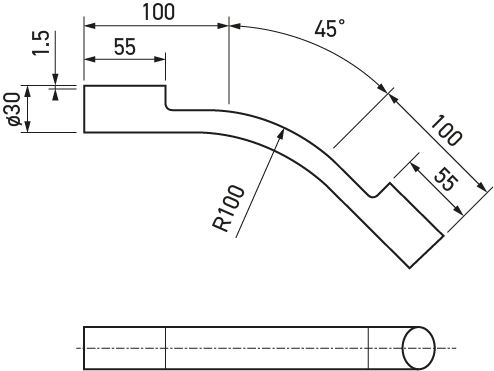

The SRBO-45-30-FT is a 45° open bend for cable protection tubes with an outer diameter of 30 mm. It features precisely laser-cut openings that allow for controlled cable entry or branching, ideal for accessible installations in industrial systems.
This bend is made of cold-rolled steel S235JRG and hot-dip galvanized in accordance with NEN-EN-ISO 1461, with a minimum zinc layer of 45 µm. This provides excellent protection against corrosion, making it suitable for both indoor and outdoor environments.
Compatible with Eurostrut tubes SR-30-FT and SRL-30-FT. Install using the SKM-30-FT coupling sleeve.
- Material: Cold-rolled steel S235JRG
- Finish: Hot-dip galvanized to NEN-EN-ISO 1461 (min. 45 µm)
- Bend angle: 45°
- Outer diameter: 30 mm
- Inner diameter: 27 mm
- Wall thickness: 1.5 mm
- Type: Open bend with laser-cut slots
- Installation: SKM-30-FT coupling sleeve
Applications:
- Installations requiring cable entry via a bend
- Industrial cable routing systems
- Infrastructure and machinery construction
- Accessible routing points for inspection or branching
Datasheet_Eurostrut_SRBO-45-30_NL_2
