Bend 90° Cable Ladder ECL100 1000mm HDG

Variations

Product number

EFB100-100-90-300-HDG

For ladder height

Radius

Angle

For ladder height:

100 mm

Radius:

300 mm

Angle:

90°

Product number

EFB100-1000-90-300-HDG

For ladder height:

100 mm

Radius:

300 mm

Angle:

90°

Product number

EFB100-200-90-300-HDG

For ladder height:

100 mm

Radius:

300 mm

Angle:

90°

Product number

EFB100-300-90-300-HDG

For ladder height:

100 mm

Radius:

300 mm

Angle:

90°

Product number

EFB100-400-90-300-HDG

For ladder height:

100 mm

Radius:

300 mm

Angle:

90°

Product number

EFB100-500-90-300-HDG

For ladder height:

100 mm

Radius:

300 mm

Angle:

90°

Product number

EFB100-600-90-300-HDG

For ladder height:

100 mm

Radius:

300 mm

Angle:

90°

Product number

EFB100-700-90-300-HDG

For ladder height:

100 mm

Radius:

300 mm

Angle:

90°

Product number

EFB100-800-90-300-HDG

For ladder height:

100 mm

Radius:

300 mm

Angle:

90°

Product number

EFB100-900-90-300-HDG

For ladder height:

100 mm

Radius:

300 mm

Angle:

90°

Product number

EFB100-100-90-300-316

For ladder height

Radius

Angle

For ladder height:

100 mm

Radius:

300 mm

Angle:

90°

Product number

EFB100-1000-90-300-316

For ladder height:

100 mm

Radius:

300 mm

Angle:

90°

Product number

EFB100-200-90-300-316

For ladder height:

100 mm

Radius:

300 mm

Angle:

90°

Product number

EFB100-300-90-300-316

For ladder height:

100 mm

Radius:

300 mm

Angle:

90°

Product number

EFB100-400-90-300-316

For ladder height:

100 mm

Radius:

300 mm

Angle:

90°

Product number

EFB100-500-90-300-316

For ladder height:

100 mm

Radius:

300 mm

Angle:

90°

Product number

EFB100-600-90-300-316

For ladder height:

100 mm

Radius:

300 mm

Angle:

90°

Product number

EFB100-700-90-300-316

For ladder height:

100 mm

Radius:

300 mm

Angle:

90°

Product number

EFB100-800-90-300-316

For ladder height:

100 mm

Radius:

300 mm

Angle:

90°

Product number

EFB100-900-90-300-316

For ladder height:

100 mm

Radius:

300 mm

Angle:

90°

Product number

EFB100-100-90-300-304

For ladder height

Radius

Angle

For ladder height:

100 mm

Radius:

300 mm

Angle:

90°

Product number

EFB100-1000-90-300-304

For ladder height:

100 mm

Radius:

300 mm

Angle:

90°

Product number

EFB100-200-90-300-304

For ladder height:

100 mm

Radius:

300 mm

Angle:

90°

Product number

EFB100-300-90-300-304

For ladder height:

100 mm

Radius:

300 mm

Angle:

90°

Product number

EFB100-400-90-300-304

For ladder height:

100 mm

Radius:

300 mm

Angle:

90°

Product number

EFB100-500-90-300-304

For ladder height:

100 mm

Radius:

300 mm

Angle:

90°

Product number

EFB100-600-90-300-304

For ladder height:

100 mm

Radius:

300 mm

Angle:

90°

Product number

EFB100-700-90-300-304

For ladder height:

100 mm

Radius:

300 mm

Angle:

90°

Product number

EFB100-800-90-300-304

For ladder height:

100 mm

Radius:

300 mm

Angle:

90°

Product number

EFB100-900-90-300-304

For ladder height:

100 mm

Radius:

300 mm

Angle:

90°

Product information

Change of direction :	Horizontal
Type of side joist :	Profile (open)
Side perforation :	Yes

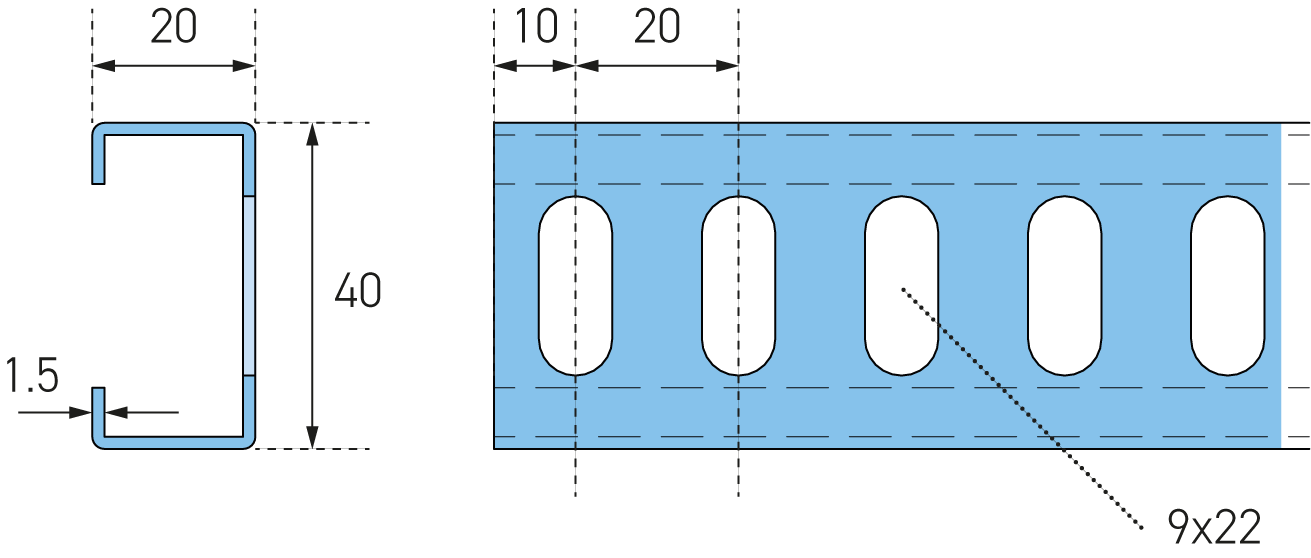

Type of rung :	Perforated profile
Angle :	90°
Bend model :	Smooth bend
Hinging :	No
Suitable for cable ladder height :	100 mm
Suitable for cable ladder width :	1000 mm

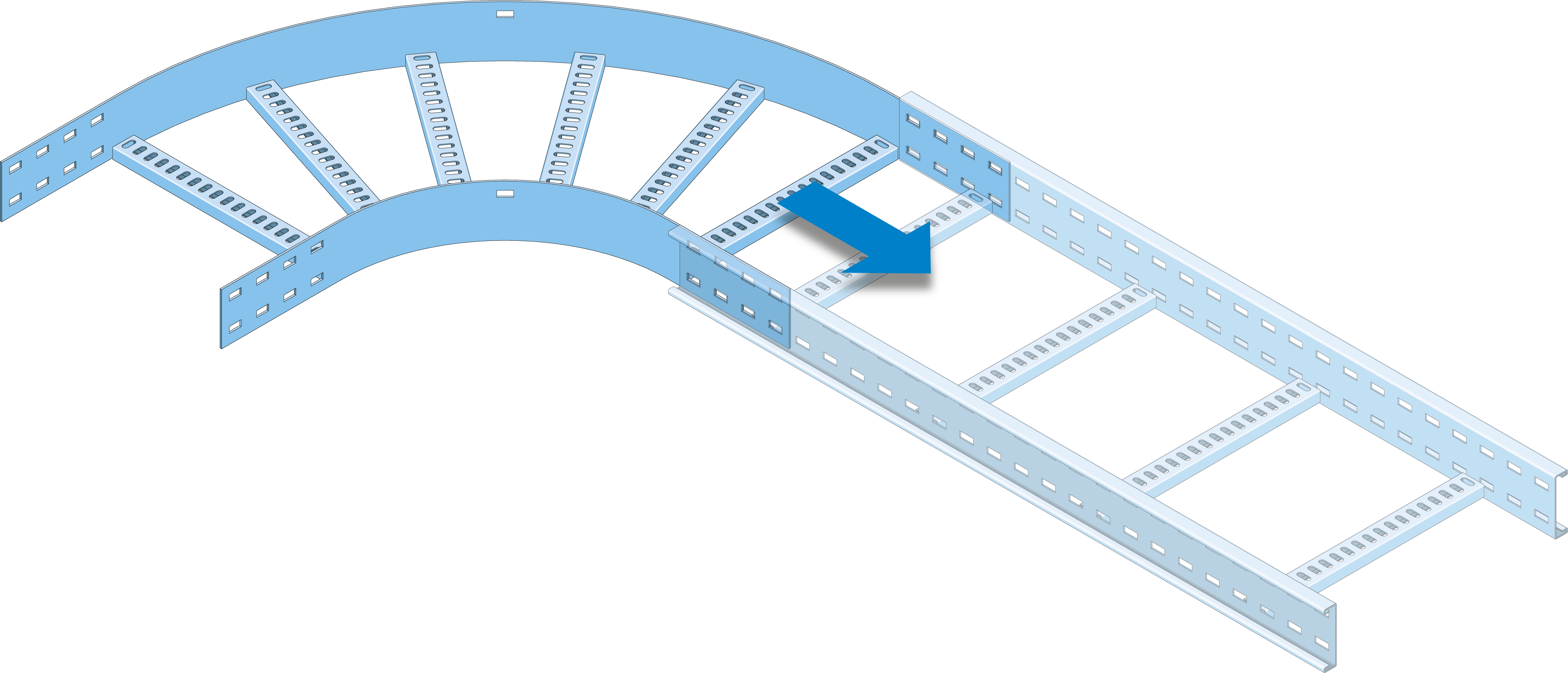

Model :	Included connector

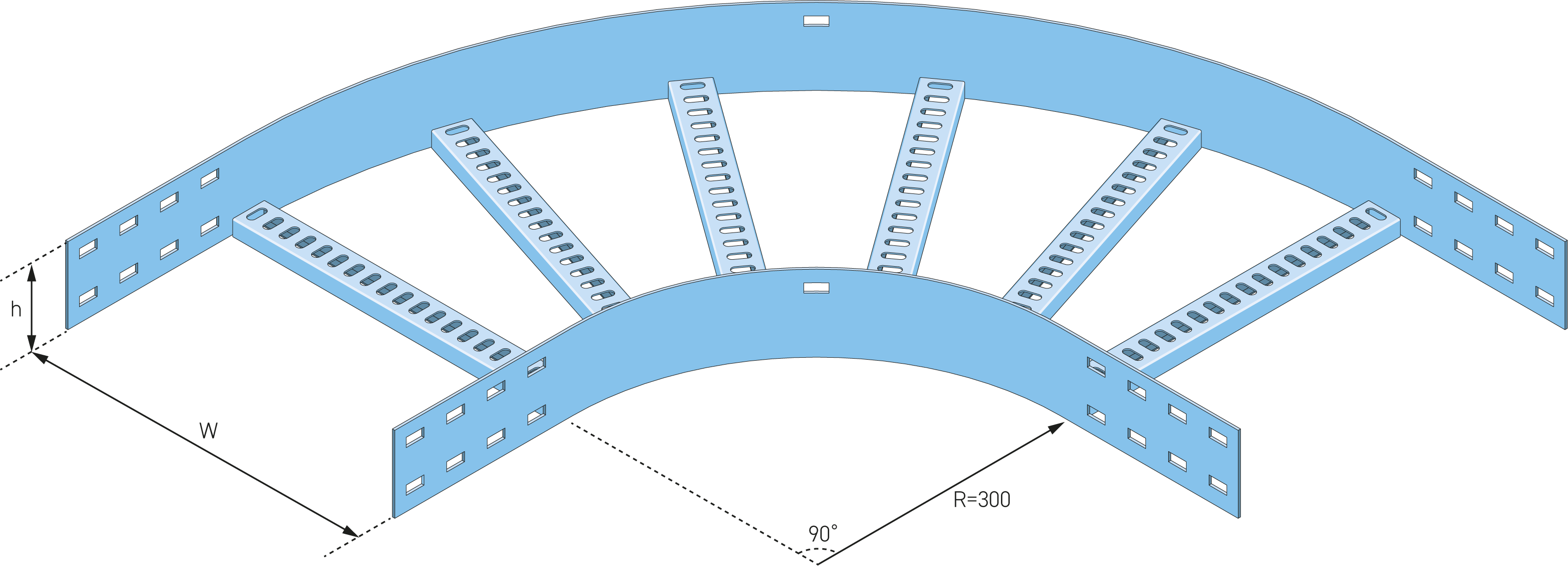

Inner radius :	300 mm
Material :	Steel
Material quality :	Other
Surface protection :	Hot-dip galvanised
Colour :	Zinc

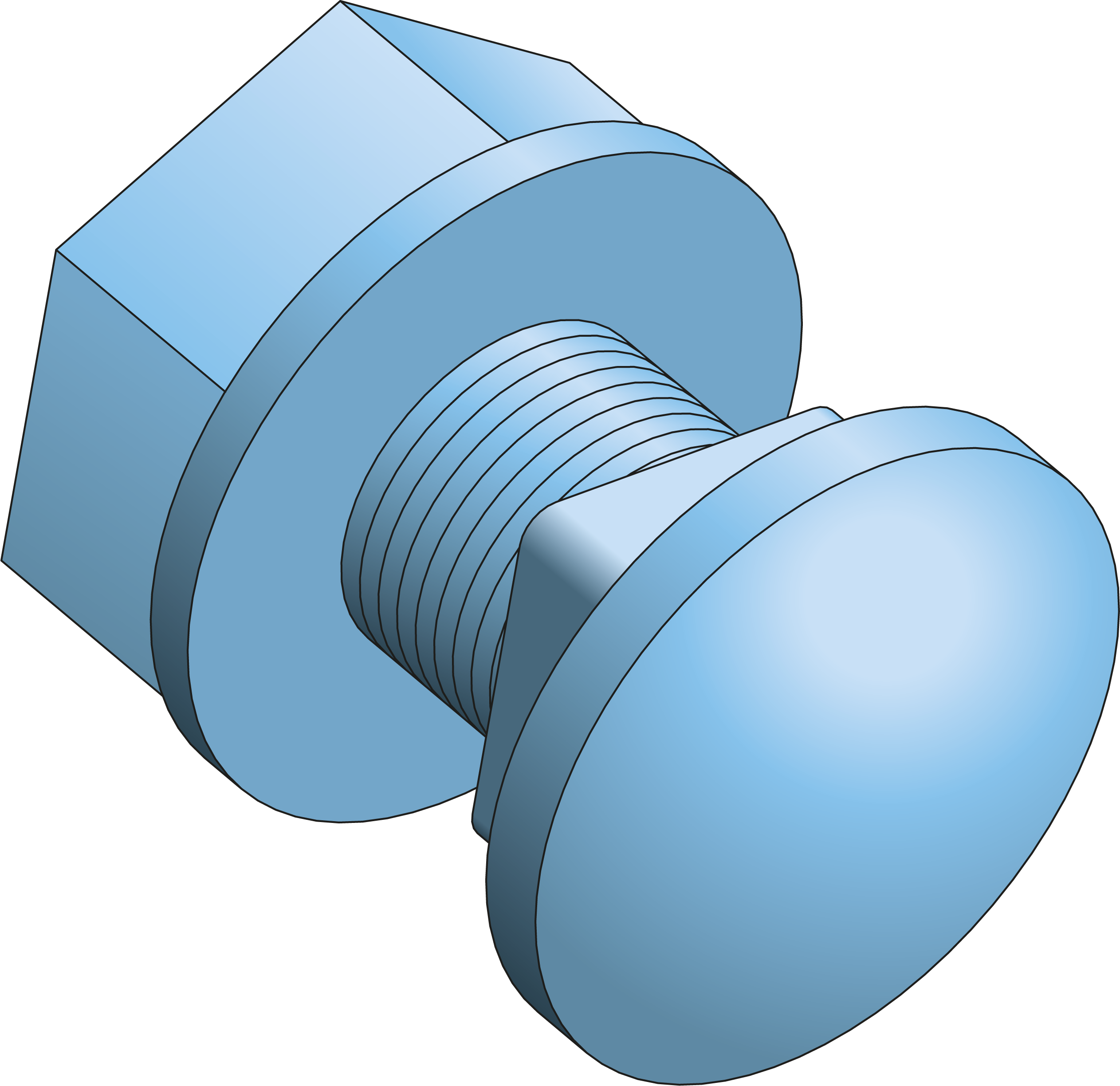

For Eurostrut Cable Ladder ECL100, H=100mm, W=1000mm, T=3,0mm, R=300, Hot Dip Galvanized Carbon Steel, layer 65 to 70µm, including 16x ESL-SB-H Eurostrut fixing set (square neck bolt M10x20, nut and washer).

Properties

Manufactured in accordance with BS EN 61537/IEC 61537.
Standard surface finish of the cable ladder is hot dip galvanized (HDG) according to EN-ISO 1461.
All rungs are welded to the side wall of the cable ladder.
Accessories must be supported on all sides.

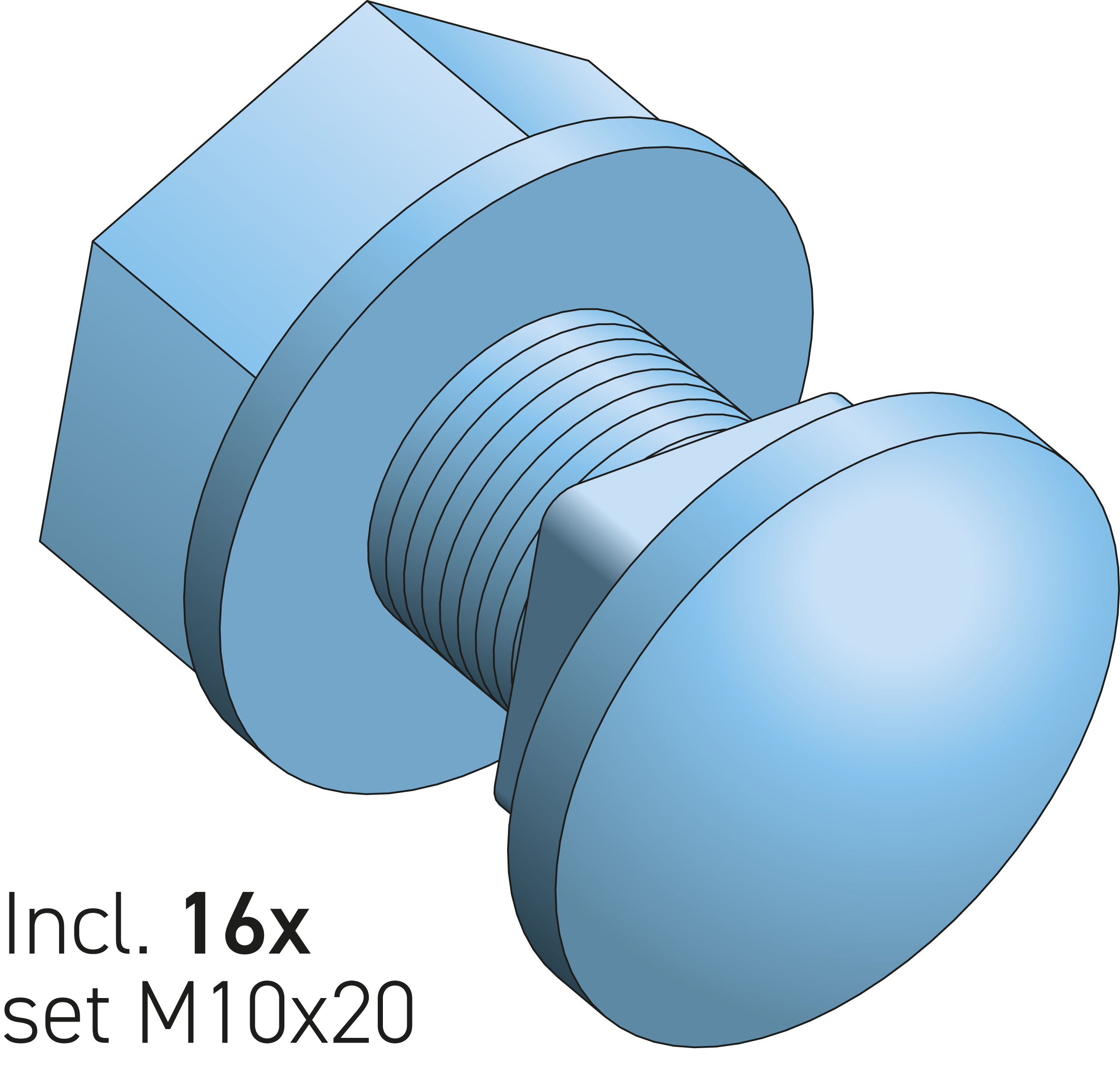

Including 16x set M10x20.

Variations

On request also available in stainless steel 304 or 316L.
