Branch Cable Tray ECT60 100mm HDG
Want to view our prices?
Our pricing is exclusively available to registered customers.
Variations
Product information
| Suitable for cable tray height : | 60 mm |
|---|---|
| Cable tray branch width : | 100 mm |
| Inner radius : | 50 mm |
| Suitable for connection with screws : | Yes |
| Suitable for screwless connection : | No |
| Model : | Integrated connector |
| Material : | Steel |
| Material quality : | Rustproof and acidproof steel |
| Surface protection : | Hot-dip galvanised |
| Colour : | Zinc |

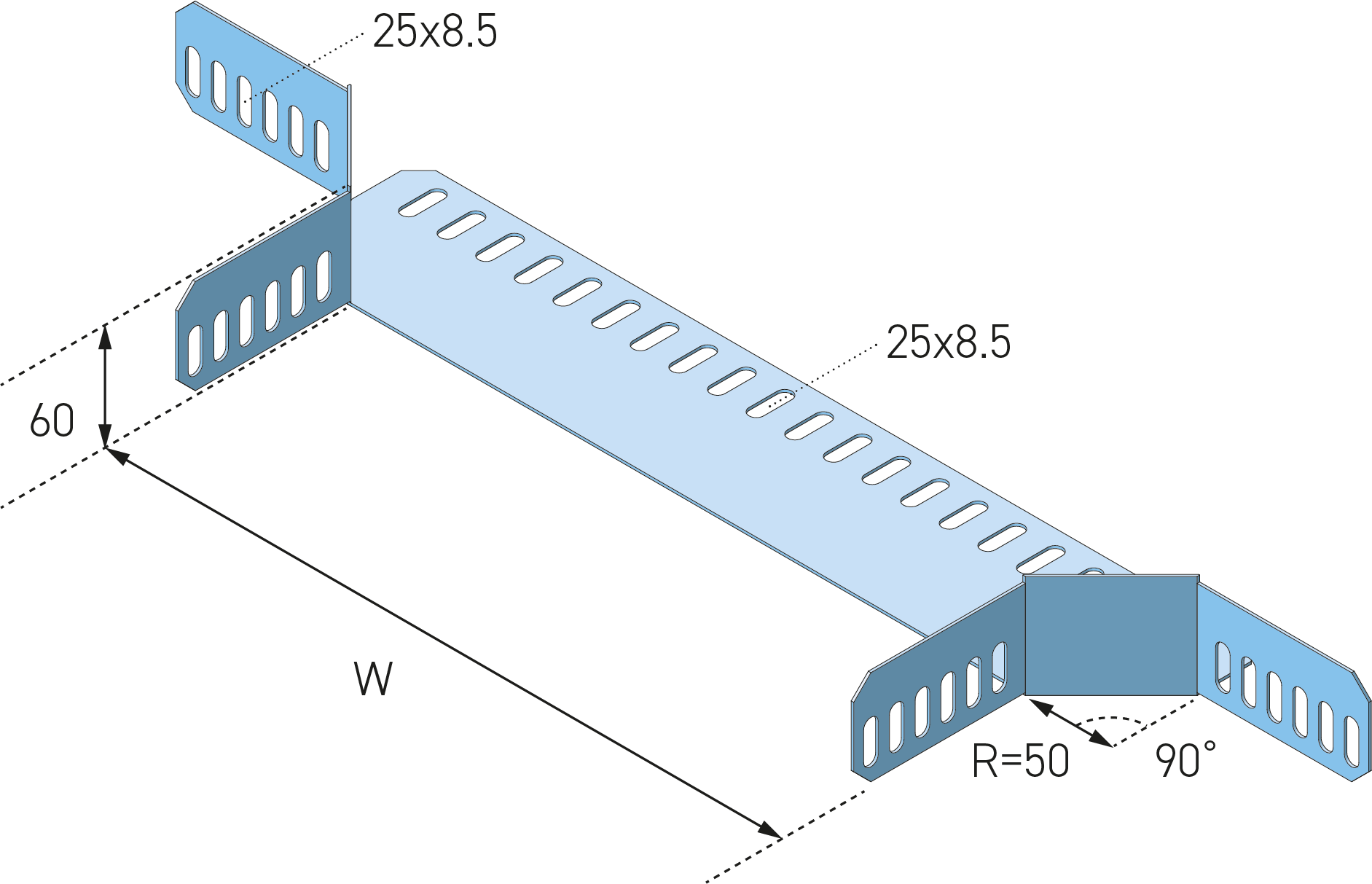

Branch for cable tray ECT60 with sizes H = 60mm, W = 95 mm, E (thickness) = 1.0 mm, carbon steel, thermisch verzinkt, including 8x EFS08x15-GEO Eurostrut fixing set (bolt M08x15, nut and washer).

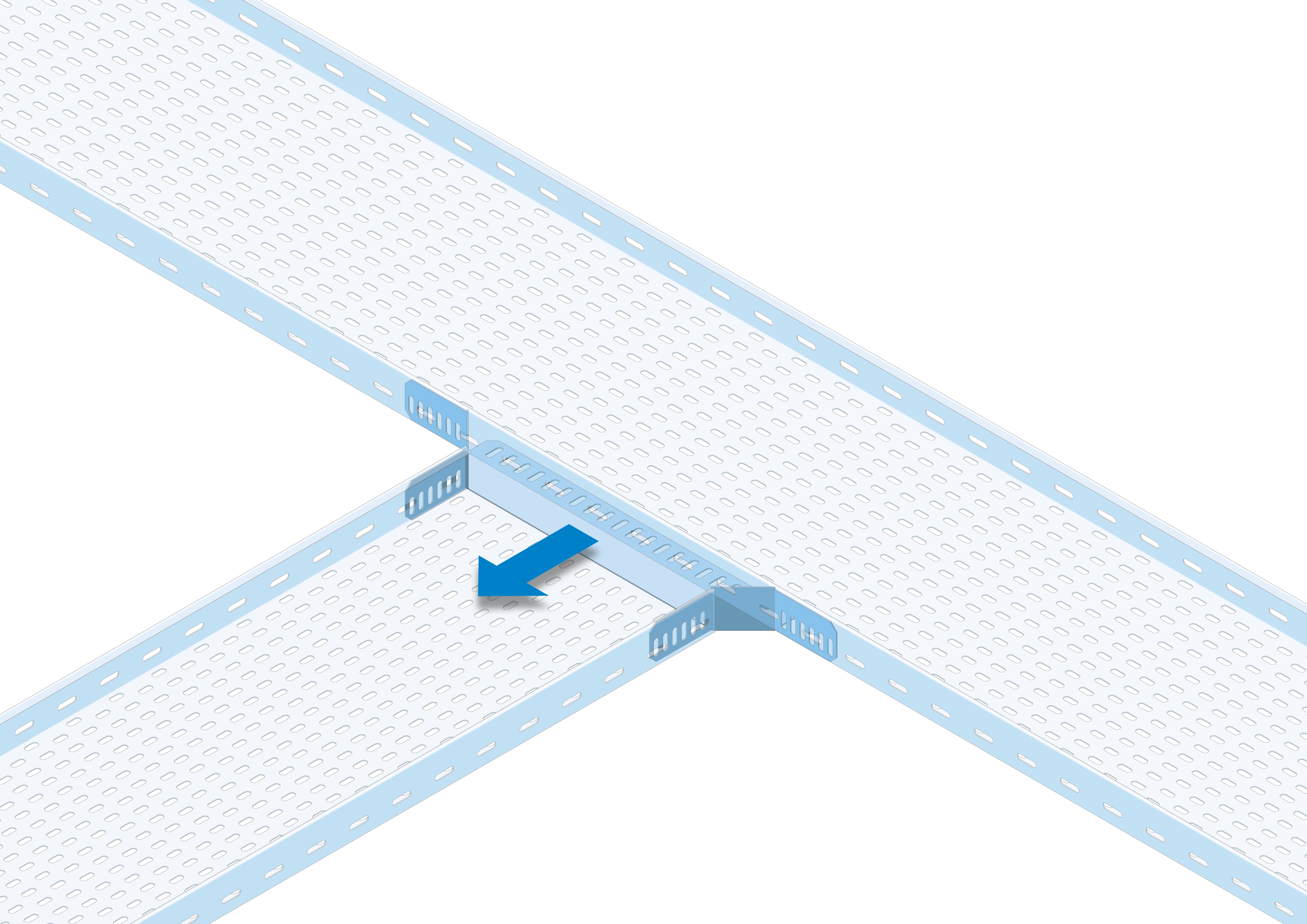

Branch piece ECTAB60 is an accessory for the ECT60 cable tray system and is used to create a horizontal branch within cable routes. The accessory is mounted to the side wall of a straight cable tray and forms a T-junction, functioning in the same manner as a T-piece. This allows cables to be distributed in multiple directions in a controlled way, while maintaining the continuity and mechanical stability of the cable support system. The branch piece is suitable for heavy industrial, utility, and infrastructure installations.
The standard version is manufactured from hot dip galvanized carbon steel according to NEN-EN-ISO 1461, with a minimum coating thickness of 60 µm, suitable for heavy industrial and outdoor environments. The hot dip galvanizing process is applied after fabrication and provides full corrosion protection of the surface, including cut edges and fixing openings. This makes the accessory suitable for applications with increased mechanical and environmental loads, in accordance with IEC 61537 and installations compliant with NEN 1010.
The branch piece is designed as a fixed accessory for direct mounting to the side wall of straight ECT60 cable trays. The execution is equipped with integrated connectors and is supplied including fixing material, enabling fast and alignment-stable installation. The accessory is fully compatible with other ECT60 components and ensures a uniform and clearly arranged cable route.
Technical Specifications
- Product type: Accessory – branch piece for cable tray
- System: ECT60
- System height: 60 mm
- System width: 75 to 600 mm
- Execution: With integrated connectors, including 8x EFS08x15 fixing set (bolt M08x15, nut and washer)
- Standard material: Carbon steel
- Surface finish: Hot dip galvanized according to NEN-EN-ISO 1461
- Zinc coating thickness: minimum 60 µm
- Standards: IEC 61537, applicable within installations compliant with NEN 1010
Typical Applications
- Horizontal branching in ECT60 cable tray systems
- T-junctions via side wall mounting
- Heavy industrial installations
- Utility and infrastructure cable routes
Available Material Variants
- HDG: Hot dip galvanized carbon steel according to NEN-EN-ISO 1461, with a minimum coating thickness of 60 µm, suitable for heavy industrial and outdoor environments.
- PG: Pre galvanized carbon steel according to EN 10346, suitable for dry indoor environments and light industrial applications.
- Stainless steel 304 (A2 / 1.4301): Stainless steel for indoor environments and lightly corrosive conditions.
- Stainless steel 316 (A4 / 1.4404): Stainless steel with enhanced corrosion resistance for chemical, maritime, and offshore applications.
Complementary Products
For a complete installation, Eurostrut offers various accessories, such as:
- Straight cable trays: ECT60 cable trays in various widths
- Bends and T-pieces: Directional and branching accessories for ECT60 systems
- Couplers: Coupling plates and bolt sets for ECT60 cable trays
These components ensure a safe, compatible, and maintenance-friendly installation.
Other widths available on request.
