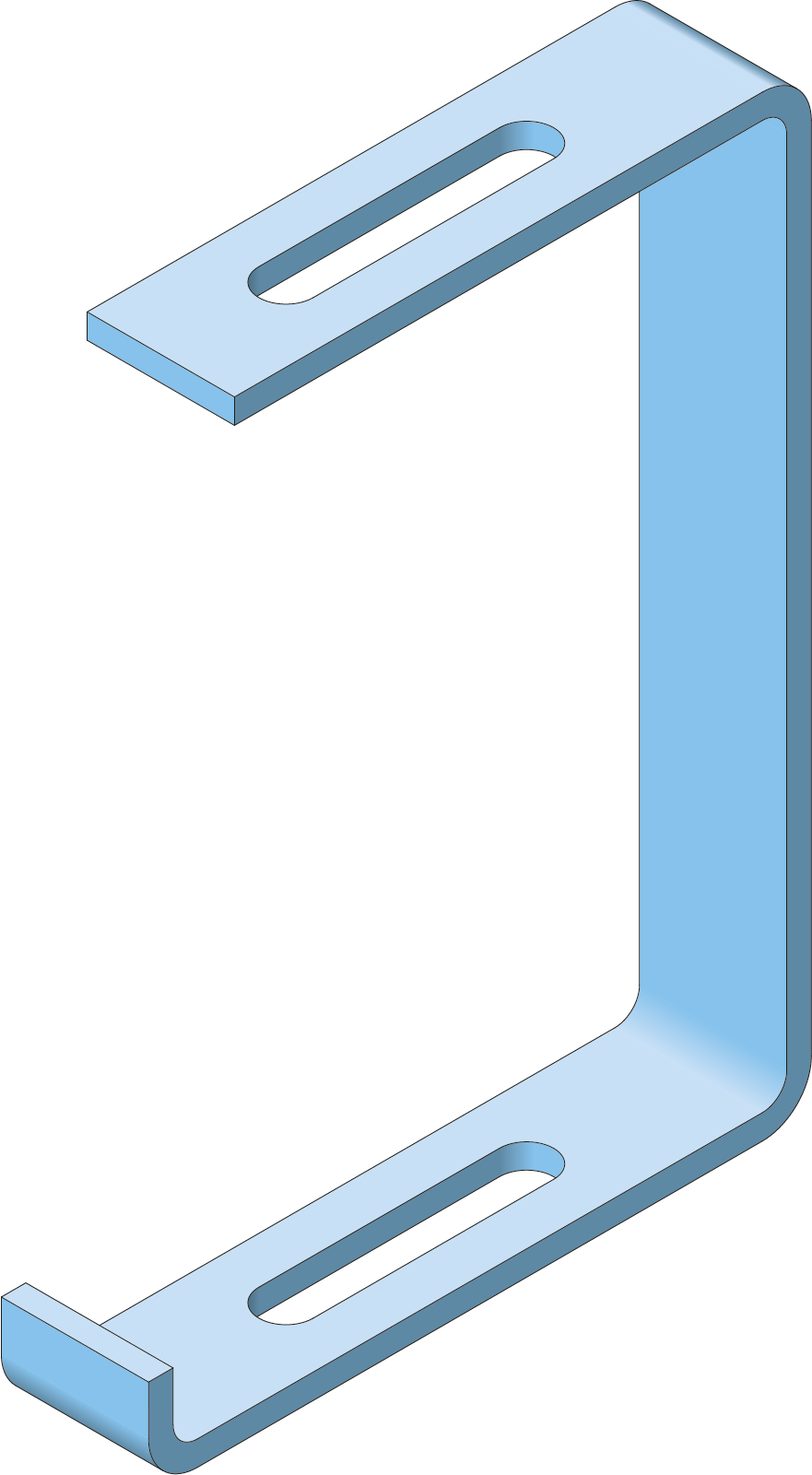

C-bracket Cable Tray ECT 75mm HDG
Want to view our prices?
Our pricing is exclusively available to registered customers.
Variations
Product information
| Suitable for cable support system width : | 75 - 75 mm |
|---|---|
| Suitable for cable support system height : | 60 - 100 mm |
| Model : | Face out bracket (C-bracket) |
| Suitable for wire mesh tray : | No |
| Suitable for cable ladder : | No |
| Suitable for cable tray : | Yes |
| Tray mounting : | Screwable |
| Material : | Steel |
| Material quality : | Rustproof and acidproof steel |
| Surface protection : | Hot-dip galvanised |
| Colour : | Zinc |

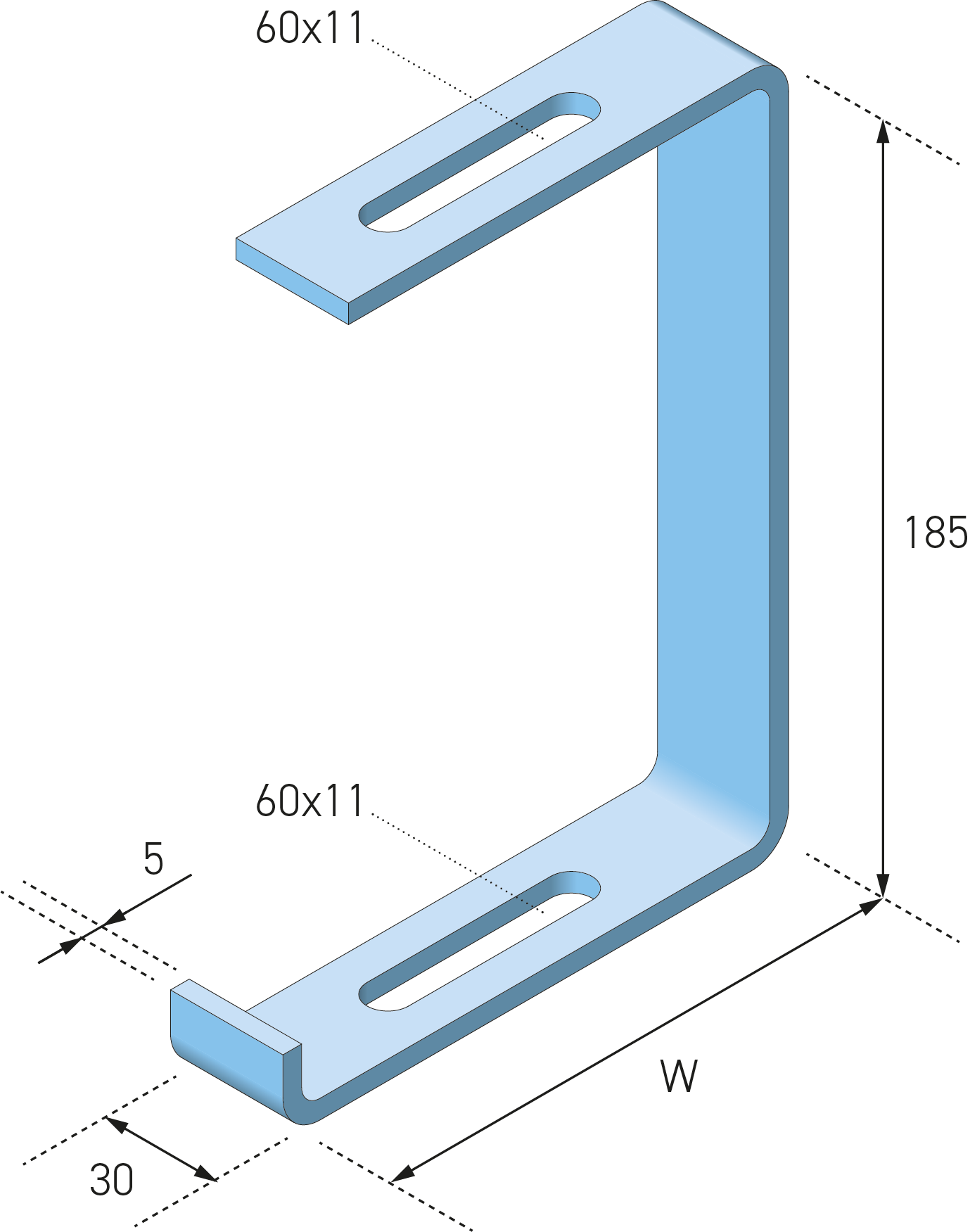

C-bracket for cable tray ECT60 and ECT100, with sizes W = 70 mm, carbon steel, hot dip galvanized according to NEN-EN-ISO 1461, minimum layer thickness 90 µm, excluding fixing material.
C-bracket ECTCB is an accessory for the ECT60 and ECT100 cable tray systems and is used for ceiling mounting of cable trays. The bracket provides a stable and load-bearing support for cable tray routes fixed to ceilings or overhead structures and is suitable for system widths from 75 to 300 mm. This accessory is suitable for heavy industrial, utility, and infrastructure installations.
The standard version is manufactured from hot dip galvanized carbon steel according to NEN-EN-ISO 1461, with an increased zinc coating thickness of at least 90 µm. This heavy-duty corrosion protection makes the bracket suitable for heavy industrial and outdoor environments. The hot dip galvanizing process is applied after fabrication and provides full surface protection, including cut edges, in accordance with IEC 61537 and installations compliant with NEN 1010.

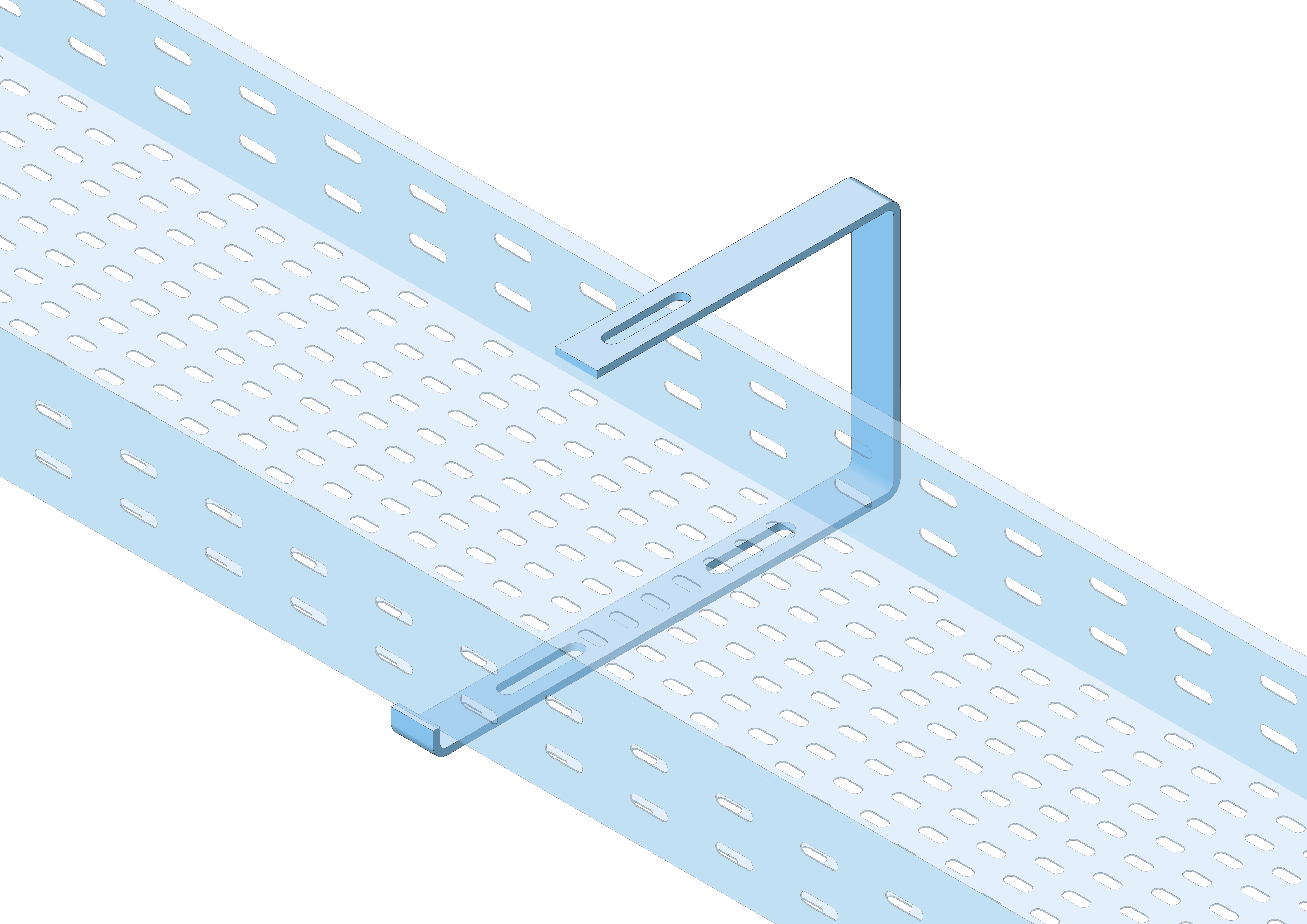

The C-bracket features a robust construction and is designed for direct ceiling mounting. The cable tray is placed within the bracket and secured using appropriate fixing materials (not included). The execution is fully compatible with ECT60 and ECT100 cable trays and associated system components.
Technical Specifications
- Product type: Accessory – C-bracket for cable tray
- System: ECT60 and ECT100
- System width: 75 to 300 mm
- Installation: Ceiling mounting
- Execution: Without fixing materials
- Material: Carbon steel
- Surface finish: Hot dip galvanized according to NEN-EN-ISO 1461
- Zinc coating thickness: minimum 90 µm
- Standards: IEC 61537, applicable within installations compliant with NEN 1010
Typical Applications
- Ceiling mounting of cable trays
- Support of horizontal cable routes from ceilings
- Heavy industrial and outdoor installations
- Utility and infrastructure cable routes
Available Material Variants
- HDG: Hot dip galvanized carbon steel according to NEN-EN-ISO 1461, with a zinc coating thickness of at least 90 µm, suitable for heavy industrial and outdoor environments.
- PG: Pre galvanized carbon steel according to EN 10346, suitable for dry indoor environments and light industrial applications.
- Stainless steel 304 (A2 / 1.4301): Stainless steel for indoor environments and lightly corrosive conditions.
- Stainless steel 316 (A4 / 1.4404): Stainless steel with enhanced corrosion resistance for chemical, maritime, and offshore applications.
Complementary Products
For a complete installation within the ECT system, the following components are relevant:

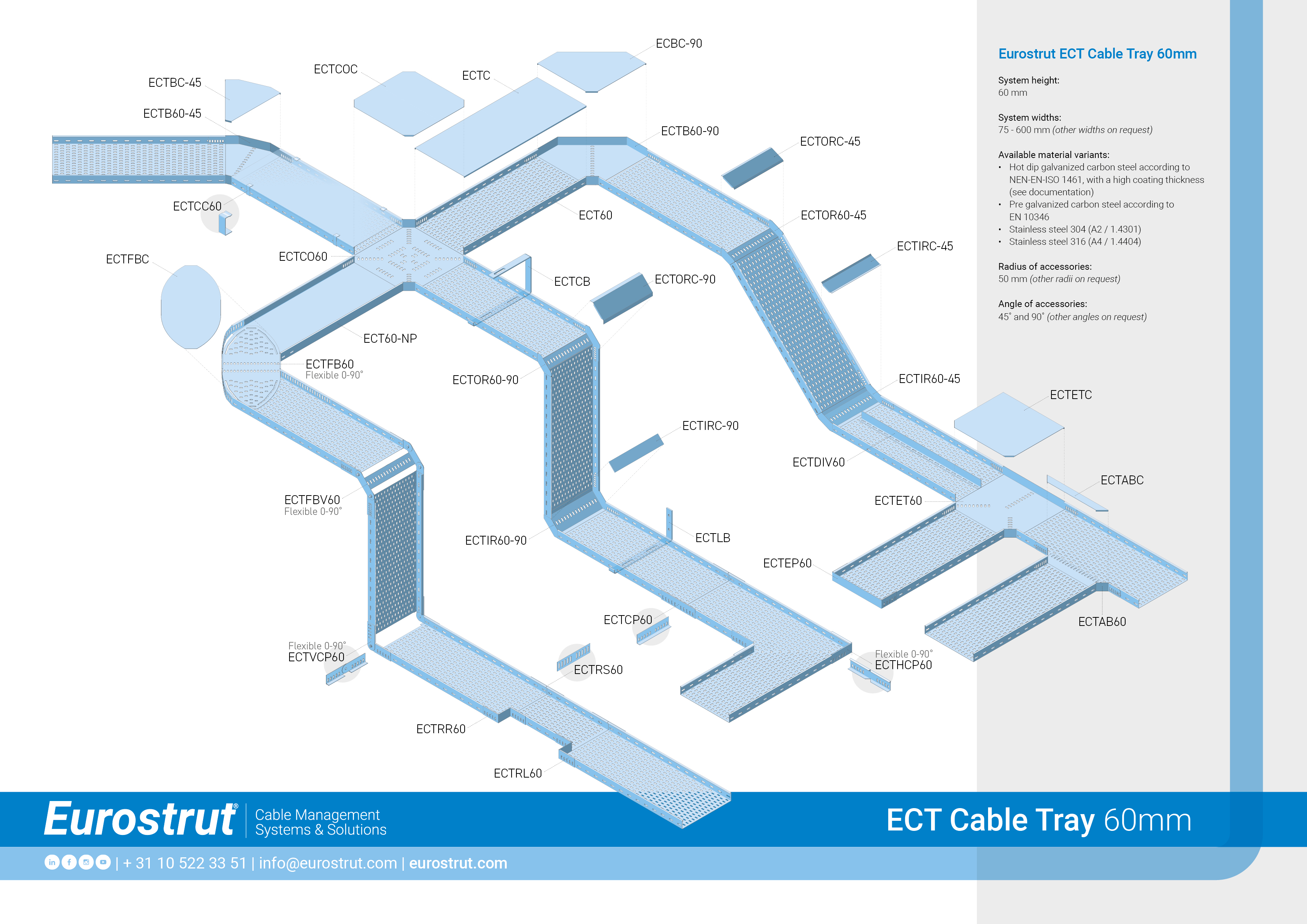

- Cable trays: ECT60 and ECT100 cable trays in various widths
- Fixing materials: Anchors and bolt sets for ceiling mounting
- Covers and clamps: For finishing and securing cable trays
These components together ensure a safe, compatible, and maintenance-friendly installation.
Other lengths available on request.
