Coupling Socket Cable Protection Tube 60mm HDG
Product number:
SKM-60-FT
Brand:
Eurostrut
Fast delivery
20 years of expertise and experience
Own brand of high quality
Want to view our prices?
Our pricing is exclusively available to registered customers.
Variations
Product number
Outer diameter
Inner diameter
Material quality
Outer diameter:
60.3 mm
Inner diameter:
56 mm
Material quality:
Hot dip galvanized
Product number
Outer diameter
Inner diameter
Material quality
Outer diameter:
60.3 mm
Inner diameter:
56 mm
Material quality:
Stainless Steel 316
Product number
Outer diameter
Inner diameter
Material quality
Outer diameter:
60.3 mm
Inner diameter:
56 mm
Material quality:
Stainless Steel 304
Product information
| Material : | Metal |
|---|---|
| Material quality : | Steel |
| Surface protection : | Hot-dip galvanised |
| Colour : | Zinc |
| Inner diameter : | 56 mm |
| Outer diameter : | 60.3 mm |
| Reducing : | No |
| With rubber seal : | No |
| Separable : | No |

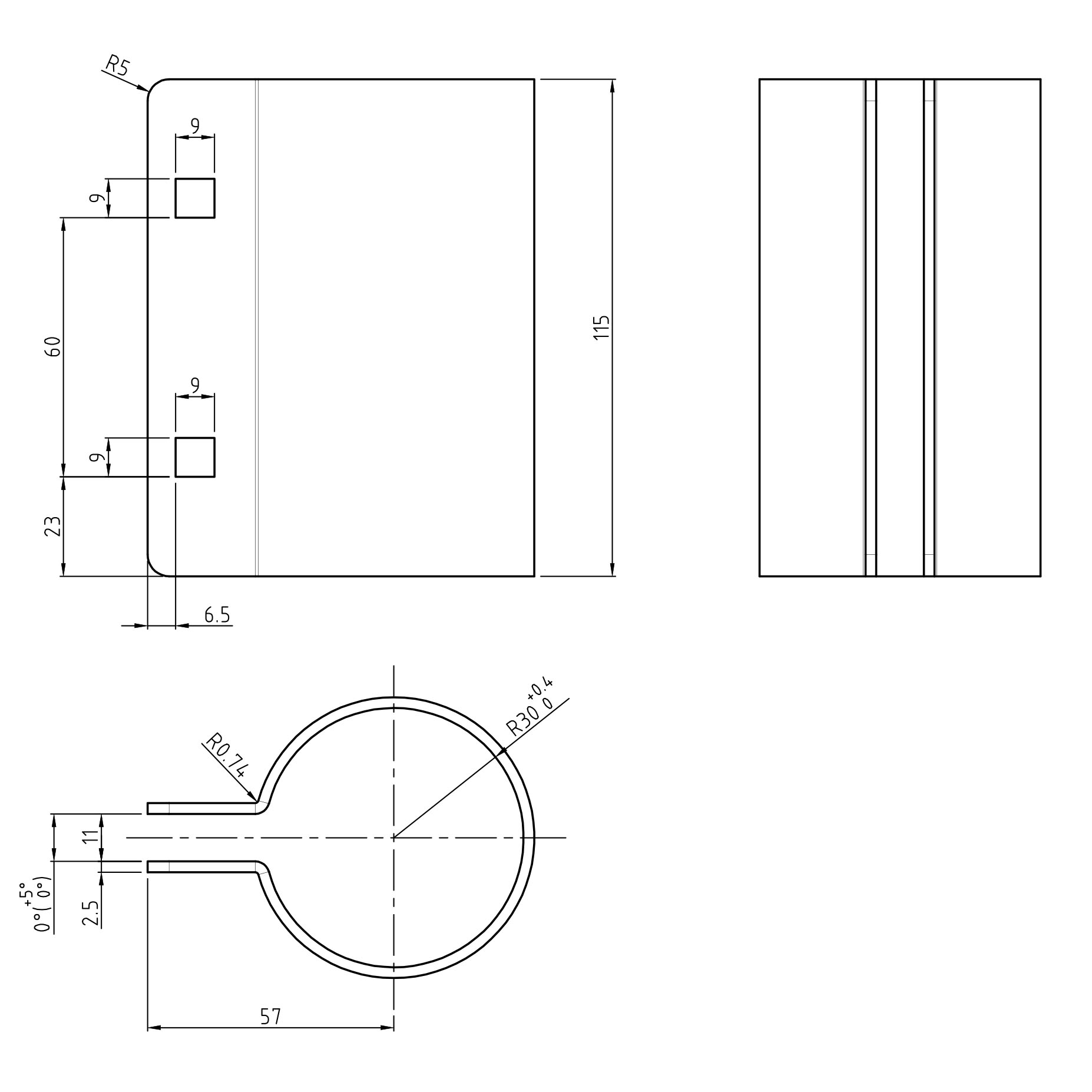

The SKM-60-FT is a coupling sleeve for cable protection tubes with an outer diameter of 60.3 mm. It is used to securely connect two tube ends, providing a strong and mechanically stable joint for various installation environments.
Made from cold-rolled steel S235JRG and hot-dip galvanized in accordance with NEN-EN-ISO 1461, the sleeve features a minimum zinc layer of 45 µm for reliable corrosion resistance both indoors and outdoors.
- Material: Cold-rolled steel S235JRG
- Finish: Hot-dip galvanized to NEN-EN-ISO 1461 (min. 45 µm)
- Application: Connecting Ø60.3 mm cable protection tubes
- Outer diameter: 60.3 mm
- Inner diameter: 56 mm
- Length: approx. 115 mm
- Wall thickness: 2.5 mm
- Installation: Slide both tube ends into the sleeve
Applications:
- Industrial cable conduit systems
- Infrastructure and utility installations
- Tube extension or repair
