Crossover Cable Ladder ECL60 600mm SS316

Product number: ECO60-600-300-316

Brand: Eurostrut

Fast delivery

20 years of expertise and experience

Own brand of high quality

Need help? Call us +31 10 522 33 51

Material quality

Hot dip galvanized

Stainless Steel 316

Stainless Steel 304

Suitable for cable ladder width

100 mm

200 mm

300 mm

400 mm

600 mm

Want to view our prices?

Our pricing is exclusively available to registered customers.

Create an account

piece

Variations

Product number

ECO60-100-300-HDG

For ladder height

Radius

For ladder width

For ladder height:

60 mm

Radius:

300 mm

For ladder width:

100 mm

Product number

ECO60-200-300-HDG

For ladder height:

60 mm

Radius:

300 mm

For ladder width:

200 mm

Product number

ECO60-300-300-HDG

For ladder height:

60 mm

Radius:

300 mm

For ladder width:

300 mm

Product number

ECO60-400-300-HDG

For ladder height:

60 mm

Radius:

300 mm

For ladder width:

400 mm

Product number

ECO60-600-300-HDG

For ladder height:

60 mm

Radius:

300 mm

For ladder width:

600 mm

Product number

ECO60-100-300-316

For ladder height

Radius

For ladder width

For ladder height:

60 mm

Radius:

300 mm

For ladder width:

100 mm

Product number

ECO60-200-300-316

For ladder height:

60 mm

Radius:

300 mm

For ladder width:

200 mm

Product number

ECO60-300-300-316

For ladder height:

60 mm

Radius:

300 mm

For ladder width:

300 mm

Product number

ECO60-400-300-316

For ladder height:

60 mm

Radius:

300 mm

For ladder width:

400 mm

Product number

ECO60-600-300-316

For ladder height:

60 mm

Radius:

300 mm

For ladder width:

600 mm

Product number

ECO60-100-300-304

For ladder height

Radius

For ladder width

For ladder height:

60 mm

Radius:

300 mm

For ladder width:

100 mm

Product number

ECO60-200-300-304

For ladder height:

60 mm

Radius:

300 mm

For ladder width:

200 mm

Product number

ECO60-300-300-304

For ladder height:

60 mm

Radius:

300 mm

For ladder width:

300 mm

Product number

ECO60-400-300-304

For ladder height:

60 mm

Radius:

300 mm

For ladder width:

400 mm

Product number

ECO60-600-300-304

For ladder height:

60 mm

Radius:

300 mm

For ladder width:

600 mm

Product information

Type of side joist :	Flat profile
Type of rung :	Perforated profile
Suitable for cable ladder height :	60 mm
Suitable for cable ladder width :	600 mm
Inner radius :	300 mm
Material :	Stainless steel
Material quality :	Stainless steel 316 L (1.4404)
Surface protection :	Untreated
Colour :	Stainless steel
Cable ladder branch width :	600 mm

For Cable Ladder ECL60, H = 60 mm, W = 600 mm, E (thickness) = 3,0 mm, R = 300, Stainless Steel 316, including 8x ESL-SB-S304 Eurostrut fixing set (square neck bolt M10x20, nut and washer) Produced on request. Delivery time 5-6 weeks. Heavy Duty.

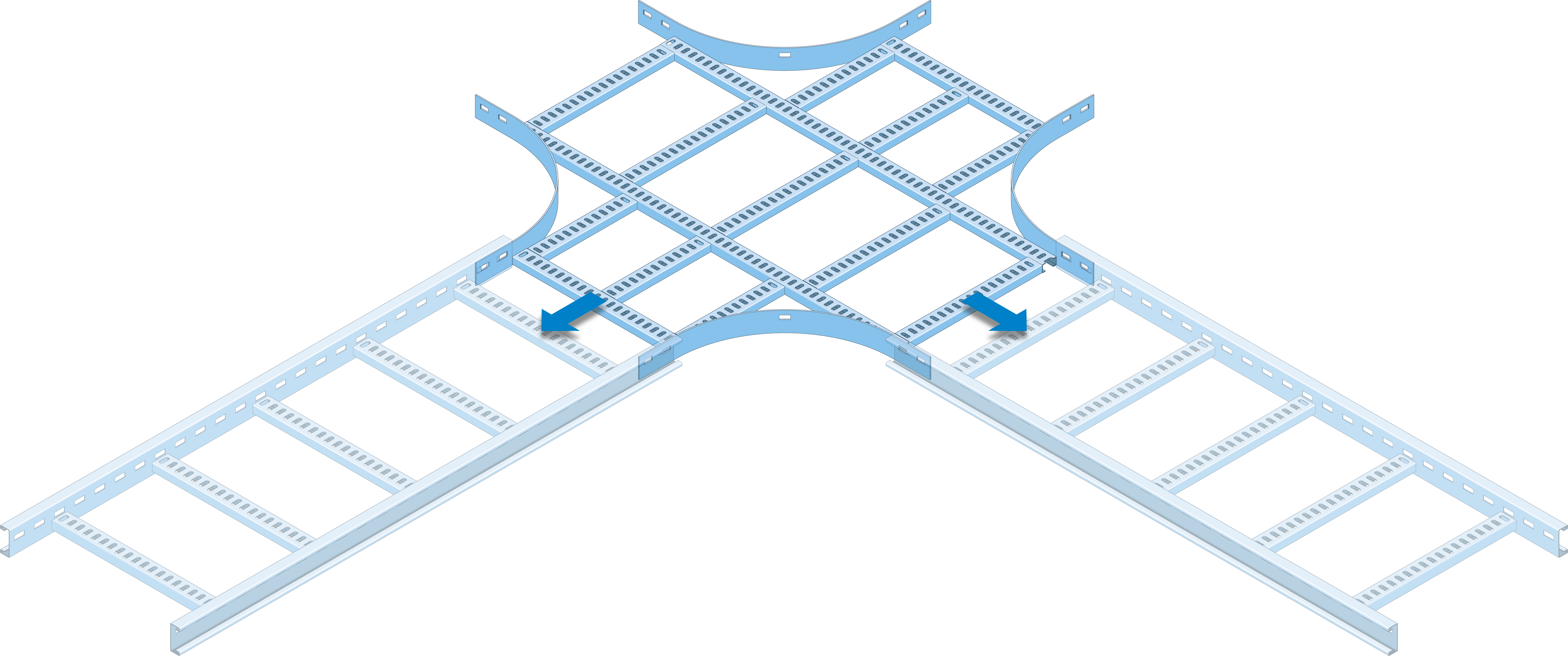

Cross fitting ECO60 is a fitting for the ECL60 cable ladder system and is designed to create four connecting cable routes within a single horizontal junction. The cross fitting enables two cable routes to intersect at right angles and provides connections in four directions. The fitting is suitable for commercial, industrial, and infrastructure installations and connects directly to straight ECL60 cable ladders.

The standard version is manufactured from hot dip galvanized carbon steel according to NEN-EN-ISO 1461, with a zinc coating thickness of 60 to 70 µm. Hot dip galvanizing is applied after fabrication and provides corrosion protection for surfaces, welded joints, and cut edges. The cross fitting is also available in stainless steel AISI 304 (1.4301) and AISI 316L (1.4404) for corrosive or hygienic environments. A RAL powder-coated version is also available on request.

The cross fitting is designed with four connection directions at 90° and a standard radius of 300 mm. The fitting is manufactured from 3 mm steel and is equipped with integrated connectors for connection to the ECL60 cable ladder system. It is supplied including 16x ESL-SB M10x20 fixing set (carriage bolt M10x20, nut, and washer). The cross fitting is fully compatible with ECL60 cable ladders, couplers, and other ECL60 system components.

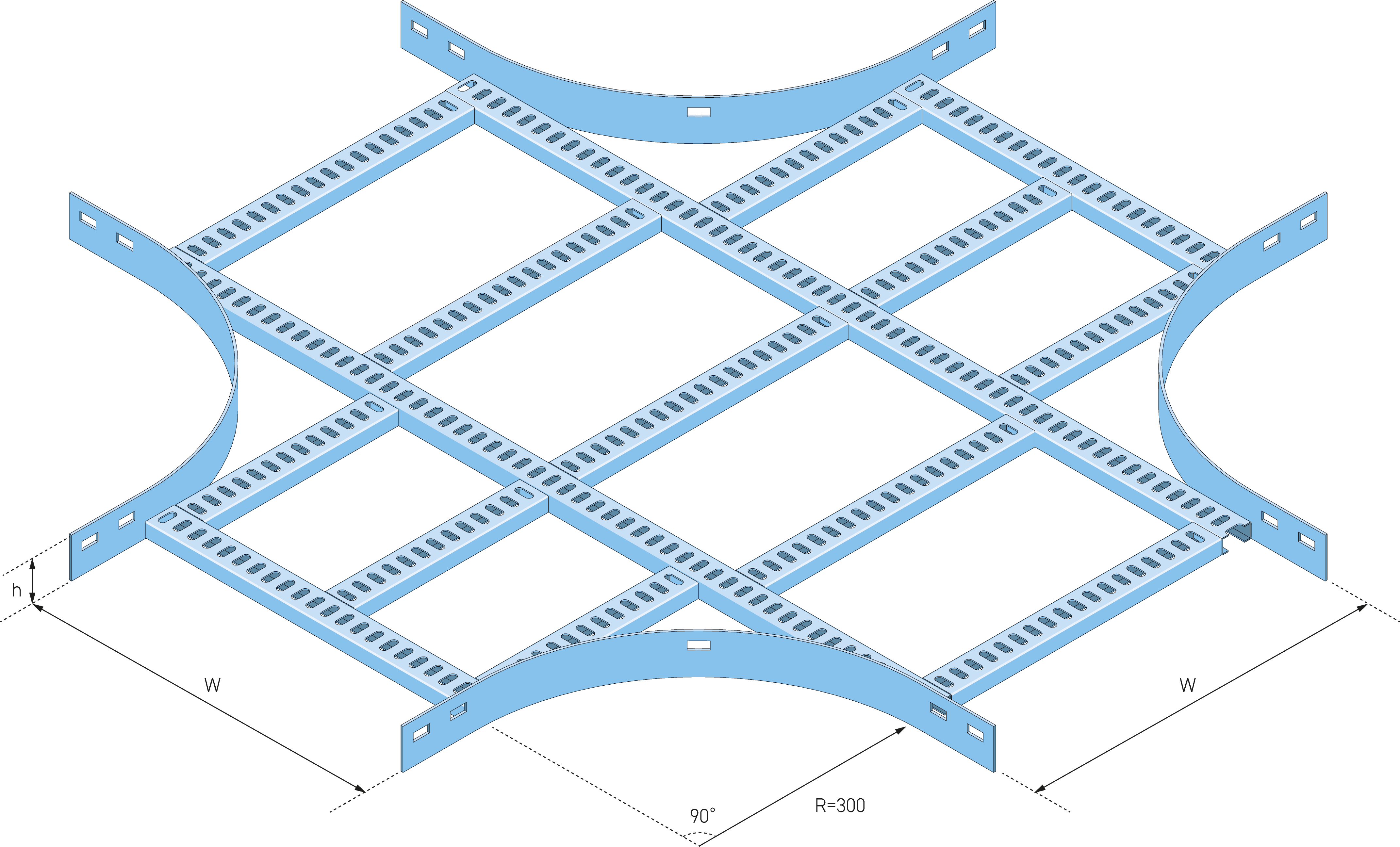

Technical Specifications

Product type: Cross fitting for cable ladder
System: ECL60
Actual height: 54 mm
Nominal width: 100 to 600 mm
Overall width: Nominal width + 11 mm
Connection angle: 90°
Radius: 300 mm
Material thickness: 3 mm
Standard material: Carbon steel
Surface finish: Hot dip galvanized according to NEN-EN-ISO 1461
Zinc coating thickness: 60 to 70 µm
Number of connection directions: 4
Execution: With integrated connectors, including 16x ESL-SB M10x20 fixing set (carriage bolt M10x20, nut, and washer)
Connection method: Bolted
Standards: IEC 61537, suitable for installations in accordance with NEN 1010

Typical Applications

Perpendicular intersecting cable routes in the horizontal plane
Distribution of cable routes in four directions
Junction points within main and distribution cable routes
Industrial installations
Commercial buildings
Data centres and technical facilities
Machine and process installations
Infrastructure projects

Available Material Variants

HDG: Hot dip galvanized carbon steel according to NEN-EN-ISO 1461, with a zinc coating thickness of 60 to 70 µm, suitable for industrial and outdoor environments.
Stainless Steel 304 (A2 / 1.4301): Stainless steel for indoor environments and lightly corrosive conditions.
Stainless Steel 316L (A4 / 1.4404): Stainless steel with enhanced corrosion resistance for chemical, marine, offshore, and aggressive environments.
RAL: RAL powder-coated carbon steel, available on request for project-specific applications.

Complementary Products

For a complete installation within the ECL60 system, the following components are available:

Cable ladders: ECL60 cable ladders in various widths and lengths.
Couplers: For longitudinal cable ladder connections.
Horizontal bends: For changes of direction in the horizontal plane.
Tees: For 90° branches within cable ladder routes.
Inside and outside risers: For vertical changes of direction within cable routes.
Reducers: For transitions between different cable ladder widths.
Support systems: Wall brackets, ceiling brackets, trapeze hangers, and strut channels.
Fixing materials: ESL-SB bolt sets and other mounting accessories.

These components ensure a safe, compatible, and maintenance-friendly installation.

Other widths and radii are available on request.
