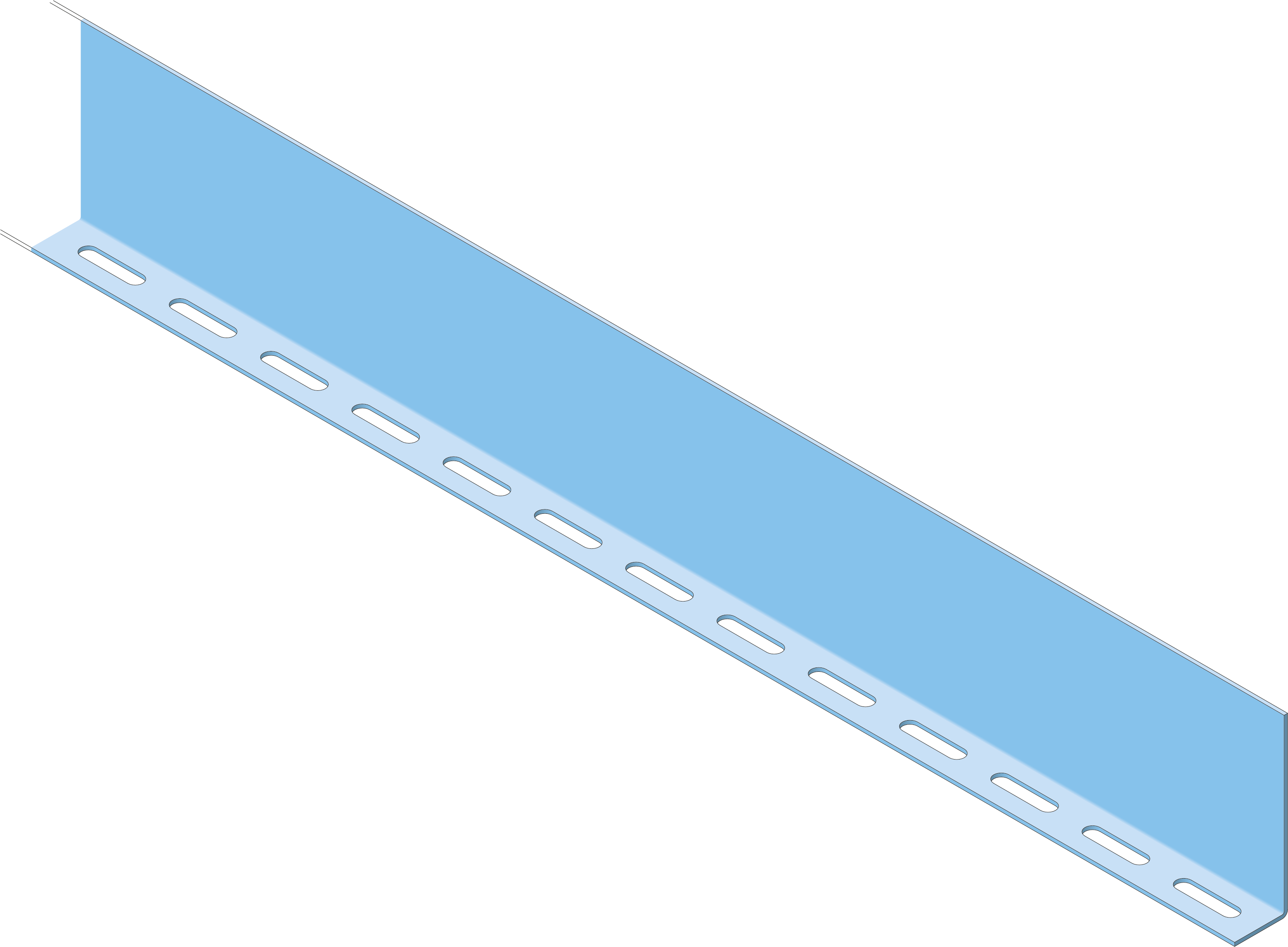

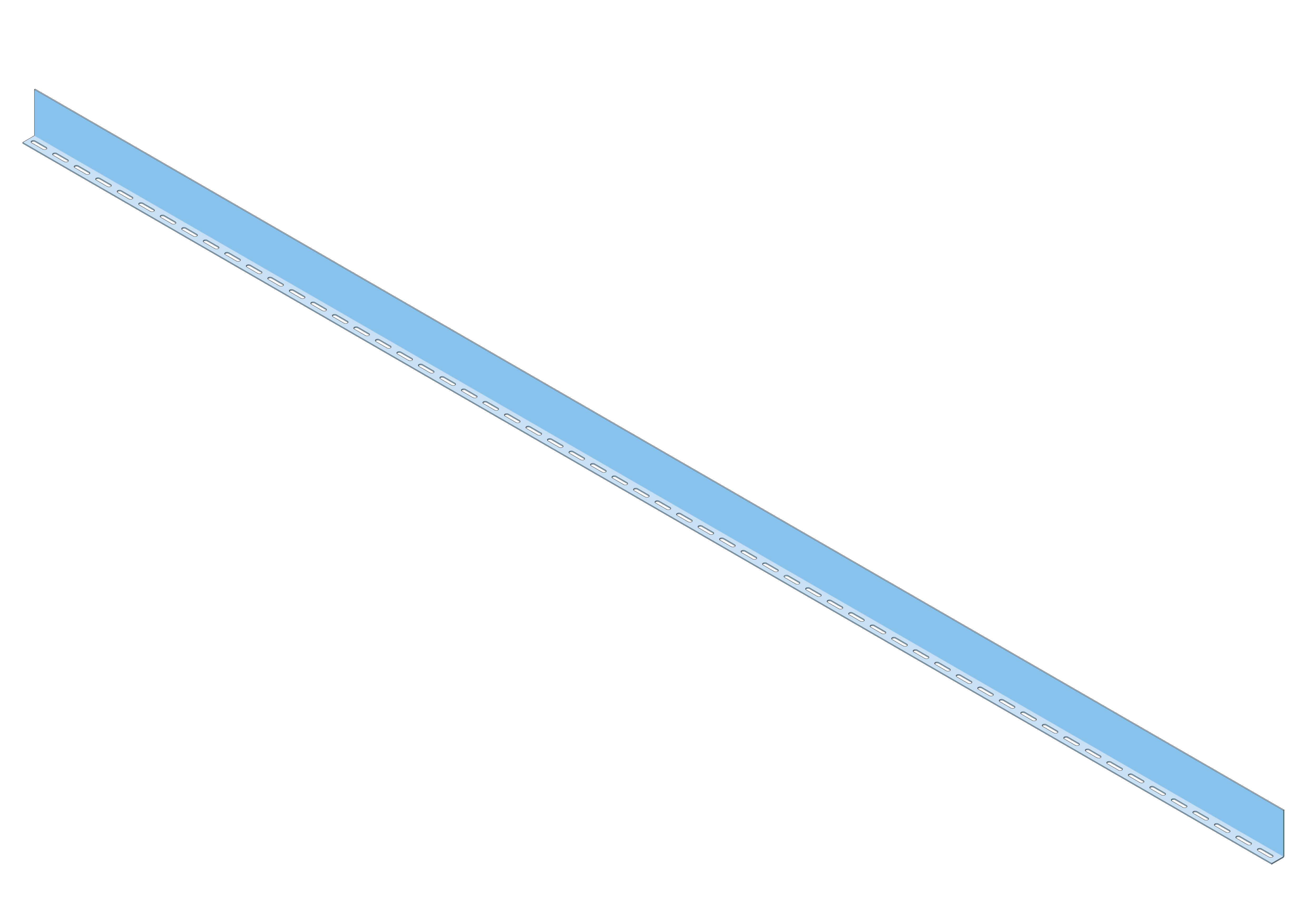

Divider Cable Tray ECT100 SS316
Variations
Product information
| Partition height : | 98 mm |
|---|---|
| Length : | 3000 mm |
| Model : | L-profile |
| Mounting perforation : | Yes |
| Type of fastening : | Screwable |
| Suitable for wire mesh tray : | No |
| Suitable for cable ladder : | No |
| Suitable for cable tray : | Yes |
| Material : | Stainless steel |
| Material quality : | Rustproof and acidproof steel |
| Colour : | Stainless steel |

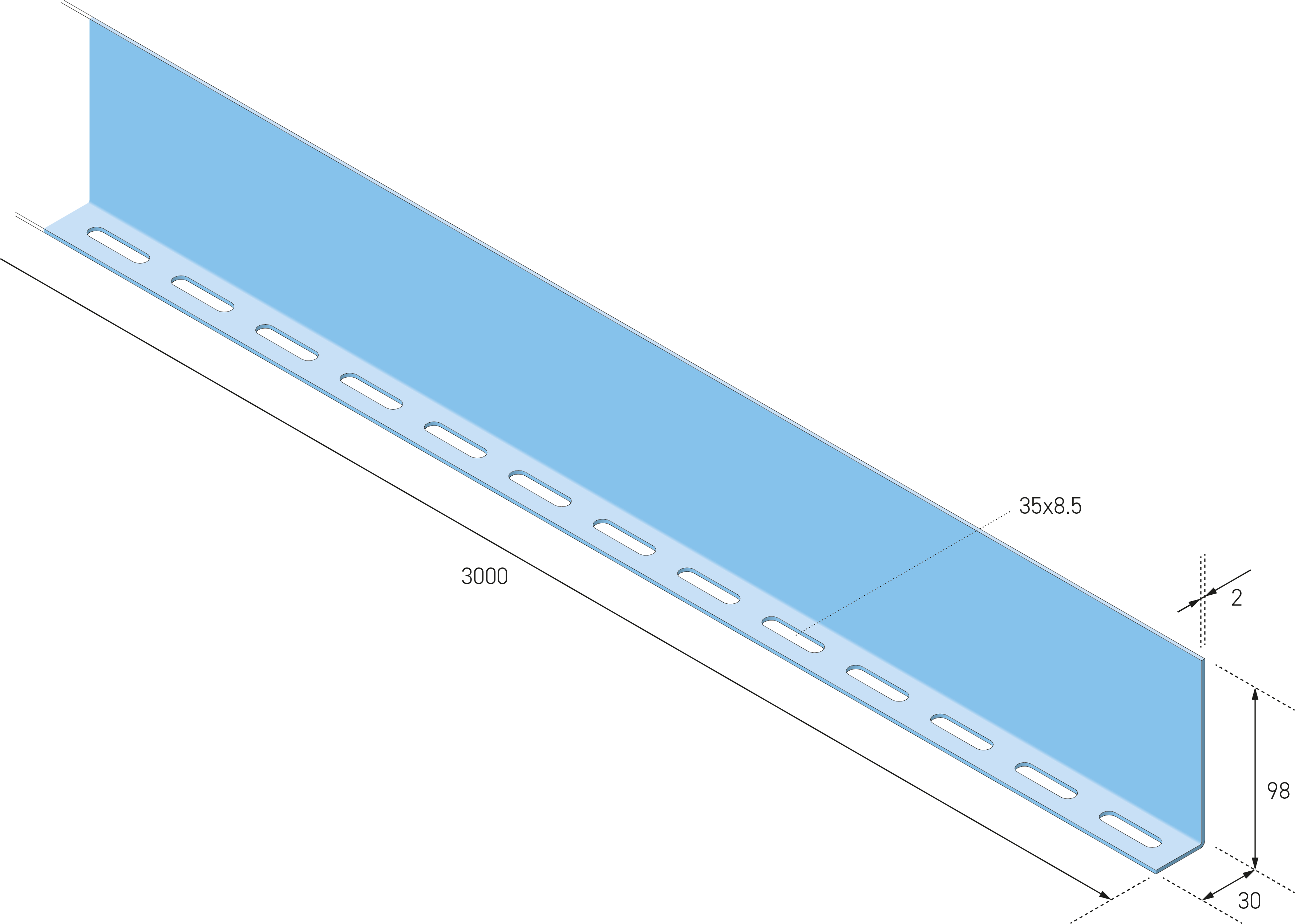

Divider Cable Tray ECT100 SS316 with sizes H=98mm, E (thickness)=2mm, L=3000mm, stainless steel 316 including 3x EFS08x15-316 Eurostrut fixing set (bolt M08x15, nut and washer).
Divider ECTDIV100 is an accessory for the ECT100 cable tray system and is used to separate cable flows within a single cable tray. The divider enables physical separation of different cable types, such as power and data cables, reducing electromagnetic interference and ensuring a structured and organized cable routing. This accessory is suitable for utility, industrial, and infrastructure installations.
The standard version is manufactured from hot dip galvanized carbon steel according to NEN-EN-ISO 1461, with a minimum zinc coating thickness of 80 µm, suitable for industrial and outdoor environments. The hot dip galvanizing process is applied after fabrication and provides full protection of the surface, including cut edges and fixing points. This makes the divider suitable for applications with increased corrosive exposure, in accordance with IEC 61537 and installations compliant with NEN 1010.

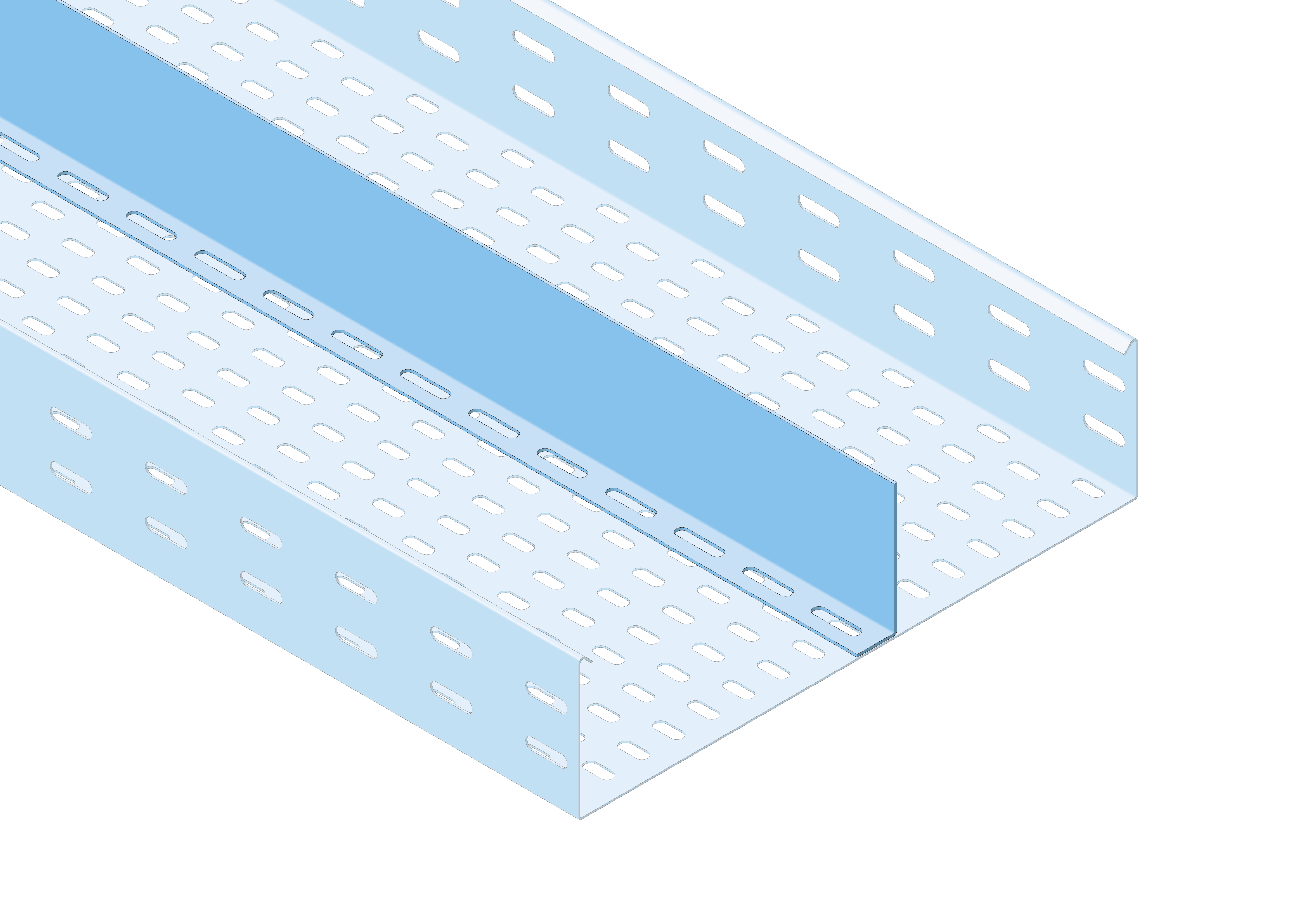

The divider is designed as a straight partition plate with a height of 98 mm and is installed longitudinally inside the cable tray. The execution is supplied including 3x EFS08x15 fixing set (carriage bolt M08x15, nut, and washer), ensuring stable and durable fixation to the cable tray base. The accessory is fully compatible with ECT100 cable trays and other system components.
Technical Specifications
- Product type: Divider for cable tray
- System: ECT100
- System height: 100 mm
- Length: 3000 mm
- Divider height: 98 mm
- Material thickness: 2 mm
- Material: Carbon steel
- Surface finish: Hot dip galvanized according to NEN-EN-ISO 1461
- Zinc coating thickness: minimum 80 µm
- Connection method: Bolted
- Execution: Including 3x EFS08x15 fixing set (carriage bolt M08x15, nut, and washer)
- Standards: IEC 61537, applicable within installations compliant with NEN 1010
- Installation: Internal mounting in cable tray
Typical Applications
- Separation of power and data cables
- Reduction of electromagnetic interference (EMI)
- Structuring cable routes within cable trays
- Utility and industrial installations
Available Material Variants
- HDG: Hot dip galvanized carbon steel according to NEN-EN-ISO 1461, with a minimum zinc coating thickness of 80 µm, suitable for heavy industrial and outdoor environments.
- PG: Pre galvanized carbon steel according to EN 10346, suitable for dry indoor environments and light industrial applications.
- Stainless steel 304 (A2 / 1.4301): Stainless steel for indoor environments and lightly corrosive conditions.
- Stainless steel 316 (A4 / 1.4404): Stainless steel with enhanced corrosion resistance for chemical, maritime, and offshore applications.
Complementary Products
For a complete installation within the ECT100 system, the following components are relevant:
- Cable trays: ECT100 cable trays in various widths
- Fixing materials: EFS bolt sets and mounting accessories
- Covers and clamps: For protection and fixation
- Brackets: Wall, ceiling, and trapeze brackets
These components together ensure a safe, compatible, and maintenance-friendly installation.
Other lengths available on request.
