Divider Cable Tray ECT60 PG
Variations
Product information

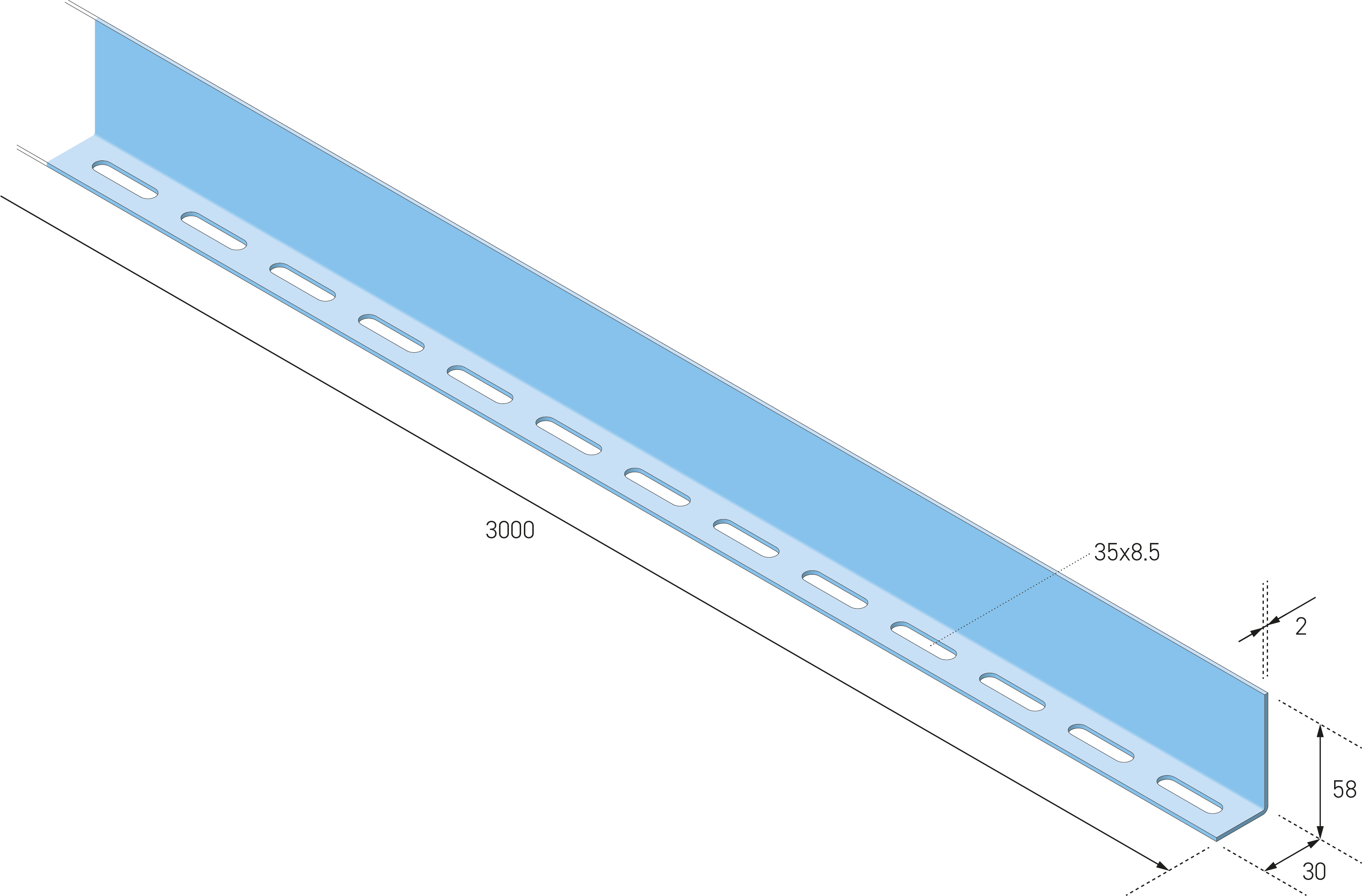

| Partition height : | 58 mm |
|---|---|

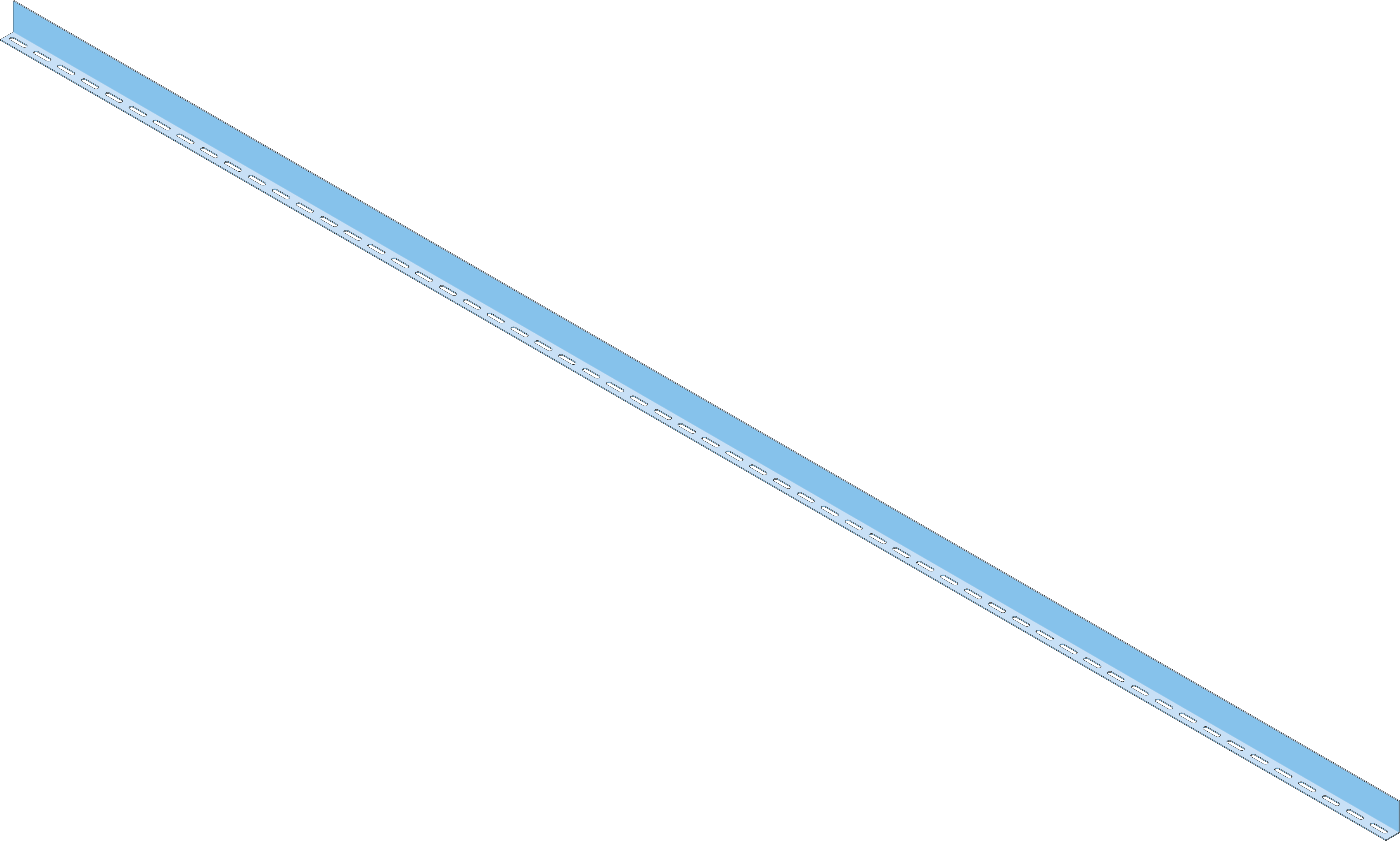

| Length : | 3000 mm |
| Model : | L-profile |
| Mounting perforation : | Yes |
| Type of fastening : | Screwable |
| Suitable for wire mesh tray : | No |
| Suitable for cable ladder : | No |
| Suitable for cable tray : | Yes |
| Material : | Steel |
| Material quality : | Rustproof and acidproof steel |
| Surface protection : | Continuously galvanised |
| Colour : | Zinc |

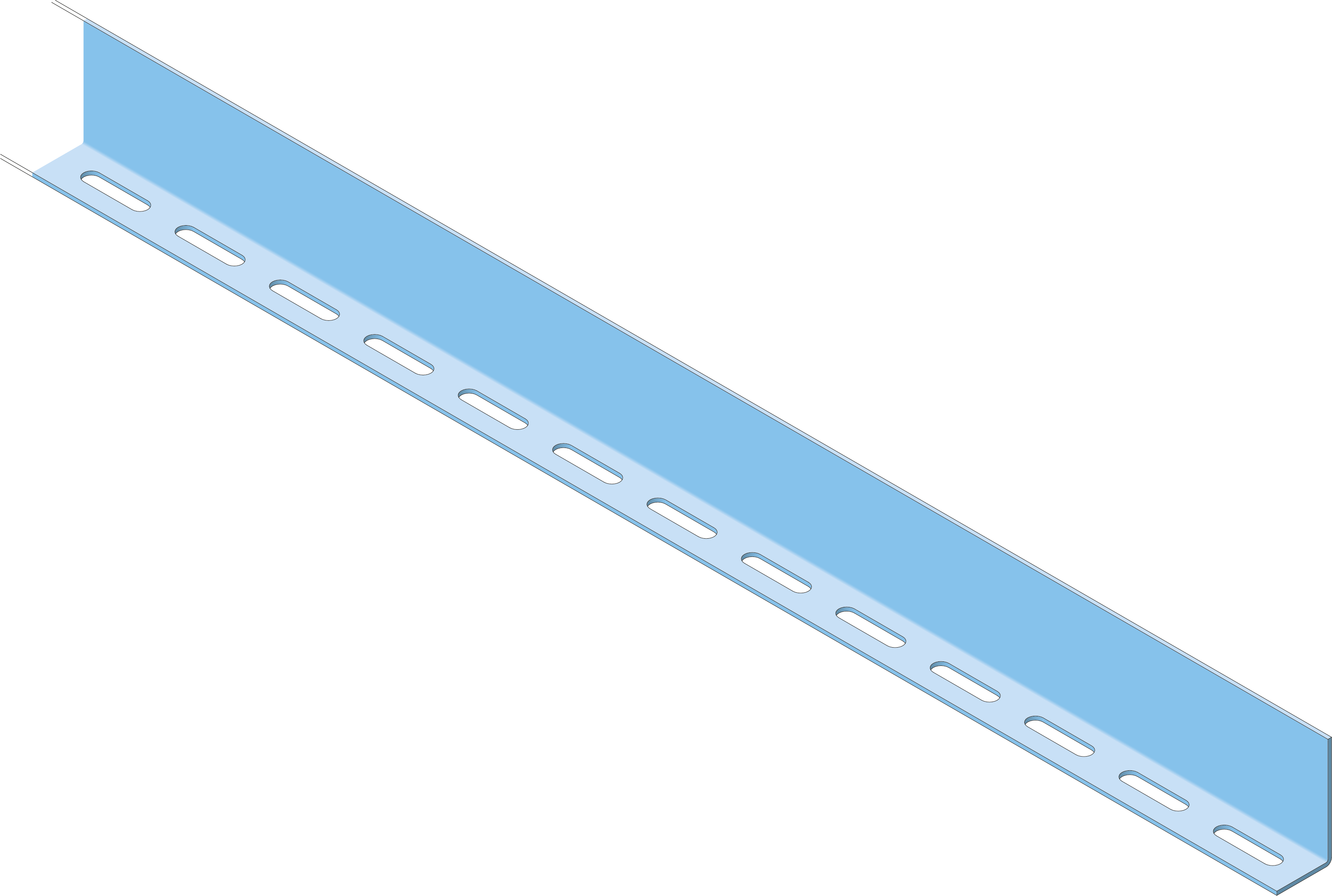

Divider ECTDIV60 is an accessory for the ECT60 cable tray system and is used to physically separate different cable groups within a single cable tray. The divider allows, for example, power and data cables to be routed separately, reducing electromagnetic interference and ensuring a clear, standards-compliant cable installation. This accessory is suitable for heavy industrial, utility, and infrastructure installations.
The standard version is manufactured from hot dip galvanized carbon steel according to NEN-EN-ISO 1461, with an increased zinc coating thickness of at least 80 µm. This heavy-duty corrosion protection makes the divider suitable for heavy industrial and outdoor environments. The hot dip galvanizing process is carried out after fabrication and provides full surface protection, including cut edges and fixing points, in accordance with IEC 61537 and installations compliant with NEN 1010.

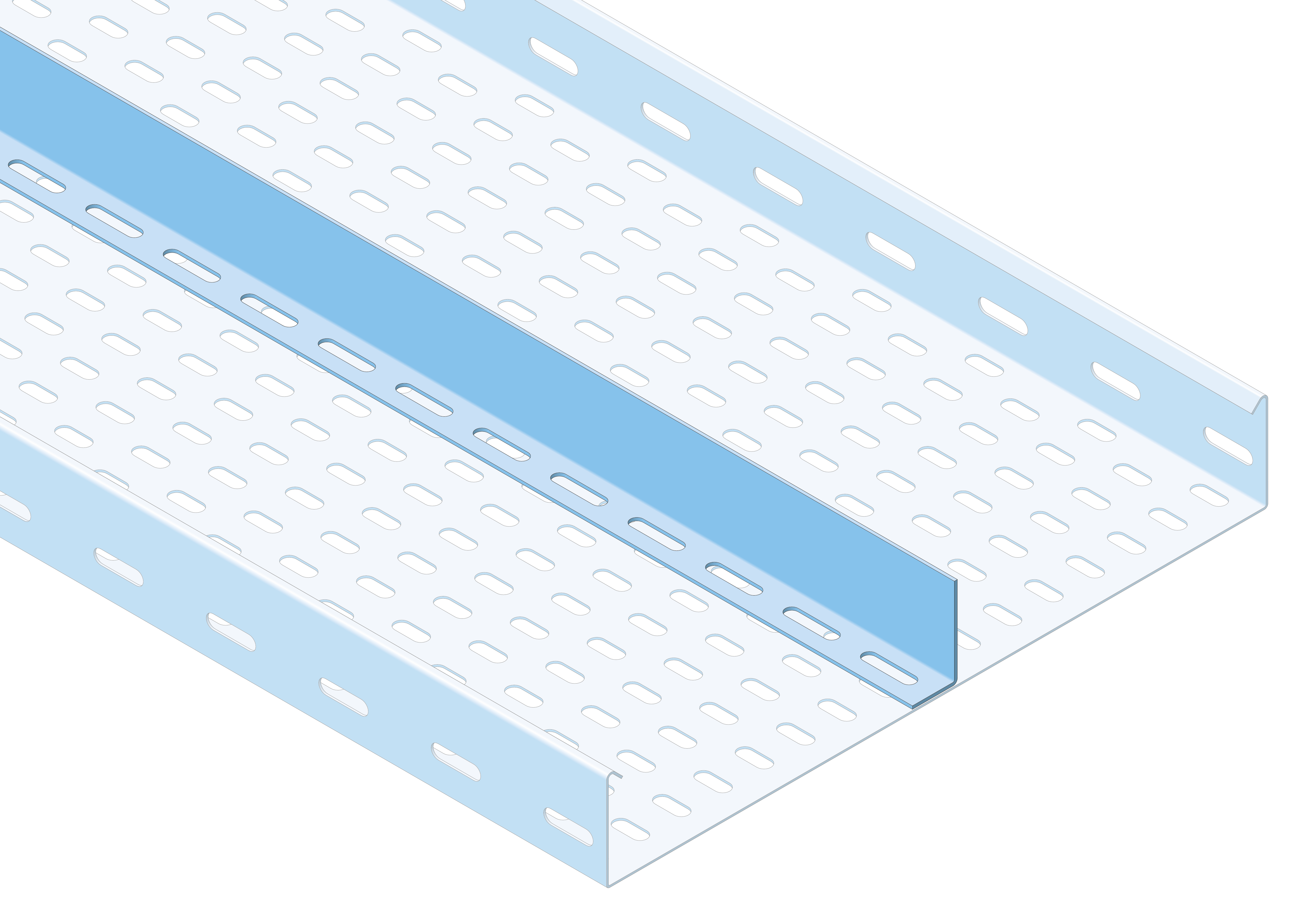

The divider is designed for installation within ECT60 cable trays and is positioned longitudinally to create separate cable compartments. The execution is provided with fixing holes and is supplied including fixing material, enabling fast and stable installation. The accessory is fully compatible with other ECT60 components and contributes to a structured and maintenance-friendly cable installation.
Technical Specifications
- Product type: Accessory – divider for cable tray
- System: ECT60
- System height: 60 mm
- Design: Longitudinal divider

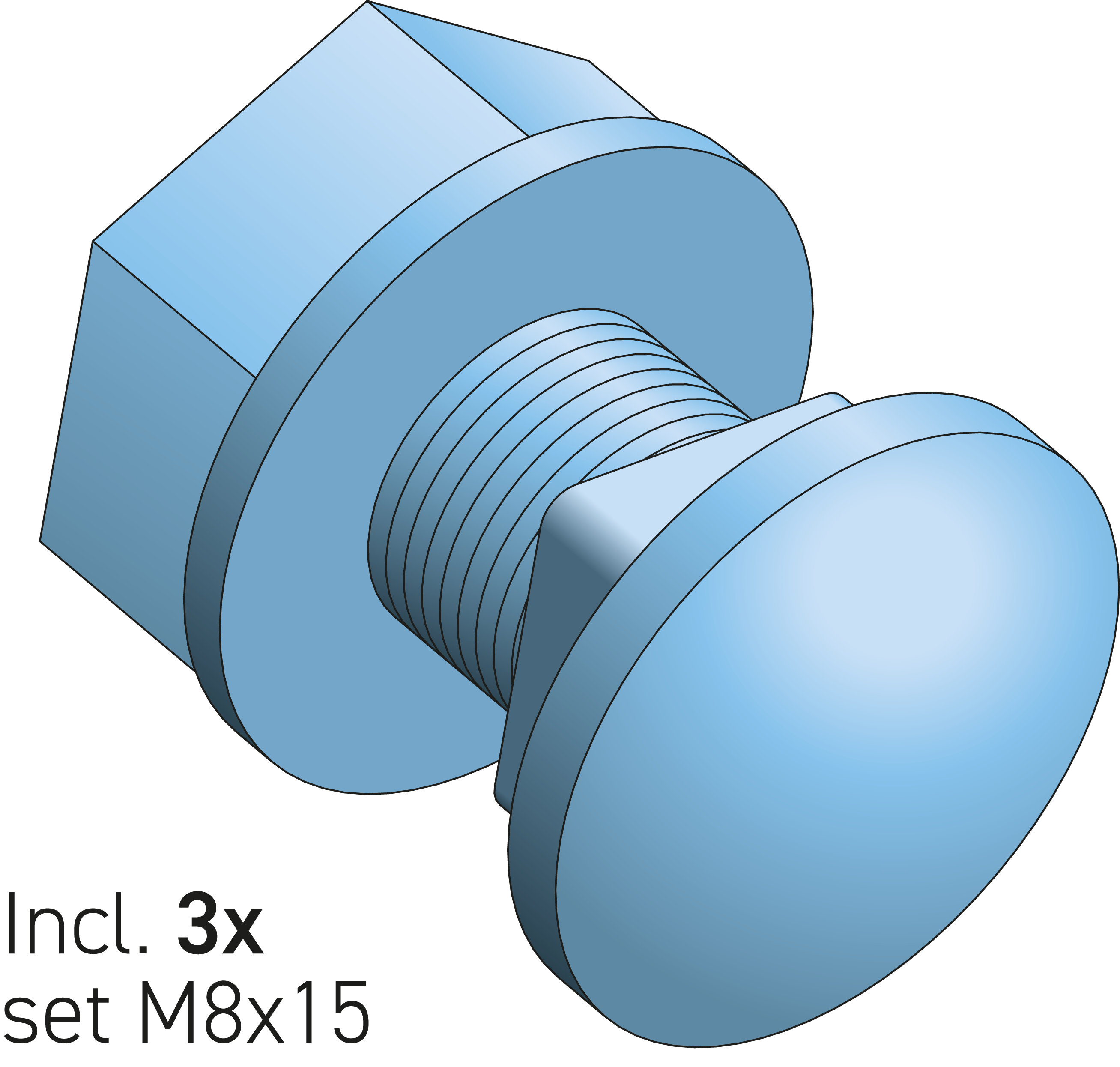

- Fixing execution: Including 3x EFS08x15 fixing set (bolt M08x15, nut and washer)
- Standard material: Carbon steel
- Surface finish: Hot dip galvanized according to NEN-EN-ISO 1461
- Zinc coating thickness: minimum 80 µm
- Standards: IEC 61537, applicable within installations compliant with NEN 1010
Typical Applications
- Separation of power and data cables within a single cable tray
- Industrial and utility installations with segregated cable routes
- Installations with EMC requirements and structured cable layout
- Outdoor installations and heavy industrial environments
Available Material Variants
- HDG: Hot dip galvanized carbon steel according to NEN-EN-ISO 1461, with a zinc coating thickness of at least 80 µm, suitable for heavy industrial and outdoor environments.
- PG: Pre galvanized carbon steel according to EN 10346, suitable for dry indoor environments and light industrial applications.
- Stainless steel 304 (A2 / 1.4301): Stainless steel for indoor environments and lightly corrosive conditions.
- Stainless steel 316 (A4 / 1.4404): Stainless steel with enhanced corrosion resistance for chemical, maritime, and offshore applications.
Complementary Products
For a complete installation, Eurostrut offers various accessories, such as:
- Straight cable trays: ECT60 cable trays in various widths
- Covers: Covers and corresponding fixing clips
- Other accessories: Bends, T-pieces, cross pieces, inside risers, and outside risers for ECT60 systems
These components ensure a safe, compatible, and maintenance-friendly installation.
Other lengths available on request.

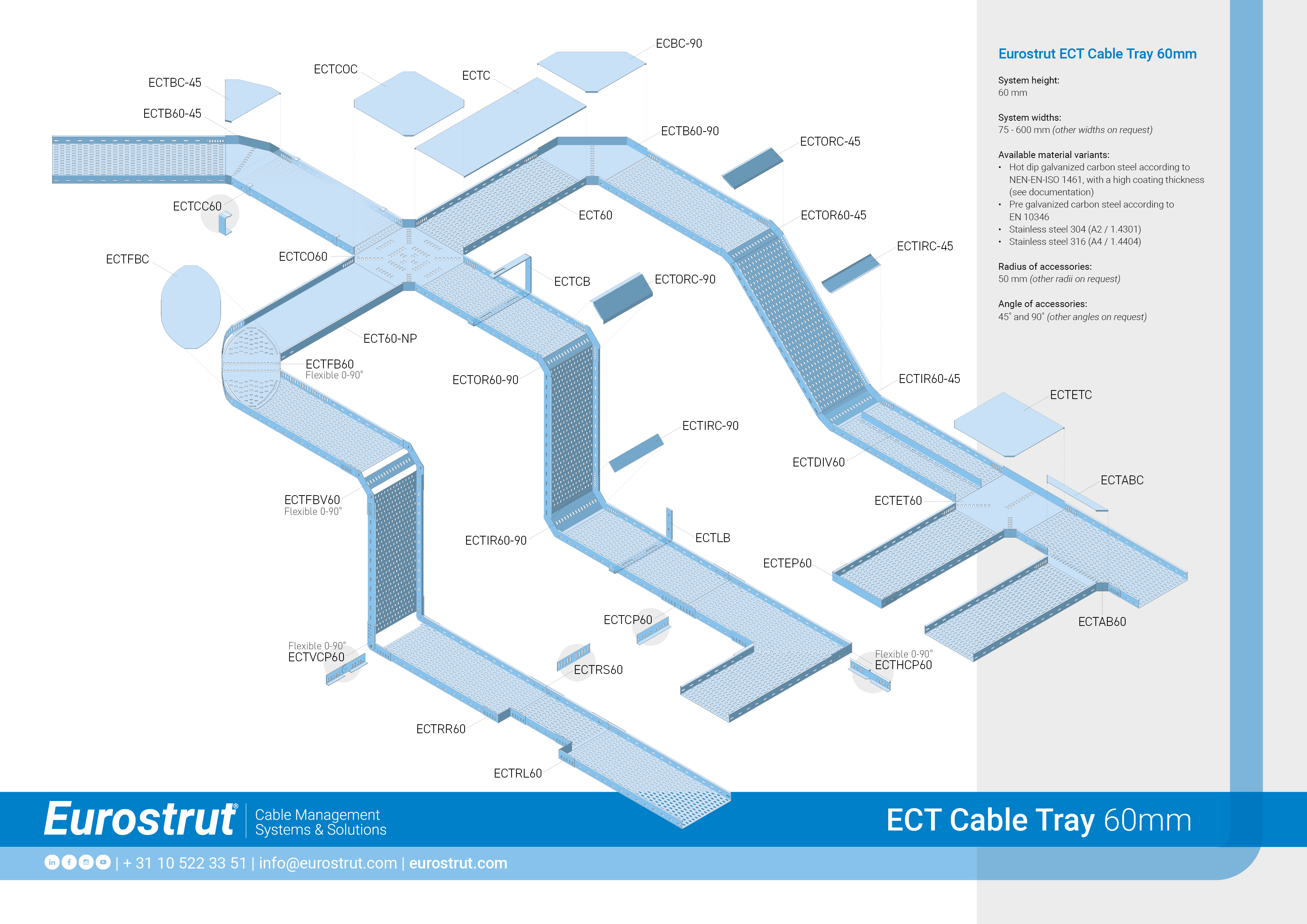

ECT60_Cable Tray 60mm_Overview_2
