End Plate Cable Tray ECT100 300mm SS304
Variations
Product information
| Suitable for cable tray height : | 100 mm |
|---|---|
| Suitable for cable tray width : | 300 mm |
| Material : | Stainless steel |
| Material quality : | Stainless steel 304 (1.4301) |
| Colour : | Stainless steel |

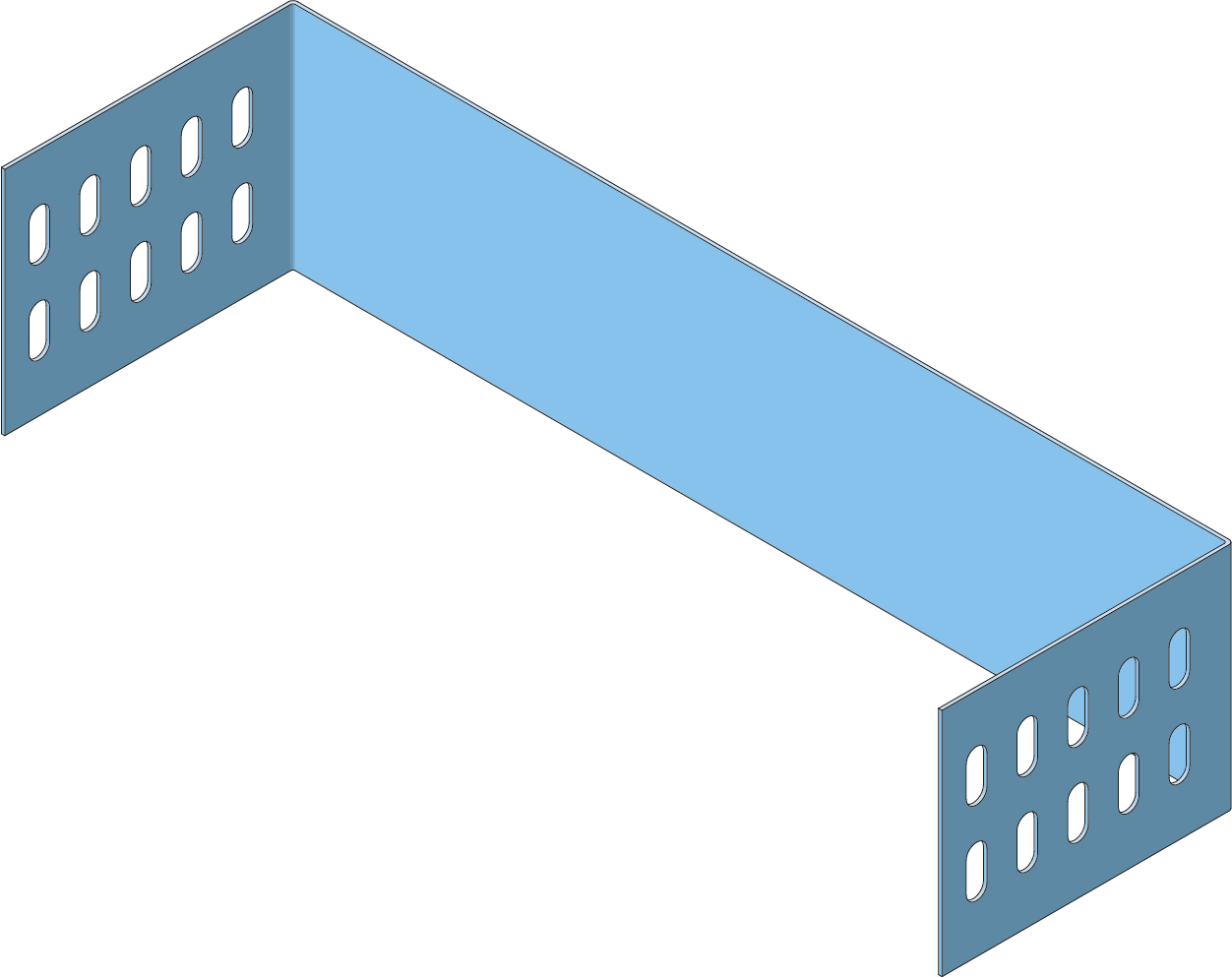

End plate ECTEP100 is an accessory for the ECT100 cable tray system and is used to close off the end of a cable tray. The end plate provides a safe and neat finishing of the cable route and prevents cables from protruding beyond the cable tray. This accessory is suitable for heavy industrial, utility, and infrastructure installations.
The standard version is manufactured from hot dip galvanized carbon steel according to NEN-EN-ISO 1461, with a minimum zinc coating thickness of 60 µm, suitable for industrial and outdoor environments. The hot dip galvanizing process is applied after fabrication and provides full protection of the surface, including cut edges and fixing holes. This makes the end plate suitable for applications with increased corrosive and mechanical loads, in accordance with IEC 61537 and installations compliant with NEN 1010.

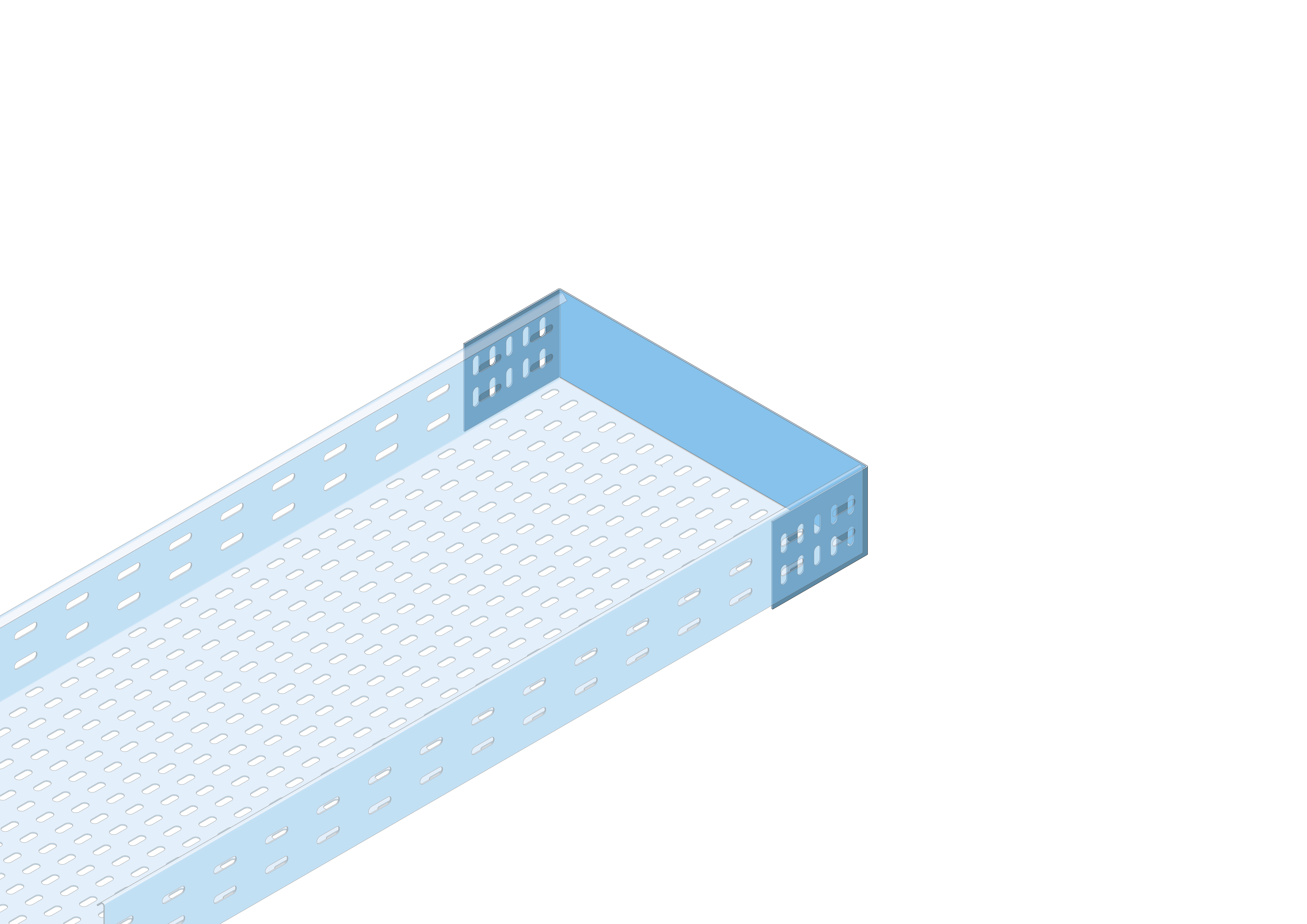

The end plate is designed for direct mounting to the end of ECT100 cable trays and functions as a closing component within the system. The execution is supplied including 8x EFS08x15 fixing set (carriage bolt M08x15, nut, and washer), enabling fast and stable installation. The accessory is fully compatible with other ECT100 system components and contributes to a uniform and safe cable tray installation.

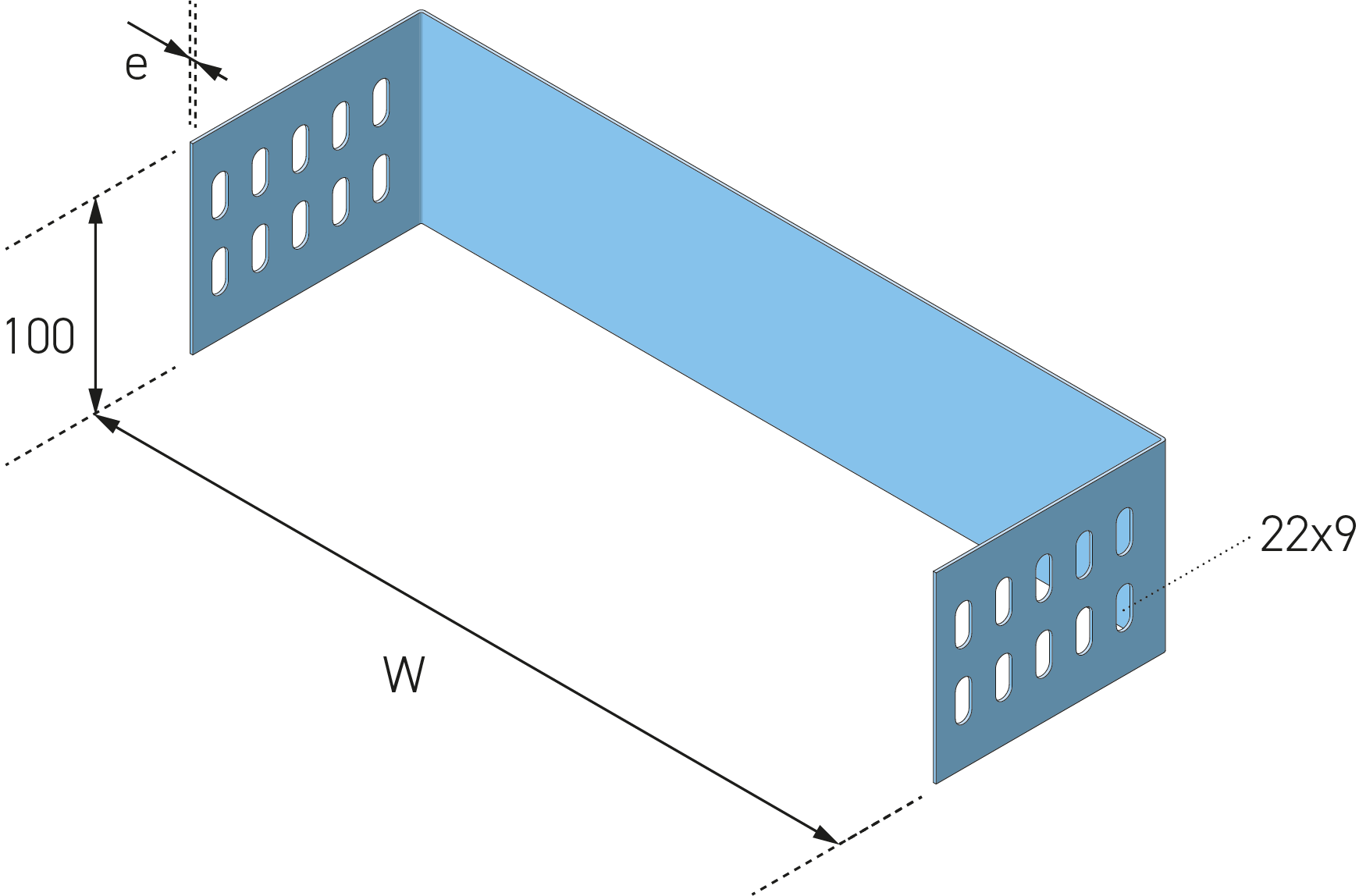

Technical Specifications
- Product type: End plate for cable tray
- System: ECT100
- System height: 100 mm
- Width: 100 to 600 mm
- Material thickness: 1.0 to 1.5 mm
- Material: Carbon steel
- Surface finish: Hot dip galvanized according to NEN-EN-ISO 1461
- Zinc coating thickness: minimum 60 µm
- Connection method: Bolted
- Execution: Including 8x EFS08x15 fixing set (carriage bolt M08x15, nut, and washer)
- Standards: IEC 61537, applicable within installations compliant with NEN 1010
Typical Applications
- Closing cable trays
- Safe finishing of cable routes
- Preventing protruding cables
- Industrial and utility installations
Available Material Variants
- HDG: Hot dip galvanized carbon steel according to NEN-EN-ISO 1461, with a minimum zinc coating thickness of 90 µm, suitable for heavy industrial and outdoor environments.
- PG: Pre galvanized carbon steel according to EN 10346, suitable for dry indoor environments and light industrial applications.
- Stainless steel 304 (A2 / 1.4301): Stainless steel for indoor environments and lightly corrosive conditions.
- Stainless steel 316 (A4 / 1.4404): Stainless steel with enhanced corrosion resistance for chemical, maritime, and offshore applications.
Complementary Products
For a complete installation within the ECT100 system, the following components are relevant:
- Cable trays: ECT100 cable trays in various widths
- Couplers: For longitudinal connections
- Brackets: Wall, ceiling, and trapeze brackets
- Covers and clamps: For protection and fixation
These components together ensure a safe, compatible, and maintenance-friendly installation.
Other widths available on request.
