End Plate Cable Tray ECT60 150mm PG
Product number:
ECTEP60-150-PG
Brand:
Eurostrut
Fast delivery
20 years of expertise and experience
Own brand of high quality
Variations
Product number
Material quality
For tray width
Suitable for cable tray height
Material quality:
Hot dip galvanized
For tray width:
75 mm
Suitable for cable tray height:
60 mm
Product number
Material quality:
Hot dip galvanized
For tray width:
100 mm
Suitable for cable tray height:
60 mm
Product number
Material quality:
Hot dip galvanized
For tray width:
150 mm
Suitable for cable tray height:
60 mm
Product number
Material quality:
Hot dip galvanized
For tray width:
200 mm
Suitable for cable tray height:
60 mm
Product number
Material quality:
Hot dip galvanized
For tray width:
300 mm
Suitable for cable tray height:
60 mm
Product number
Material quality:
Hot dip galvanized
For tray width:
400 mm
Suitable for cable tray height:
60 mm
Product number
Material quality:
Hot dip galvanized
For tray width:
500 mm
Suitable for cable tray height:
60 mm
Product number
Material quality:
Hot dip galvanized
For tray width:
600 mm
Suitable for cable tray height:
60 mm
Product number
Material quality
For tray width
Suitable for cable tray height
Material quality:
Stainless Steel 316
For tray width:
75 mm
Suitable for cable tray height:
60 mm
Product number
Material quality:
Stainless Steel 316
For tray width:
100 mm
Suitable for cable tray height:
60 mm
Product number
Material quality:
Stainless Steel 316
For tray width:
150 mm
Suitable for cable tray height:
60 mm
Product number
Material quality:
Stainless Steel 316
For tray width:
200 mm
Suitable for cable tray height:
60 mm
Product number
Material quality:
Stainless Steel 316
For tray width:
300 mm
Suitable for cable tray height:
60 mm
Product number
Material quality:
Stainless Steel 316
For tray width:
400 mm
Suitable for cable tray height:
60 mm
Product number
Material quality:
Stainless Steel 316
For tray width:
500 mm
Suitable for cable tray height:
60 mm
Product number
Material quality:
Stainless Steel 316
For tray width:
600 mm
Suitable for cable tray height:
60 mm
Product number
Material quality
For tray width
Suitable for cable tray height
Material quality:
Stainless Steel 304
For tray width:
75 mm
Suitable for cable tray height:
60 mm
Product number
Material quality:
Stainless Steel 304
For tray width:
100 mm
Suitable for cable tray height:
60 mm
Product number
Material quality:
Stainless Steel 304
For tray width:
150 mm
Suitable for cable tray height:
60 mm
Product number
Material quality:
Stainless Steel 304
For tray width:
200 mm
Suitable for cable tray height:
60 mm
Product number
Material quality:
Stainless Steel 304
For tray width:
300 mm
Suitable for cable tray height:
60 mm
Product number
Material quality:
Stainless Steel 304
For tray width:
400 mm
Suitable for cable tray height:
60 mm
Product number
Material quality:
Stainless Steel 304
For tray width:
500 mm
Suitable for cable tray height:
60 mm
Product number
Material quality:
Stainless Steel 304
For tray width:
600 mm
Suitable for cable tray height:
60 mm
Product number
Material quality
For tray width
Suitable for cable tray height
Material quality:
Pre galvanized
For tray width:
75 mm
Suitable for cable tray height:
60 mm
Product number
Material quality:
Pre galvanized
For tray width:
100 mm
Suitable for cable tray height:
60 mm
Product number
Material quality:
Pre galvanized
For tray width:
150 mm
Suitable for cable tray height:
60 mm
Product number
Material quality:
Pre galvanized
For tray width:
200 mm
Suitable for cable tray height:
60 mm
Product number
Material quality:
Pre galvanized
For tray width:
300 mm
Suitable for cable tray height:
60 mm
Product number
Material quality:
Pre galvanized
For tray width:
400 mm
Suitable for cable tray height:
60 mm
Product number
Material quality:
Pre galvanized
For tray width:
500 mm
Suitable for cable tray height:
60 mm
Product number
Material quality:
Pre galvanized
For tray width:
600 mm
Suitable for cable tray height:
60 mm
Product information
| Suitable for cable tray height : | 60 mm |
|---|---|
| Suitable for cable tray width : | 150 mm |
| Material : | Steel |
| Surface protection : | Continuously galvanised |
| Colour : | Zinc |

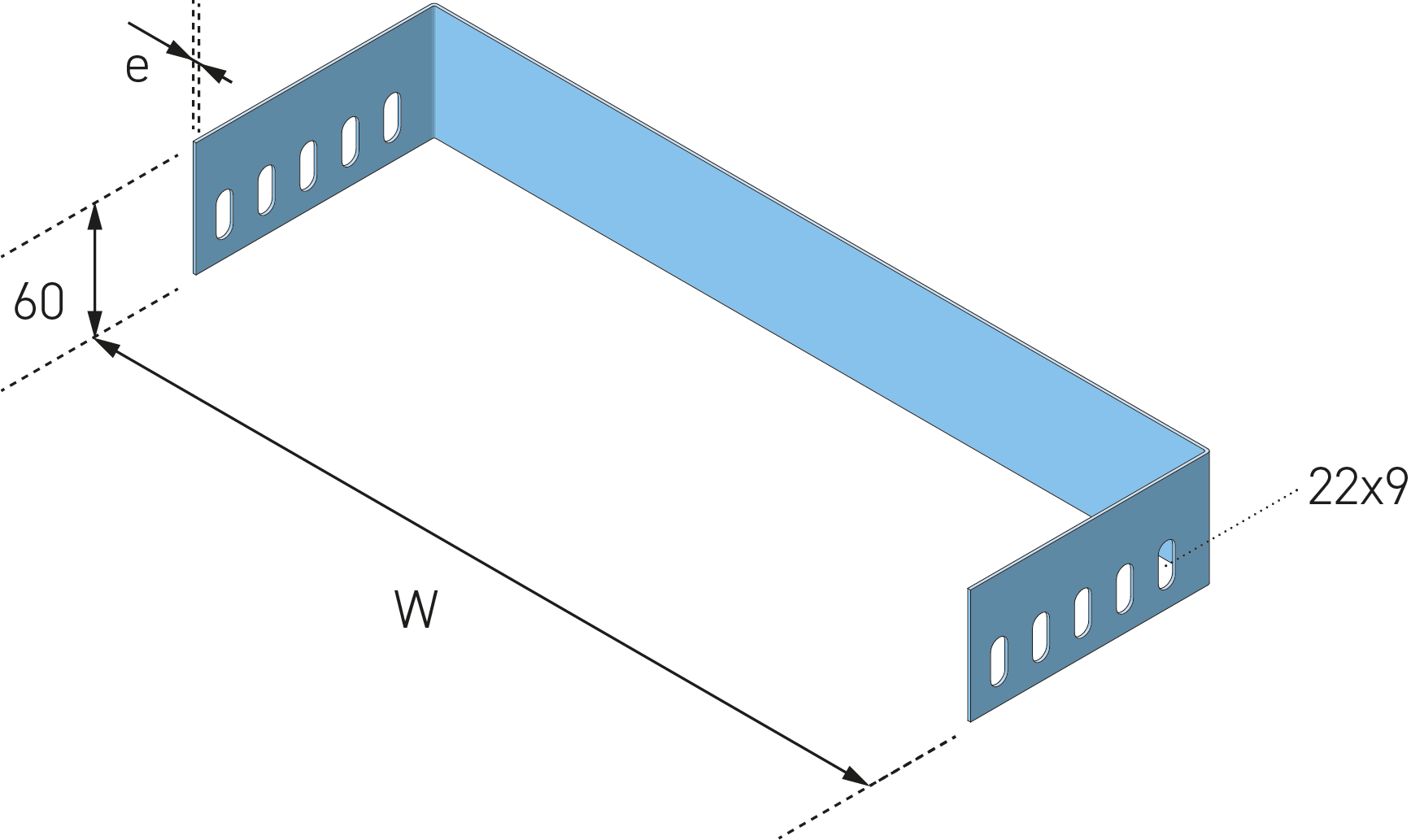

End Plate Cable Tray ECT60 150mm PG with sizes H=60mm, W=150mm, E (thickness)=1,0mm, carbon steel, pre-galvanized according to NEN-EN 10346, including 4x EFS08x15-GEO Eurostrut fixing set (bolt M08x15, nut and washer).
End plate ECTEP60 is an accessory for the ECT60 cable tray system and is used to close off the end of a cable tray. The end plate prevents cables from protruding from the tray and protects the cabling against mechanical damage at the end of the cable route. This accessory contributes to a safe, neat, and standards-compliant finish of cable tray installations in industrial and utility environments.
The standard version is manufactured from hot dip galvanized carbon steel according to NEN-EN-ISO 1461, with a minimum zinc coating thickness of 60 µm, suitable for industrial and outdoor environments. The hot dip galvanizing process is applied after fabrication and ensures uniform corrosion protection of the surface, including edges and fixing holes, in accordance with IEC 61537 and installations compliant with NEN 1010.

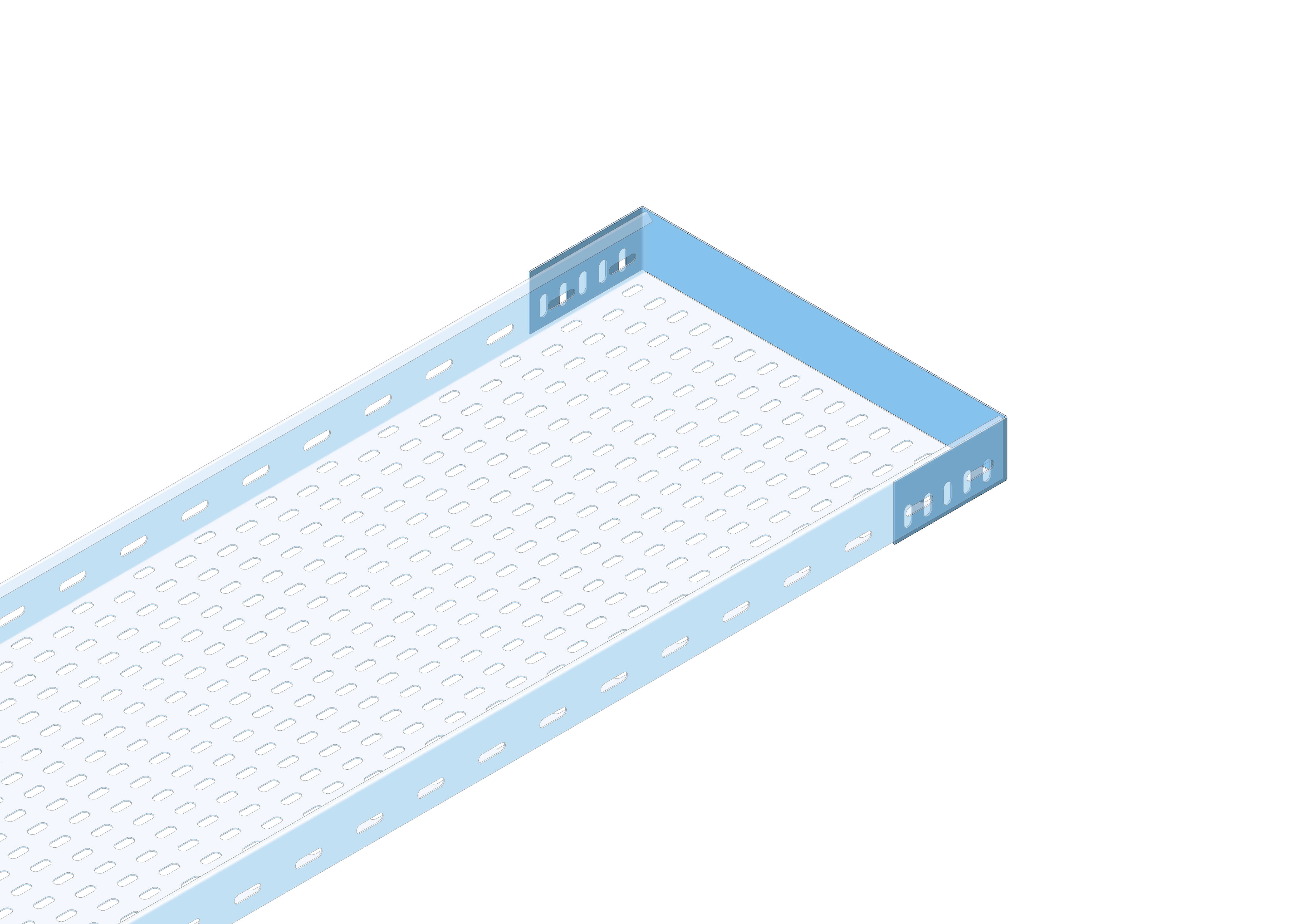

The end plate is designed for direct installation at the end of straight ECT60 cable trays. The execution is equipped with integrated connectors and is supplied including fixing material, enabling fast and secure installation. The accessory is fully compatible with all ECT60 cable trays and associated system components.
Technical Specifications
- Product type: Accessory – end plate for cable tray
- System: ECT60
- System height: 60 mm
- System width: 75 to 600 mm
- Execution: With integrated connectors, including 4x EFS08x15 fixing set (bolt M08x15, nut and washer)
- Standard material: Carbon steel
- Surface finish: Hot dip galvanized according to NEN-EN-ISO 1461
- Zinc coating thickness: minimum 60 µm
- Standards: IEC 61537, applicable within installations compliant with NEN 1010
Typical Applications
- Closing off cable trays at the end of the route
- Protection of cables against sharp edges
- Industrial and utility cable installations
- Neat and safe finishing of cable routes
Available Material Variants
- HDG: Hot dip galvanized carbon steel according to NEN-EN-ISO 1461, with a minimum zinc coating thickness of 60 µm, suitable for industrial and outdoor environments.
- PG: Pre galvanized carbon steel according to EN 10346, suitable for dry indoor environments and light industrial applications.
- Stainless steel 304 (A2 / 1.4301): Stainless steel for indoor environments and lightly corrosive conditions.
- Stainless steel 316 (A4 / 1.4404): Stainless steel with enhanced corrosion resistance for chemical, maritime, and offshore applications.
Complementary Products
For a complete installation within the ECT60 system, the following components are relevant:
- Straight cable trays: ECT60 cable trays in various widths
- Reducers: Left-hand, right-hand, and straight reducers for width transitions
- Couplers: Coupling plates and bolt sets for ECT60 cable trays
These components together ensure a safe, compatible, and maintenance-friendly installation.
Other widths available on request.
