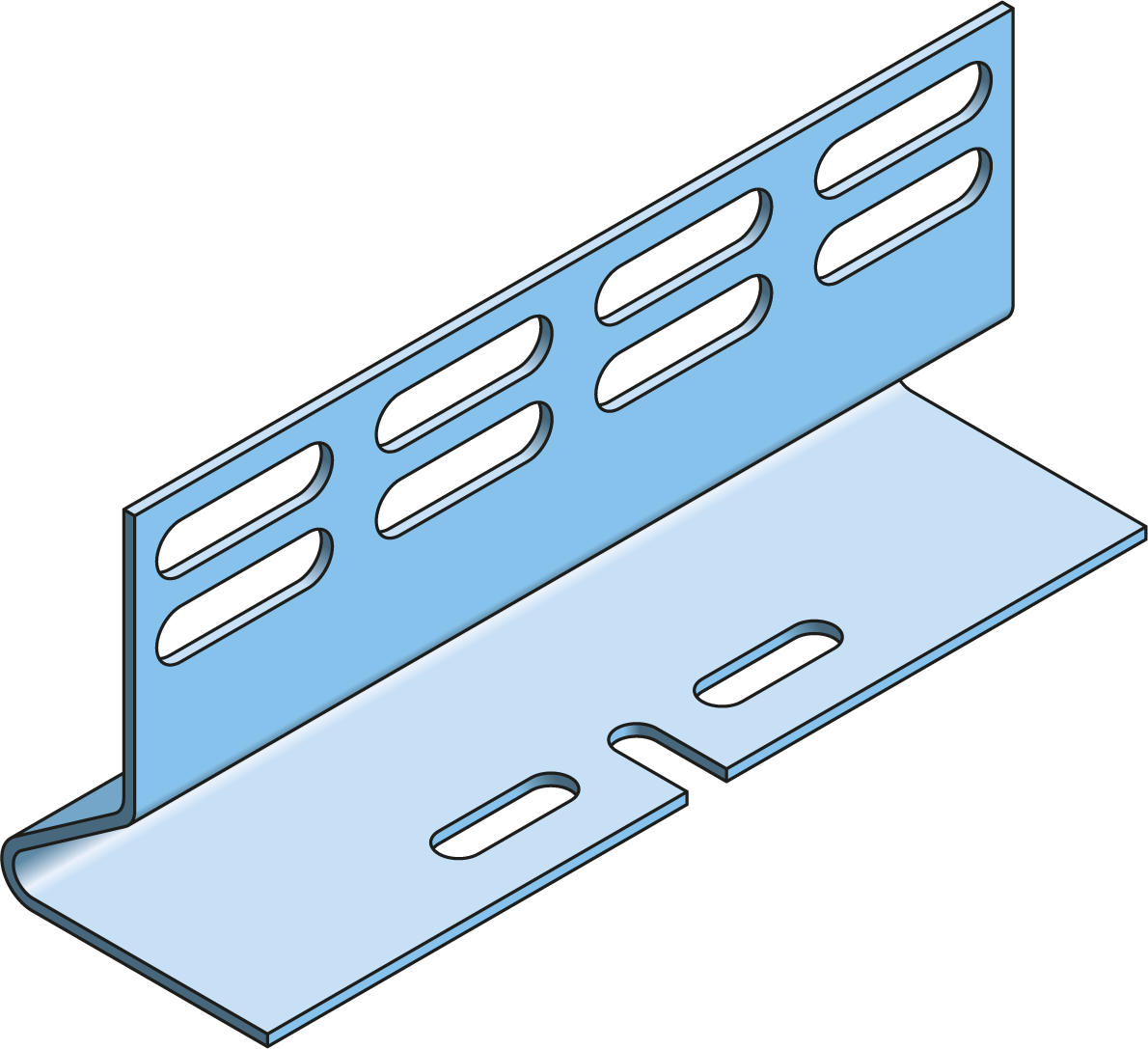

External Mounting Bracket Cable Ladder ECL100/150 HDG
Product number:
EEFPMB100/150-HDG
Brand:
Eurostrut
Fast delivery
20 years of expertise and experience
Own brand of high quality
Variations
Product number
For ladder height
Material quality
For ladder height:
100 - 150 mm
Material quality:
Hot dip galvanized
Product number
For ladder height
Material quality
For ladder height:
100 - 150 mm
Material quality:
Stainless Steel 316
Product number
For ladder height
Material quality
For ladder height:
100 - 150 mm
Material quality:
Stainless Steel 304
Product information
| Suitable for cable support system height : | 100 - 150 mm |
|---|---|
| Model : | Other |
| Suitable for wire mesh tray : | No |
| Suitable for cable ladder : | Yes |
| Suitable for cable tray : | No |
| Tray mounting : | Screwable |
| Material : | Steel |
| Material quality : | Other |
| Surface protection : | Hot-dip galvanised |
| Colour : | Zinc |

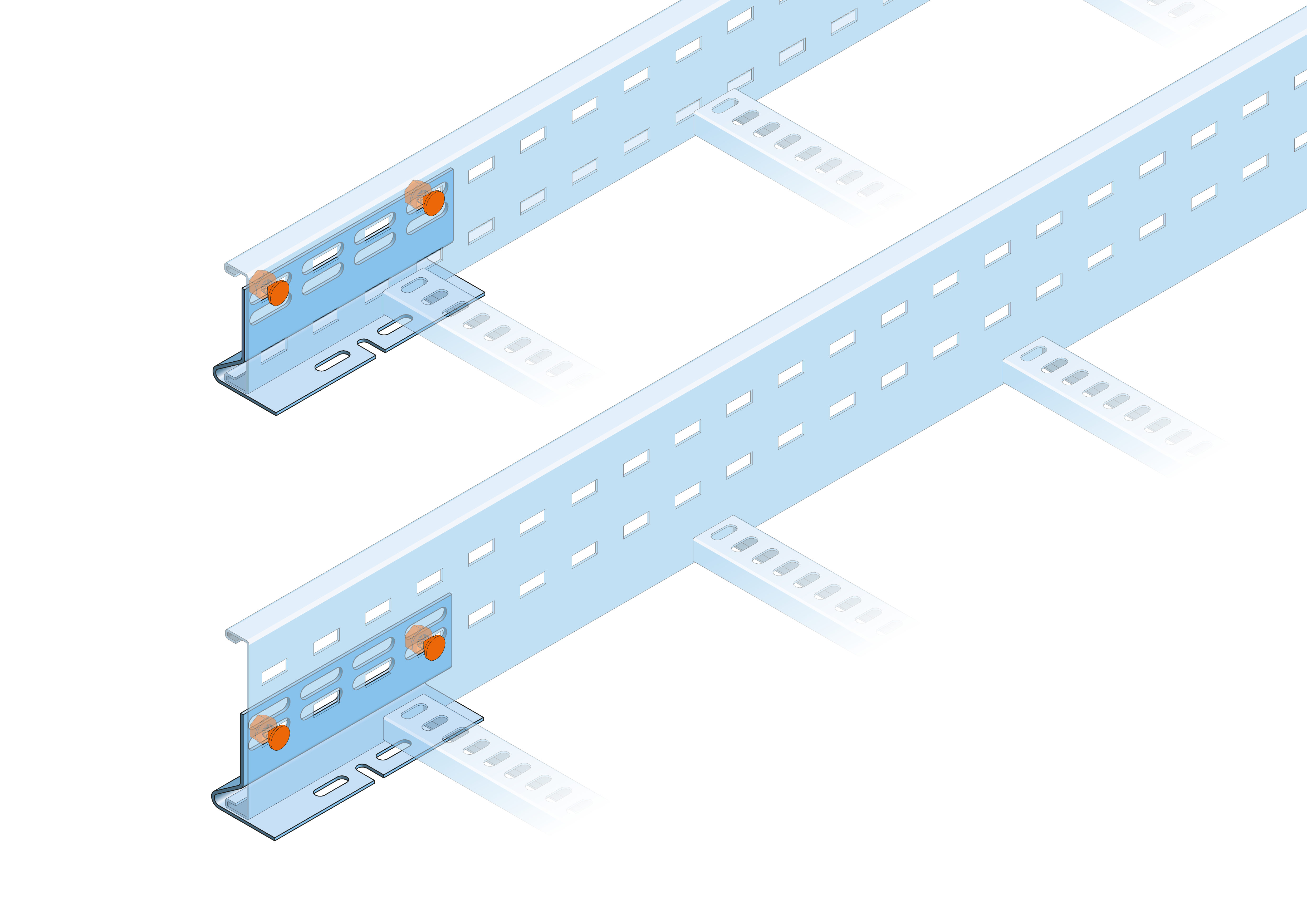

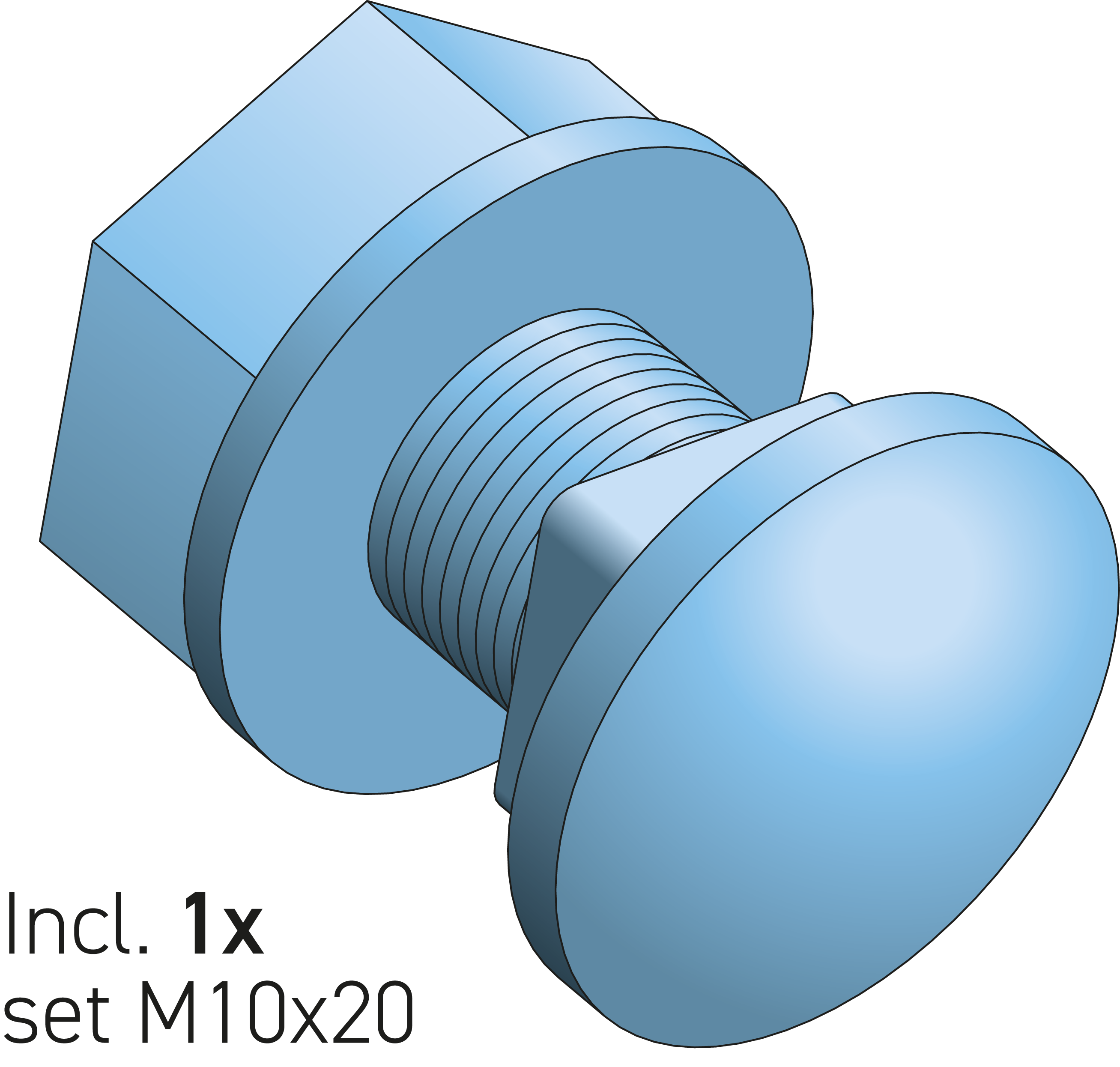

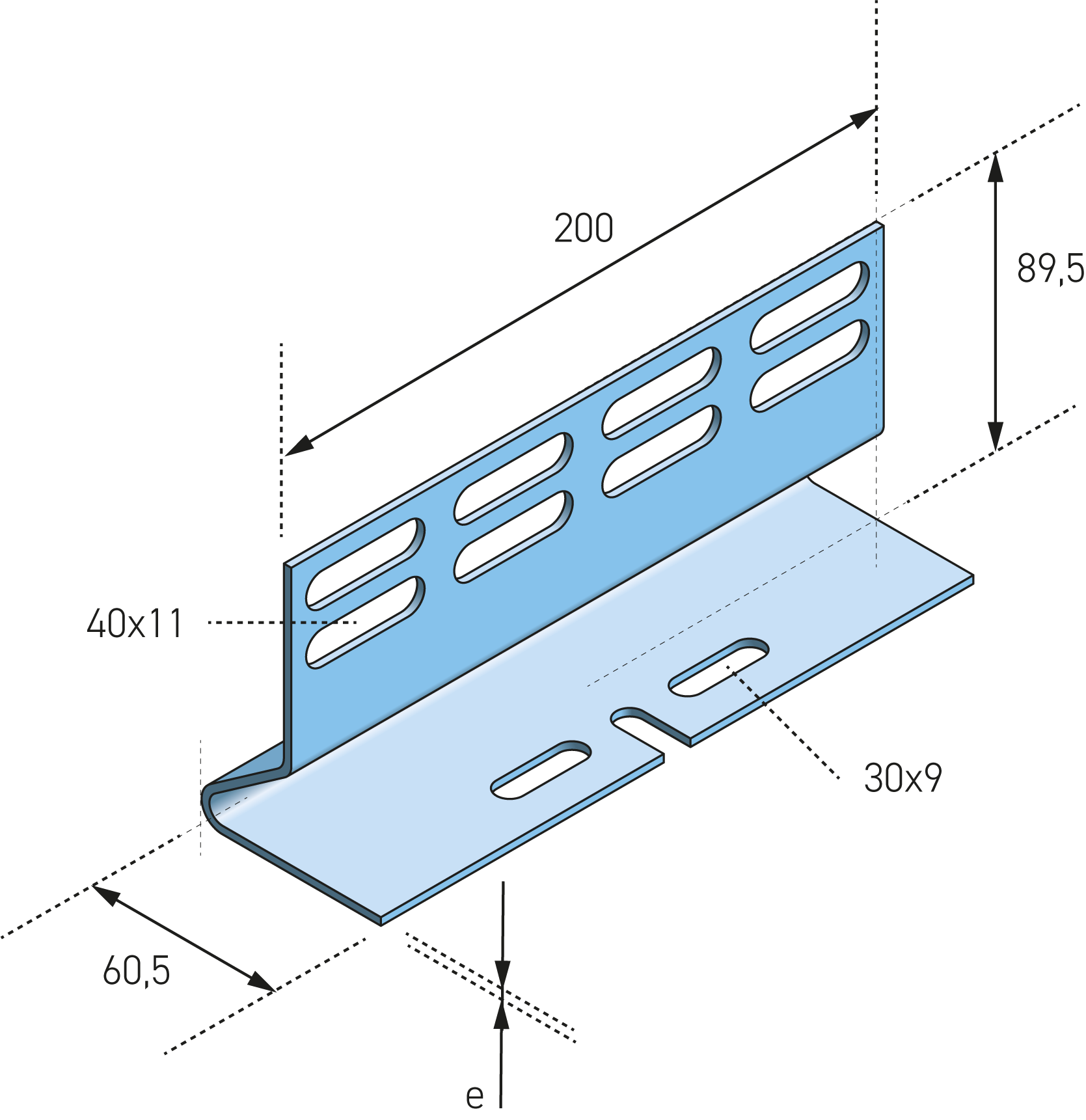

For Eurostrut Cable Ladder ECL100 and ECL150, H=89,5mm, L=200mm, W=60,5mm T=2,5mm, Hot Dip Galvanized Carbon Steel, layer 65 to 70µm, including 1x ESL-SB-H Eurostrut fixing set (square neck bolt M10x20, nut and washer).
geschikt voor Eurostrut Kabelladder ECL100 en ECL150, H=89,5mm, L=200mm, B=60,5mm D=2,5mm, Koolstofstaal Thermisch Verzinkt, beschermlaag 65 tot 70µm, inclusief 1x ESL-SB-H Eurostrut bevestigingsset (slotbout M10x20, moer en sluitring).Accessories for
