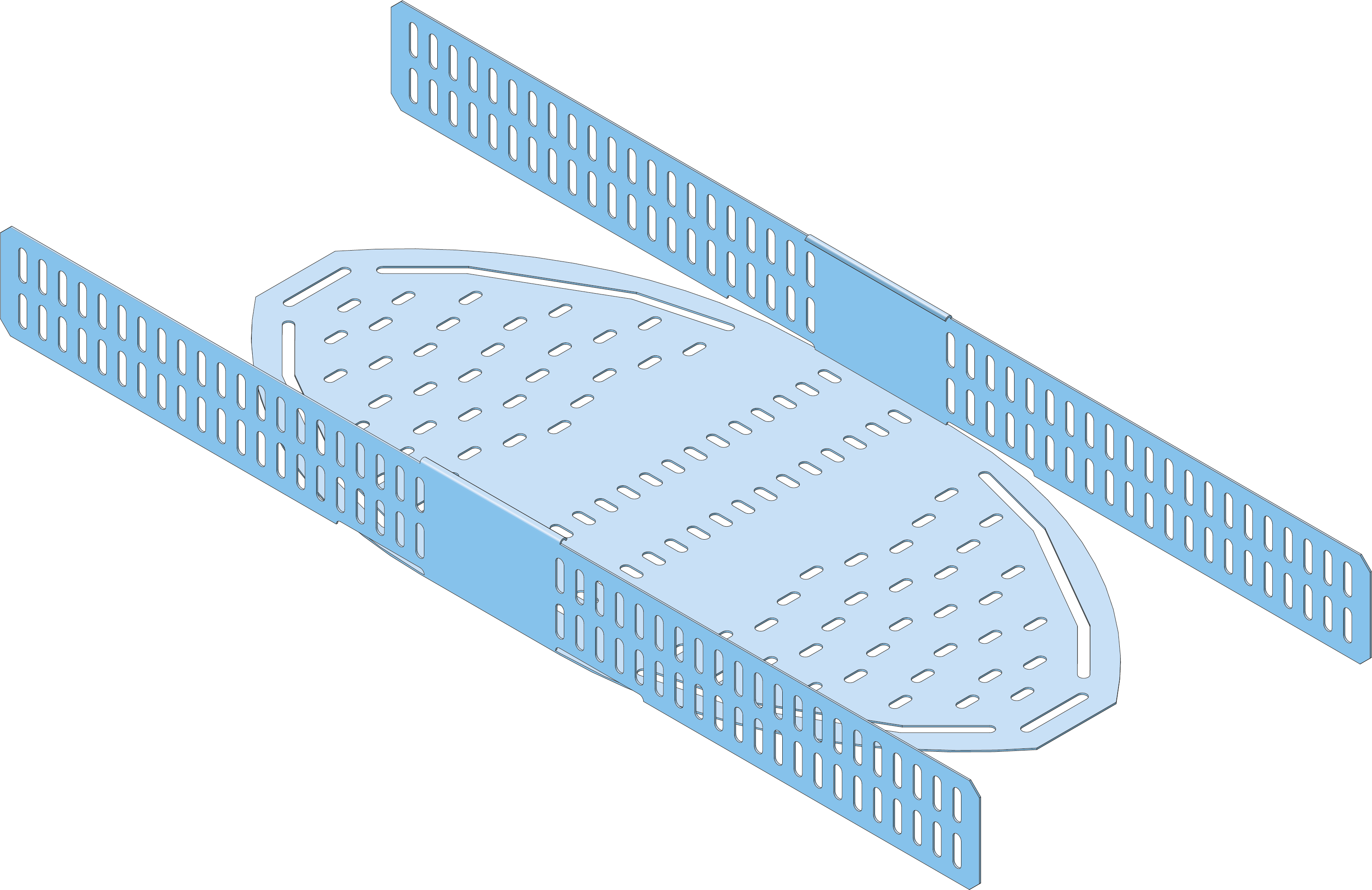

Flexibel Bend Horizontal Cable Tray ECT60 75mm HDG
Product number:
ECTFB60-075-HDG
Brand:
Eurostrut
Fast delivery
20 years of expertise and experience
Own brand of high quality
Variations
Product number
Angle
Suitable for cable tray height
Material quality
For tray width
Angle:
Adaptable
Suitable for cable tray height:
60 mm
Material quality:
Hot dip galvanized
For tray width:
75 mm
Product number
Angle:
Adaptable
Suitable for cable tray height:
60 mm
Material quality:
Hot dip galvanized
For tray width:
100 mm
Product number
Angle:
Adaptable
Suitable for cable tray height:
60 mm
Material quality:
Hot dip galvanized
For tray width:
150 mm
Product number
Angle:
Adaptable
Suitable for cable tray height:
60 mm
Material quality:
Hot dip galvanized
For tray width:
200 mm
Product number
Angle:
Adaptable
Suitable for cable tray height:
60 mm
Material quality:
Hot dip galvanized
For tray width:
300 mm
Product number
Angle:
Adaptable
Suitable for cable tray height:
60 mm
Material quality:
Hot dip galvanized
For tray width:
400 mm
Product number
Angle:
Adaptable
Suitable for cable tray height:
60 mm
Material quality:
Hot dip galvanized
For tray width:
500 mm
Product number
Angle:
Adaptable
Suitable for cable tray height:
60 mm
Material quality:
Hot dip galvanized
For tray width:
600 mm
Product number
Angle
Suitable for cable tray height
Material quality
For tray width
Angle:
Adaptable
Suitable for cable tray height:
60 mm
Material quality:
Stainless Steel 316
For tray width:
75 mm
Product number
Angle:
Adaptable
Suitable for cable tray height:
60 mm
Material quality:
Stainless Steel 316
For tray width:
100 mm
Product number
Angle:
Adaptable
Suitable for cable tray height:
60 mm
Material quality:
Stainless Steel 316
For tray width:
150 mm
Product number
Angle:
Adaptable
Suitable for cable tray height:
60 mm
Material quality:
Stainless Steel 316
For tray width:
200 mm
Product number
Angle:
Adaptable
Suitable for cable tray height:
60 mm
Material quality:
Stainless Steel 316
For tray width:
300 mm
Product number
Angle:
Adaptable
Suitable for cable tray height:
60 mm
Material quality:
Stainless Steel 316
For tray width:
400 mm
Product number
Angle:
Adaptable
Suitable for cable tray height:
60 mm
Material quality:
Stainless Steel 316
For tray width:
500 mm
Product number
Angle:
Adaptable
Suitable for cable tray height:
60 mm
Material quality:
Stainless Steel 316
For tray width:
600 mm
Product number
Angle
Suitable for cable tray height
Material quality
For tray width
Angle:
Adaptable
Suitable for cable tray height:
60 mm
Material quality:
Stainless Steel 304
For tray width:
75 mm
Product number
Angle:
Adaptable
Suitable for cable tray height:
60 mm
Material quality:
Stainless Steel 304
For tray width:
100 mm
Product number
Angle:
Adaptable
Suitable for cable tray height:
60 mm
Material quality:
Stainless Steel 304
For tray width:
150 mm
Product number
Angle:
Adaptable
Suitable for cable tray height:
60 mm
Material quality:
Stainless Steel 304
For tray width:
200 mm
Product number
Angle:
Adaptable
Suitable for cable tray height:
60 mm
Material quality:
Stainless Steel 304
For tray width:
300 mm
Product number
Angle:
Adaptable
Suitable for cable tray height:
60 mm
Material quality:
Stainless Steel 304
For tray width:
400 mm
Product number
Angle:
Adaptable
Suitable for cable tray height:
60 mm
Material quality:
Stainless Steel 304
For tray width:
500 mm
Product number
Angle:
Adaptable
Suitable for cable tray height:
60 mm
Material quality:
Stainless Steel 304
For tray width:
600 mm
Product number
Angle
Suitable for cable tray height
Material quality
For tray width
Angle:
Adaptable
Suitable for cable tray height:
60 mm
Material quality:
Pre galvanized
For tray width:
75 mm
Product number
Angle:
Adaptable
Suitable for cable tray height:
60 mm
Material quality:
Pre galvanized
For tray width:
100 mm
Product number
Angle:
Adaptable
Suitable for cable tray height:
60 mm
Material quality:
Pre galvanized
For tray width:
150 mm
Product number
Angle:
Adaptable
Suitable for cable tray height:
60 mm
Material quality:
Pre galvanized
For tray width:
200 mm
Product number
Angle:
Adaptable
Suitable for cable tray height:
60 mm
Material quality:
Pre galvanized
For tray width:
300 mm
Product number
Angle:
Adaptable
Suitable for cable tray height:
60 mm
Material quality:
Pre galvanized
For tray width:
400 mm
Product number
Angle:
Adaptable
Suitable for cable tray height:
60 mm
Material quality:
Pre galvanized
For tray width:
500 mm
Product number
Angle:
Adaptable
Suitable for cable tray height:
60 mm
Material quality:
Pre galvanized
For tray width:
600 mm
Product information
| Change of direction : | Horizontal |
|---|---|
| Angle : | Adaptable |
| Construction type : | Vertical adjustable bend complete |
| Bend model : | Other |
| For connection with screws : | Yes |
| For screwless connection : | No |
| With cover : | No |
| Inner radius : | 102 mm |
| Suitable for cable tray height : | 60 mm |
| Suitable for cable tray width : | 75 mm |
| Material thickness : | 1 mm |
| Side perforation : | Yes |
| Bottom perforation : | Yes |
| NATO-mounting holes : | No |
| Model : | Integrated connector |
| Material : | Steel |
| Material quality : | Rustproof and acidproof steel |
| Surface protection : | Hot-dip galvanised |
| Colour : | Zinc |
Flexibel Bend Cable Tray ECT60 75mm HDG with sizes H=60mm, B=75mm, D=1,0mm, flexibel, carbon steel, hot dip galvanized according to NEN-EN-ISO 1461, including 8x EFS08x15-GEO Eurostrut fixing set (bolt M8x15, nut and washer).
Horizontal flexible bend ECTFB60 is an accessory for the ECT60 cable tray system and is used to create variable horizontal branches within cable routes. This flexible bend allows direction changes between 0° and 90°, enabling precise adaptation to the required cable routing without fixed bend angles. This accessory is suitable for heavy industrial, utility, and infrastructure installations.
The standard version is manufactured from hot dip galvanized carbon steel according to NEN-EN-ISO 1461, with a minimum zinc coating thickness of 60 µm, suitable for heavy industrial and outdoor environments. The hot dip galvanizing process is applied after fabrication and provides full protection of the surface, including cut edges and fixing holes, in accordance with IEC 61537 and installations compliant with NEN 1010.
The flexible bend is designed for installation between ECT60 cable trays and allows the adjustment of a continuously variable horizontal angle. The execution is equipped with integrated connectors and is supplied including fixing material, enabling fast and stable installation. The accessory is fully compatible with other ECT60 components and contributes to a flexible and system-compliant cable tray installation.

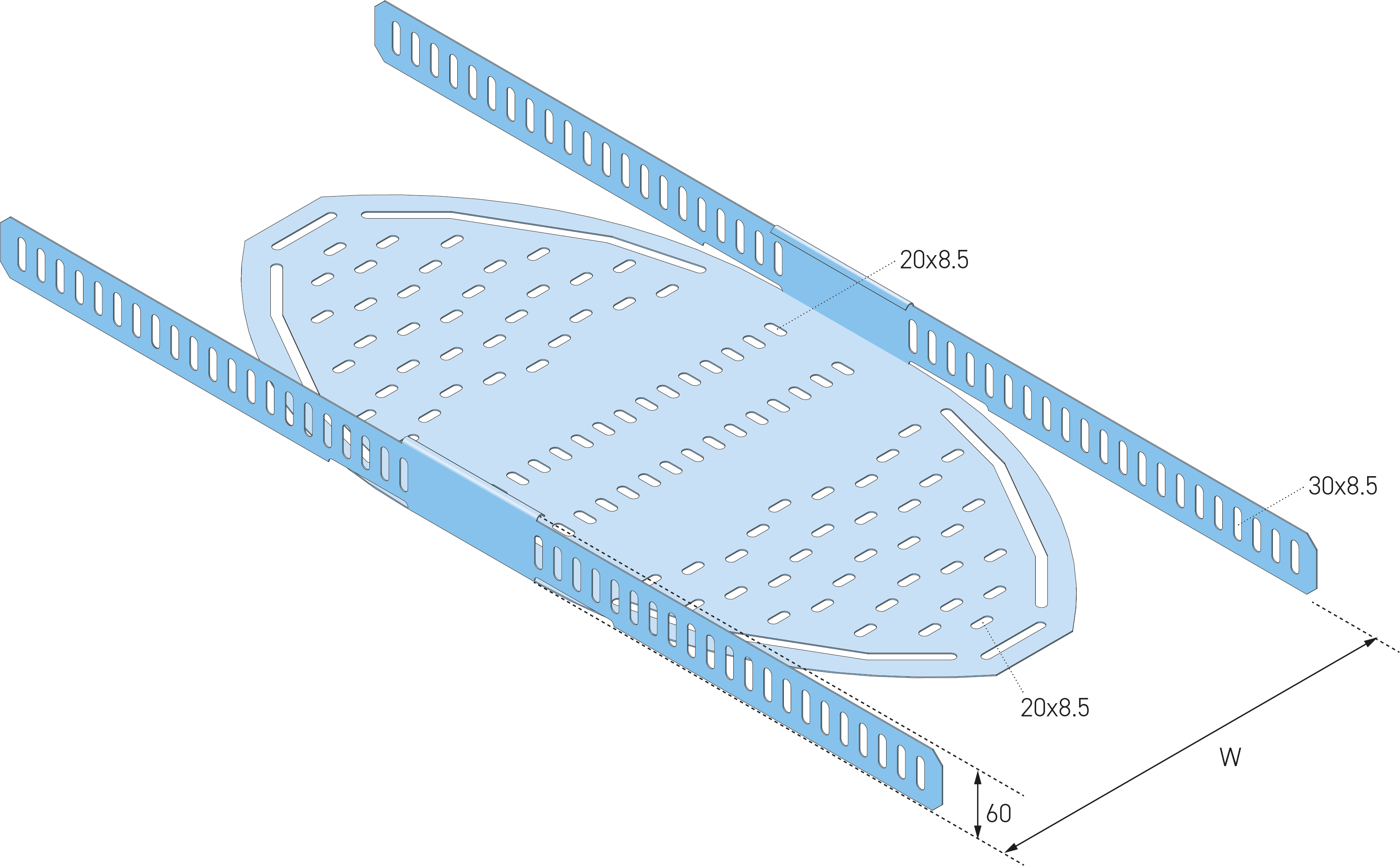

Technical Specifications
- Product type: Accessory – horizontal flexible bend for cable tray
- System: ECT60
- System height: 60 mm
- System width: 75 to 600 mm

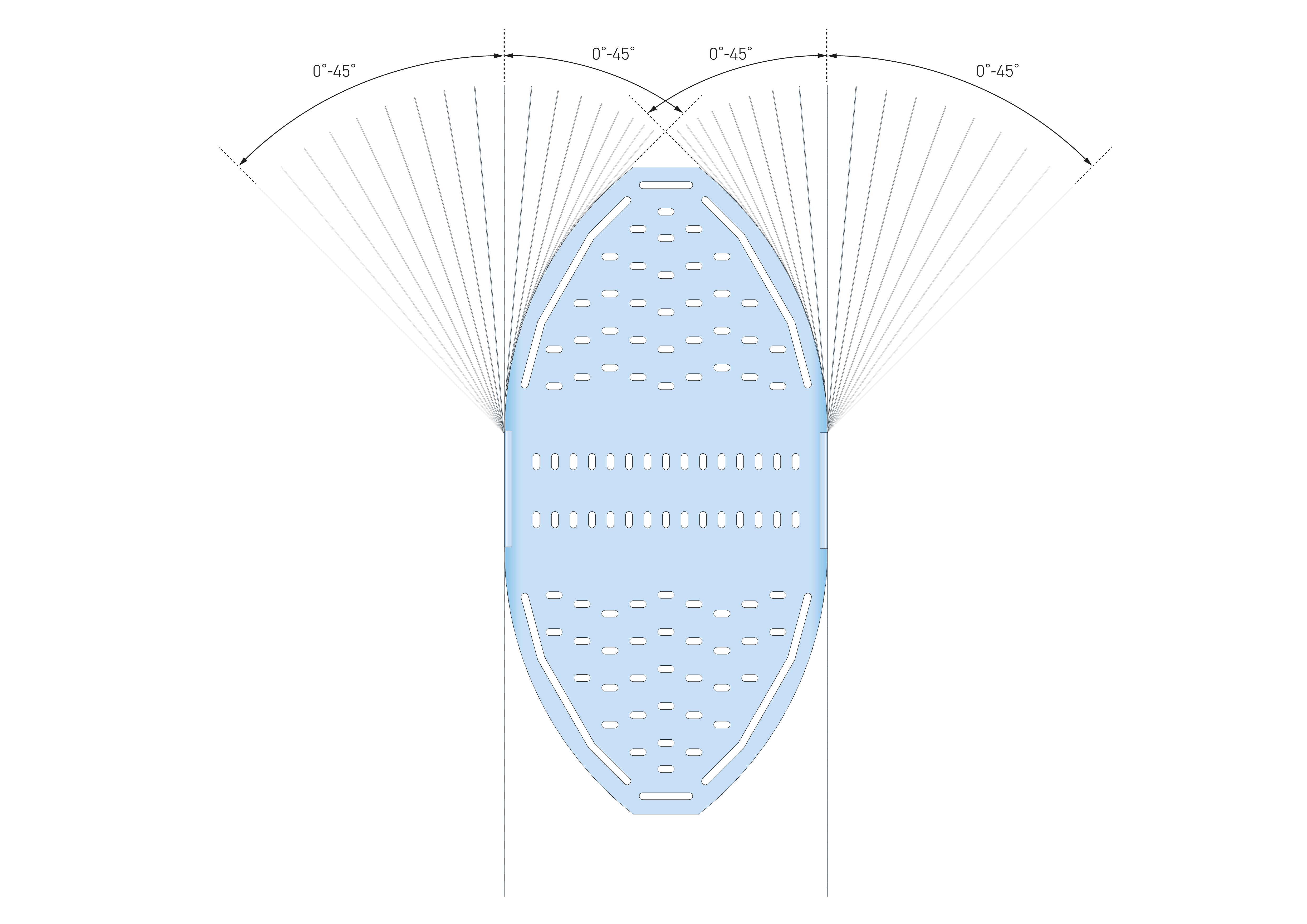

- Angle range: 0° to 90°
- Execution: With integrated connectors, including 8x EFS08x15 fixing set (bolt M08x15, nut and washer)
- Standard material: Carbon steel
- Surface finish: Hot dip galvanized according to NEN-EN-ISO 1461
- Zinc coating thickness: minimum 60 µm
- Standards: IEC 61537, applicable within installations compliant with NEN 1010

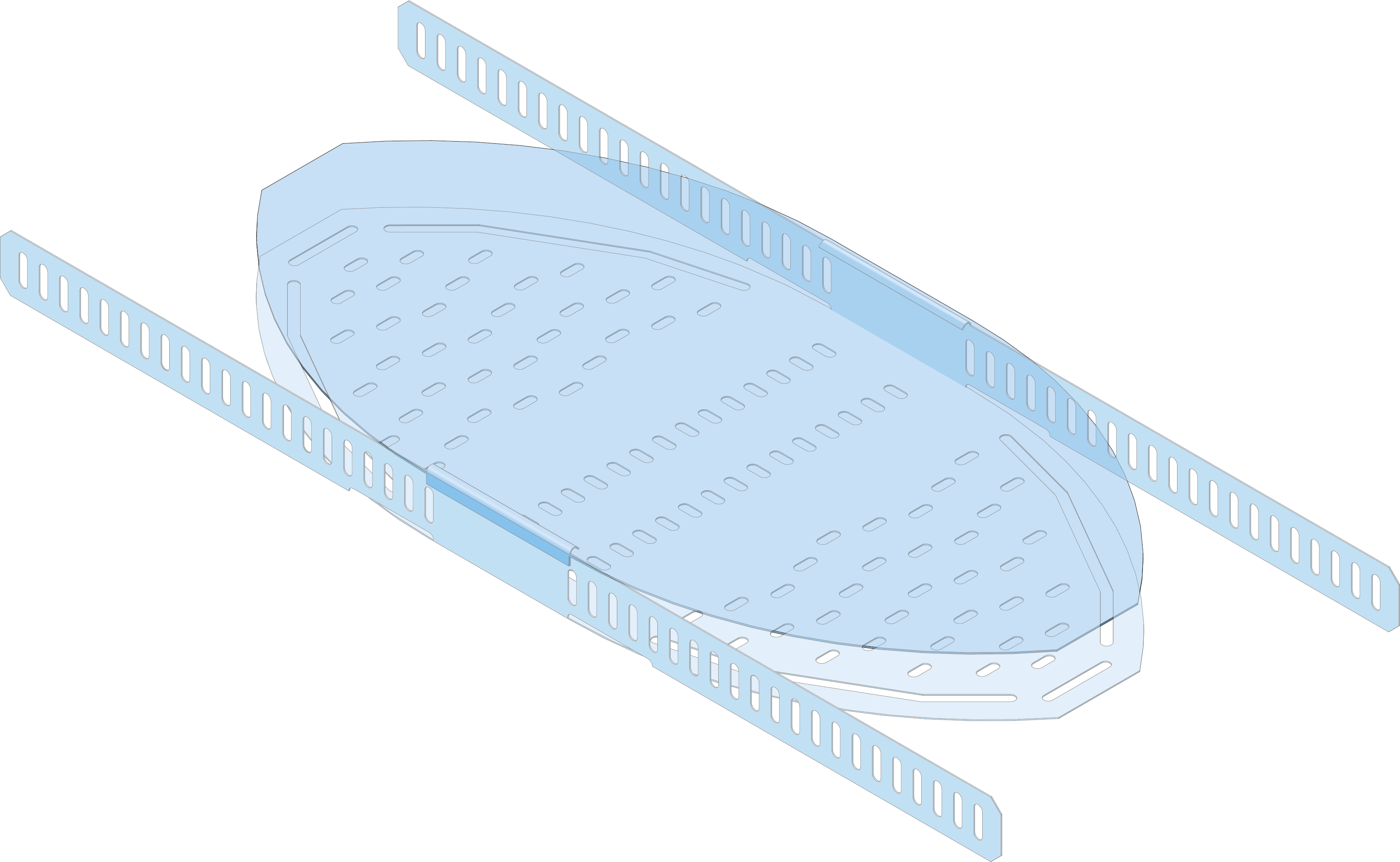

Typical Applications

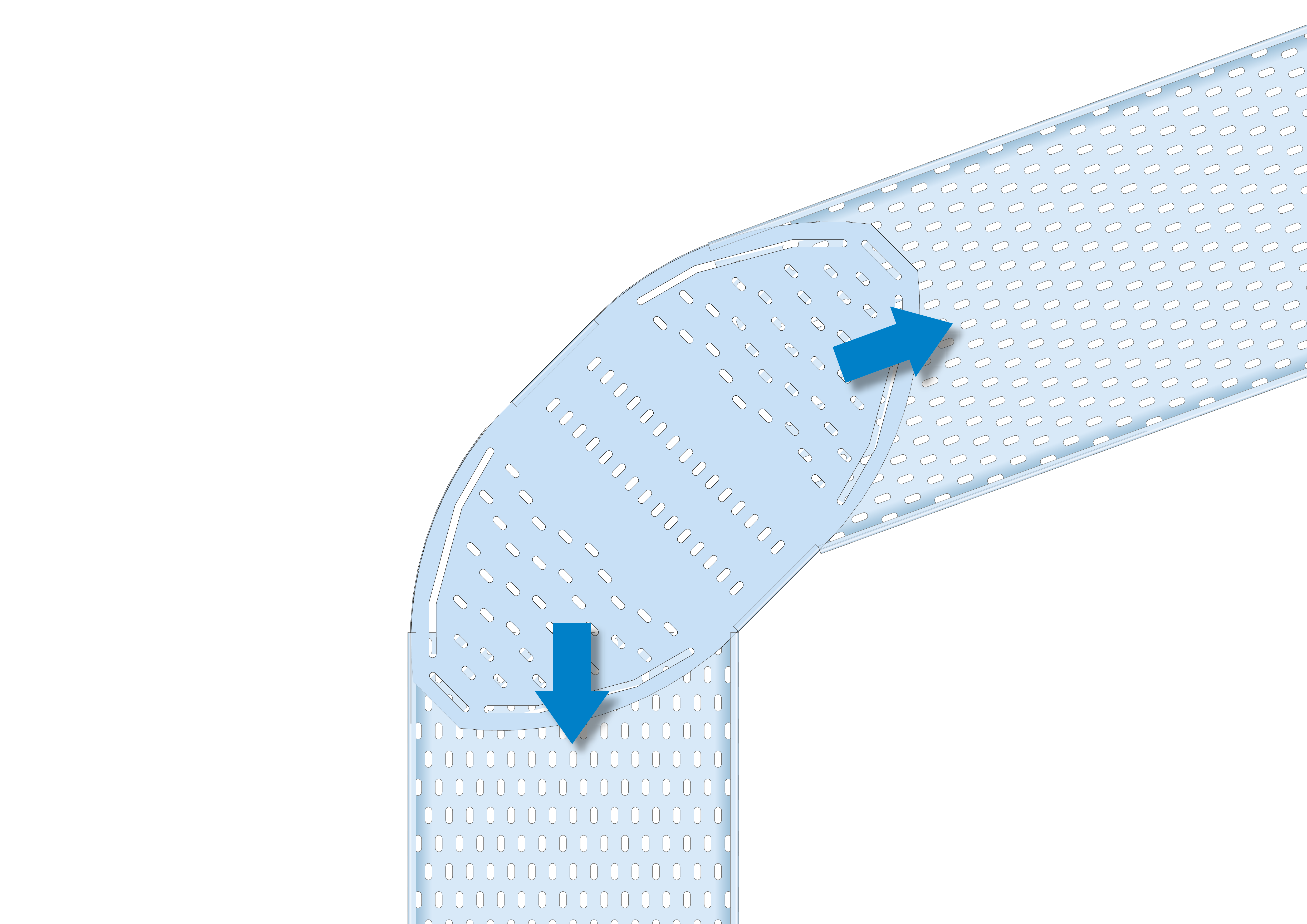

- Horizontal branches within ECT60 cable tray systems

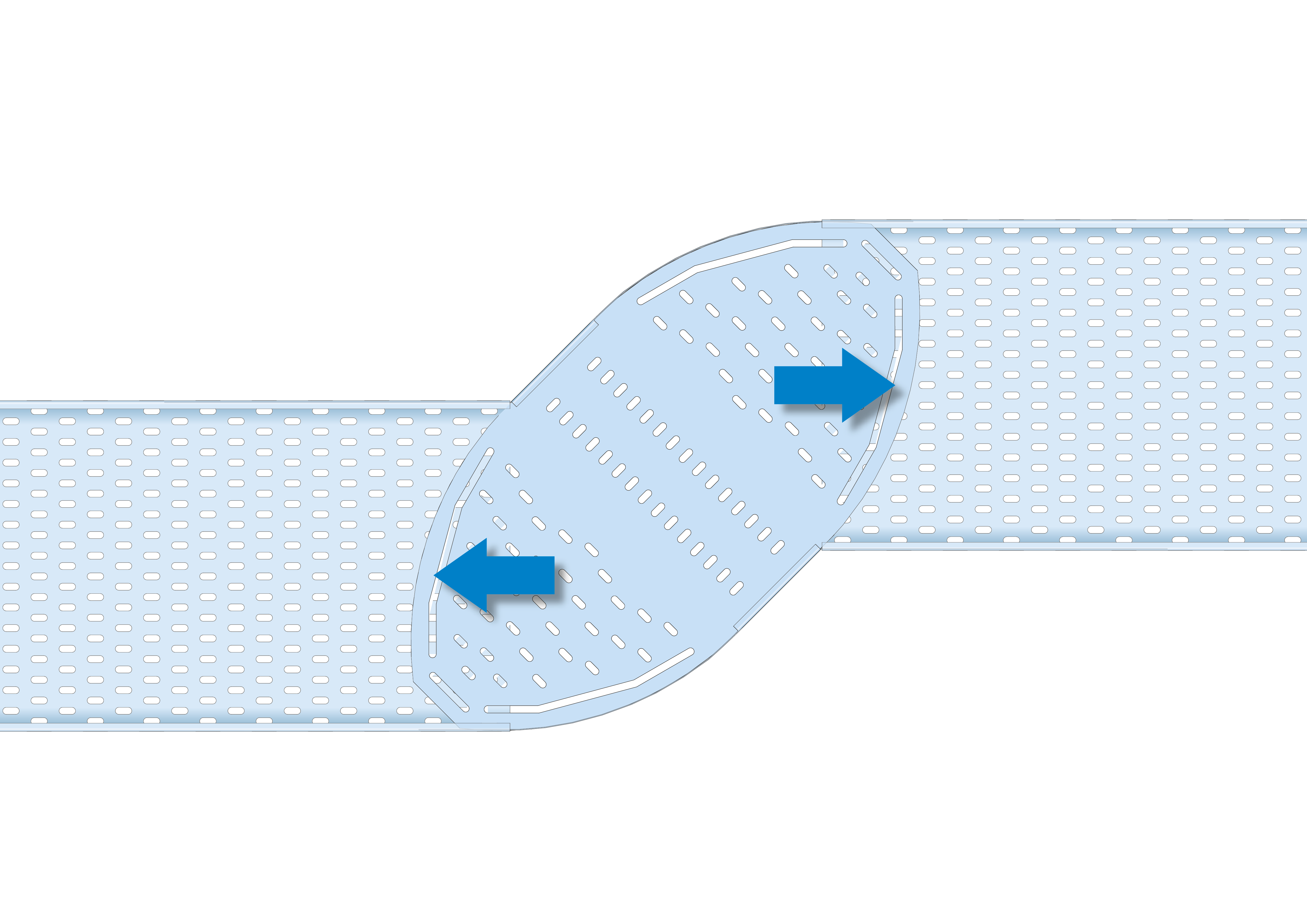

- Variable direction changes between 0° and 90°
- Heavy industrial installations
- Utility and infrastructure cable routes
Available Material Variants
- HDG: Hot dip galvanized carbon steel according to NEN-EN-ISO 1461, with a minimum zinc coating thickness of 60 µm, suitable for heavy industrial and outdoor environments.
- PG: Pre galvanized carbon steel according to EN 10346, suitable for dry indoor environments and light industrial applications.
- Stainless steel 304 (A2 / 1.4301): Stainless steel for indoor environments and lightly corrosive conditions.
- Stainless steel 316 (A4 / 1.4404): Stainless steel with enhanced corrosion resistance for chemical, maritime, and offshore applications.
Complementary Products
For a complete installation within the ECT60 system, the following components are relevant:
- Straight cable trays: ECT60 cable trays in various widths
- Coupling plates: Horizontal and vertical coupling plates for flexible direction changes
- Fixed bends: 45° and 90° bends for ECT60 systems
These components together ensure a safe, compatible, and maintenance-friendly installation.
Other widths and angles available on request.
Datasheet_Eurostrut_ECTFB60_EN
