Flexible Bend Vertical Cable Tray ECT60 200mm HDG
Want to view our prices?
Our pricing is exclusively available to registered customers.
Variations
Product information
| Change of direction : | Rising/descending |
|---|---|
| Angle : | Adaptable |
| Construction type : | Vertical adjustable bend complete |
| Bend model : | Segmental bend |
| For connection with screws : | Yes |
| For screwless connection : | No |
| With cover : | No |
| Inner radius : | 95 mm |
| Suitable for cable tray height : | 60 mm |
| Suitable for cable tray width : | 200 mm |
| Material thickness : | 1 mm |
| Side perforation : | No |
| Bottom perforation : | Yes |
| NATO-mounting holes : | No |
| Model : | Integrated connector |
| Material : | Steel |
| Material quality : | Rustproof and acidproof steel |
| Surface protection : | Hot-dip galvanised |

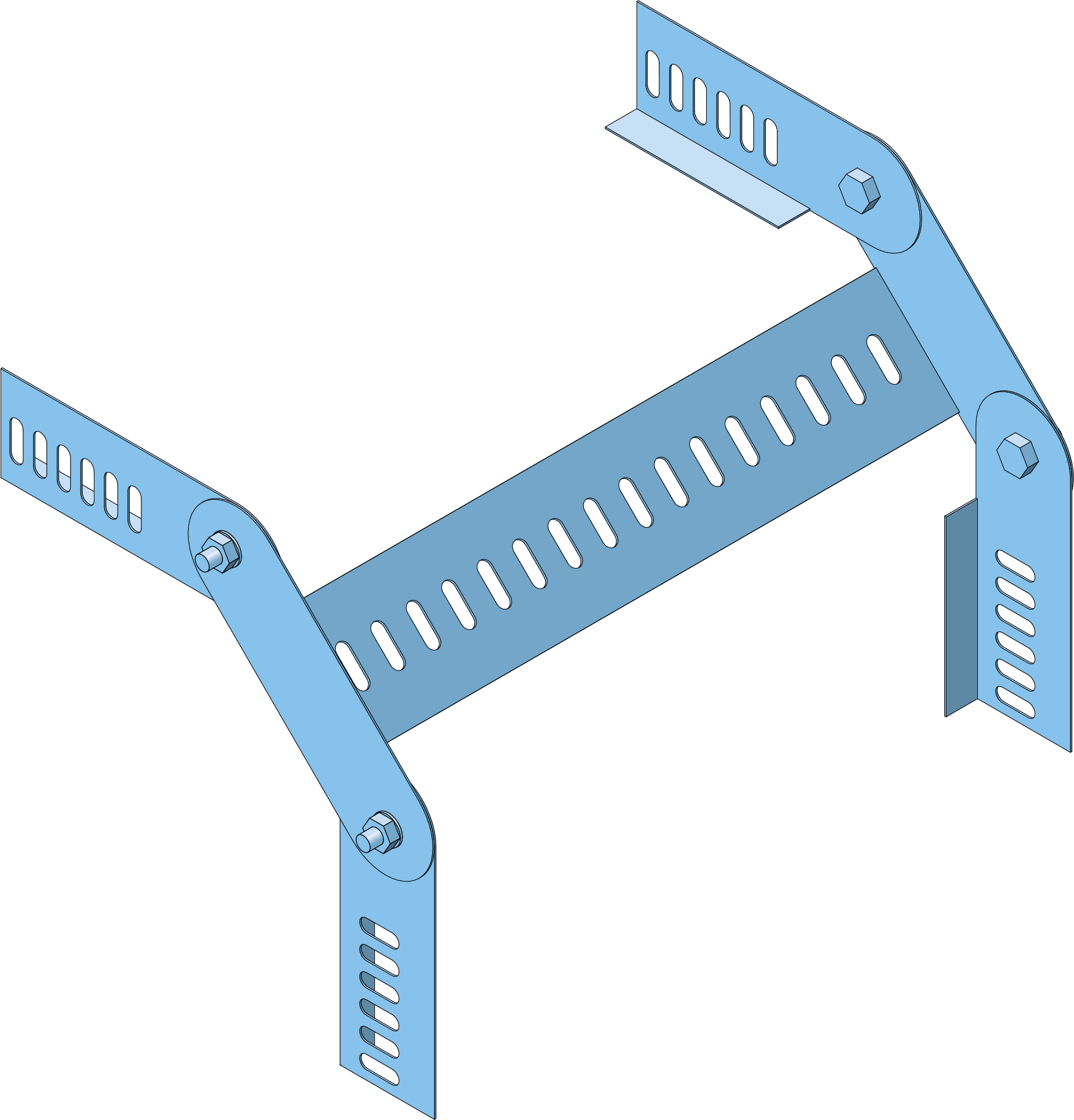

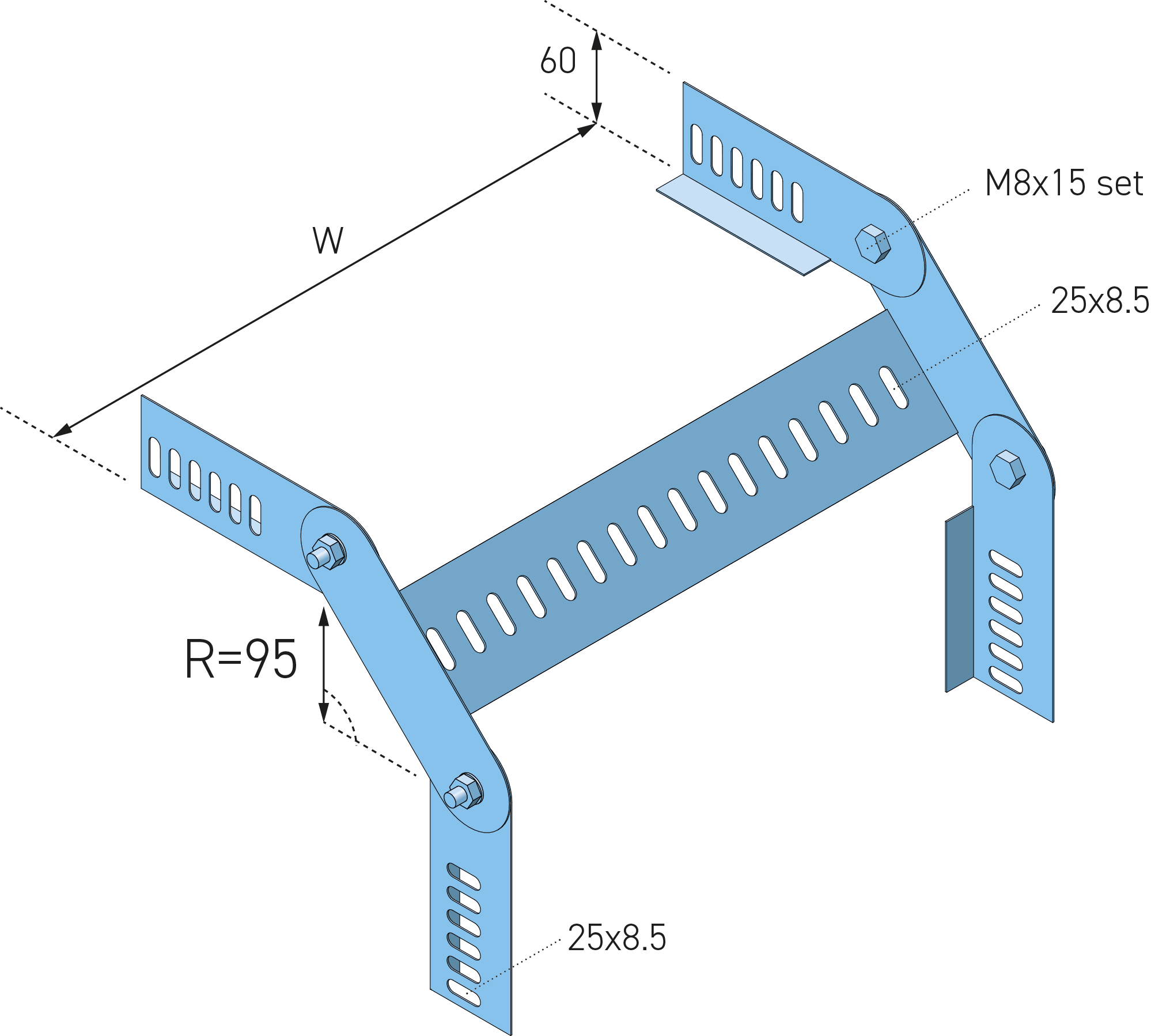

Flexibel Bend Vertical for cable tray ECT60 with sizes H = 60 mm, W (width) = 195 mm, E (thickness) = 1,0 mm, flexible bend vertical adjustable 0˚ - 90˚, carbon steel, hot dip galvanized according to NEN-EN-ISO 1461, including 8x EFS08x15-GEO Eurostrut fixing set (bolt M08x15, nut and washer).

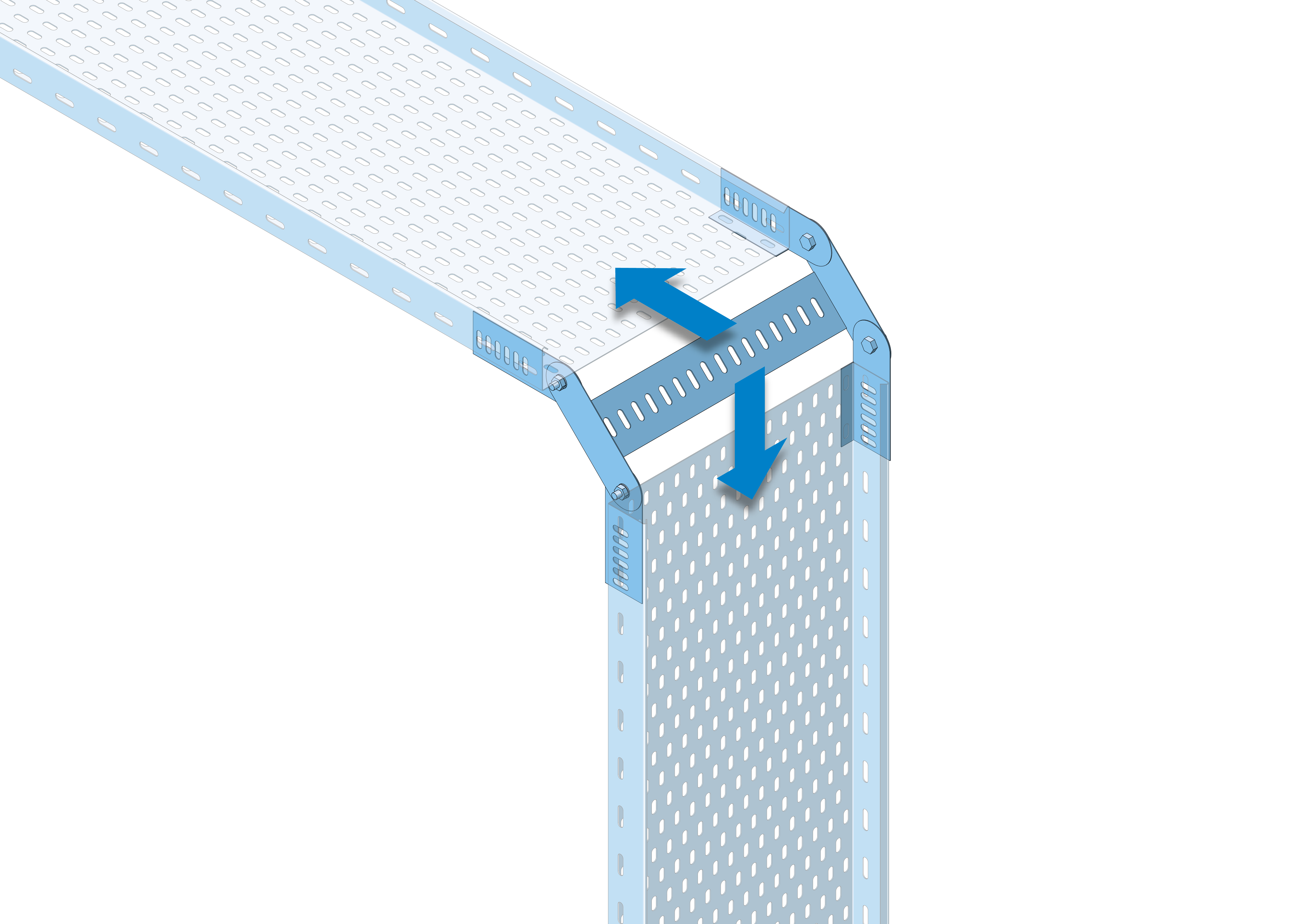

Vertical flexible bend ECTFBV60 is an accessory for the ECT60 cable tray system and is used to create a variable vertical change in direction within cable routes. The flexible design allows both upward (inside riser) and downward (outside riser) transitions to be realized without fixed angles. This accessory is suitable for utility, industrial, and infrastructure installations where flexibility in routing is required.
The standard version is manufactured from hot dip galvanized carbon steel according to NEN-EN-ISO 1461, with a minimum zinc coating thickness of 60 µm, suitable for industrial and outdoor environments. The hot dip galvanizing process is applied after fabrication and provides full protection of the surface, including cut edges and fixing holes. This makes the flexible bend suitable for applications with increased corrosive and mechanical loads, in accordance with IEC 61537 and installations compliant with NEN 1010.
The flexible bend is designed as an adjustable vertical fitting for direct connection to ECT60 cable trays. Due to its segmented construction, the required angle can be set continuously. The execution is equipped with integrated connectors and is supplied including 8x EFS08x15 fixing set (carriage bolt M08x15, nut, and washer), enabling fast and alignment-stable installation. The accessory is fully compatible with other ECT60 system components and ensures a uniform and mechanically stable cable tray installation.
Technical Specifications
- Product type: Vertical flexible bend for cable tray
- System: ECT60
- System height: 60 mm
- Width: 75 to 600 mm
- Material thickness: 1.0 to 1.5 mm
- Execution: Adjustable (flexible)
- Direction change: Vertical (upward and downward)
- Connector perforation: 25 x 8.5 mm
- Bottom perforation: 25 x 8.5 mm
- Material: Carbon steel
- Surface finish: Hot dip galvanized according to NEN-EN-ISO 1461
- Zinc coating thickness: minimum 60 µm
- Connection method: Bolted
- Execution: With integrated connectors, including 8x EFS08x15 fixing set (carriage bolt M08x15, nut, and washer)
- Standards: IEC 61537, applicable within installations compliant with NEN 1010
- Construction type: Flexible bend
- Top cover: No
- Side perforation: No
Typical Applications
- Variable vertical direction changes
- Adapting cable routes to height differences
- Complex installations with limited installation space
- Industrial and utility installations
Available Material Variants
- HDG: Hot dip galvanized carbon steel according to NEN-EN-ISO 1461, with a minimum zinc coating thickness of 60 µm, suitable for industrial and outdoor environments.
- PG: Pre galvanized carbon steel according to EN 10346, suitable for dry indoor environments and light industrial applications.
- Stainless steel 304 (A2 / 1.4301): Stainless steel for indoor environments and lightly corrosive conditions.
- Stainless steel 316 (A4 / 1.4404): Stainless steel with enhanced corrosion resistance for chemical, maritime, and offshore applications.

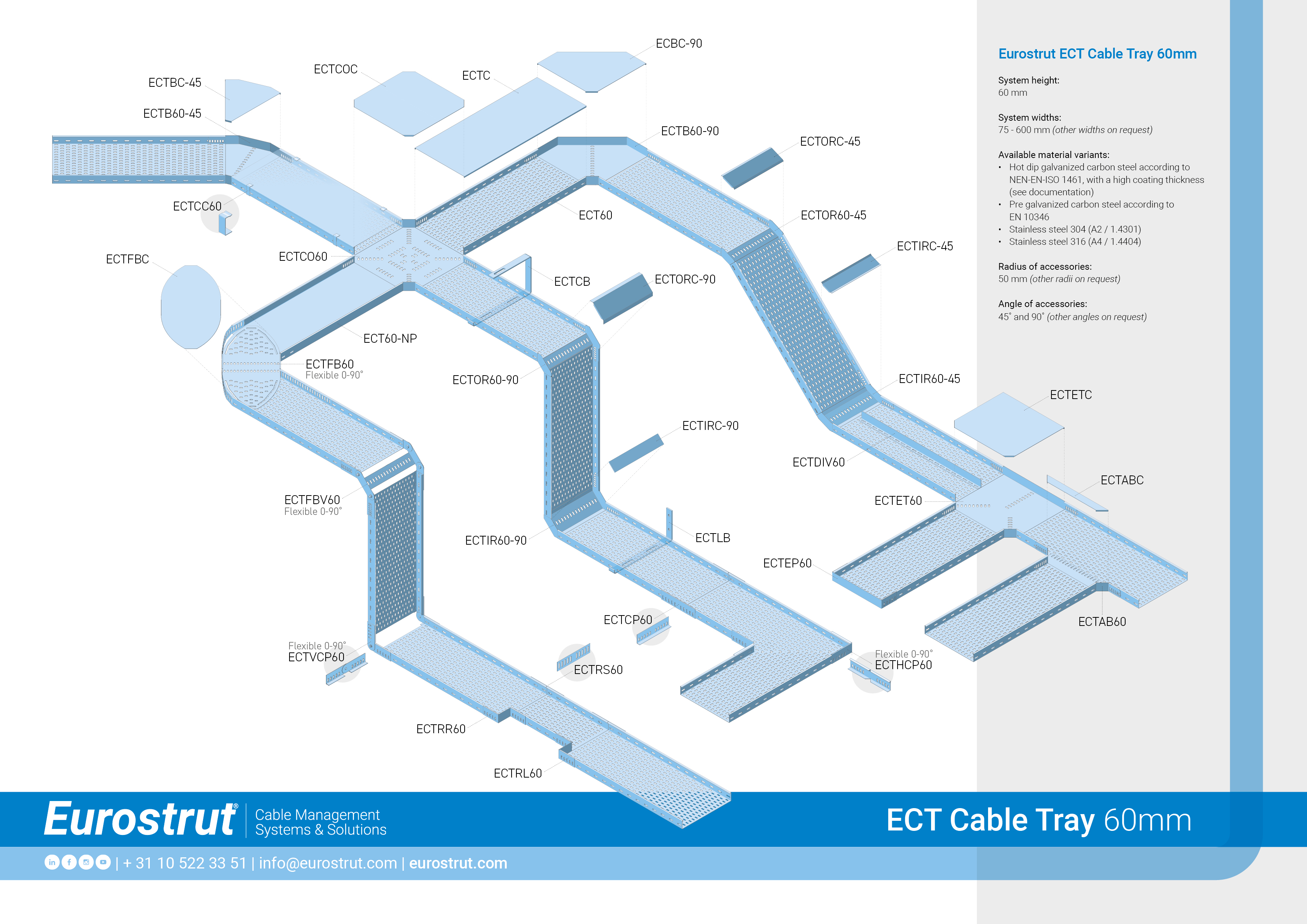

Complementary Products
For a complete installation within the ECT60 system, the following components are relevant:
- Cable trays: ECT60 cable trays in various widths
- Couplers: For longitudinal connections
- Inside and outside risers: For fixed vertical transitions
- Brackets: Wall, ceiling, and trapeze brackets
- Covers and clamps: For protection and fixation
These components together ensure a safe, compatible, and maintenance-friendly installation.
Other widths and angles available on request.
Eurostrut_ECTFBV_Flexible Bend Vertical SAT
