Inside Riser 90° Cable Ladder ECL60 400mm SS304

Product number: EIR60-400-90-300-304

Brand: Eurostrut

Fast delivery

20 years of expertise and experience

Own brand of high quality

Need help? Call us +31 10 522 33 51

Material quality

Hot dip galvanized

Stainless Steel 316

Stainless Steel 304

Suitable for cable ladder width

100 mm

200 mm

300 mm

400 mm

600 mm

Want to view our prices?

Our pricing is exclusively available to registered customers.

Create an account

piece

Variations

Product number

EIR60-100-90-300-HDG

Radius

Angle

For ladder height

Radius:

300 mm

Angle:

90°

For ladder height:

60 mm

Product number

EIR60-200-90-300-HDG

Radius:

300 mm

Angle:

90°

For ladder height:

60 mm

Product number

EIR60-300-90-300-HDG

Radius:

300 mm

Angle:

90°

For ladder height:

60 mm

Product number

EIR60-400-90-300-HDG

Radius:

300 mm

Angle:

90°

For ladder height:

60 mm

Product number

EIR60-600-90-300-HDG

Radius:

300 mm

Angle:

90°

For ladder height:

60 mm

Product number

EIR60-100-90-300-316

Radius

Angle

For ladder height

Radius:

300 mm

Angle:

90°

For ladder height:

60 mm

Product number

EIR60-200-90-300-316

Radius:

300 mm

Angle:

90°

For ladder height:

60 mm

Product number

EIR60-300-90-300-316

Radius:

300 mm

Angle:

90°

For ladder height:

60 mm

Product number

EIR60-400-90-300-316

Radius:

300 mm

Angle:

90°

For ladder height:

60 mm

Product number

EIR60-600-90-300-316

Radius:

300 mm

Angle:

90°

For ladder height:

60 mm

Product number

EIR60-100-90-300-304

Radius

Angle

For ladder height

Radius:

300 mm

Angle:

90°

For ladder height:

60 mm

Product number

EIR60-200-90-300-304

Radius:

300 mm

Angle:

90°

For ladder height:

60 mm

Product number

EIR60-300-90-300-304

Radius:

300 mm

Angle:

90°

For ladder height:

60 mm

Product number

EIR60-400-90-300-304

Radius:

300 mm

Angle:

90°

For ladder height:

60 mm

Product number

EIR60-600-90-300-304

Radius:

300 mm

Angle:

90°

For ladder height:

60 mm

Product information

Change of direction :	Rising/descending
Type of side joist :	Profile (open)
Side perforation :	No
Type of rung :	Perforated profile
Angle :	90°
Bend model :	Smooth bend
Hinging :	No
Suitable for cable ladder height :	60 mm
Suitable for cable ladder width :	400 mm
Model :	Included connector
Inner radius :	300 mm
Material :	Stainless steel
Material quality :	Stainless steel 304 (1.4301)
Surface protection :	Untreated
Colour :	Stainless steel

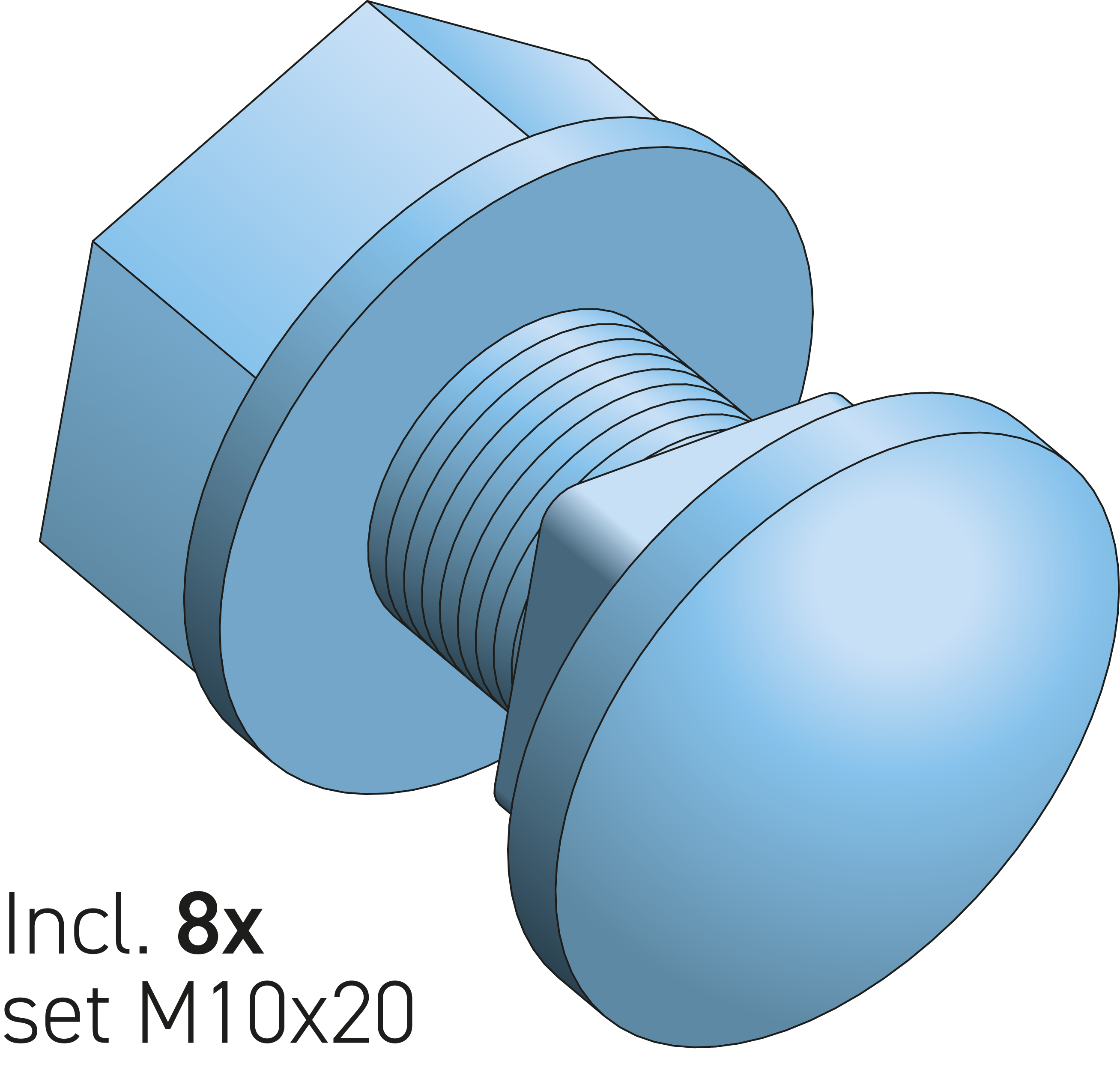

For Eurostrut Cable Ladder ECL60, H = 60 mm, W = 400 mm, E (thickness) = 3,0 mm, R = 300, Stainless Steel 304, including 4x ESL-SB-S304 Eurostrut fixing set (square neck bolt M10x20, nut and washer) Produced on request. Delivery time 5-6 weeks. Heavy Duty.

The EIR60 90° inside riser is a fitting for the ECL60 cable ladder system and is designed to create a 90° vertical change in direction within cable routes. The inside riser provides a smooth transition to a higher cable route while maintaining the minimum bending radius of the cables. The fitting is suitable for commercial, industrial, and infrastructure installations and integrates seamlessly with straight ECL60 cable ladders.

The standard version is manufactured from hot dip galvanized carbon steel according to NEN-EN-ISO 1461, with a zinc coating thickness of 60 to 70 µm. Hot dip galvanizing is applied after fabrication, providing complete corrosion protection for all surfaces, welded joints, and cut edges. The inside riser is also available in stainless steel AISI 304 (1.4301) and AISI 316L (1.4404) for corrosive or hygienic environments. A RAL powder-coated finish is available on request.

The inside riser features a standard angle of 90° with a radius of 300 mm and is manufactured from 3 mm steel to provide high structural strength. The fitting is equipped with integrated connectors and is supplied including 4x ESL-SB M10x20 fixing set (carriage bolt M10x20, nut, and washer), enabling fast, secure, and accurately aligned installation. It is fully compatible with all ECL60 cable ladders, couplers, and other ECL60 system components.

Technical Specifications

Product type: 90° inside riser for cable ladder
System: ECL60
Actual height: 54 mm
Nominal width: 100 to 600 mm
Overall width: Nominal width + 11 mm
Standard angle: 90°
Radius: 300 mm
Material thickness: 3 mm
Standard material: Carbon steel
Surface finish: Hot dip galvanized according to NEN-EN-ISO 1461
Zinc coating thickness: 60 to 70 µm
Execution: With integrated connectors, including 4x ESL-SB M10x20 fixing set (carriage bolt M10x20, nut, and washer)
Connection method: Bolted
Standards: IEC 61537, suitable for installations in accordance with NEN 1010

Typical Applications

90° upward vertical direction changes within cable ladder systems
Transitions to higher cable routes
Industrial installations
Commercial buildings
Data centres and technical facilities
Infrastructure projects

Available Material Variants

HDG: Hot dip galvanized carbon steel according to NEN-EN-ISO 1461, with a zinc coating thickness of 60 to 70 µm, suitable for industrial and outdoor environments.
Stainless Steel 304 (A2 / 1.4301): Suitable for indoor environments and lightly corrosive conditions.
Stainless Steel 316L (A4 / 1.4404): Provides enhanced corrosion resistance for chemical, marine, offshore, and aggressive environments.
RAL: RAL powder-coated carbon steel, available on request for project-specific applications.

Complementary Products

For a complete installation within the ECL60 system, the following components are available:

Cable ladders: ECL60 cable ladders in various widths and lengths.
Couplers: For longitudinal cable ladder connections.
Other fittings: Horizontal bends, vertical bends, tees, crosses, outside risers, and reducers.
Support systems: Wall brackets, ceiling brackets, trapeze hangers, and strut channels.
Fixing materials: ESL-SB bolt sets and other mounting accessories.

These components ensure a safe, fully compatible, and maintenance-friendly cable support installation.

Other widths, radii, and angles are available on request.
