Internal Mounting Bracket Cable Ladder ECL100/150 HDG
Product number:
EIFPMB100/150-HDG
Brand:
Eurostrut
Fast delivery
20 years of expertise and experience
Own brand of high quality
Want to view our prices?
Our pricing is exclusively available to registered customers.
Variations
Product number
For ladder height
Material quality
For ladder height:
100 - 150 mm
Material quality:
Hot dip galvanized
Product number
For ladder height
Material quality
For ladder height:
100 - 150 mm
Material quality:
Stainless Steel 316
Product information
| Suitable for cable support system height : | 100 - 150 mm |
|---|---|
| Model : | Other |
| Suitable for cable ladder : | Yes |
| Tray mounting : | Screwable |
| Material : | Steel |
| Material quality : | Rustproof and acidproof steel |
| Surface protection : | Hot-dip galvanised |
| Colour : | Zinc |

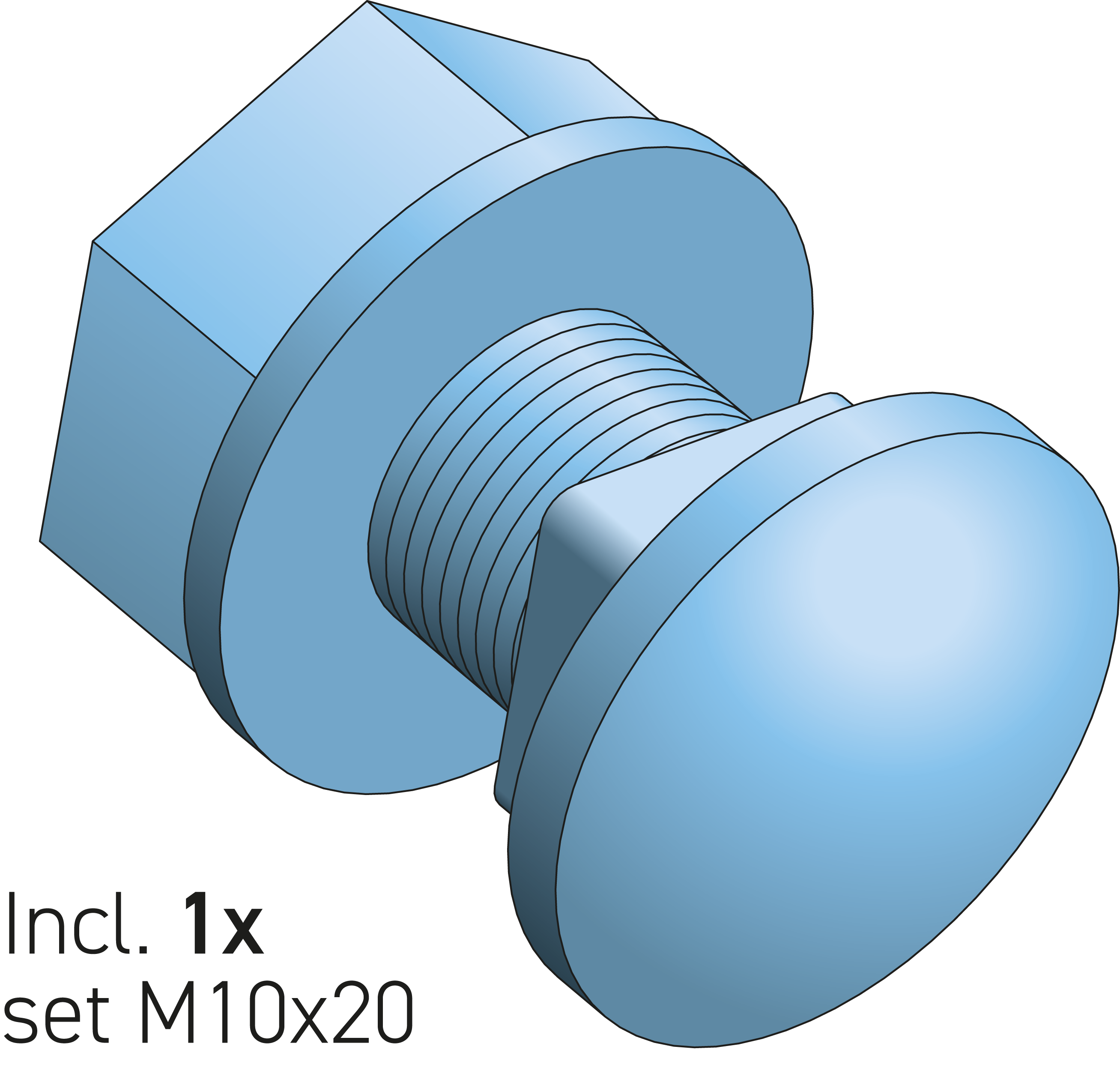

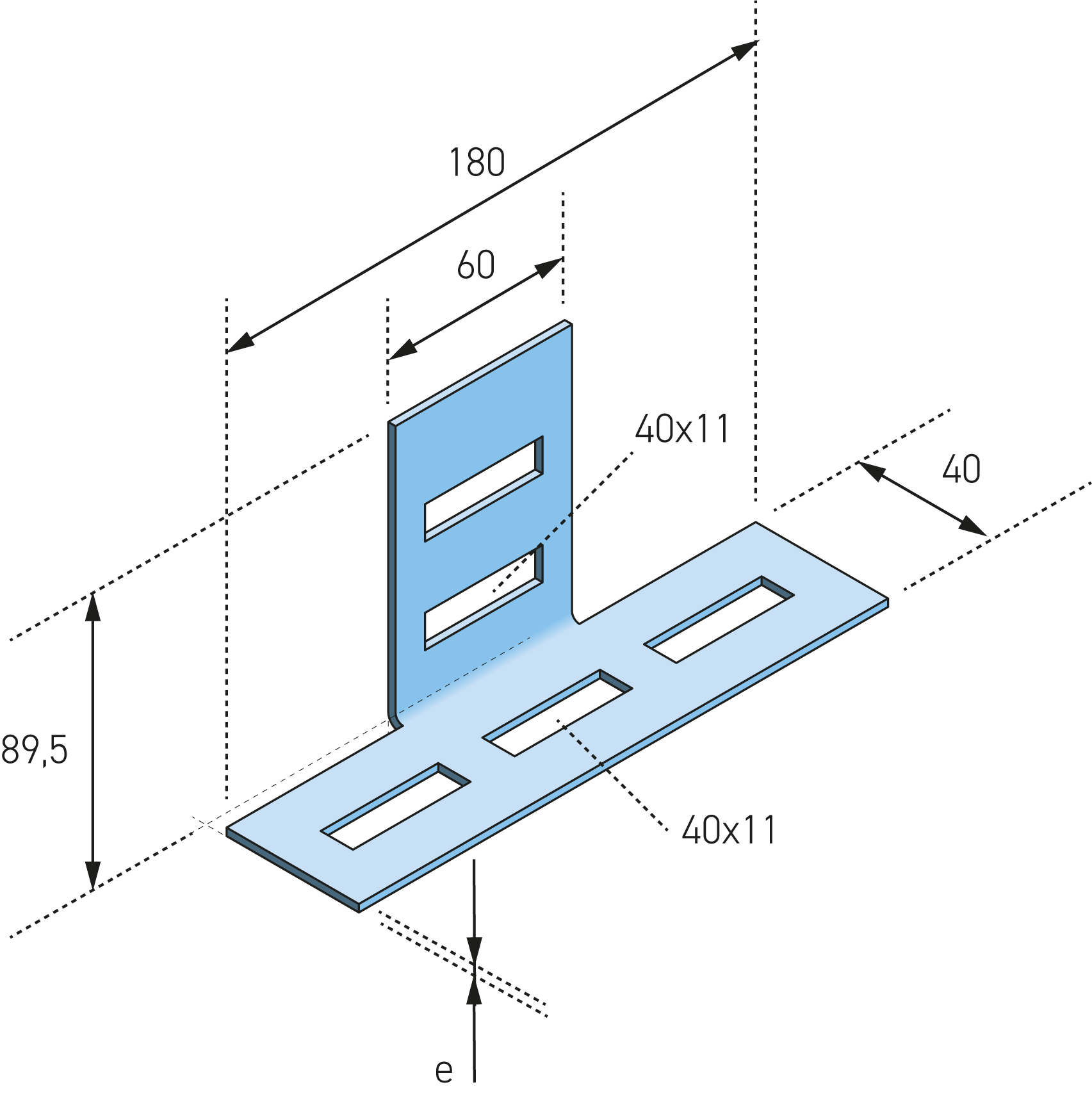

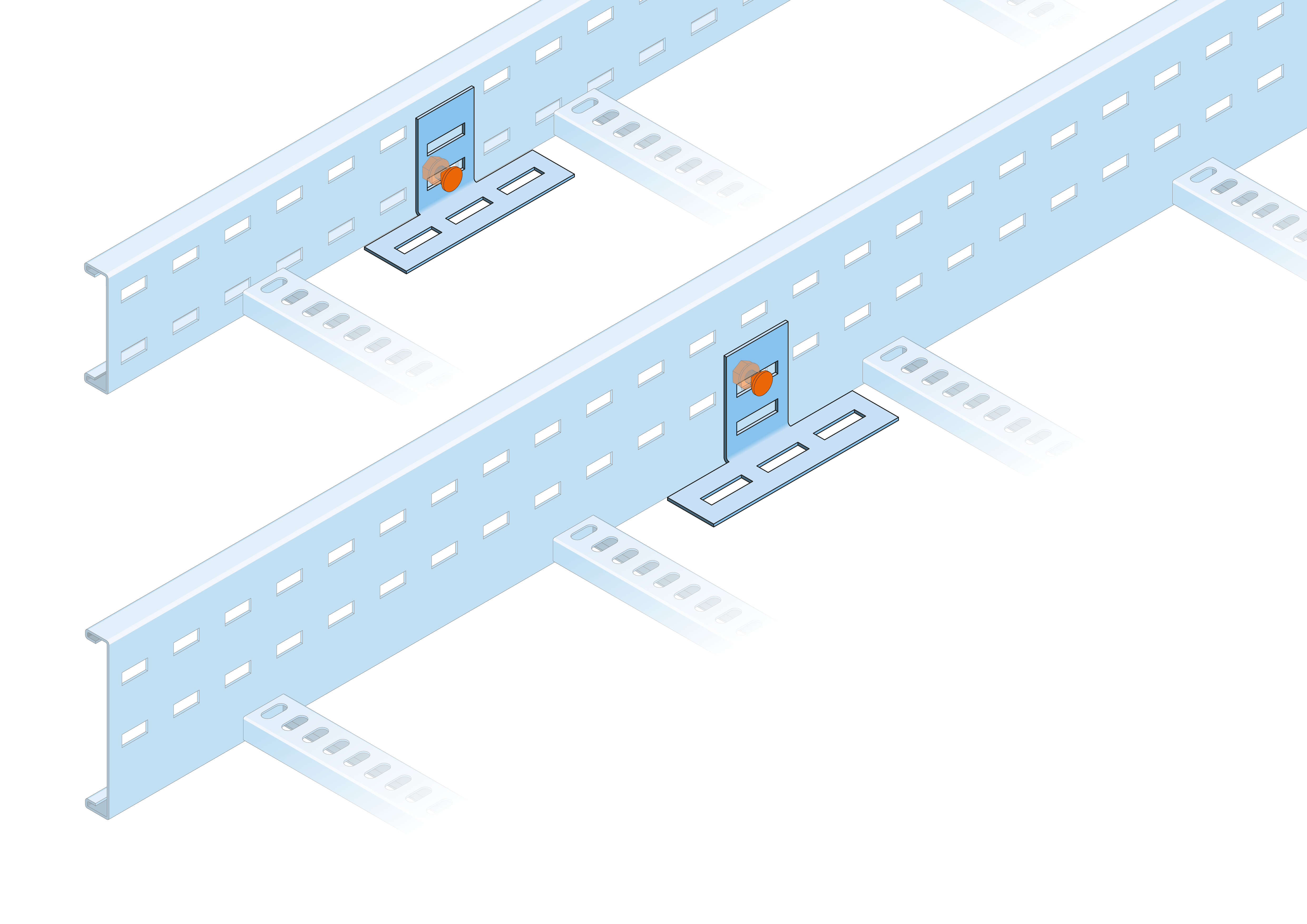

For Eurostrut Cable Ladder ECL100 and ECL150, H=89,5mm, L=200mm, W=60,5mm T=2,5mm, Hot Dip Galvanized Carbon Steel, layer 65 to 70µm, including 1x ESL-SB-H Eurostrut fixing set (square neck bolt M10x20, nut and washer).
geschikt voor Eurostrut Kabelladder ECL100 en ECL150, H=89,5mm, L=200mm, B=60,5mm D=2,5mm, Koolstofstaal Thermisch Verzinkt, beschermlaag 65 tot 70µm, inclusief 1x ESL-SB-H Eurostrut bevestigingsset (slotbout M10x20, moer en sluitring).
