KOZ Single STC 72-100 Cable Clamp K066
Product number:
K066
Brand:
KOZ Products
Fast delivery
20 years of expertise and experience
Own brand of high quality
Variations
Product number
Number of pipes
Height
For pipe diameter
Width
Number of pipes:
1
Height:
61 mm
For pipe diameter:
21 - 38 mm
Width:
92 mm
Product information
| Suitable for pipe diameter : | 72 - 100 mm |
|---|---|
| Closed : | Yes |
| Material : | Plastic |
| Material quality : | Polyamide (PA) |
| Surface protection : | Untreated |
| Connectable : | Yes |
| Max. number of tubes : | 1 |
| Type of fastening : | Screw hole |
| With inlay : | No |
| With wall gasket : | No |
| Colour : | Black |
| Working temperature : | -80 - 120 °C |
| Halogen free : | Yes |
Met extra centraal montagegat. Voor montage van enkel- en meerdradige kabels met een buitendiameter van 72-100mm. Bevestigingsmateriaal (2x M14X160 draadeind 4x bouten M14 en 4x moeren M14) niet inbegrepen.
Application: The STC clamp is designed for securing single- and multi-core low-, medium- and high-voltage cables with an outer diameter ranging from 21 mm to 160 mm.

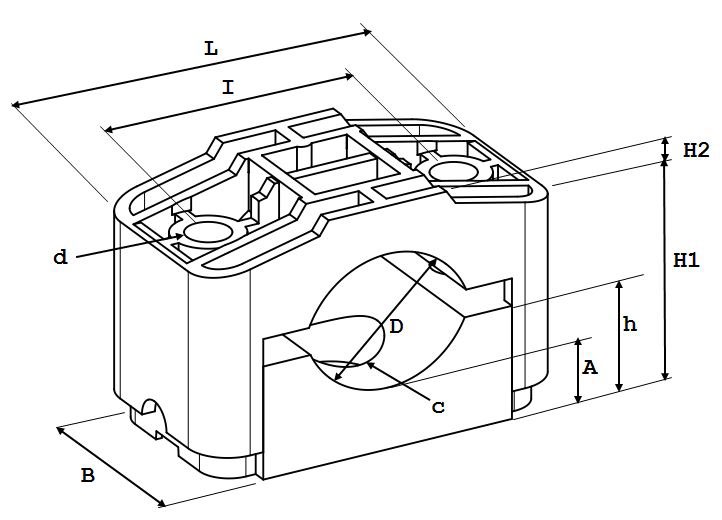

Design: The STC clamp consists of a lower shell and an upper shell and is developed for fast and easy cable installation. In addition to the two outer mounting holes, the lower shell is provided with a central mounting hole. This offers greater flexibility for installation on masts and poles, as well as on concrete structures and strut rails.
Tightening torque for the fastening material: 5 – 8 Nm
(depending on the specifications of the cable manufacturer).
Advantages:
- Resistant to oils, greases, frost, heat, UV, ozone, salt water, salts, acids and aggressive chemicals.
- No oxidation or corrosion.
- Non-magnetic and non-conductive.
- Halogen-free and no sharp edges.
- Flame-retardant V-0 (UL94).
- Temperature range from -80 °C to 120 °C (220 °C short-term).
- Lifetime warranty.
- Easy installation.
- Available worldwide.
