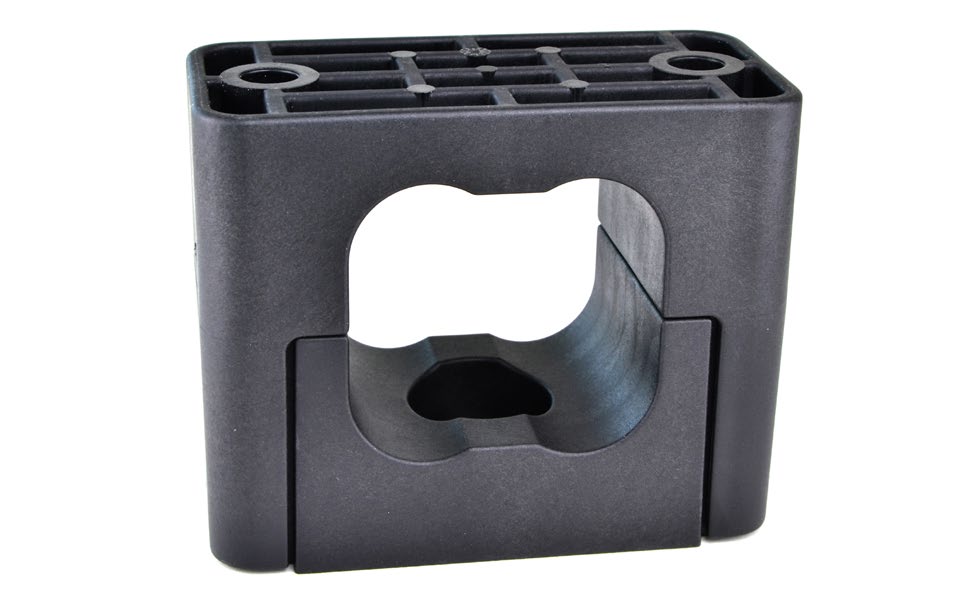

KOZ Square SQ 28 Cable Clamp K036
Want to view our prices?
Our pricing is exclusively available to registered customers.
Product information
| Suitable for pipe diameter : | 27.5 - 28.5 mm |
|---|---|
| Closed : | Yes |
| Material : | Plastic |
| Material quality : | Polyamide (PA) |
| Surface protection : | Untreated |
| Connectable : | Yes |
| Max. number of tubes : | 4 |
| Type of fastening : | Screw hole |
| With inlay : | No |
| With wall gasket : | No |
| Colour : | Black |
| Working temperature : | -80 - 120 °C |
| Halogen free : | Yes |
For the installation of 4 single- and multi-core cables with an outer diameter of 25-38,5mm. Fixing materiaal (2x M12X150 threaded rod 4x bolts M12 and 4x nuts M12) not included.
Application: Suitable for the installation of four single- and multi-core low-, medium- and high-voltage cables with a nominal outer diameter ranging from 25 mm to 38.5 mm.

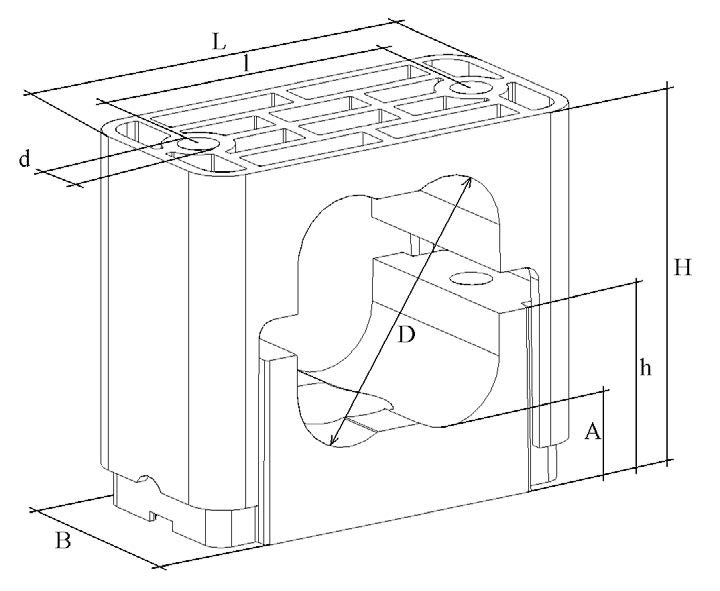

Design: The SQ clamp consists of a lower shell and an upper shell and is designed for easy installation of four cables. The SQ clamp features two mounting holes for threaded rods or tap bolts. In addition, the lower shell is equipped with a central mounting hole, providing additional installation options.
Tightening torque for the fastening material: 5 – 8 Nm
(depending on the specifications of the cable manufacturer).
Advantages:
- Resistant to oils, greases, frost, heat, UV, ozone, salt water, salts, acids and aggressive chemicals.
- No oxidation or corrosion.
- Non-magnetic and non-conductive.
- Halogen-free and no sharp edges.
- Flame-retardant V-0 (UL94).
- Temperature range from -80 °C to 120 °C (220 °C short-term).
- Lifetime warranty.
- Easy installation.
- Available worldwide.
