KOZ Trefoil TRI 121-145 Cable Clamp K025
Variations
Product information
| Suitable for pipe diameter : | 121 - 145 mm |
|---|---|
| Closed : | Yes |
| Material : | Plastic |
| Material quality : | Polyamide (PA) |
| Surface protection : | Untreated |
| Max. number of tubes : | 3 |
| Type of fastening : | Screw hole |
| With inlay : | No |
| With wall gasket : | No |
| Colour : | Black |
| Working temperature : | -80 - 120 °C |
| Halogen free : | Yes |
Application: Suitable for the installation of three single- and multi-core low-, medium- and high-voltage cables with an outer diameter ranging from 15 mm to 150 mm.

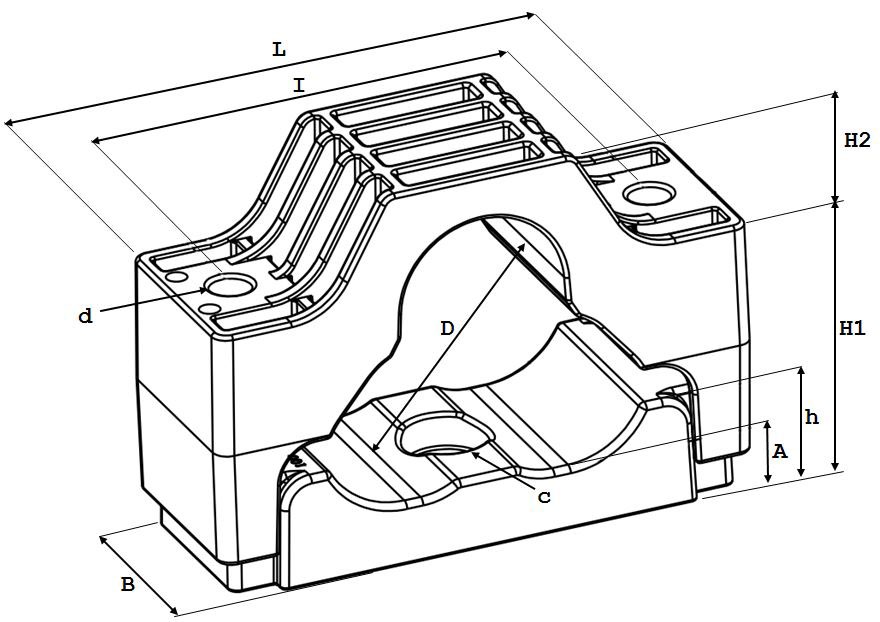

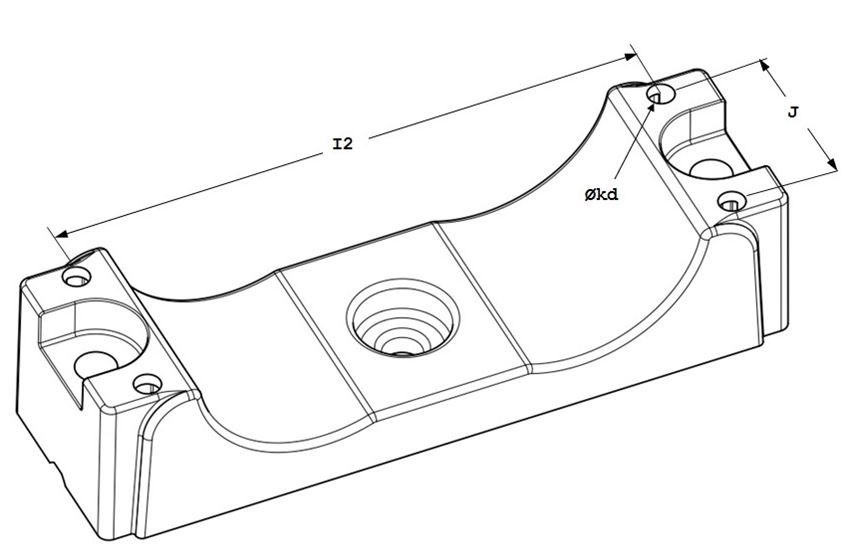

Design: The TRI clamp consists of a lower shell and an upper shell and is designed for mounting three cables in a triangular formation. The TRI clamp features two mounting holes for threaded rods or tap bolts. Both the upper and lower shells are equipped with integrated chambers, allowing the nuts at the bottom as well as in the center to be neatly retained within the clamp. In addition, the lower shell is provided with a central mounting hole, offering even more installation options.
Tightening torque for the fastening material: 5 – 8 Nm
(depending on the specifications of the cable manufacturer).
Advantages:
- Resistant to oils, greases, frost, heat, UV, ozone, salt water, salts, acids and aggressive chemicals.
- No oxidation or corrosion.
- Non-magnetic and non-conductive.
- Halogen-free and no sharp edges.
- Flame-retardant V-0 (UL94).
- Temperature range from -80 °C to 120 °C (220 °C short-term).
- Lifetime warranty.
- Easy installation.
- Available worldwide.
