KOZ Trefoil TRI ECO 47-66 Cable Clamp K029
Variations
Product information

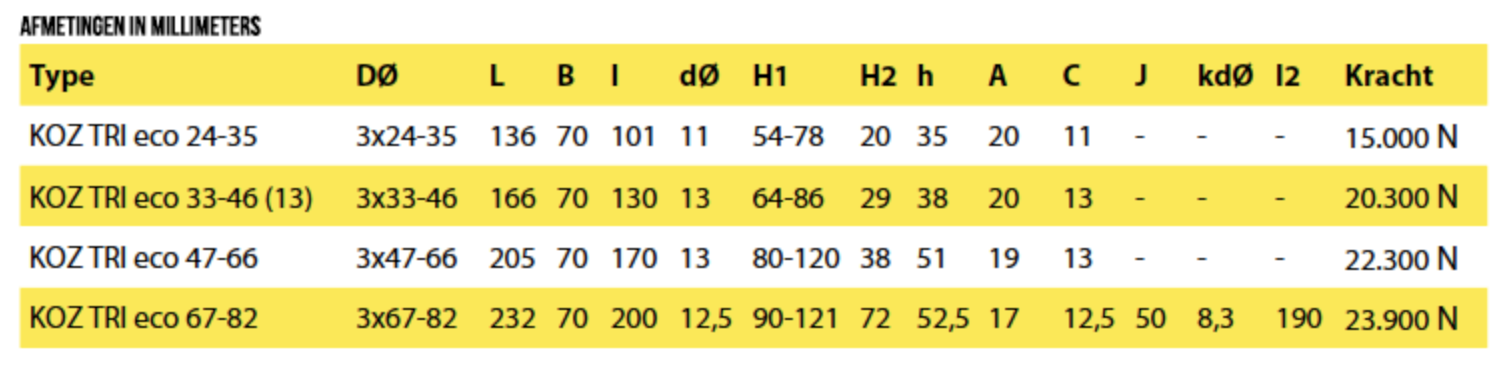

| Suitable for pipe diameter : | 47 - 66 mm |
|---|---|
| Closed : | Yes |
| Material : | Plastic |
| Material quality : | Polyamide (PA) |
| Surface protection : | Untreated |
| Max. number of tubes : | 3 |
| Type of fastening : | Screw hole |
| With inlay : | No |
| With wall gasket : | No |
| Colour : | Black |
| Working temperature : | -80 - 120 °C |
| Halogen free : | Yes |
Compact and cost-effective solution. For the installation of 3 single- and multi-core cables with an outer diameter of 47-66mm. Fixing materiaal (2x M12X160 threaded rod 4x bolts M12 and 4x nuts M12) not included.
Application: Suitable for the installation of three single- and multi-core low-, medium- and high-voltage cables with an outer diameter ranging from 24 mm to 82 mm.

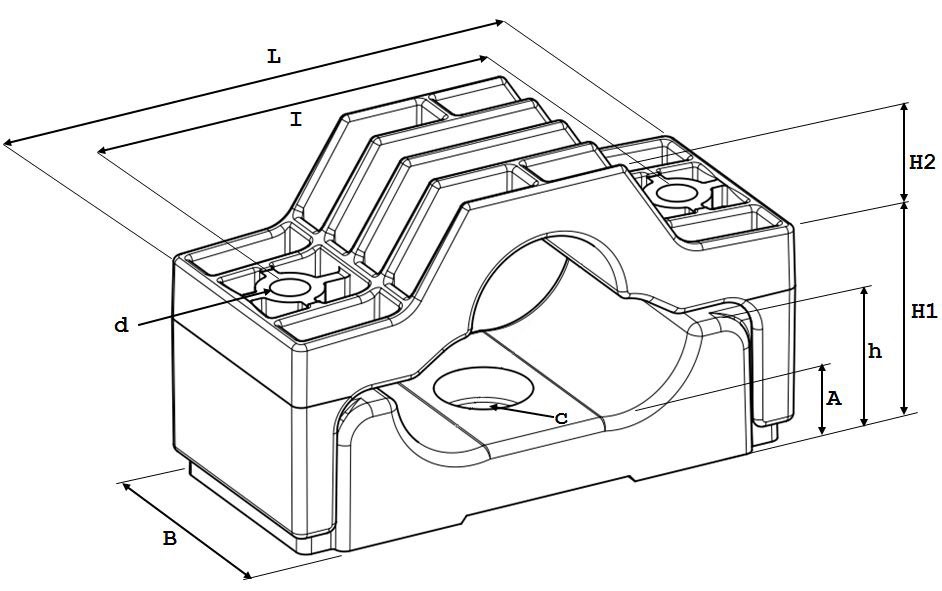

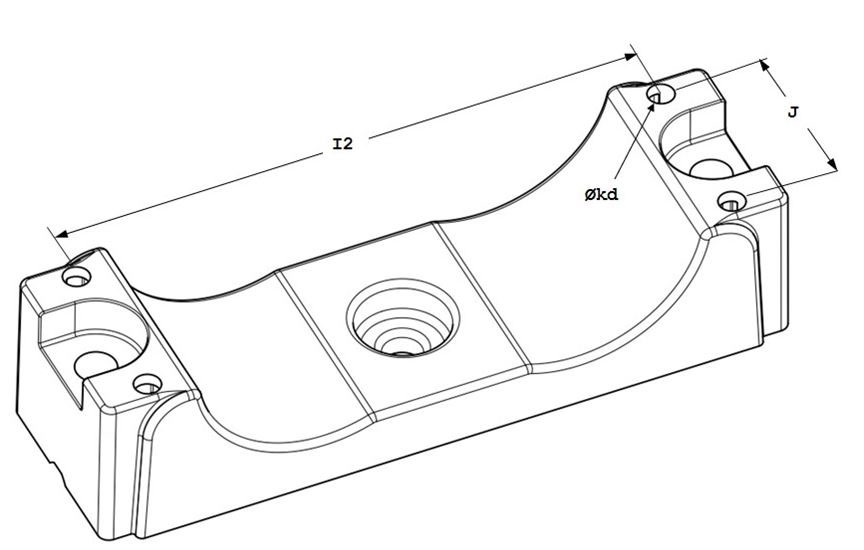

Design: The TRI eco clamp consists of a lower shell and an upper shell and is designed for mounting three cables in a triangular formation. The TRI eco clamp features two mounting holes for threaded rods or tap bolts. Both the upper and lower shells are equipped with integrated chambers, allowing the nuts at the bottom as well as in the center to be neatly retained within the clamp. In addition, the lower shell is provided with a central mounting hole, offering additional installation options.
Tightening torque for the fastening material: 5 – 8 Nm
(depending on the specifications of the cable manufacturer).
Advantages:
- Resistant to oils, greases, frost, heat, UV, ozone, salt water, salts, acids and aggressive chemicals.
- No oxidation or corrosion.
- Non-magnetic and non-conductive.
- Halogen-free and no sharp edges.
- Flame-retardant V-0 (UL94).
- Temperature range from -80 °C to 120 °C (220 °C short-term).
- Lifetime warranty.
- Easy installation.
- Available worldwide.
