KOZ Universal UNI TRI 3x3 27-37 Trefoil Cable Block K672
Want to view our prices?
Our pricing is exclusively available to registered customers.
Product information
| Suitable for pipe diameter : | 27 - 37 mm |
|---|---|
| Closed : | Yes |
| Material : | Plastic |
| Material quality : | Polyamide (PA) |
| Surface protection : | Untreated |
| Connectable : | Yes |
| Max. number of tubes : | 9 |
| Type of fastening : | Screw hole |
| With inlay : | No |
| With wall gasket : | No |
| Colour : | Black |
| Working temperature : | -80 - 120 °C |
| Halogen free : | Yes |

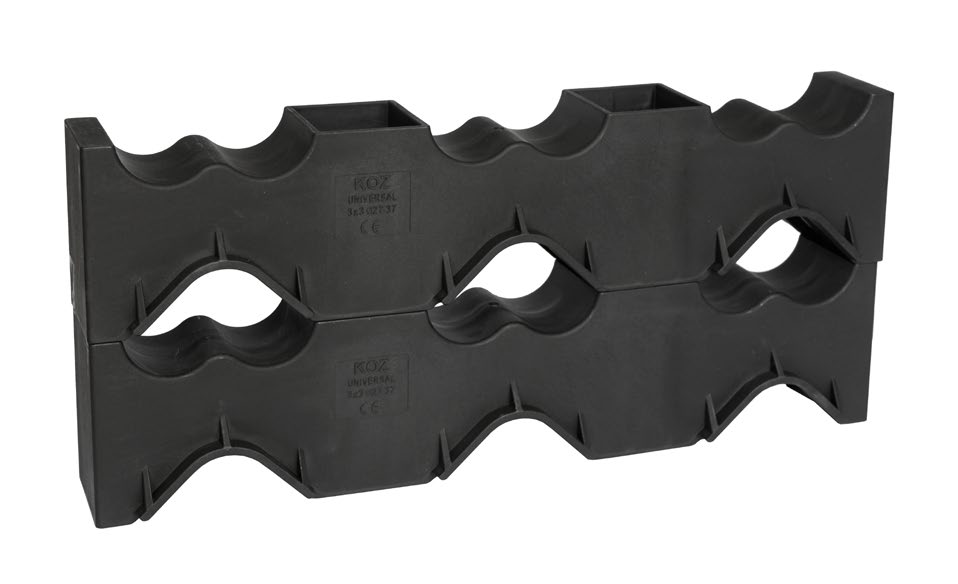

Trefoil blocks that function as both lower and upper halves. For the installation of 3×3 single- and multi-core cables with an outer diameter of 27-37mm. Fixing materiaal (2x M12X210 threaded rod 4x bolts M12 and 4x nuts M12) not included.
Application: Suitable for the installation of multiple single- and multi-core low-, medium- and high-voltage cables positioned side by side or stacked in layers in a triangular configuration, with an outer diameter ranging from 27 mm to 37 mm.
Design: The KOZ UNI TRI blocks are designed to clamp 9 or 12 cables per layer, arranged in a 3×3 or 4×3 triangular configuration. This provides additional installation options when multiple cables need to be installed in a limited space.
Tightening torque for the fastening material: 5 – 8 Nm
(depending on the specifications of the cable manufacturer).
Advantages:
- Resistant to oils, greases, frost, heat, UV, ozone, salt water, salts, acids and aggressive chemicals.
- No oxidation or corrosion.
- Non-magnetic and non-conductive.
- Halogen-free and no sharp edges.
- Flame-retardant V-0 (UL94).
- Temperature range from -80 °C to 120 °C (220 °C short-term).
- Lifetime warranty.
- Easy installation.
- Available worldwide.
