Mounting Bracket 165x175mm Cable Protection Tube 60mm HDG
Product number:
SMI-60-FT
Brand:
Eurostrut
Fast delivery
20 years of expertise and experience
Own brand of high quality
Want to view our prices?
Our pricing is exclusively available to registered customers.
Variations
Product number
Outer diameter
Height
Width
Outer diameter:
60.3 mm
Height:
175 mm
Width:
165 mm
Product number
Outer diameter
Height
Width
Outer diameter:
60.3 mm
Height:
175 mm
Width:
165 mm
Product number
Outer diameter
Height
Width
Outer diameter:
60.3 mm
Height:
175 mm
Width:
165 mm
Product information
| Material : | Metal |
|---|---|
| Surface protection : | Hot-dip galvanised |
| Type of fastening : | Screw hole |
| Number of cables/conduits : | 1 |
| Outer diameter : | 60.3 mm |
| Width : | 165 mm |
| Height : | 175 mm |

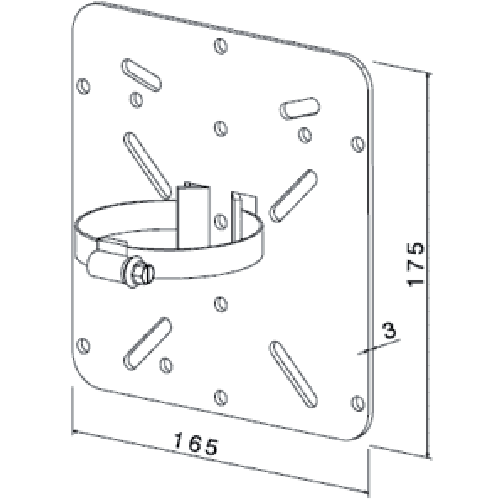

The SMI-60-FT is a 165 x 175 mm mounting plate designed for securely fixing cable protection tubes with a diameter of 60.3 mm to flat surfaces. It ensures stable support in industrial and technical installations.
Made from structural steel S235JRG and hot-dip galvanized in accordance with NEN-EN-ISO 1461, with a minimum zinc coating of 45 µm, this plate offers excellent corrosion resistance for both indoor and outdoor environments.
- Material: Structural steel S235JRG
- Finish: Hot-dip galvanized to NEN-EN-ISO 1461 (min. 45 µm)
- Dimensions: 165 x 175 mm
- For tube diameter: 60.3 mm
- Wall thickness: 3 mm
- Includes: 1x hose clamp SS9-60-ER2
- Compatible with: SR-60-FT and SRL-60-FT cable protection tubes
- Mounting: Secured to flat surfaces using screw holes
Applications:
- Mounting cable protection tubes to walls and floors
- Industrial and infrastructure installations
- Support for tube systems in diverse environments
