Mounting Bracket 270x380mm Cable Protection Tube 60mm HDG
Product number:
SMIII-60-FT
Brand:
Eurostrut
Fast delivery
20 years of expertise and experience
Own brand of high quality
Want to view our prices?
Our pricing is exclusively available to registered customers.
Variations
Product number
Outer diameter
Height
Material quality
Outer diameter:
60.3 mm
Height:
380 mm
Material quality:
Hot dip galvanized
Product number
Outer diameter
Height
Material quality
Outer diameter:
60.3 mm
Height:
380 mm
Material quality:
Stainless Steel 316
Product number
Outer diameter
Height
Material quality
Outer diameter:
60.3 mm
Height:
380 mm
Material quality:
Stainless Steel 304
Product information
| Material : | Metal |
|---|---|
| Surface protection : | Hot-dip galvanised |
| Type of fastening : | Screw hole |
| Number of cables/conduits : | 1 |
| Outer diameter : | 60.3 mm |
| Width : | 270 mm |
| Height : | 380 mm |
The SMIII-60-FT is a 270 x 380 mm mounting plate designed for securely fixing cable protection tubes with a diameter of 60.3 mm. It provides stable support for various installations.
Made from structural steel S235JRG and hot-dip galvanized according to NEN-EN-ISO 1461, with a minimum zinc coating of 45 µm, this plate offers excellent corrosion resistance for both indoor and outdoor environments.
- Material: Structural steel S235JRG
- Finish: Hot-dip galvanized to NEN-EN-ISO 1461 (min. 45 µm)

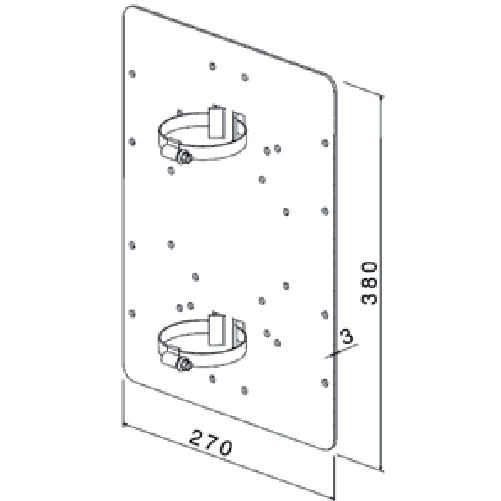

- Dimensions: 270 x 380 mm
- For tube diameter: 60.3 mm
- Thickness: 3 mm
- Includes: 2x hose clamps SS12-60-ER2
- Compatible with: SR-60-FT and SRL-60-FT cable protection tubes
- Mounting: Secured to flat surfaces using screw holes
Applications:
- Mounting cable protection tubes on floors and walls
- Industrial and infrastructure installations
- Support for tube systems in various environments
