Mounting Bracket Cable Protection Tube 60mm HDG
Product number:
SHKW-60-FT
Brand:
Eurostrut
Fast delivery
20 years of expertise and experience
Own brand of high quality
Want to view our prices?
Our pricing is exclusively available to registered customers.
Variations
Product number
Outer diameter
Material quality
Outer diameter:
60.3 mm
Material quality:
Hot dip galvanized
Product number
Outer diameter
Material quality
Outer diameter:
60.3 mm
Material quality:
Stainless Steel 316
Product number
Outer diameter
Material quality
Outer diameter:
60.3 mm
Material quality:
Stainless Steel 304
Product information
| Material : | Steel |
|---|---|
| Surface protection : | Hot-dip galvanised |
| Outer diameter : | 60.3 mm |
| Rotatable : | No |

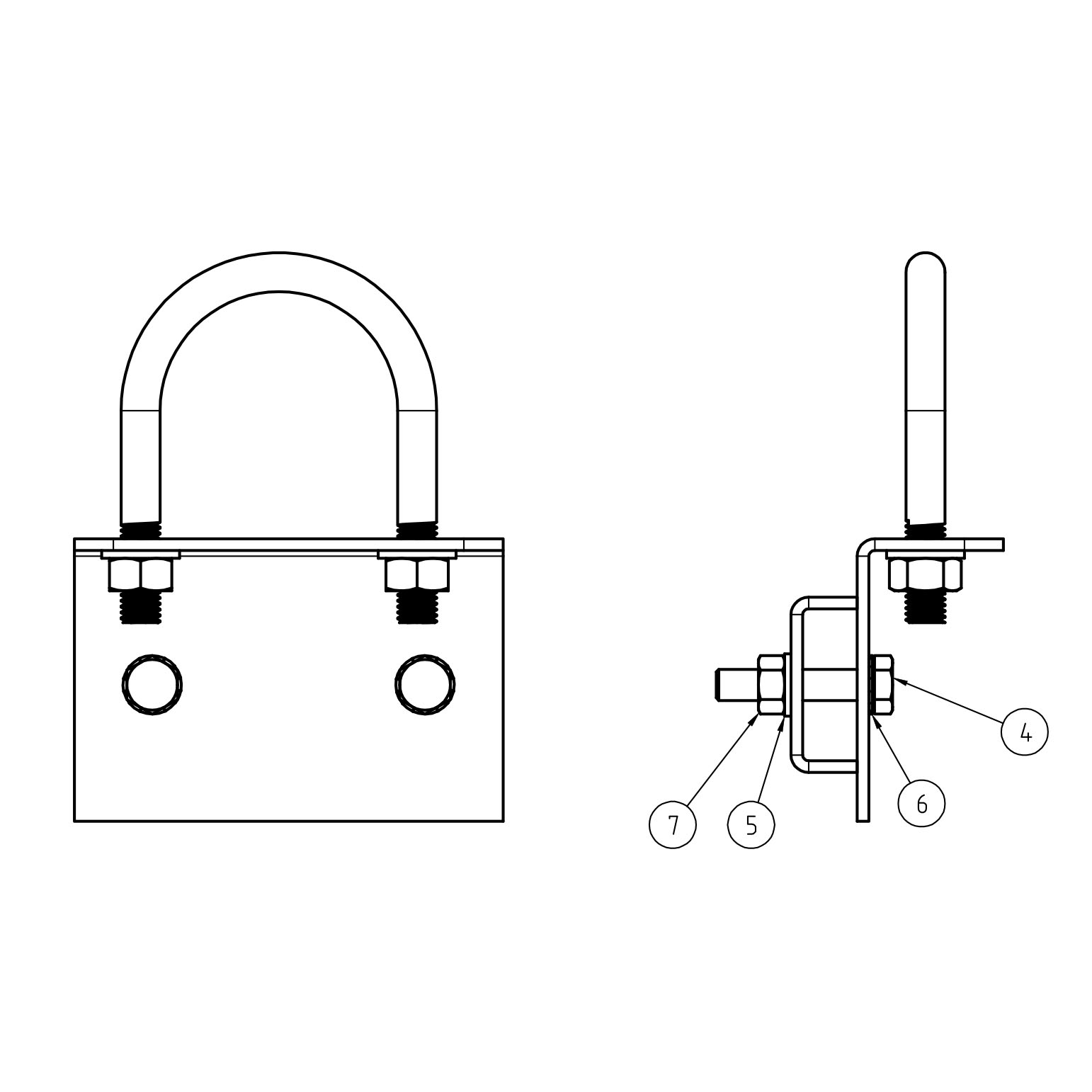

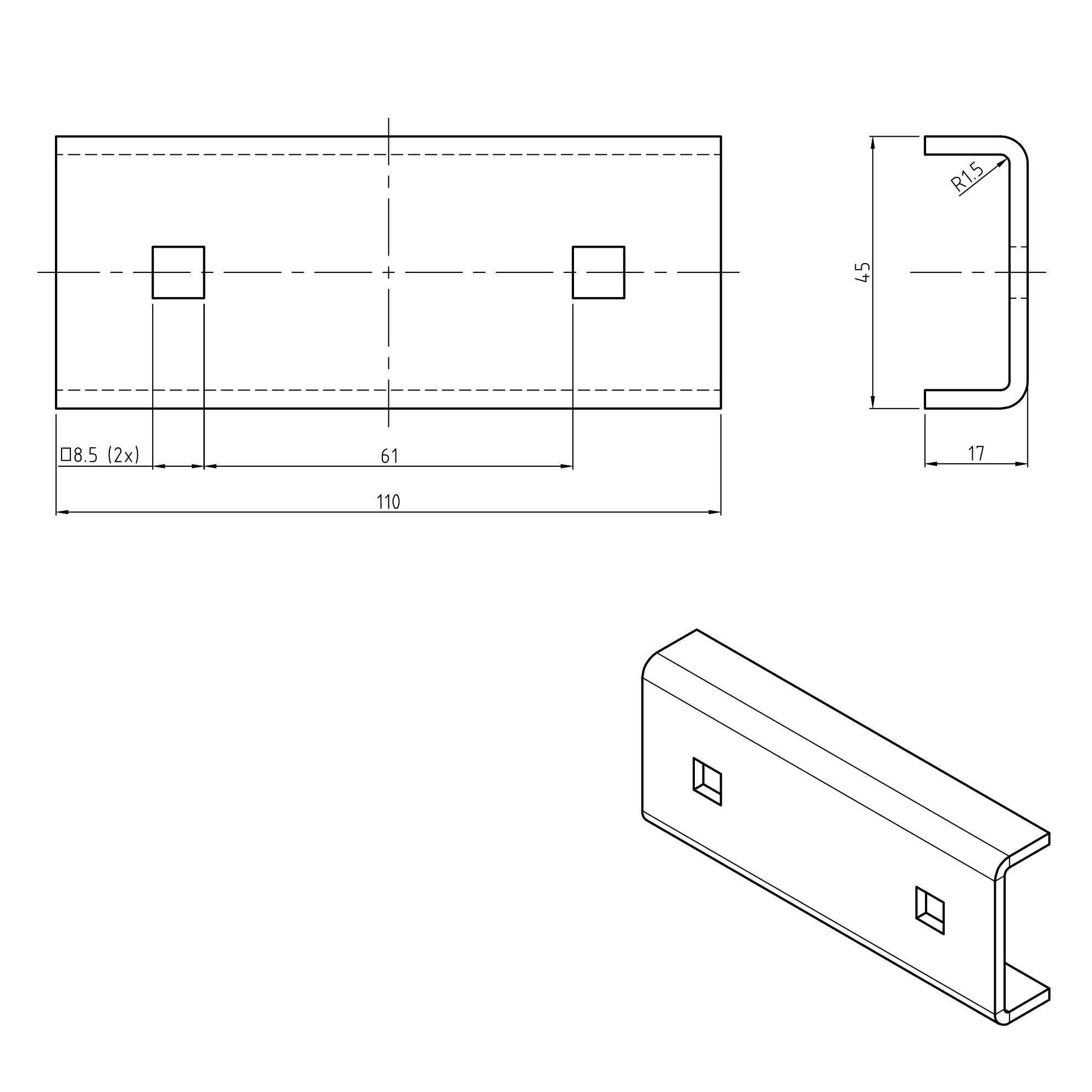

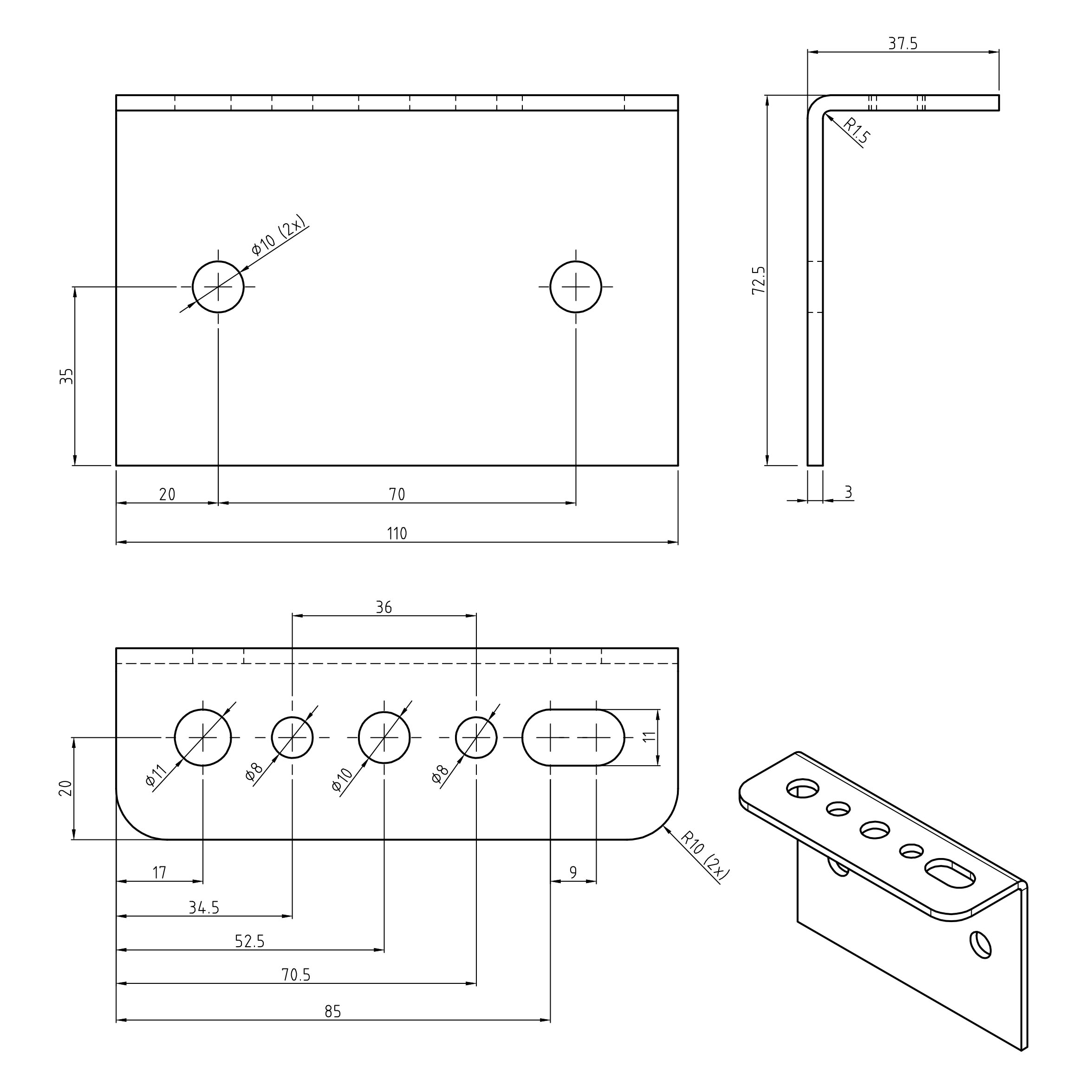

The SHKW‑60‑FT is a sturdy pipe clamp for suspending or securing cable protection tubes with a diameter of 60.3 mm. Designed for safe and stable installation on ceilings or support structures.
Manufactured from structural steel S235JRG and hot-dip galvanized according to NEN‑EN‑ISO 1461, with a minimum zinc coating of 45 µm, this clamp provides excellent corrosion protection in both indoor and outdoor settings.
- Material: Structural steel S235JRG
- Finish: Hot-dip galvanized (min. 45 µm)
- For tube diameter: 60.3 mm
- Includes: 2× fastener sets (nut, bolt, and washer)
- Compatible with: SR‑60‑FT and SRL‑60‑FT cable protection tubes
- Mounting: To ceiling or support structure via screw holes
Applications:
- Suspending cable protection tubes from ceilings
- Industrial and infrastructure installations
- Supporting tube systems in various environments
