Mounting Bracket Rotatable Cable Protection Tube 60mm HDG
Product number:
SHKWS-60-FT
Brand:
Eurostrut
Fast delivery
20 years of expertise and experience
Own brand of high quality
Want to view our prices?
Our pricing is exclusively available to registered customers.
Variations
Product number
Outer diameter
Material quality
Outer diameter:
60.3 mm
Material quality:
Hot dip galvanized
Product number
Outer diameter
Material quality
Outer diameter:
60.3 mm
Material quality:
Stainless Steel 316
Product number
Outer diameter
Material quality
Outer diameter:
60.3 mm
Material quality:
Stainless Steel 304
Product information
| Material : | Steel |
|---|---|
| Surface protection : | Hot-dip galvanised |
| Outer diameter : | 60.3 mm |
| Rotatable : | Yes |
| Suitable for outdoor use : | Yes |

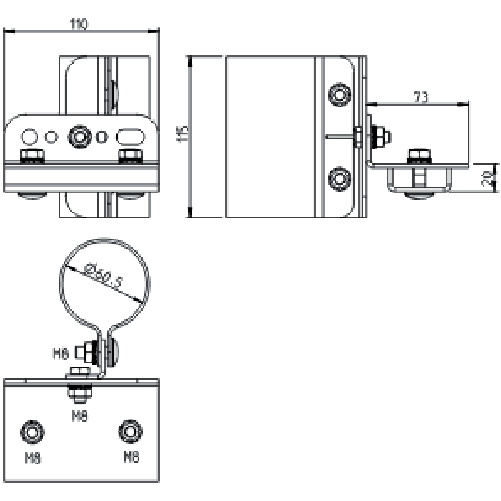

The SHKWS‑60‑FT is a swivel pipe clamp designed for suspending or securing cable protection tubes with a diameter of 60.3 mm. The swivel function provides added flexibility during installation and maintenance.
Manufactured from structural steel S235JRG and hot-dip galvanized according to NEN‑EN‑ISO 1461, with a minimum zinc layer of 45 µm. This clamp offers reliable corrosion protection in both indoor and outdoor environments.
- Material: Structural steel S235JRG
- Finish: Hot-dip galvanized (min. 45 µm)
- For tube diameter: 60.3 mm
- Includes: 2× fastener sets (nut, bolt, and washer)
- Compatible with: SR‑60‑FT and SRL‑60‑FT cable protection tubes
- Mounting: Swivel mounting to ceiling or support structure via screw holes
Applications:
- Flexible suspension of cable protection tubes
- Installations with variable pipe routing
- Maintenance-friendly pipe support solutions
