Outside Riser 90° Cable Ladder ECL60 300mm SS304
Want to view our prices?
Our pricing is exclusively available to registered customers.
Variations
Product information
| Change of direction : | Rising/descending |
|---|---|
| Type of side joist : | Profile (open) |
| Side perforation : | Yes |
| Type of rung : | Perforated profile |
| Angle : | 90° |
| Bend model : | Smooth bend |
| Hinging : | No |
| Suitable for cable ladder height : | 60 mm |
| Suitable for cable ladder width : | 300 mm |
| Model : | Included connector |
| Inner radius : | 300 mm |
| Material : | Stainless steel |
| Material quality : | Stainless steel 304 (1.4301) |
| Surface protection : | Untreated |
For Eurostrut Cable Ladder ECL60, H = 60 mm, W = 300 mm, E (thickness) = 3,0 mm, R = 300, Stainless Steel 304, including 4x ESL-SB-S304 Eurostrut fixing set (square neck bolt M10x20, nut and washer) Produced on request. Delivery time 5-6 weeks. Heavy Duty.

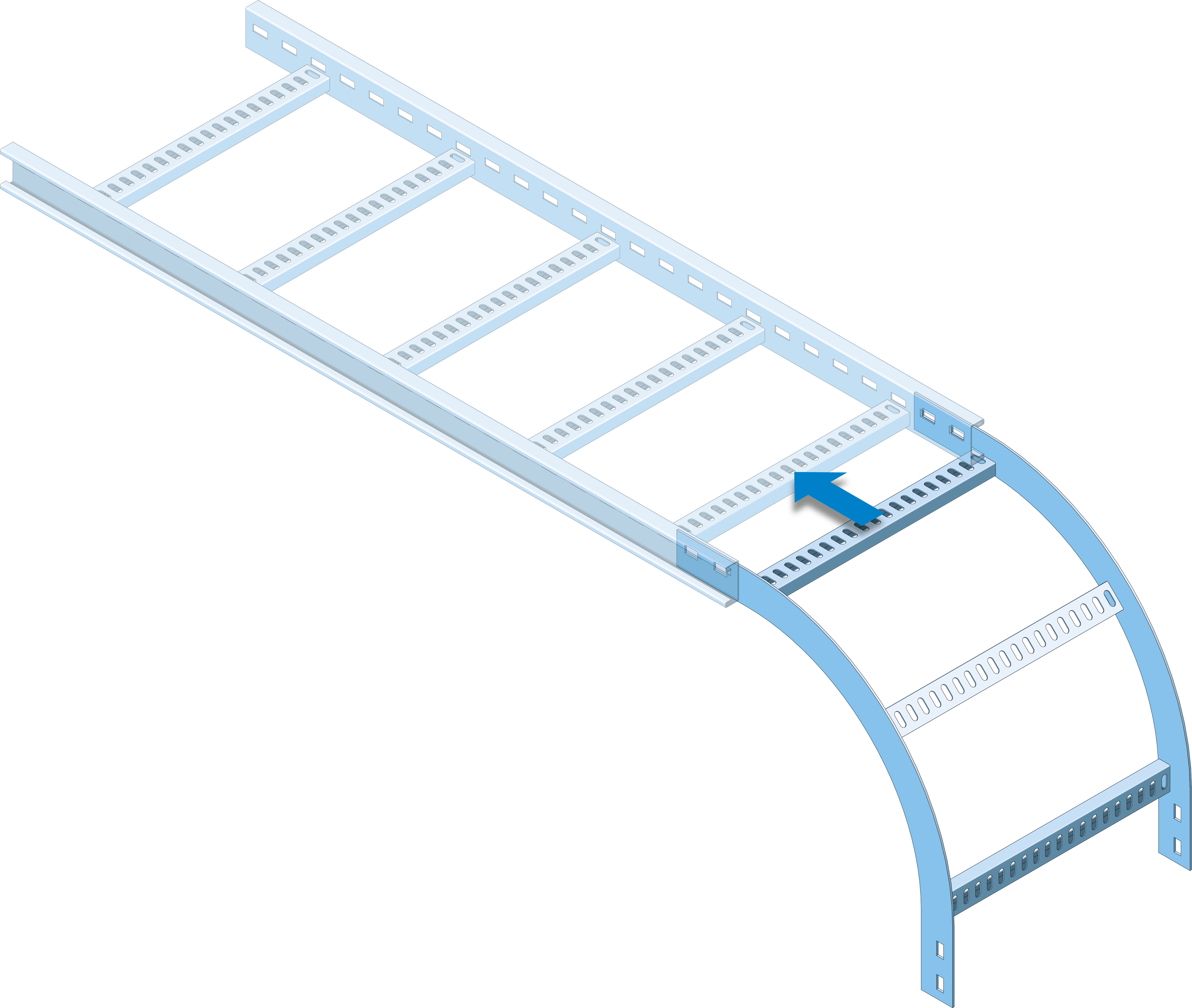

The EOR60 90° outside riser is a fitting for the ECL60 cable ladder system and is designed to create a 90° vertical change of direction to a lower cable route. The outside riser provides a smooth vertical transition and supports controlled cable routing through the change of direction. The fitting is suitable for commercial, industrial, and infrastructure installations and connects directly to straight ECL60 cable ladders.
The standard version is manufactured from hot dip galvanized carbon steel according to NEN-EN-ISO 1461, with a zinc coating thickness of 60 to 70 µm. Hot dip galvanizing is applied after fabrication and provides corrosion protection for surfaces, welded joints, and cut edges. The outside riser is also available in stainless steel AISI 304 (1.4301) and AISI 316L (1.4404) for corrosive or hygienic environments. A RAL powder-coated version is also available on request.
The outside riser features a standard angle of 90° with a radius of 300 mm and is manufactured from 3 mm steel. The fitting is equipped with integrated connectors and is supplied including 8x ESL-SB M10x20 fixing set (carriage bolt M10x20, nut, and washer). The fitting is fully compatible with ECL60 cable ladders, couplers, and other ECL60 system components.
Technical Specifications

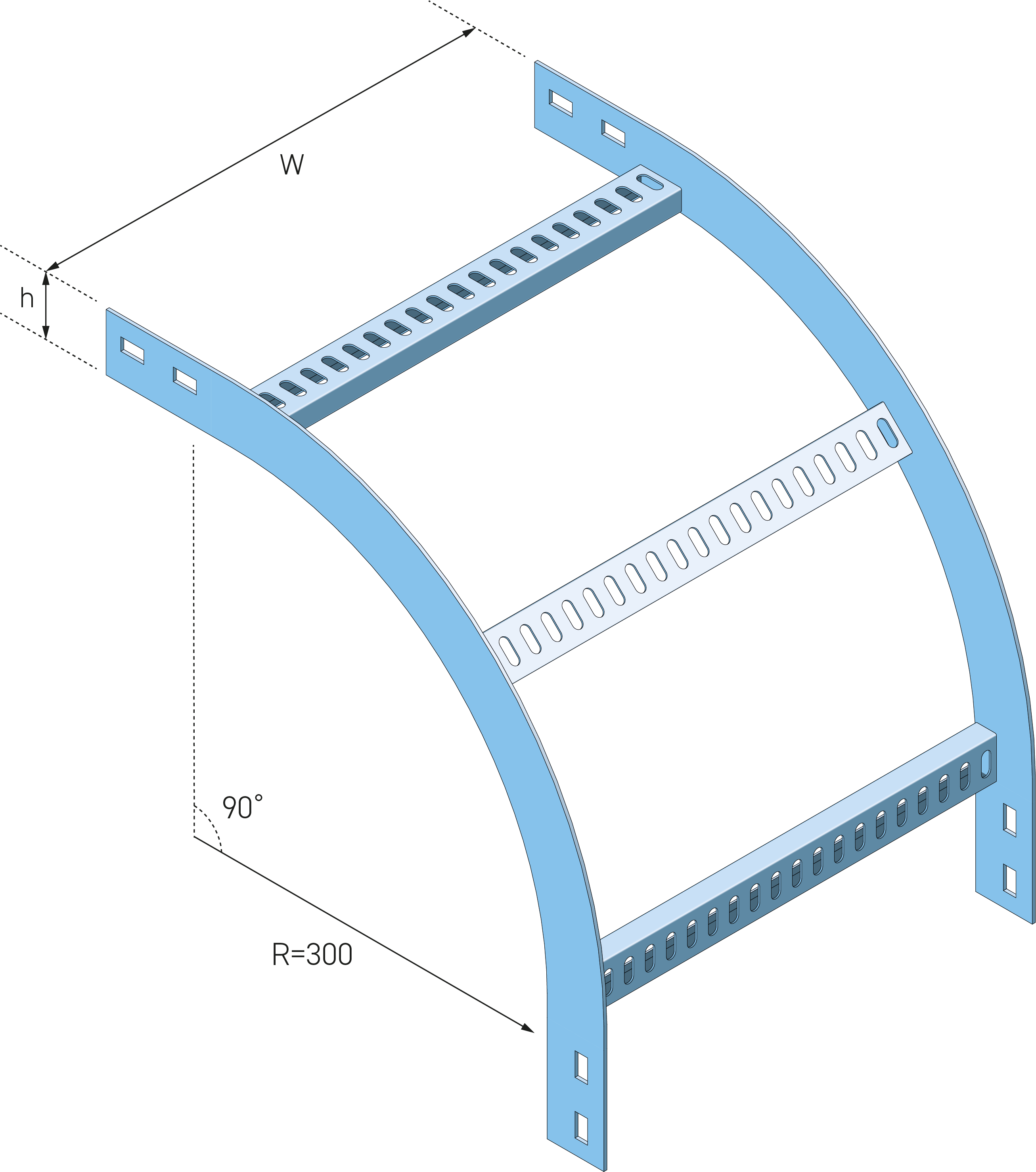

- Product type: 90° outside riser for cable ladder
- System: ECL60
- Actual height: 54 mm
- Nominal width: 100 to 600 mm
- Overall width: Nominal width + 11 mm
- Standard angle: 90°
- Radius: 300 mm
- Material thickness: 3 mm
- Standard material: Carbon steel
- Surface finish: Hot dip galvanized according to NEN-EN-ISO 1461
- Zinc coating thickness: 60 to 70 µm
- Execution: With integrated connectors, including 8x ESL-SB M10x20 fixing set (carriage bolt M10x20, nut, and washer)
- Connection method: Bolted
- Standards: IEC 61537, suitable for installations in accordance with NEN 1010
Typical Applications
- 90° downward vertical changes of direction within cable ladder routes
- Transitions to lower cable routes
- Industrial installations
- Commercial buildings
- Data centres and technical facilities
- Machine and process installations
- Infrastructure projects
Available Material Variants
- HDG: Hot dip galvanized carbon steel according to NEN-EN-ISO 1461, with a zinc coating thickness of 60 to 70 µm, suitable for industrial and outdoor environments.
- Stainless Steel 304 (A2 / 1.4301): Stainless steel for indoor environments and lightly corrosive conditions.
- Stainless Steel 316L (A4 / 1.4404): Stainless steel with enhanced corrosion resistance for chemical, marine, offshore, and aggressive environments.
- RAL: RAL powder-coated carbon steel, available on request for project-specific applications.
Complementary Products
For a complete installation within the ECL60 system, the following components are available:
- Cable ladders: ECL60 cable ladders in various widths and lengths.
- Couplers: For longitudinal cable ladder connections.
- Horizontal bends: For changes of direction in the horizontal plane.
- Inside risers: For vertical changes of direction to higher cable routes.
- Tees and crosses: For branches and distribution points within cable ladder routes.
- Reducers: For transitions between different cable ladder widths.
- Support systems: Wall brackets, ceiling brackets, trapeze hangers, and strut channels.
- Fixing materials: ESL-SB bolt sets and other mounting accessories.
These components ensure a safe, compatible, and maintenance-friendly installation.
Other widths, radii, and angles are available on request.
Eurostrut_EOR60_Outisde Riser 90 for Cable Ladder ECL_SAT.zip
