Pipe Clamp with Mounting Profile 30mm SS316
Product number:
SAS-30-ER4
Brand:
Eurostrut
Fast delivery
20 years of expertise and experience
Own brand of high quality
Variations
Product number
Outer diameter
Material quality
Outer diameter:
30 mm
Material quality:
Hot dip galvanized
Product number
Outer diameter
Material quality
Outer diameter:
30 mm
Material quality:
Stainless Steel 316
Product number
Outer diameter
Material quality
Outer diameter:
30 mm
Material quality:
Stainless Steel 304
Product information
| Material : | Stainless steel |
|---|---|
| Surface protection : | Untreated |
| Outer diameter : | 30 mm |
| Rotatable : | No |

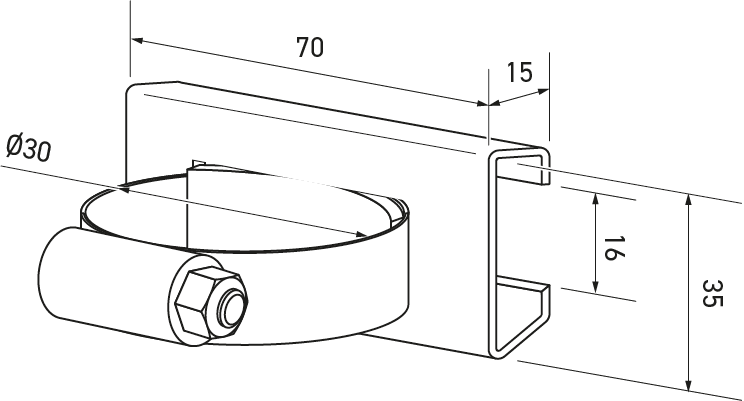

The SAS‑30‑FT is a high-quality mounting clamp for Ø30 mm cable protection tubes, designed for aggressive and corrosive environments. Suitable for the SR‑30‑FT and SRL‑30‑FT cable protection tubes, including SS9-30-ER2 hose clamp, slot size 16mm.
Made from stainless steel 316L (AISI 316L), pickled and passivated for maximum resistance to chemicals, salt, and moisture. One side is recessed to accommodate an M8 nut or threaded rod. Supplied with 2 mounting sets (bolt, nut, and washer).
- Material: Stainless steel 316L (AISI 316L)
- Finish: Pickled and passivated
- For tube diameter: 30 mm
- Mounting: Recessed side for M8 nut or threaded rod
- Includes: SS9-30-ER2 hose clamp, slot size 16mm
- Compatible with: SR‑30‑FT and SRL‑30‑FT cable protection tubes
Applications:
- Offshore, marine, and chemical applications
- Outdoor use in highly corrosive environments
- Industrial use under heavy-duty conditions
