Pipe Clamp with Mounting Profile 60mm HDG
Product number:
SAS-60-FT
Brand:
Eurostrut
Fast delivery
20 years of expertise and experience
Own brand of high quality
Want to view our prices?
Our pricing is exclusively available to registered customers.
Variations
Product number
Outer diameter
Material quality
Outer diameter:
60.3 mm
Material quality:
Hot dip galvanized
Product number
Outer diameter
Material quality
Outer diameter:
60.3 mm
Material quality:
Stainless Steel 304
Product information
| Material : | Stainless steel |
|---|---|
| Surface protection : | Untreated |
| Outer diameter : | 60.3 mm |
| Rotatable : | No |

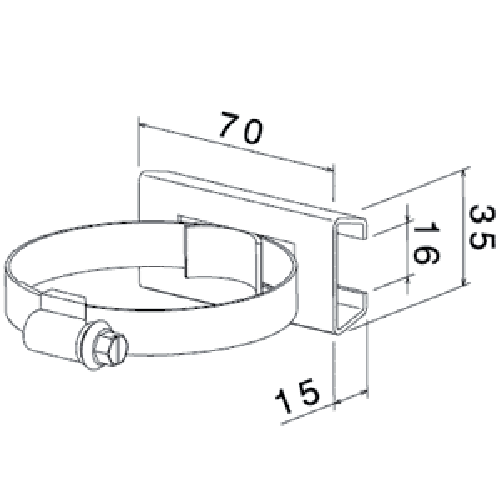

The SAS‑60‑FT is a sturdy pipe clamp for mounting Ø60.3 mm cable protection tubes. It is specifically designed for use with SR‑60‑FT and SRL‑60‑FT cable protection tubes and includes the SS9‑60‑ER2 hose clamp with a 16 mm slot size.
Manufactured from carbon steel S235JRG and hot-dip galvanized in accordance with NEN‑EN‑ISO 1461, with a minimum zinc coating thickness of 45 µm. One side of the clamp is recessed to allow for installation with an M8 nut or threaded rod. Supplied with 2 mounting sets (bolt, nut, and washer).
- Material: Carbon steel S235JRG
- Finish: Hot-dip galvanized (min. 45 µm according to NEN‑EN‑ISO 1461)
- For tube diameter: 60.3 mm
- Mounting: Recessed side for M8 nut or threaded rod
- Includes: SS9‑60‑ER2 hose clamp, 16 mm slot
- Compatible with: SR‑60‑FT and SRL‑60‑FT cable protection tubes
Applications:
- Mounted with bolt and washer to strut channels or cable ladders
- Industrial and infrastructure environments
- Indoor and outdoor use with corrosion protection
