Rejiband Central Hanging Plate M6 HDG
Product number:
67030144
Brand:
Pemsa
Fast delivery
20 years of expertise and experience
Own brand of high quality
Want to view our prices?
Our pricing is exclusively available to registered customers.
Variations
Product number
Size (M)
Material quality
Size (M):
M8
Material quality:
Stainless Steel 316
Product information
| Suitable for cable support system width : | 100 - 200 mm |
|---|---|
| Suitable for cable support system height : | 35 - 100 mm |
| Model : | Suspended |
| Suitable for wire mesh tray : | Yes |
| Suitable for circuit integrity : | No |
| Material : | Steel |
| Material quality : | Rustproof and acidproof steel |
| Surface protection : | Hot-dip galvanised |
| Working temperature : | -50 - 150 °C |
| Colour : | Zinc |
- The ceiling mount allows the introduction of cables into the tray from the side, saves in installation time and cost of material.
- Thanks to its shape it adapts easily for anchoring to the rods.
- Suitable for tray widths from 100 to 200 mm inclusive.
- Available in various diameters: M6, M8 and M10.
- Available in various protection systems: EZ, BC, GC, high resistance BK C8 and passivated stainless steel AISI 316.

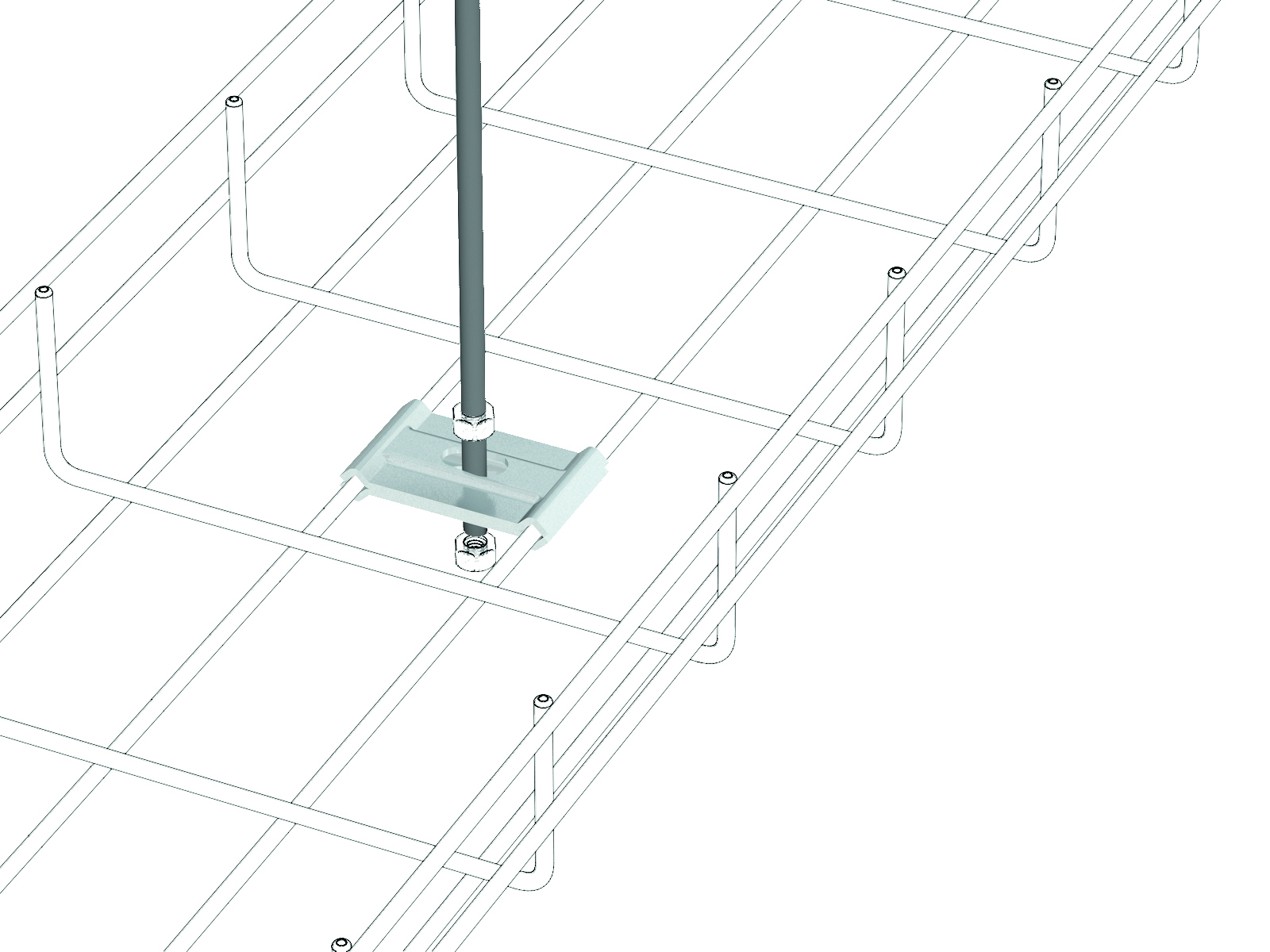

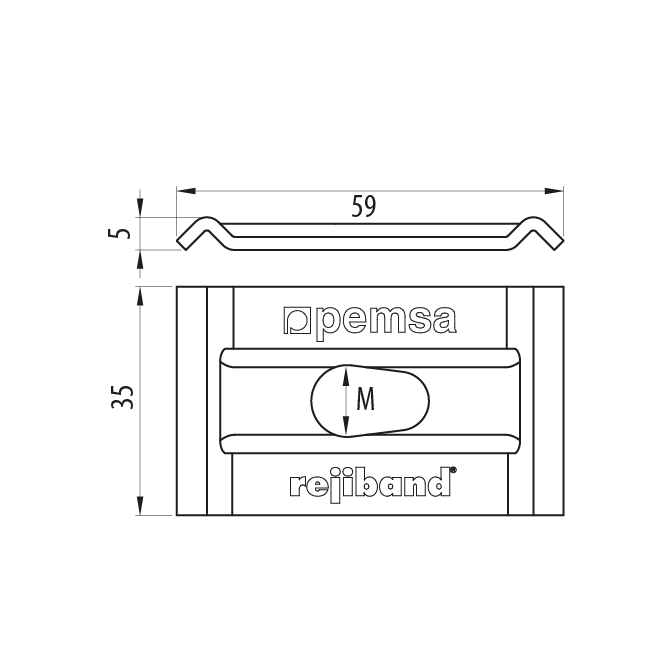

Central mounting bracket, in M6, M8 and M10, for Rejiband® wire mesh tray. It allows the introduction of cables into the tray from the side and saves installation time when mounting it with a single rod and the respective nuts. Available in various Protection Systems.
