Rejiband Click Central Suspension M6 HDG
Product number:
67030143
Brand:
Pemsa
Fast delivery
20 years of expertise and experience
Own brand of high quality
Want to view our prices?
Our pricing is exclusively available to registered customers.
Variations
Product number
Size (M)
Material quality
Size (M):
M8
Material quality:
Stainless Steel 316
Product information
| Suitable for cable support system width : | 100 - 200 mm |
|---|---|
| Suitable for cable support system height : | 35 - 100 mm |
| Suitable for wire mesh tray : | Yes |
| Tray mounting : | Screwless |
| Suitable for circuit integrity : | No |
| Material : | Steel |
| Material quality : | Rustproof and acidproof steel |
| Surface protection : | Hot-dip galvanised |
| Working temperature : | -50 - 150 °C |
| Colour : | Zinc |
- Fixing by quick mount click system.
- Recommended for 100, 150 and 200 mm width trays.
- It allows the introduction of cables into the tray from the side.
- Available in various protection systems: EZ, BC, GC, high resistance BK C8 and passivated stainless steel AISI 316.

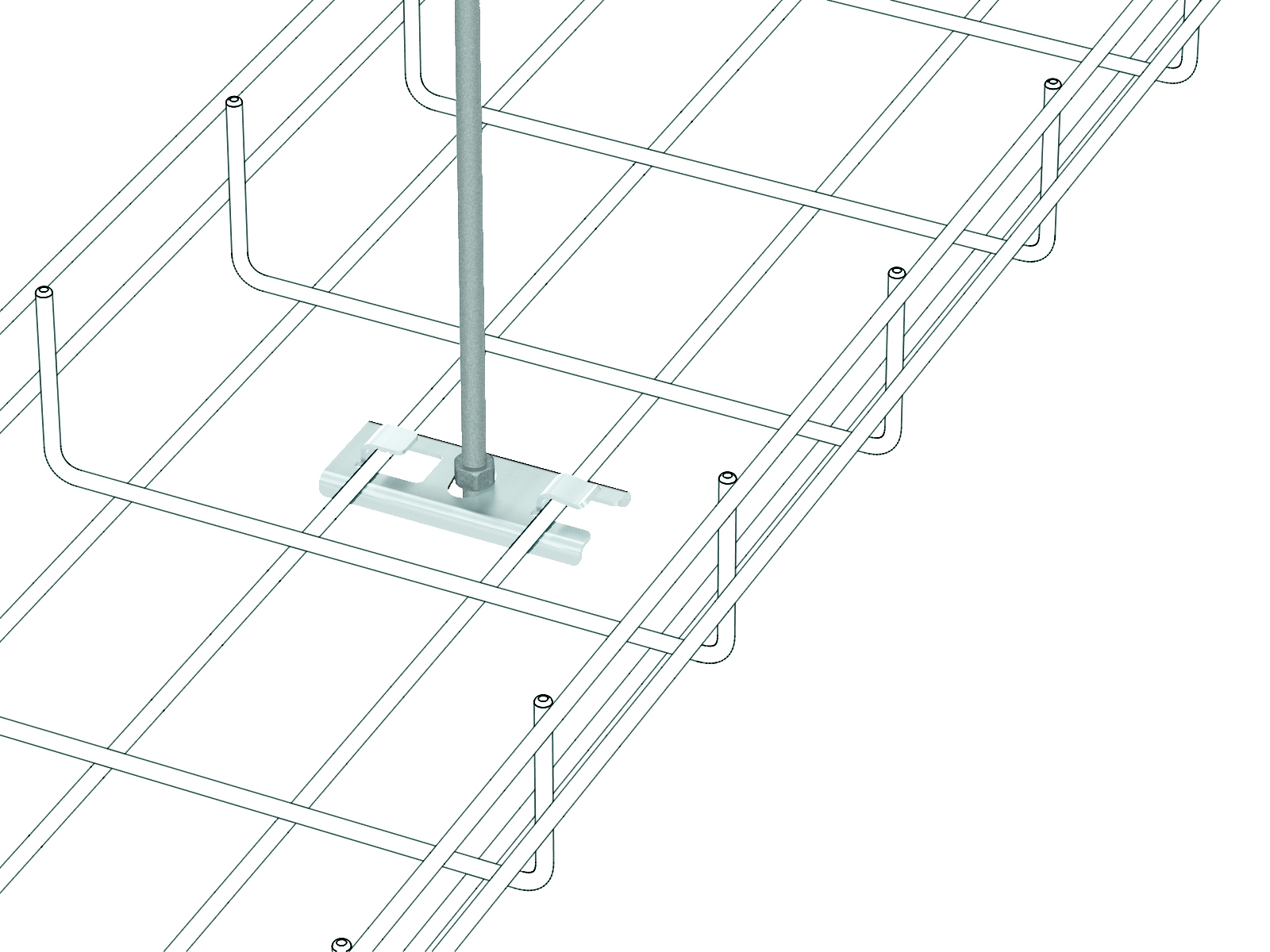

Suitable for the ceiling mounting of Rejiband in widths from 100 to 200 mm by means of a single rod in indoor installations in a dry atmosphere with no contaminants, exterior, industrial, marine, rural or aggressive interior installations.
67010043 data-sheet-Click-Central-Suspension
