Rejiband Click Side Coupler 5mm EG
Product number:
64010040
Brand:
Pemsa
Fast delivery
20 years of expertise and experience
Own brand of high quality
Product information
| Model : | Longitudinal joint |
|---|---|
| Hinged joint horizontal : | No |
| Hinged joint vertical : | No |
| Type of connection : | Snapable |
| Suitable for wire mesh tray : | Yes |
| Suitable for cable support system width : | 60 - 600 mm |
| Suitable for cable support system height : | 60 - 60 mm |
| Suitable for wire mesh tray filament : | 5 - 5 mm |
| Length : | 97 mm |
| Suitable for circuit integrity : | No |
| Material : | Steel |
| Material quality : | Rustproof and acidproof steel |
| Surface protection : | Galvanic/electrolytic zinc plated |
| Operating temperature : | -50 - 150 °C |
| Colour : | Zinc |

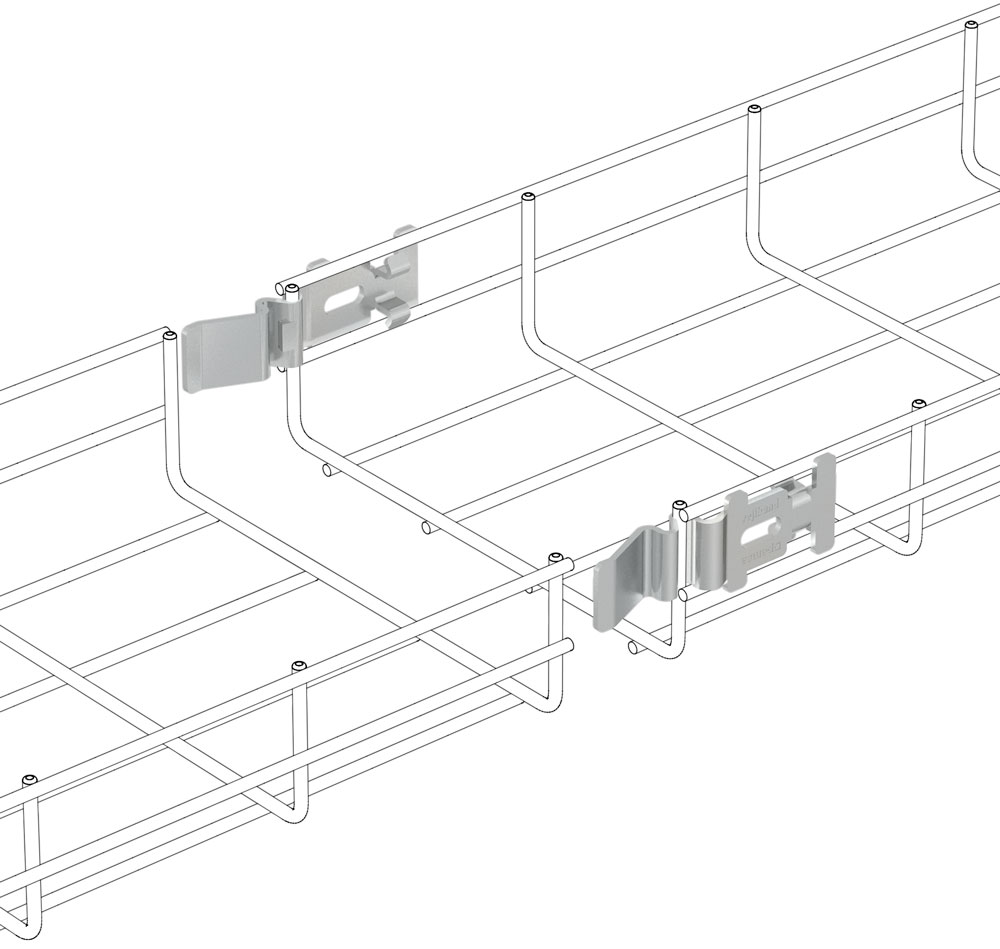

- Quick installation on the sides of the tray.
- Optimisation of assembly time.
- These connectors are supplied separately for use in the Rejiband tray to create a quick click attachment system.
- Electrical continuity guaranteed according to standard IEC61537.
- Available in two protection systems, EZ and BC, depending on the type of application.
Component for the side connection of Rejiband trays by means of the Click system of fast connection without screws. It is suitable for all widths and 60 mm height, with surface protection. It is assembled without the need for any special tools and allows the side joining between sections of Rejiband trays in less time, ensuring the mechanical strength of the joint and electrical continuity, according to IEC61537. Made of steel with EZ or BC Protection System.
64010038 data-sheet-Click-Coupler
