Rejiband Fast Click Base Joint HDG
Product number:
64030036
Brand:
Pemsa
Fast delivery
20 years of expertise and experience
Own brand of high quality
Product information
| Model : | Longitudinal joint |
|---|---|
| Hinged joint horizontal : | No |
| Hinged joint vertical : | No |
| Type of connection : | Snapable |
| Suitable for wire mesh tray : | Yes |
| Suitable for cable support system width : | 300 - 600 mm |
| Suitable for cable support system height : | 60 - 100 mm |
| Suitable for circuit integrity : | No |
| Material : | Steel |
| Material quality : | Rustproof and acidproof steel |
| Surface protection : | Hot-dip galvanised |
| Operating temperature : | -50 - 150 °C |
| Colour : | Zinc |
- Fast installation on the tray without screws.
- Simple and quick assembly without the need of special tools.
- 80% saving in installation time.
- Electrical continuity guaranteed according to standard IEC61537.
- Available in various protection systems: EZ, BC, GC or high resistance BK8, depending on the type of application.

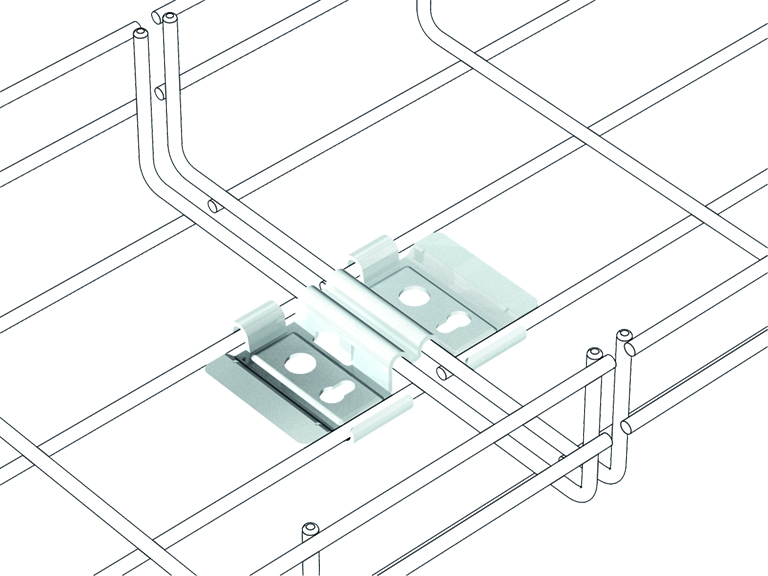

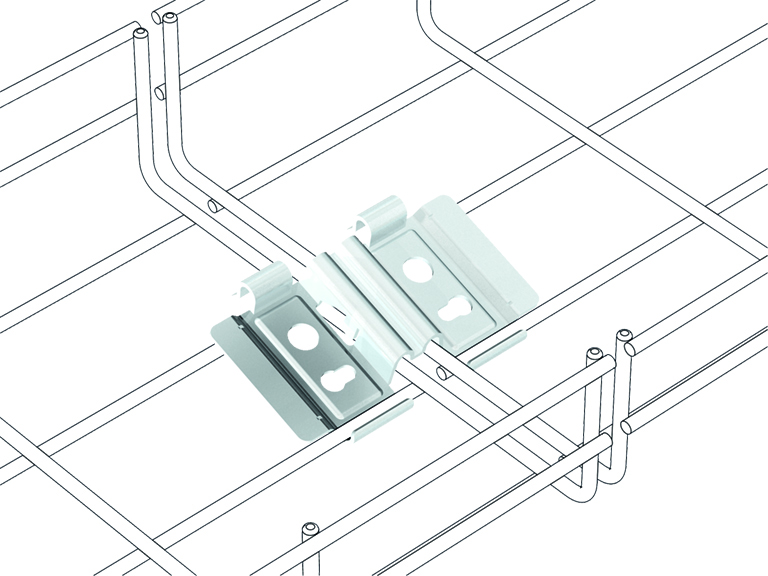

Component for specifically joining the base of sections of trays using the Click system. It is suitable for Rejiband trays of 300 to 600 mm width and heights of 60 and 100 mm, with surface protection. It is assembled without the need for any special tools and allows the joining between sections of Rejiband trays in less time, ensuring the mechanical strength of the joint and electrical continuity, according to IEC61537 standard. Made of steel and available in various Protection Systems.
64010036 data-sheet-Fast-Click-Base-Joint
