Rejiband Mini Universal Bracket 87X65 HDG
Product number:
62036010
Brand:
Pemsa
Fast delivery
20 years of expertise and experience
Own brand of high quality
Product information

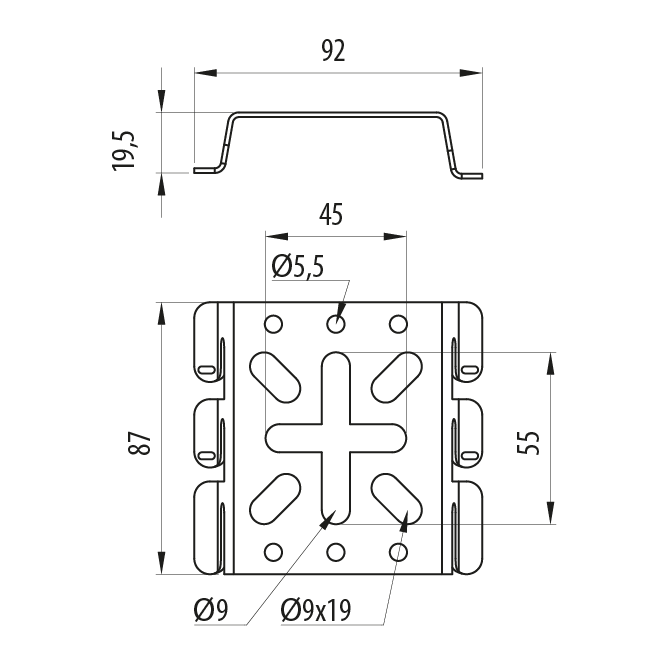

| Length : | 19.5 mm |
|---|---|
| Width : | 92 mm |
| Height : | 87 mm |
| Suitable for cable support system width : | 60 - 600 mm |
| Model : | Wall bracket |
| Suitable for circuit integrity : | No |
| Material : | Steel |
| Material quality : | Other |
| Surface protection : | Hot-dip galvanised |
| Colour : | Zinc |
- Fixing by quick click system.
- Simple and quick assembly without the need of special tools.
- Supports can be mounted on the side or base of the tray.
- Available in various protection systems: PG, HC, BK8 and passivated stainless steel AISI 316.

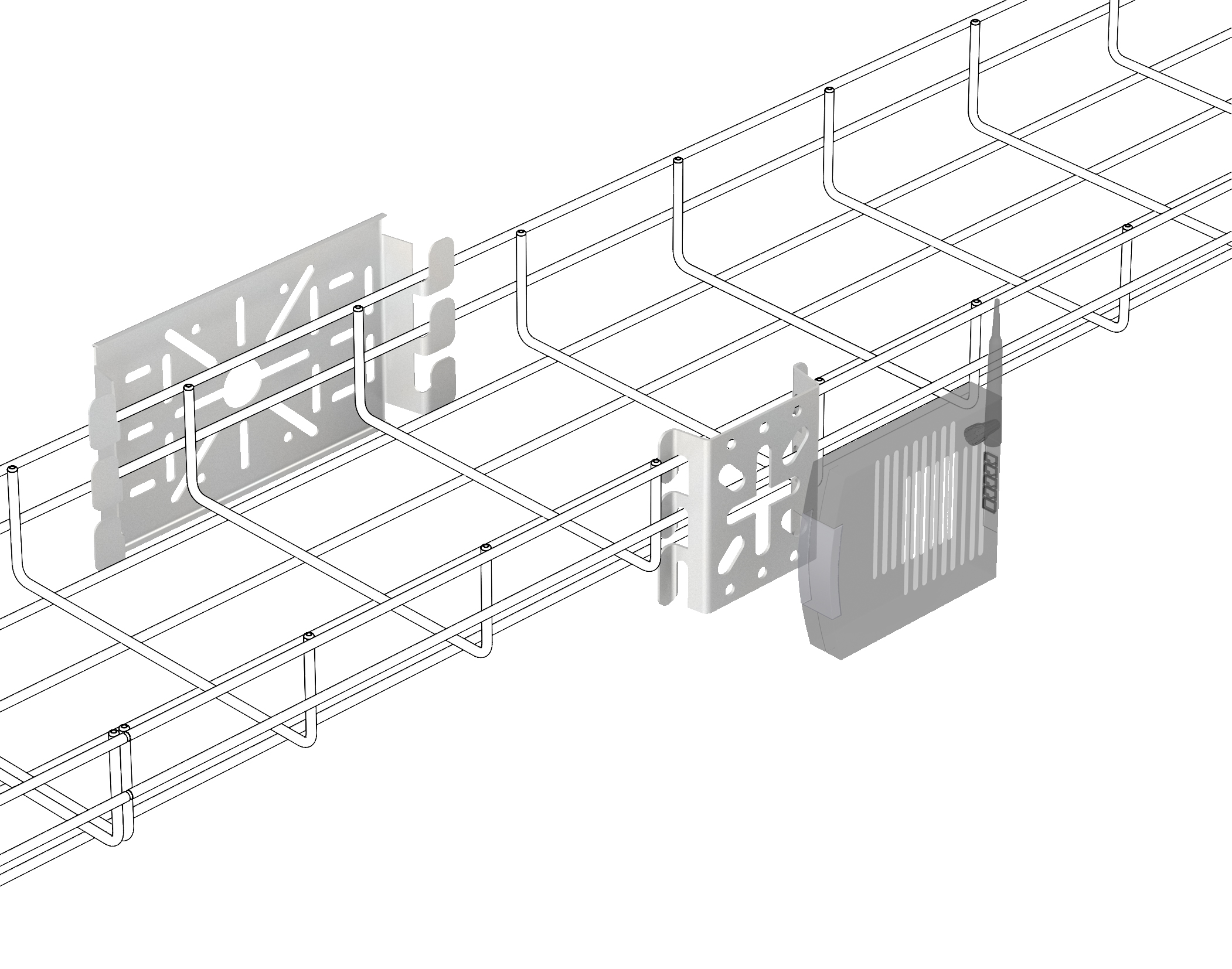

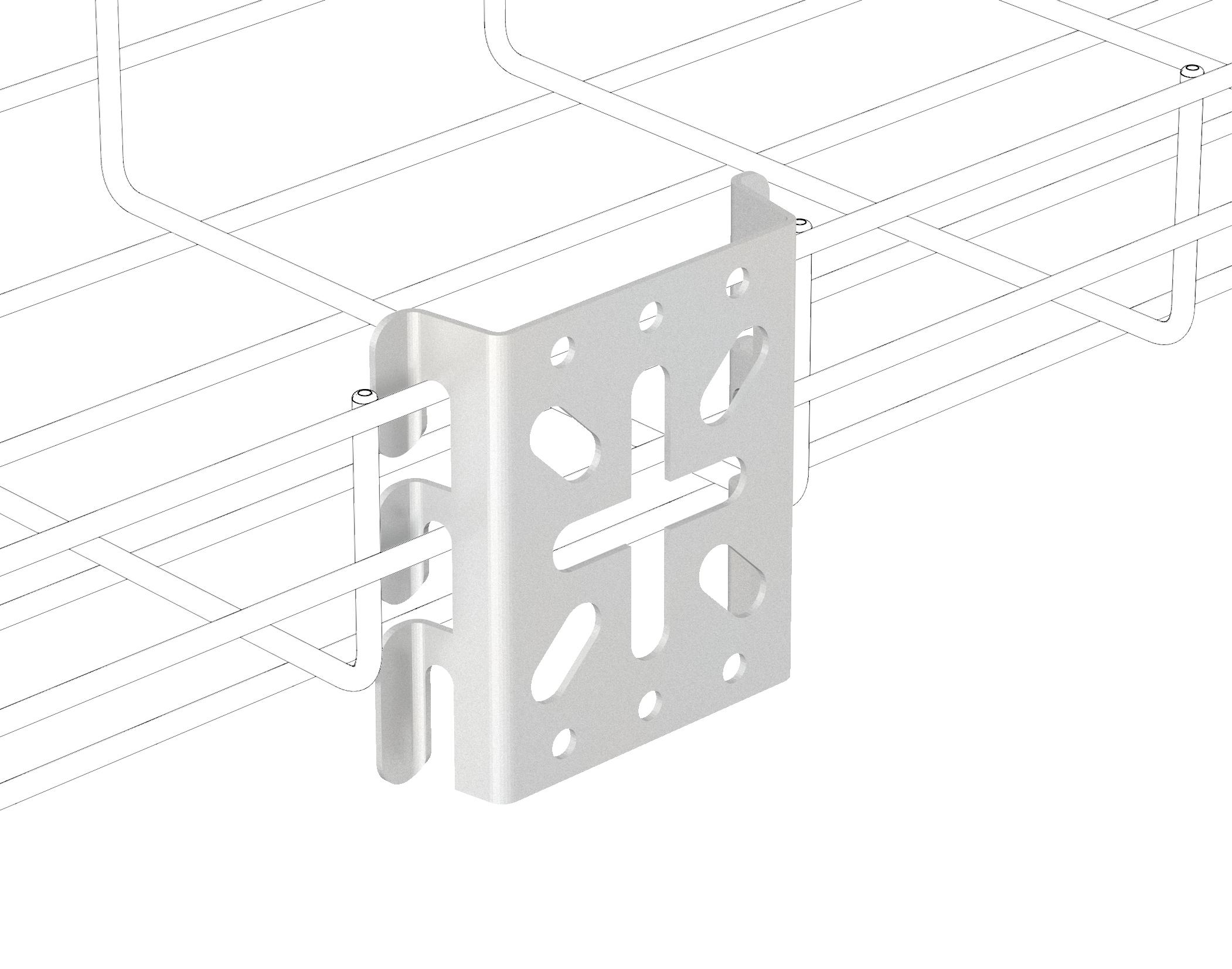

Mini Universal steel bracket in various protection systems for the wall mounting of Rejiband® trays by means of the fast click connection system without the need of screws. The wall bracket is suitable for Rejiband® trays of 100 and 150 mm width in a horizontal or vertical position, as well as for attaching boxes or other accessories. Depending on the Protection System it can be used in many different installations.
Applications
Suitable for the support of trays to the wall or for the installation of boxes or other devices on Rejiband wire mesh trays intended for the management of cables in electrical and telecommunications installations in public buildings, infrastructures and civil works, industrial installations and tertiary sector.
