Rejiband Reinforced Joint Clamp HDG
Product number:
64030061
Brand:
Pemsa
Fast delivery
20 years of expertise and experience
Own brand of high quality
Product information
| Model : | Longitudinal joint |
|---|---|
| Hinged joint horizontal : | No |
| Hinged joint vertical : | No |
| Type of connection : | Screw connector |
| Suitable for wire mesh tray : | Yes |
| Suitable for cable support system width : | 60 - 600 mm |
| Suitable for cable support system height : | 35 - 150 mm |
| Suitable for circuit integrity : | Yes |
| Material : | Steel |
| Material quality : | Rustproof and acidproof steel |
| Surface protection : | Hot-dip galvanised |
| Operating temperature : | -50 - 150 °C |
| Colour : | Zinc |
- Simplification of the joint assembly between different sections.
- Greater mechanical strength of the section joints.
- N Mark of Aenor, UL Certificate, Certificate IECC CB according to IEC 61537.
- E90 fire resistance (90 minutes, 1000°C) according to DIN 4102-12.
- Available in different protection systems: EZ and GC stainless steel AISI 316.

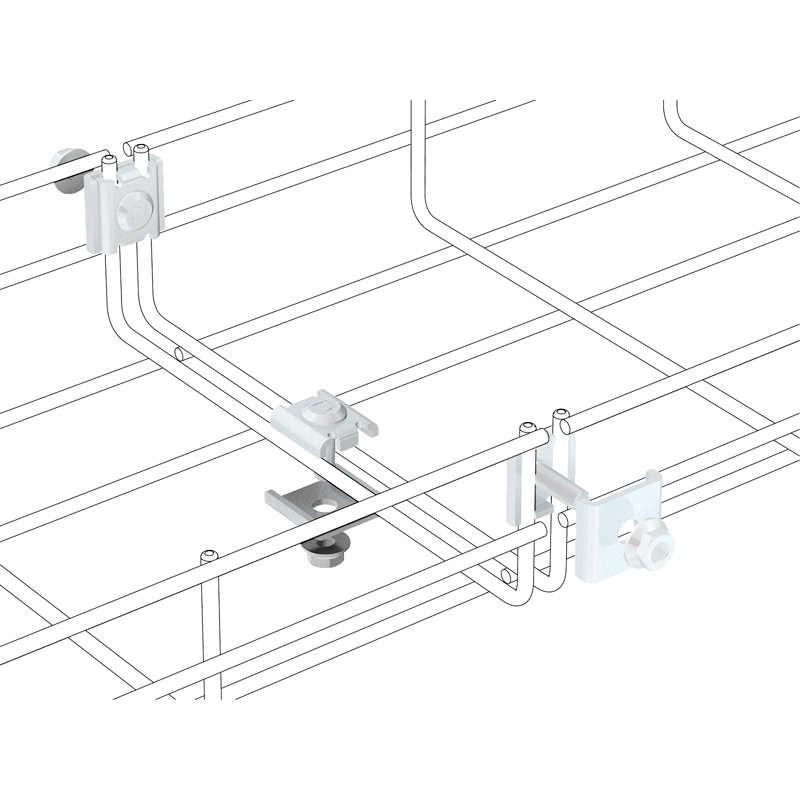

Steel component for joining sections of Rejiband trays consisting of a captive screw, connecting plate and a nut. Thanks to its construction, it greatly simplifies the joint between sections and ensures the greater mechanical strength of the joint between trays, optimizing the possible maximum load values. It is available in various Protection Systems.
