Rejiband Side Joint Plate HDG
Product number:
64030041
Brand:
Pemsa
Fast delivery
20 years of expertise and experience
Own brand of high quality
Product information
| Model : | Longitudinal joint |
|---|---|
| Hinged joint horizontal : | No |
| Hinged joint vertical : | No |
| Type of connection : | Screw connector |
| Suitable for wire mesh tray : | Yes |
| Suitable for cable support system width : | 60 - 600 mm |
| Suitable for cable support system height : | 60 - 150 mm |
| Length : | 70 mm |
| Suitable for circuit integrity : | No |
| Material : | Steel |
| Material quality : | Rustproof and acidproof steel |
| Surface protection : | Hot-dip galvanised |
| Operating temperature : | -50 - 150 °C |
| Colour : | Zinc |
- Side connection for Rejiband trays.
- Suitable for trays 60 to 600 mm wide.
- Reinforces the joint between different sections of the tray with the use of the Rejiband fixing.
- Available in various protection systems: EZ, BC, GC, high resistance BK C8 and passivated stainless steel AISI 316.

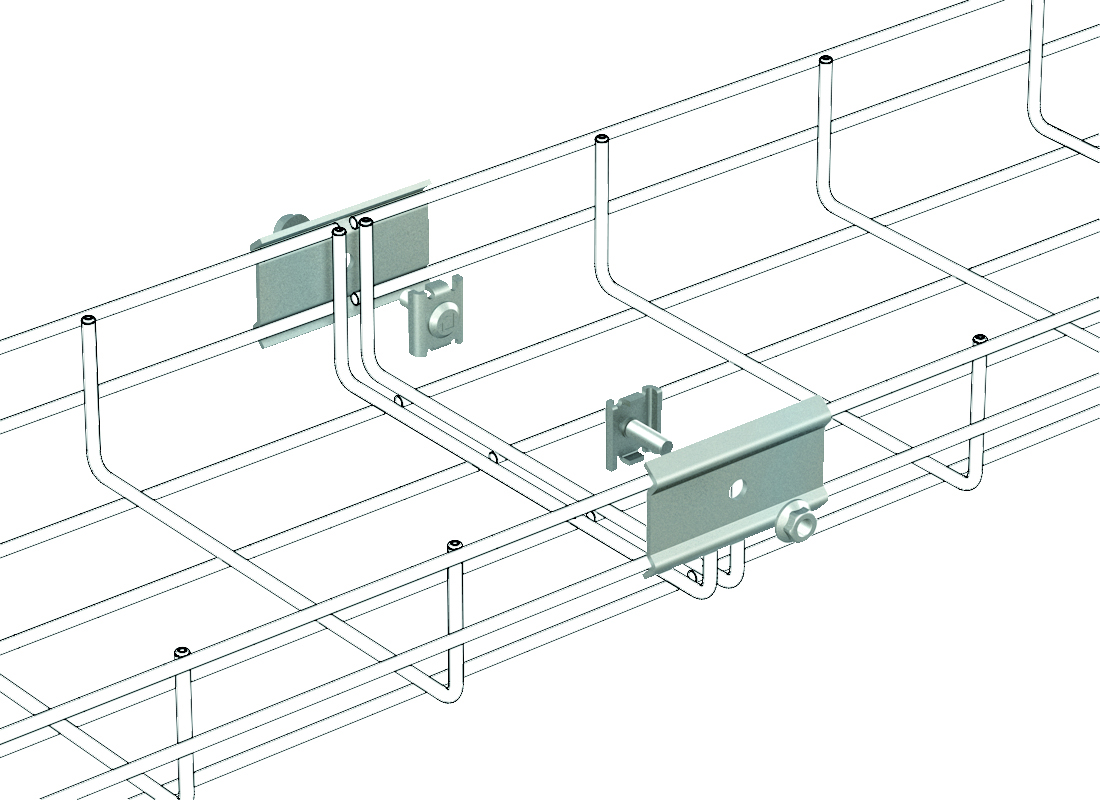

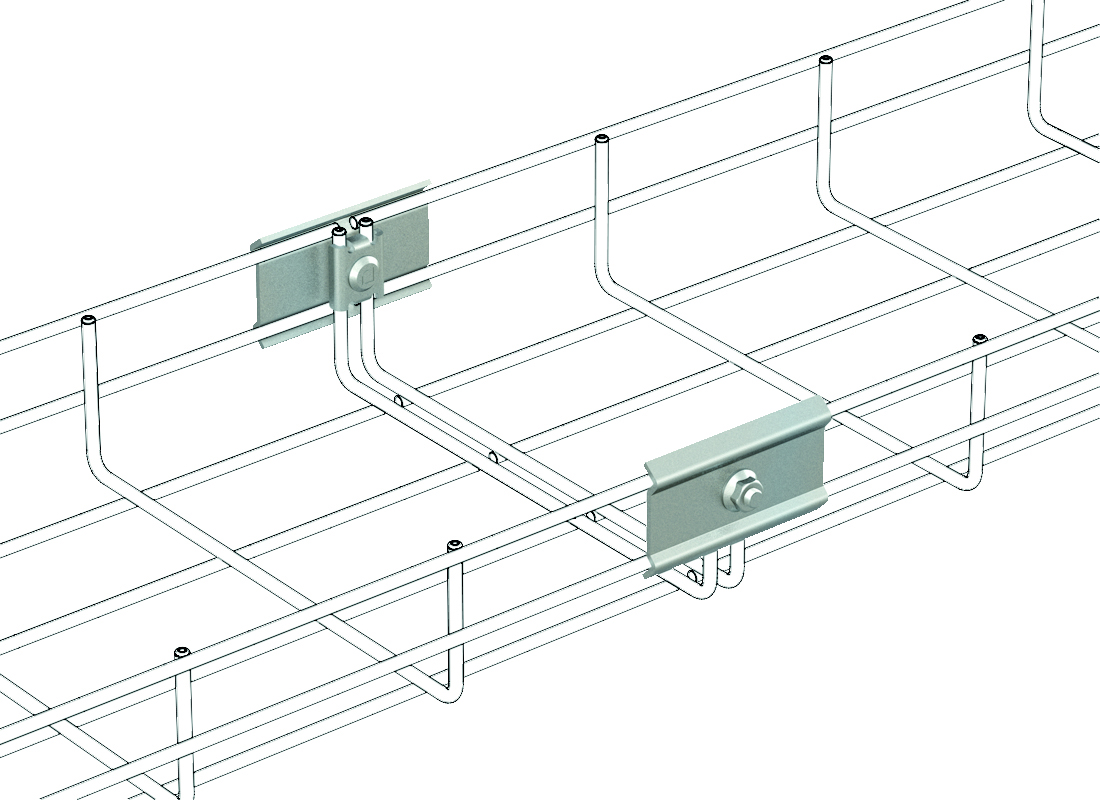

Metal side joining piece in various Protection Systems for the assembly of different sections of Rejiband trays. Excellent adjustment with maximum load values, ensuring mechanical strength of the joint and electrical continuity, according to IEC61537 standard. For the installation of trays, the connecting plate is installed on the side of the tray and connected by means of the Rejiband Part Clamp. It is an accessory for the assembly of Rejiband trays, made of steel and available in different Protection Systems.

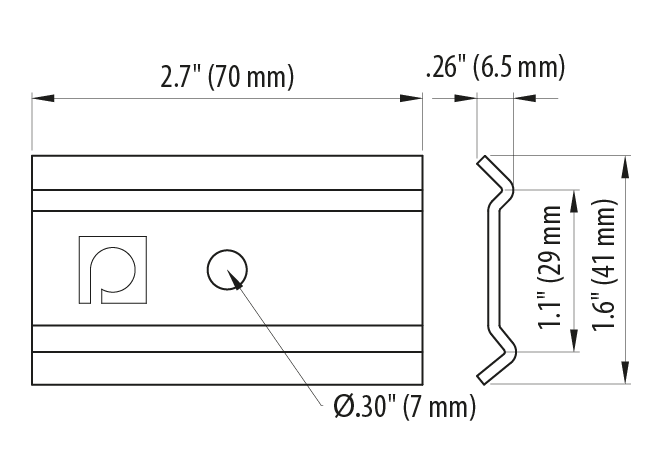

64010041 data-sheet-Side-Joint-Plate
