Rejiband Splice Plate HDG
Product number:
67030047
Brand:
Pemsa
Fast delivery
20 years of expertise and experience
Own brand of high quality
Product information
| Model : | Longitudinal joint |
|---|---|
| Hinged joint horizontal : | Yes |
| Hinged joint vertical : | No |
| Type of connection : | Screw connector |
| Suitable for wire mesh tray : | Yes |
| Suitable for cable support system width : | 60 - 600 mm |
| Suitable for cable support system height : | 35 - 150 mm |
| Length : | 300 mm |
| Suitable for circuit integrity : | No |
| Material : | Steel |
| Material quality : | Rustproof and acidproof steel |
| Surface protection : | Hot-dip galvanised |
| Operating temperature : | -50 - 150 °C |
| Colour : | Zinc |
- implification of the joint assembly between different sections.
- Facilitates the creation of bends.
- Number of joints required depends on the width of the tray.
- Electrical continuity guaranteed according to standard IEC61537.
- Available in different protection systems: EZ and GC stainless steel AISI 316.

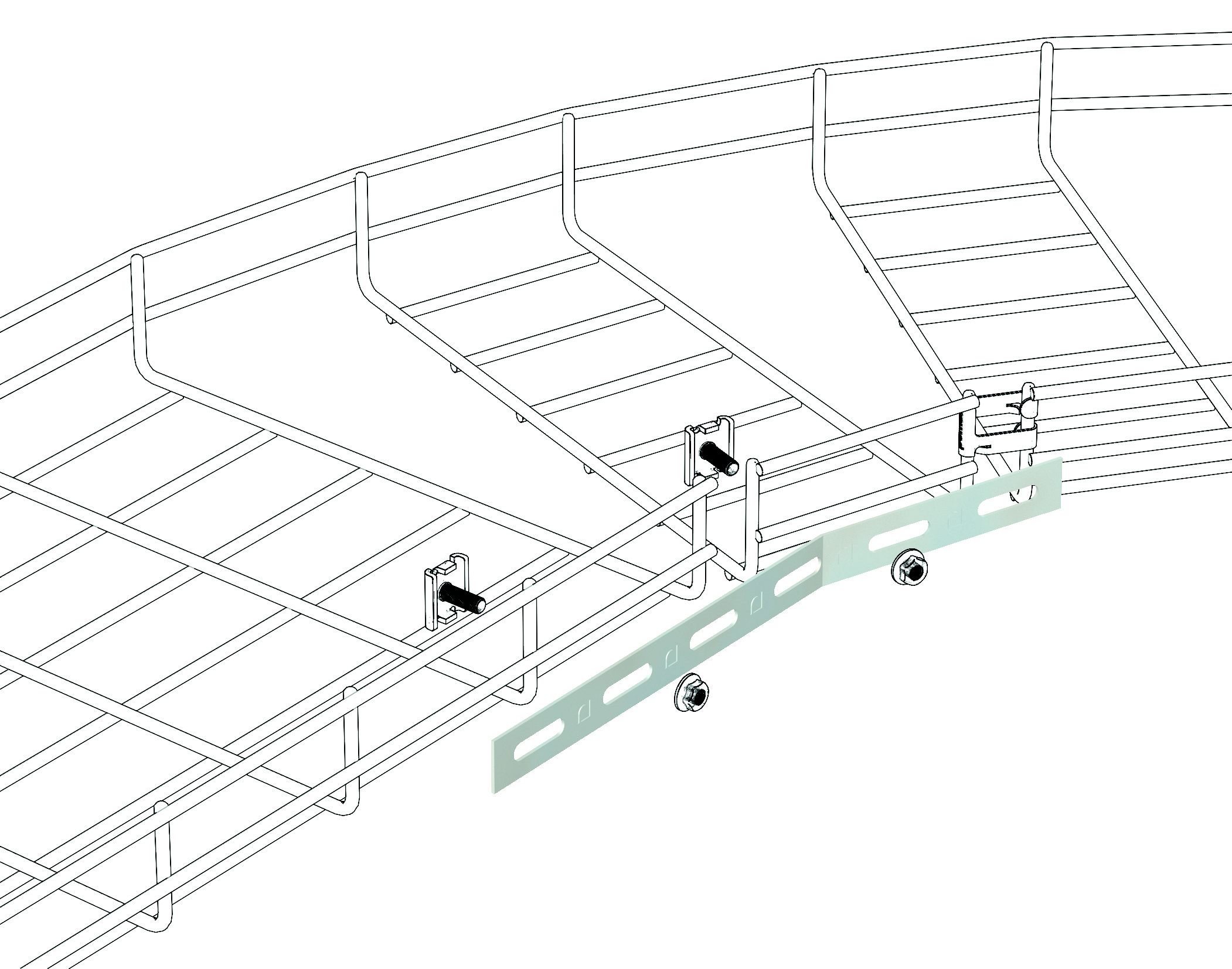

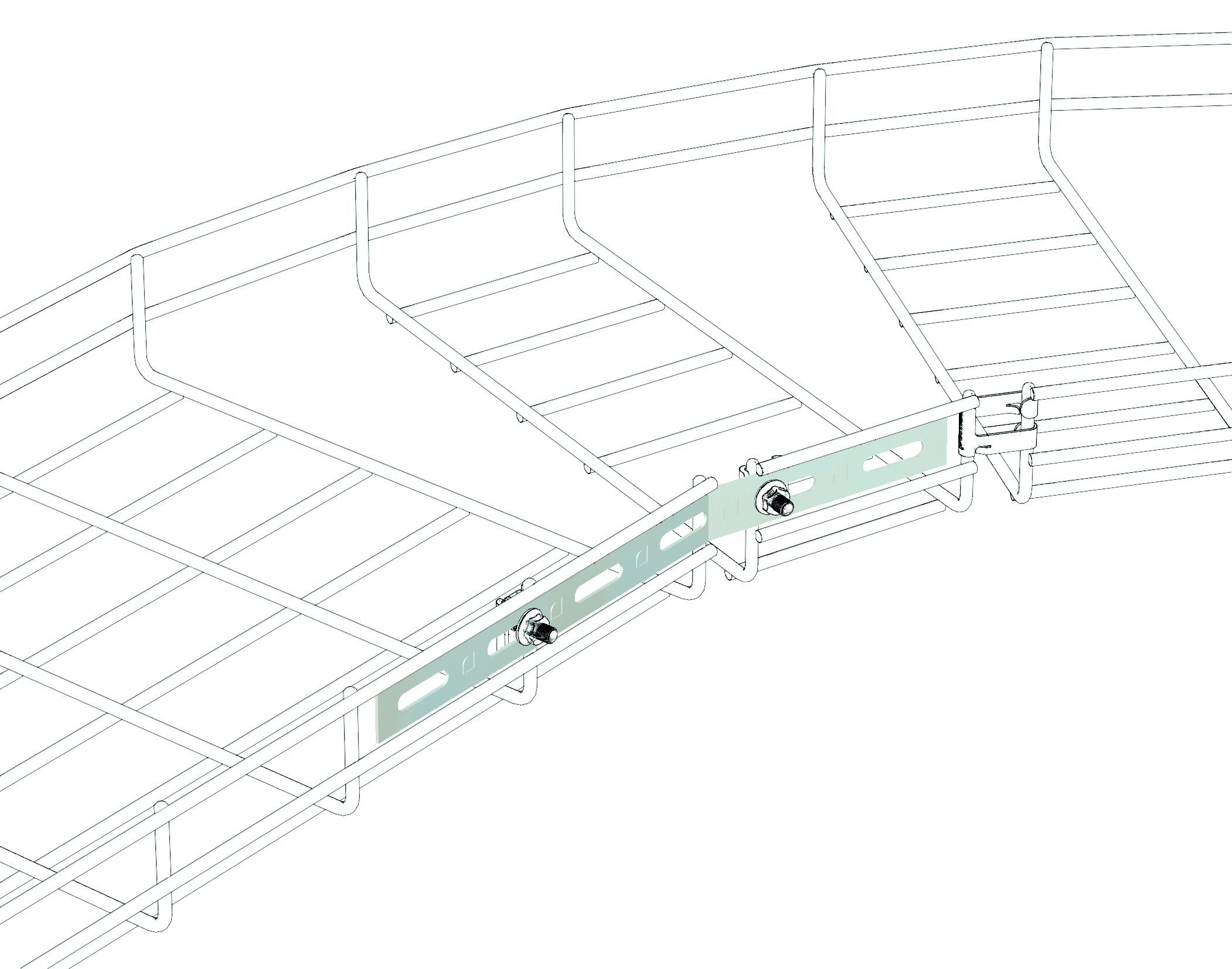

Multipurpose metal accessory used for the joining of straight sections, making bends or other accessories with the Rejiband wire mesh tray. It is fixed to the tray or accessories by screws, ensuring the mechanical strength of the joint and the electrical continuity, according to IEC61537 standard. Made of steel and available in various Protection Systems.

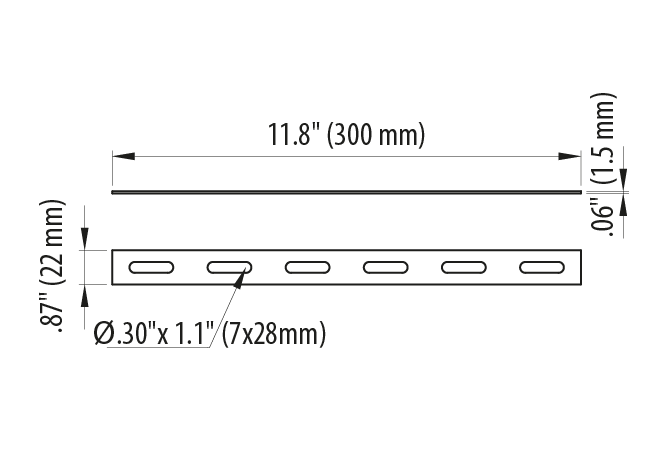

67010053 data-sheet-Splice-plate
