Rejiband SPLUS Omega Ceiling Bracket 400mm PG
Product number:
62022404
Brand:
Pemsa
Fast delivery
20 years of expertise and experience
Own brand of high quality
Want to view our prices?
Our pricing is exclusively available to registered customers.
Variations
Product number
Material quality
Length (mm)
Material quality:
Stainless Steel 304
Length (mm):
100
Product number
Material quality
Length (mm)
Material quality:
Pre galvanized
Length (mm):
100
Product information
| Suitable for cable support system width : | 100 - 400 mm |
|---|---|
| Suitable for cable support system height : | 35 - 150 mm |
| Model : | Face out bracket (C-bracket) |
| Suitable for wire mesh tray : | Yes |
| Tray mounting : | Screwless |
| Suitable for circuit integrity : | Yes |
| Material : | Steel |
| Material quality : | Other |
| Surface protection : | Continuously galvanised |
| Working temperature : | -50 - 150 °C |
| Colour : | Zinc |
- Click system allows fast connection of the wire mesh tray without the need of fixings. Greater economy and quick assembly.
- Universal mounting system compatible with Rejiband® grid trays, Pemsaband® sheet and PVC trays. A single support for all trays. Reduction in the number of references.

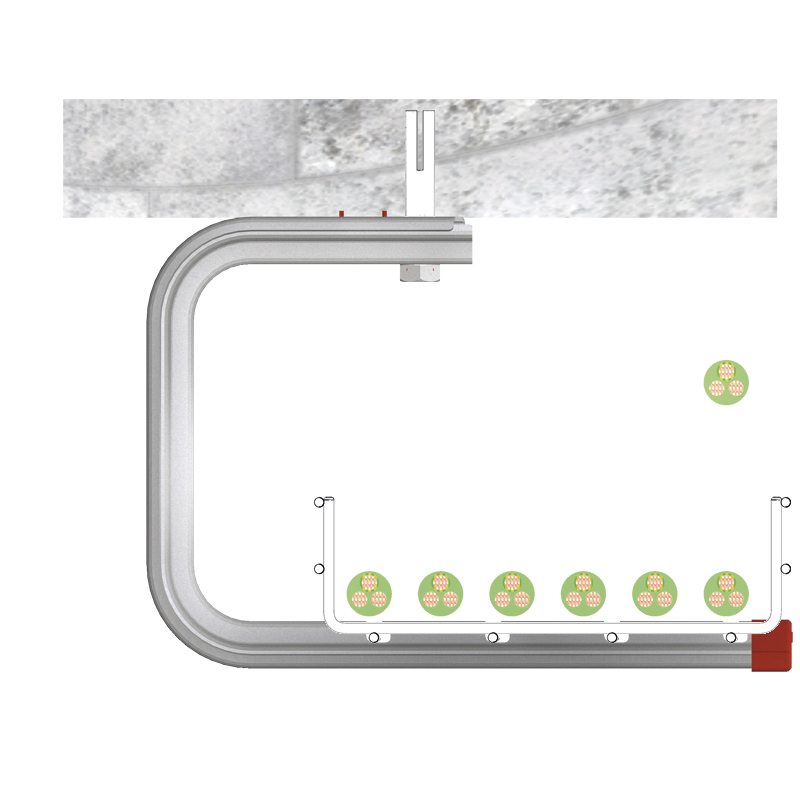

- C shape, which allows the introduction of the cables from the side. Includes plugs and protectors to improve installation and protect the installer.
- N Mark of Aenor, in accordance with IEC 61537 and CE conformity to Directive 2014/35 / EU. Fire resistance E90 according to DIN 4102-12.
- Available in several protection systems: PG, GC, BK8 and stainless steel AISI 304 and AISI 316L.

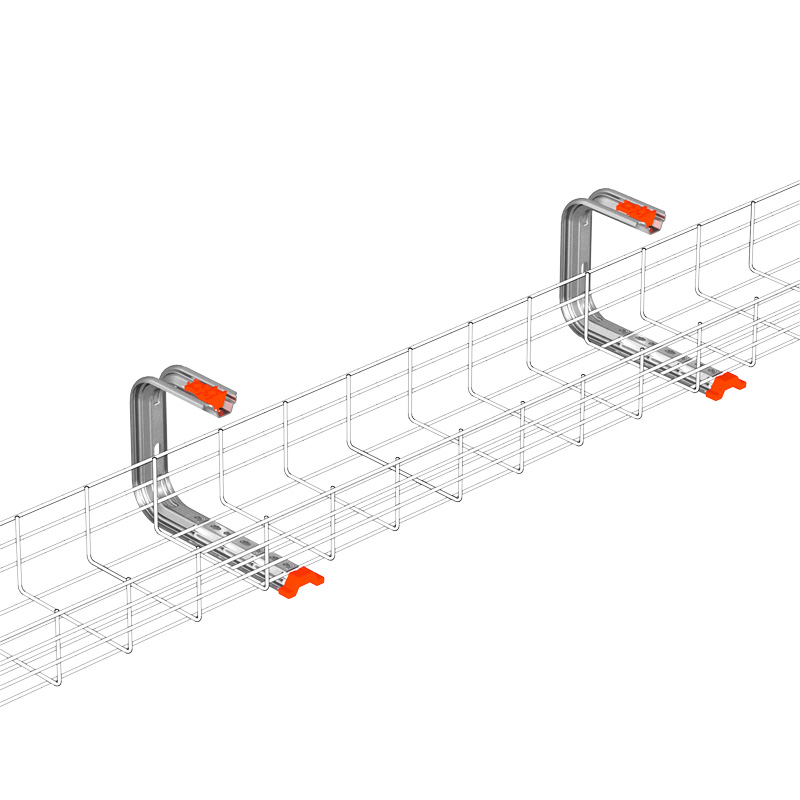

Support with omega profile and universal connection system for Rejiband® and Pemsaband® trays mounted to the ceiling. Click fixing system. Made of steel and available for widths of 100, 150, 200, 300 and 400 mm and in various Protection Systems.
62052404 data-sheet-Omega-SPLUS-Ceiling-Bracket
