Righthand Reducer Cable Tray ECT100 100mm SS304

Right-hand reducer ECTRR100 is an accessory for the ECT100 cable tray system and is used to create an asymmetrical width transition within cable routes. The reducer enables a gradual transition between cable trays of different widths, while maintaining alignment on the right-hand side. This accessory is suitable for heavy industrial, utility, and infrastructure installations.

The standard version is manufactured from hot dip galvanized carbon steel according to NEN-EN-ISO 1461, with a minimum zinc coating thickness of 80 µm, suitable for industrial and outdoor environments. The hot dip galvanizing process is applied after fabrication and provides full protection of the surface, including cut edges and fixing holes. This makes the reducer suitable for applications with increased corrosive and mechanical loads, in accordance with IEC 61537 and installations compliant with NEN 1010.

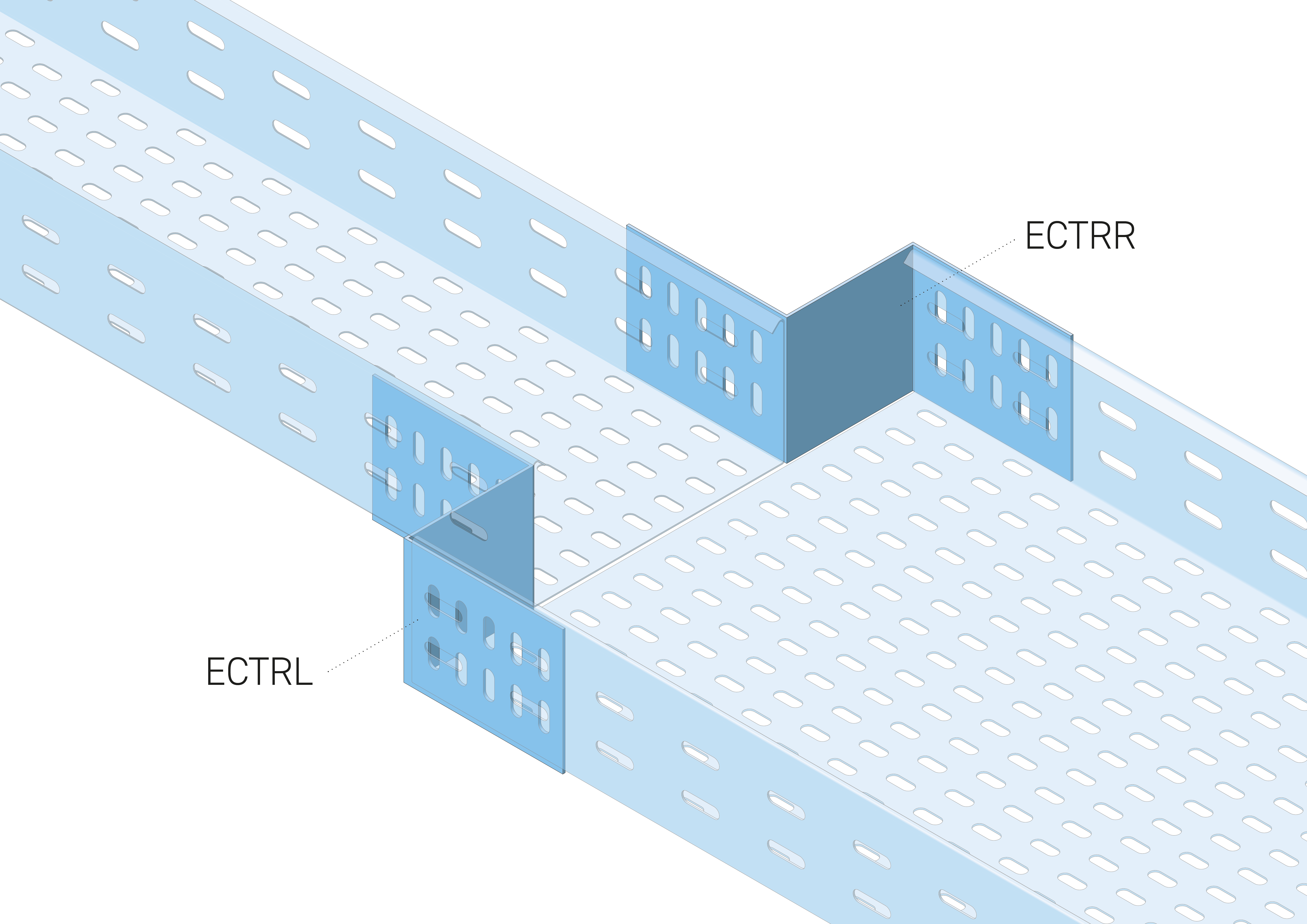

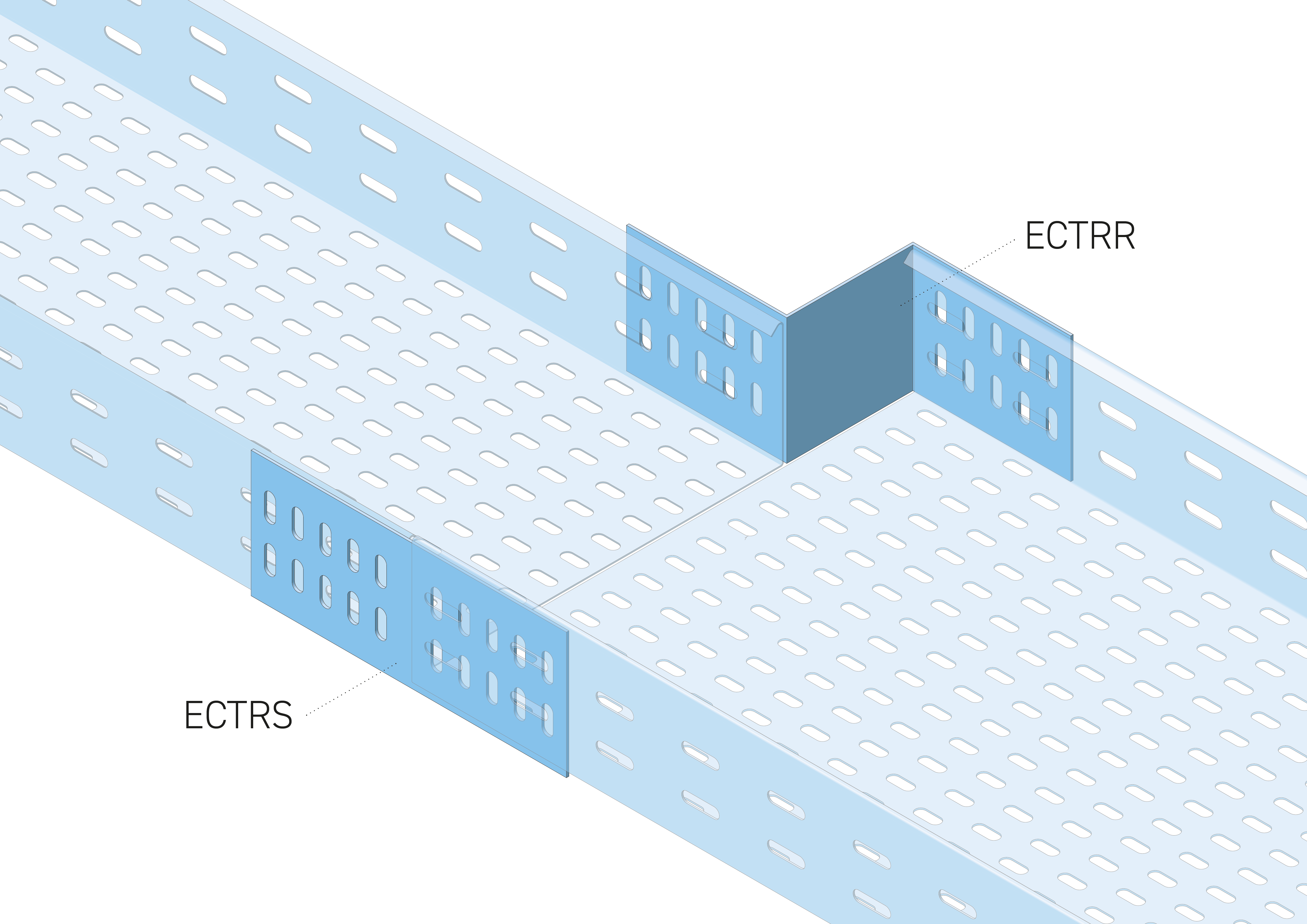

The reducer is designed as a fixed accessory for direct connection to straight ECT100 cable trays. To achieve a complete width transition, this reducer must always be combined with an additional reducer, depending on the required configuration: a left-hand reducer (ECTRL100) or a straight reducer (ECTRS100). The reducers are available in widths from 50 to 150 mm and together form a stable, aligned, and system-compatible transition within the ECT100 cable tray system. The execution is equipped with integrated connectors and is supplied including 8x EFS08x15 fixing set (carriage bolt M08x15, nut, and washer), enabling fast and alignment-stable installation.

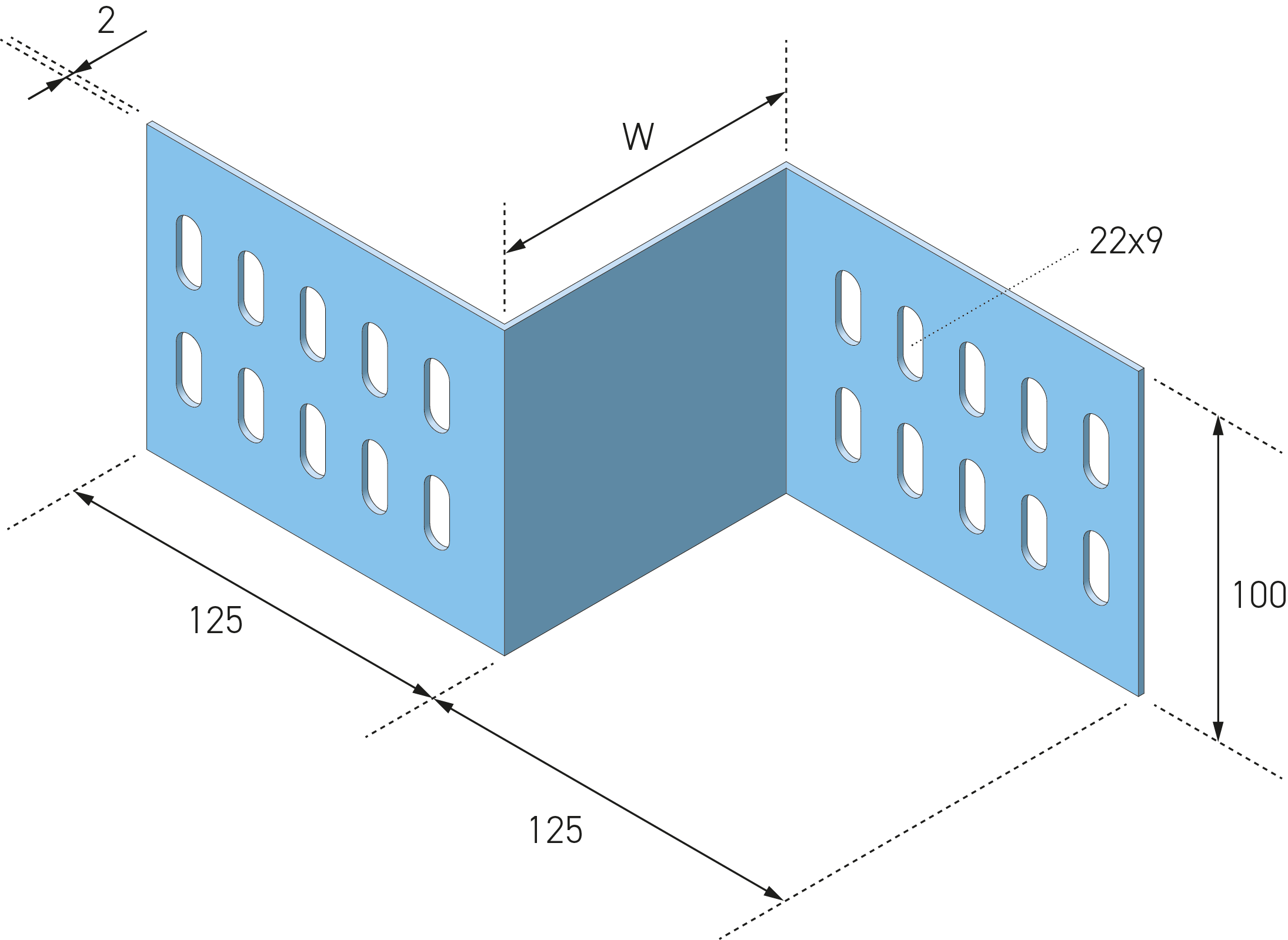

Technical Specifications

• Product type: Right-hand reducer for cable tray
• System: ECT100
• System height: 100 mm
• Width: 50 to 150 mm
• Material thickness: 2 mm
• Execution: Right-aligned
• Connector perforation: 22 x 9 mm
• Material: Carbon steel
• Surface finish: Hot dip galvanized according to NEN-EN-ISO 1461
• Zinc coating thickness: minimum 80 µm
• Connection method: Bolted
• Execution: With integrated connectors, including 8x EFS08x15 fixing set (carriage bolt M08x15, nut, and washer)
• Standards: IEC 61537, applicable within installations compliant with NEN 1010
• Construction type: Asymmetrical reducer
• Direction change: Horizontal
• Top cover: No
• Side perforation: No

Typical Applications

• Width transitions within cable tray systems
• Asymmetrical connection of cable trays
• Adapting cable routes to installation constraints
• Heavy industrial and outdoor installations

Available Material Variants

• HDG: Hot dip galvanized carbon steel according to NEN-EN-ISO 1461, with a minimum zinc coating thickness of 90 µm, suitable for heavy industrial and outdoor environments.
• PG: Pre galvanized carbon steel according to EN 10346, suitable for dry indoor environments and light industrial applications.
• Stainless steel 304 (A2 / 1.4301): Stainless steel for indoor environments and lightly corrosive conditions.
• Stainless steel 316 (A4 / 1.4404): Stainless steel with enhanced corrosion resistance for chemical, maritime, and offshore applications.

Complementary Products

For a complete installation within the ECT100 system, the following components are relevant:

• Cable trays: ECT100 cable trays in various widths

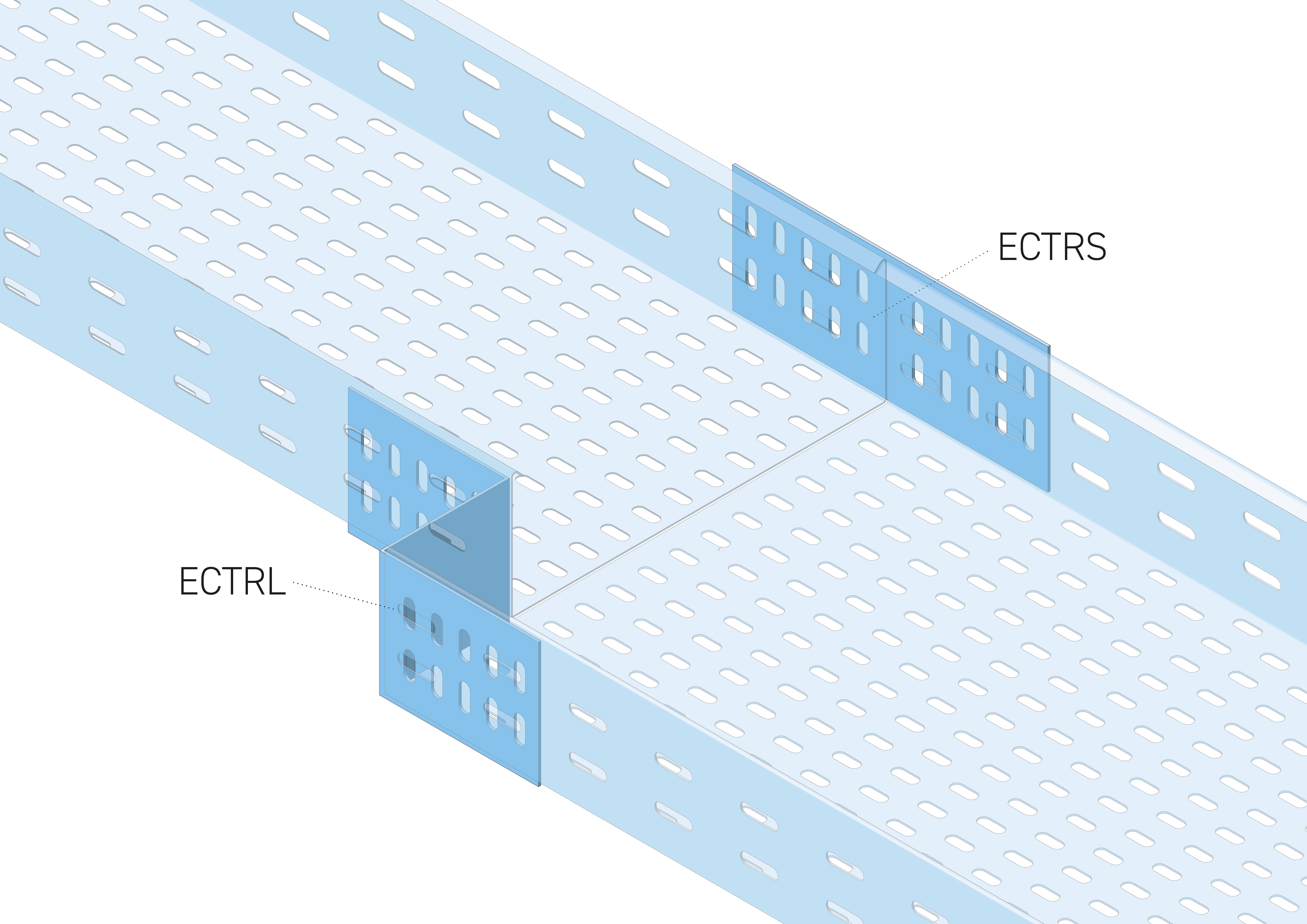

• Left-hand reducers: ECTRL100 for opposite alignment
• Straight reducers: ECTRS100 for symmetrical transitions
• Brackets: Wall, ceiling, and trapeze brackets
• Covers and clamps: For protection and fixation

These components together ensure a safe, compatible, and maintenance-friendly installation.

Other widths available on request.
