T-Piece Cable Tray ECT60 100mm HDG
Want to view our prices?
Our pricing is exclusively available to registered customers.
Variations
Product information
| Suitable for cable tray height : | 60 mm |
|---|---|
| Suitable for cable tray width : | 100 mm |
| Construction type : | T-piece horizontal |
| Suitable for connection with screws : | Yes |
| Suitable for screwless connection : | No |
| Model : | Integrated connector |
| Inner radius : | 50 mm |
| Material : | Steel |
| Material quality : | Rustproof and acidproof steel |
| Surface protection : | Hot-dip galvanised |
| Colour : | Zinc |

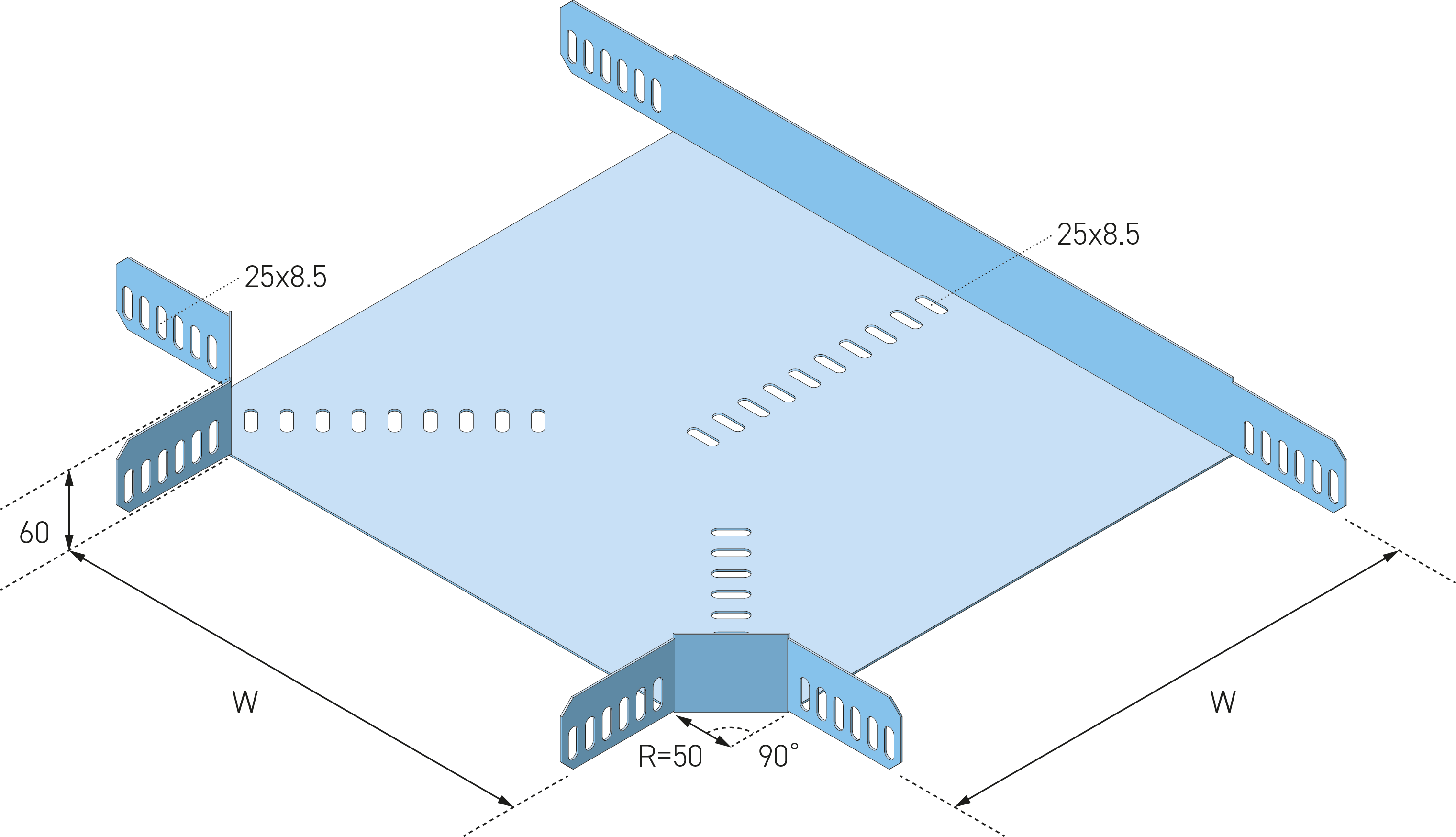

T-Piece for cable tray ECT60 with sizes H = 60mm, W = 95 mm, E (thickness) = 1.0 mm, carbon steel, hot dip galvanized according to NEN-EN-ISO 1461, minimum layer thickness 60 µm, including 12x EFS08x15-GEO Eurostrut fixing set (bolt M08x15, nut and washer).

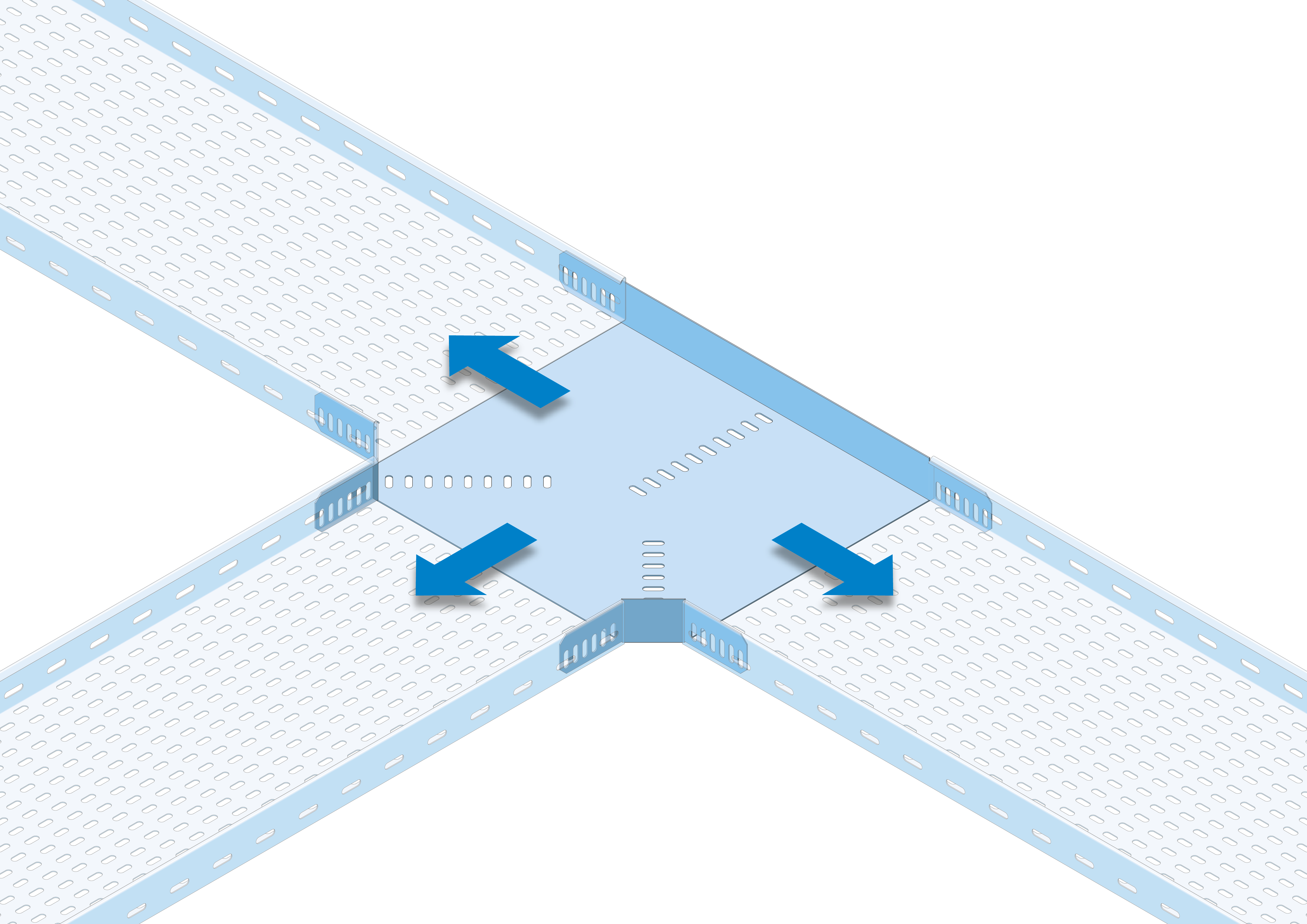

T-piece ECTET60 is an accessory for the ECT60 cable tray system and is used to create a horizontal branch within cable routes. This accessory enables cable distribution in three directions while maintaining a continuous and mechanically stable cable support structure. The T-piece is suitable for heavy industrial, utility, and infrastructure installations where structured cable routing is required.
The standard version is manufactured from hot dip galvanized carbon steel according to NEN-EN-ISO 1461, with a minimum coating thickness of 60 µm, suitable for heavy industrial and outdoor environments. The hot dip galvanizing process is applied after fabrication and provides full protection of the surface, including cut edges and fixing holes. This ensures reliable corrosion protection under increased mechanical and environmental loads, in accordance with IEC 61537 and installations compliant with NEN 1010.
The T-piece is designed as a fixed accessory for direct connection to straight ECT60 cable trays. The execution is equipped with integrated connectors, enabling fast and alignment-stable installation. The accessory is fully compatible with other ECT60 components and ensures a uniform and continuous cable tray installation.
Technical Specifications
- Product type: Accessory – horizontal T-piece for cable tray
- System: ECT60
- System height: 60 mm
- System width: 75 to 600 mm

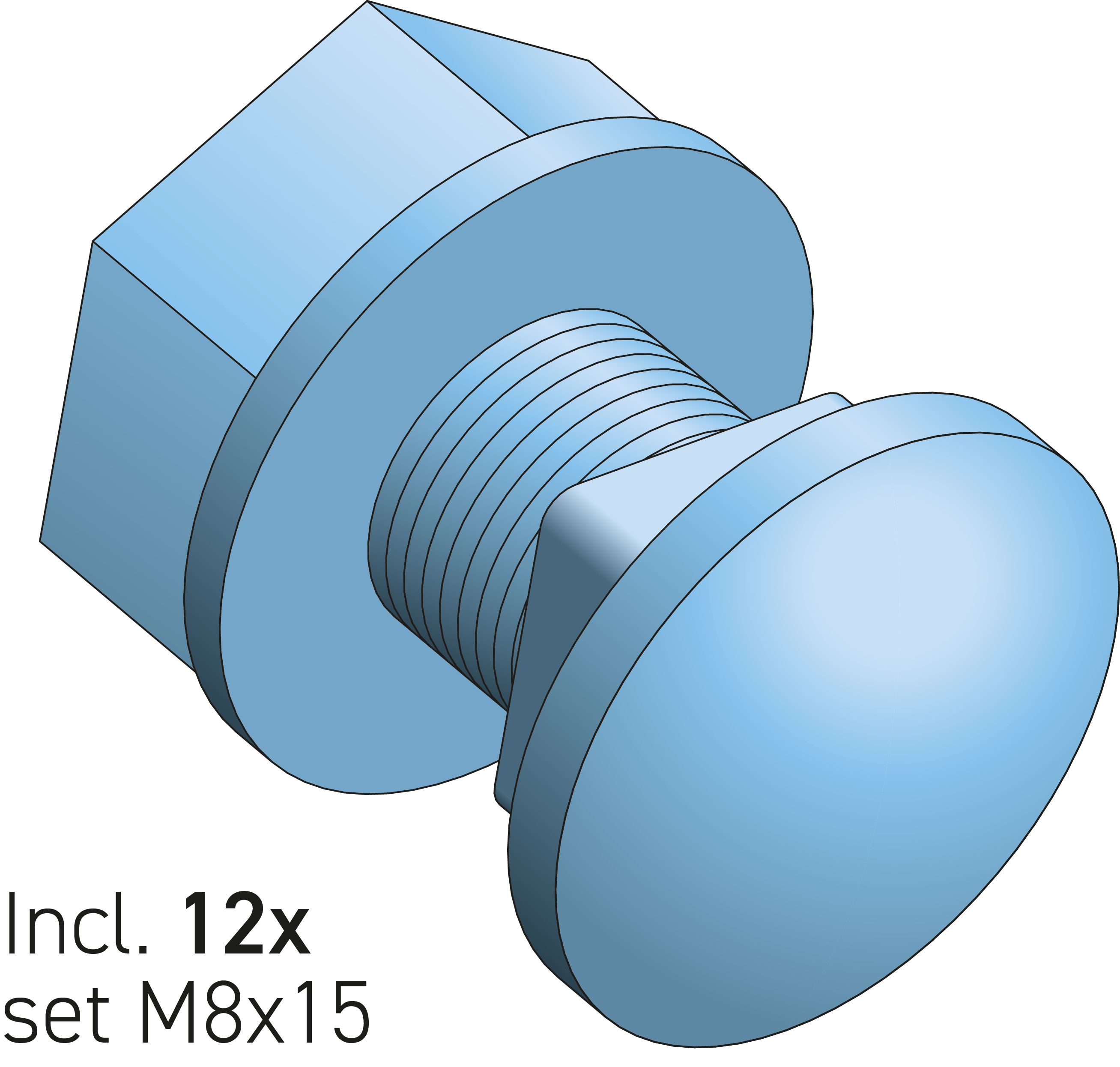

- Execution: With integrated connectors, including 12x EFS08x15 fixing set (bolt M08x15, nut and washer)
- Standard material: Carbon steel
- Surface finish: Hot dip galvanized according to NEN-EN-ISO 1461
- Zinc coating thickness: minimum 60 µm
- Standards: IEC 61537, applicable within installations compliant with NEN 1010
Typical Applications
- Horizontal branching in ECT60 cable tray systems
- Heavy industrial installations
- Outdoor installations and harsh industrial environments
- Cable routes requiring structured cable distribution
Available Material Variants
- HDG: Hot dip galvanized carbon steel according to NEN-EN-ISO 1461, with a minimum coating thickness of 60 µm, suitable for heavy industrial and outdoor environments.
- PG: Pre galvanized carbon steel according to EN 10346, suitable for dry indoor environments and light industrial applications.
- Stainless steel 304 (A2 / 1.4301): Stainless steel for indoor environments and lightly corrosive conditions.
- Stainless steel 316 (A4 / 1.4404): Stainless steel with enhanced corrosion resistance for chemical, maritime, and offshore applications.
Complementary Products
For a complete installation, Eurostrut offers various accessories, such as:
- Straight cable trays: ECT60 cable trays in various widths
- Couplers: Coupling plates and bolt sets for ECT60 cable trays
- Other accessories: Bends and cross pieces for ECT60 systems
These components ensure a safe, compatible, and maintenance-friendly installation.
Other widths available on request.
