Tread/Pendant Pipe Clamp 60mm HDG
Product number:
SBD-60-FT
Brand:
Eurostrut
Fast delivery
20 years of expertise and experience
Own brand of high quality
Want to view our prices?
Our pricing is exclusively available to registered customers.
Variations
Product number
Tube diameter
Material quality
Tube diameter:
60.3 mm
Material quality:
Hot dip galvanized
Product number
Tube diameter
Material quality
Tube diameter:
60.3 mm
Material quality:
Stainless Steel 316
Product number
Tube diameter
Material quality
Tube diameter:
60.3 mm
Material quality:
Stainless Steel 304
Product information
| Material : | Metal |
|---|---|
| Surface protection : | Hot-dip galvanised |
| Tube diameter : | 60.3 mm |

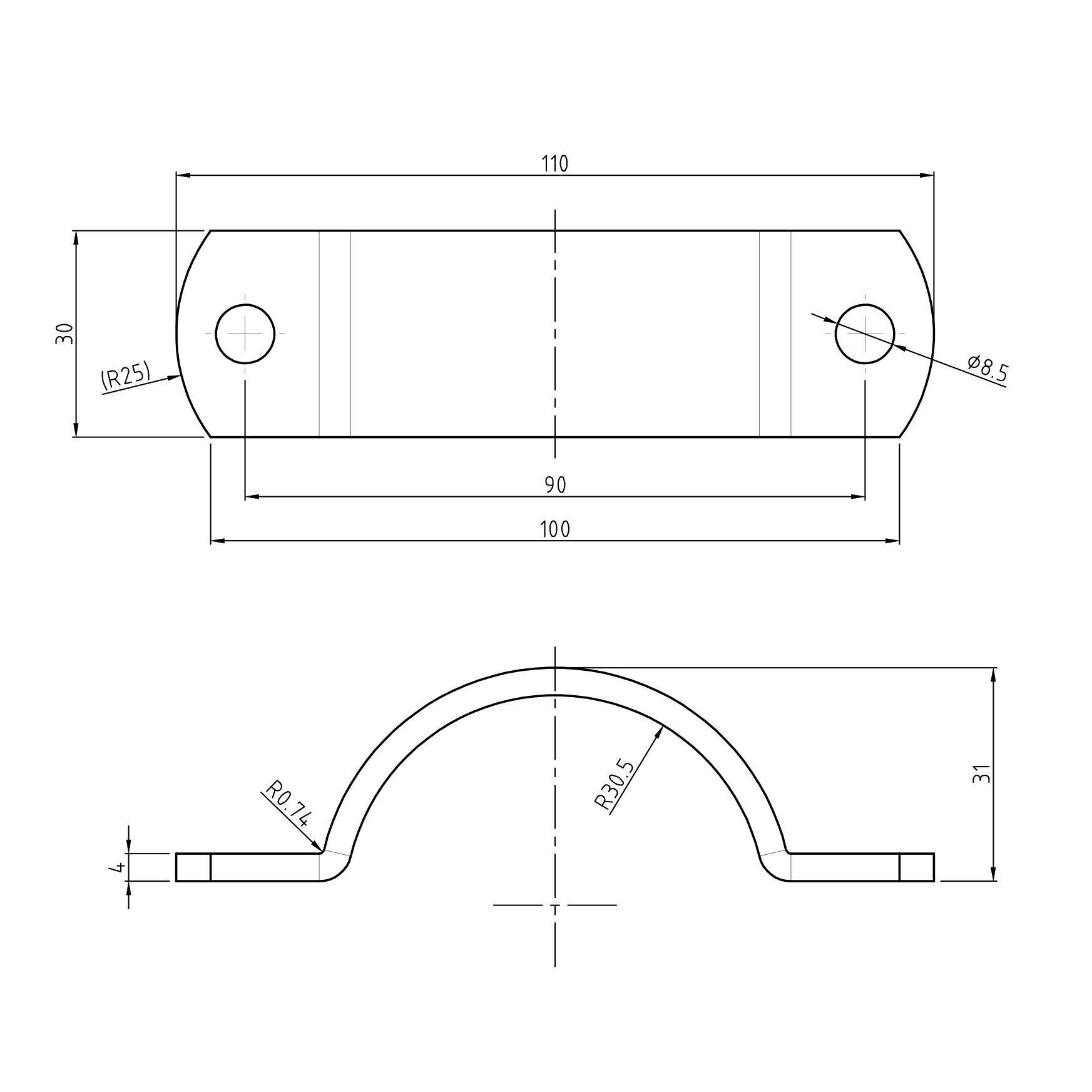

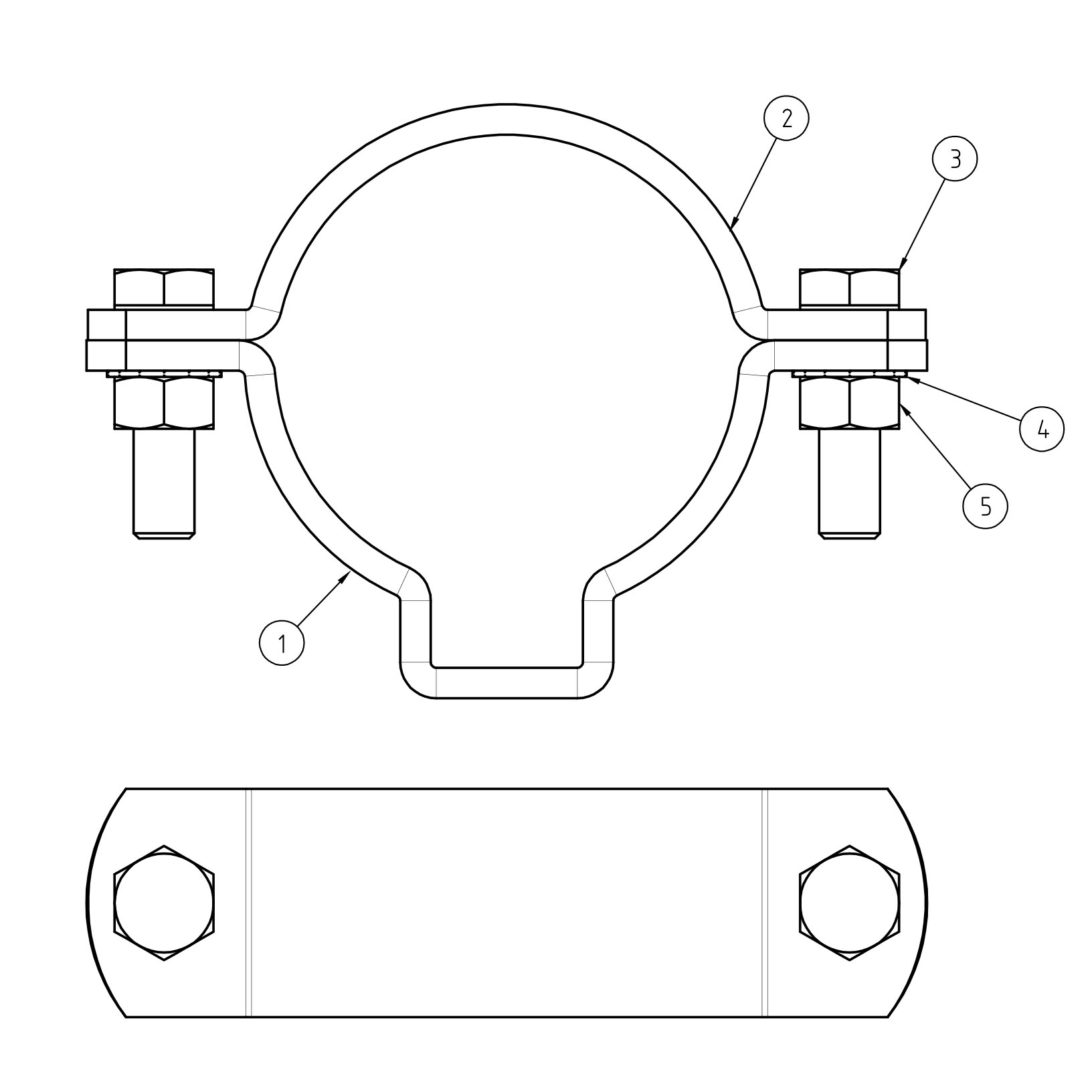

The SBD‑60‑FT is a sturdy mounting bracket for securing cable protection tubes with a diameter of 60.3 mm to a wall, ceiling, or structural surface. This bracket is specifically compatible with the SR‑60‑FT and SRL‑60‑FT cable protection tubes.

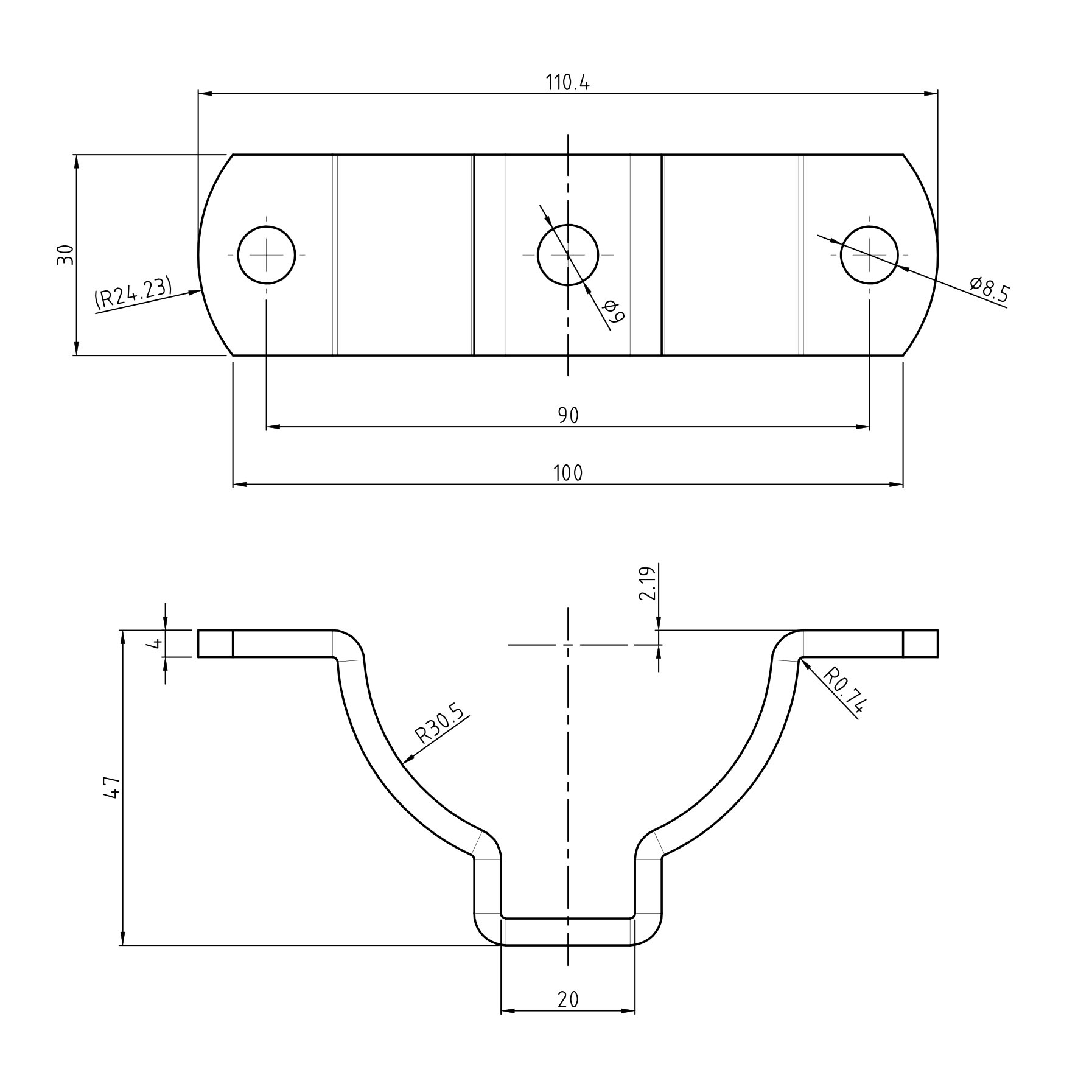

It is made of carbon steel S235JRG and hot-dip galvanized according to NEN‑EN‑ISO 1461, with a zinc layer thickness of at least 45 µm. One side of the bracket is recessed to accommodate an M8 nut or threaded rod. Supplied with 2 mounting sets (bolt, nut, and washer).
- Material: Carbon steel S235JRG
- Finish: Hot-dip galvanized (min. 45 µm, NEN‑EN‑ISO 1461)
- For tube diameter: 60.3 mm
- Mounting: Recessed side for M8 nut or threaded rod
- Includes: 2× mounting sets (nut/bolt/washer)
- Compatible with: SR‑60‑FT and SRL‑60‑FT cable protection tubes
Applications:
- Mounting cable protection tubes on flat surfaces
- Industrial and infrastructure installations
- Indoor and outdoor use with corrosion protection
