Universal Beam Clamp M16 EG
Product number:
ESP16
Brand:
Eurostrut
Fast delivery
20 years of expertise and experience
Own brand of high quality
Want to view our prices?
Our pricing is exclusively available to registered customers.
Product information
| Material : | Steel |
|---|---|
| Surface protection : | Galvanic/electrolytic zinc plated |
| Clamping range : | 1 - 35 mm |
| Permitted work load : | 9000 N |
| Suitable for strut rail/profile : | Yes |
| Rail width : | 41 - 41 mm |
| Bolt dimension (metric) : | 16 |
| U-shaped clamping bolt : | No |

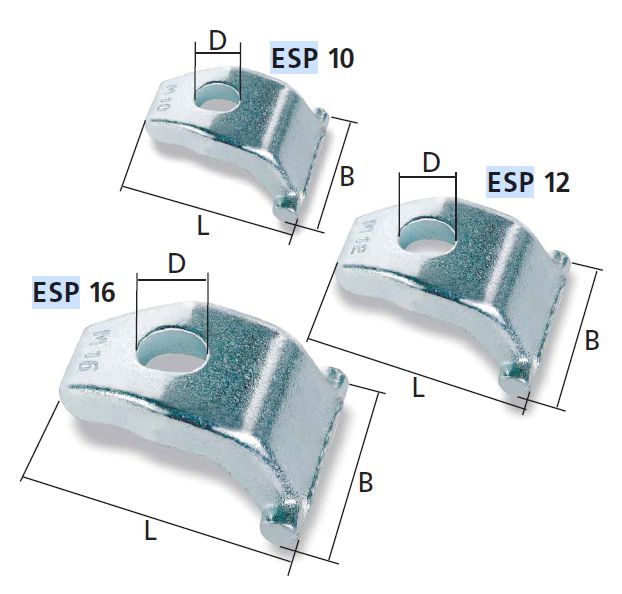

Universal beam clamp M16, Electro Zinc Plated

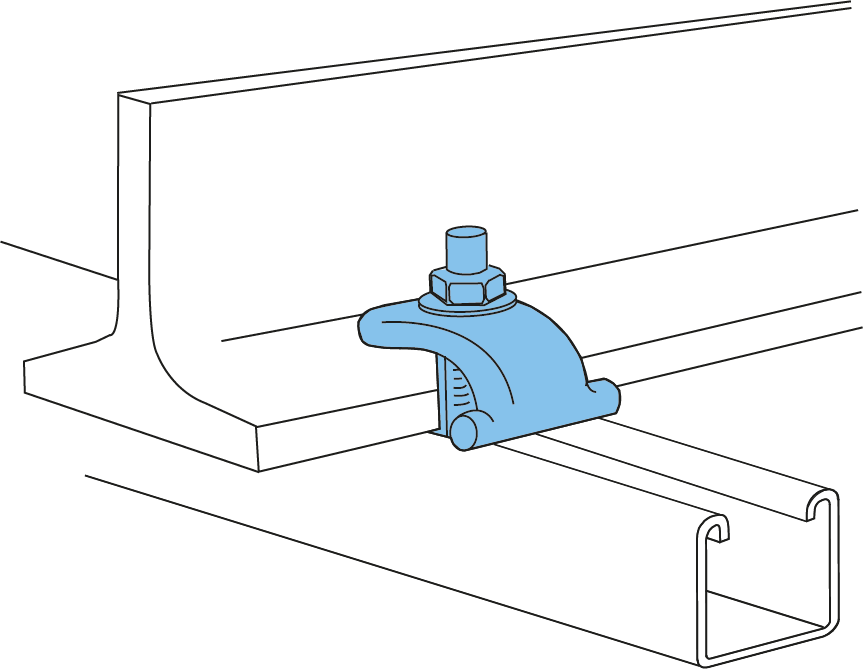

For fixing profiles and cross-members to supports, hanging pipes and channels on steel beams.
Clamping range up to 35 mm (ESP12 & ESP 16)
Universal use
Material: White malleable cast iron GTW 45, zinc plated
The breaking forces are determined using a hex head bolt and nut (grade 8.8). They are divided by the appropriate safety factor to obtain the value for the rated load.
Normal safety factor: 10
ESP10-12-16_INFO
