Verloopstuk Recht Cable Tray ECT60 HDG
Variations
Product information
| Suitable for cable tray height : | 60 mm |
|---|---|
| Construction type : | Reducing symmetrical |
| Model : | Integrated connector |
| Material : | Steel |
| Material quality : | Rustproof and acidproof steel |
| Surface protection : | Hot-dip galvanised |
| Colour : | Zinc |
Reducer ECTRS60 is an accessory for the ECT60 cable tray system and is used as part of a horizontal transition between cable trays with different widths. The straight reducer is installed centrally within the cable route and, in combination with a left-hand or right-hand reducer, forms a complete and symmetrical width transition. This accessory is suitable for heavy industrial, utility, and infrastructure installations.
The standard version is manufactured from hot dip galvanized carbon steel according to NEN-EN-ISO 1461, with a minimum zinc coating thickness of 80 µm, suitable for heavy industrial and outdoor environments. The hot dip galvanizing process is applied after fabrication and provides full protection of the surface, including cut edges and fixing holes. This makes the accessory suitable for applications with increased mechanical and environmental loads, in accordance with IEC 61537 and installations compliant with NEN 1010.
The reducer is designed as a fixed accessory for direct connection to straight ECT60 cable trays. To realise a complete width transition, this straight reducer must be combined with either a left-hand reducer (ECTRL60) or a right-hand reducer (ECTRR60). In combination, these components provide a stable, aligned, and system-compliant transition within the ECT60 cable tray system.

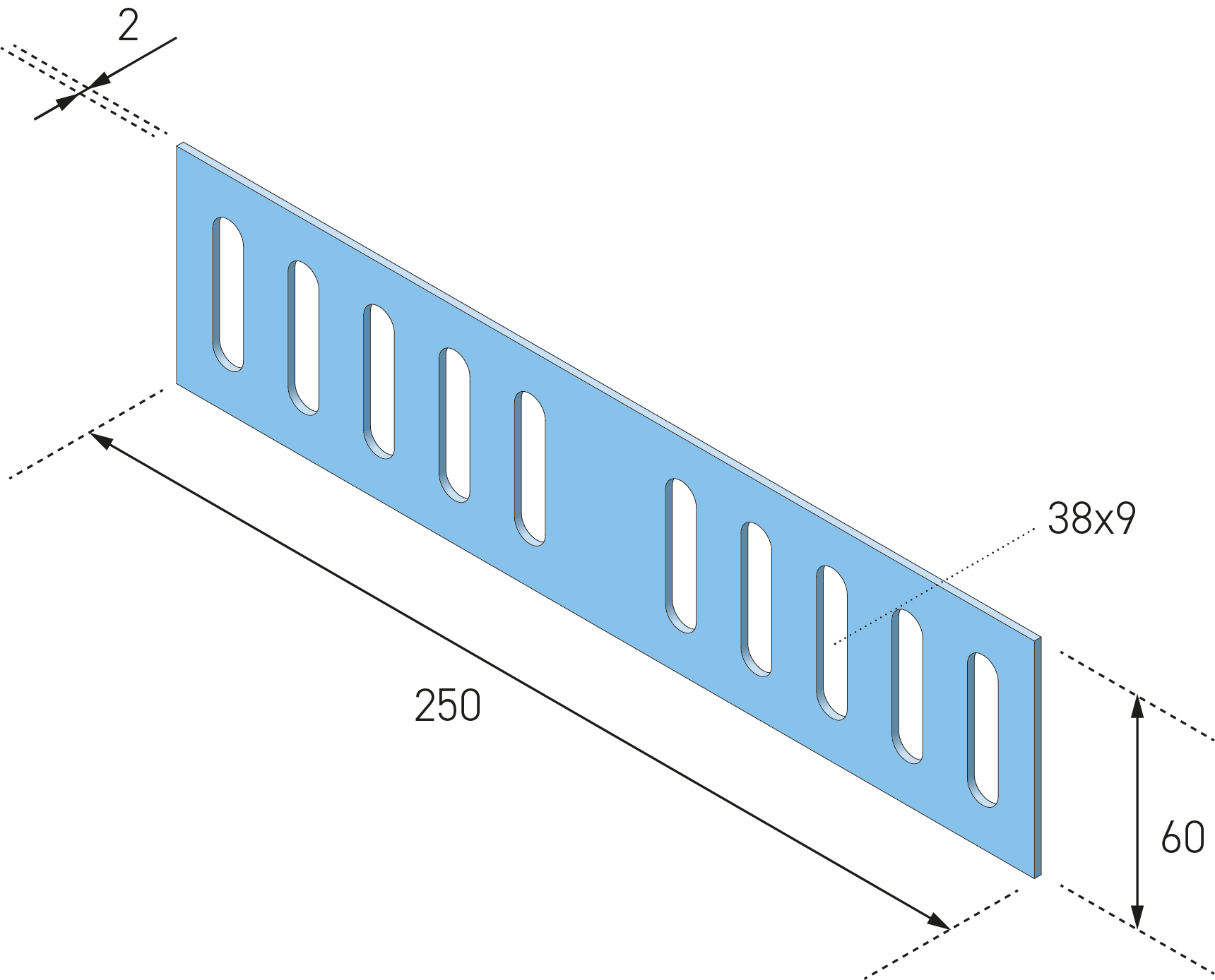

Technical Specifications
- Product type: Accessory – straight reducer for cable tray
- System: ECT60
- System height: 60 mm
- Reducer width: 50 to 150 mm
- Execution: Straight reducer
- Execution: With integrated connectors, including 4x EFS08x15 fixing set (bolt M08x15, nut and washer)
- Standard material: Carbon steel
- Surface finish: Hot dip galvanized according to NEN-EN-ISO 1461
- Zinc coating thickness: minimum 80 µm
- Standards: IEC 61537, applicable within installations compliant with NEN 1010
Typical Applications
- Symmetrical width transitions in ECT60 cable tray systems
- Horizontal cable routes with varying widths
- Heavy industrial installations
- Utility and infrastructure cable routes
Available Material Variants
- HDG: Hot dip galvanized carbon steel according to NEN-EN-ISO 1461, with a minimum zinc coating thickness of 80 µm, suitable for heavy industrial and outdoor environments.
- PG: Pre galvanized carbon steel according to EN 10346, suitable for dry indoor environments and light industrial applications.
- Stainless steel 304 (A2 / 1.4301): Stainless steel for indoor environments and lightly corrosive conditions.
- Stainless steel 316 (A4 / 1.4404): Stainless steel with enhanced corrosion resistance for chemical, maritime, and offshore applications.
Complementary Products
For a complete installation within the ECT60 system, the following components are relevant:
- Reducers: ECTRL60 (left-hand reducer) and ECTRR60 (right-hand reducer) for assembling a complete width transition
- Straight cable trays: ECT60 cable trays in various widths
- Couplers: Coupling plates and bolt sets for ECT60 cable trays
These components together ensure a safe, compatible, and maintenance-friendly installation.
Other widths available on request.
