Vertical Coupler Plate Cable Tray ECT60 HDG
Want to view our prices?
Our pricing is exclusively available to registered customers.
Variations
Product information
| Model : | Length- and angle joint |
|---|---|
| Hinged joint horizontal : | No |
| Hinged joint vertical : | Yes |
| Type of connection : | Screw connector |
| Suitable for wire mesh tray : | No |
| Suitable for cable ladder : | No |
| Suitable for cable tray : | Yes |
| Suitable for cable support system width : | 75 - 600 mm |
| Suitable for cable support system height : | 60 - 60 mm |

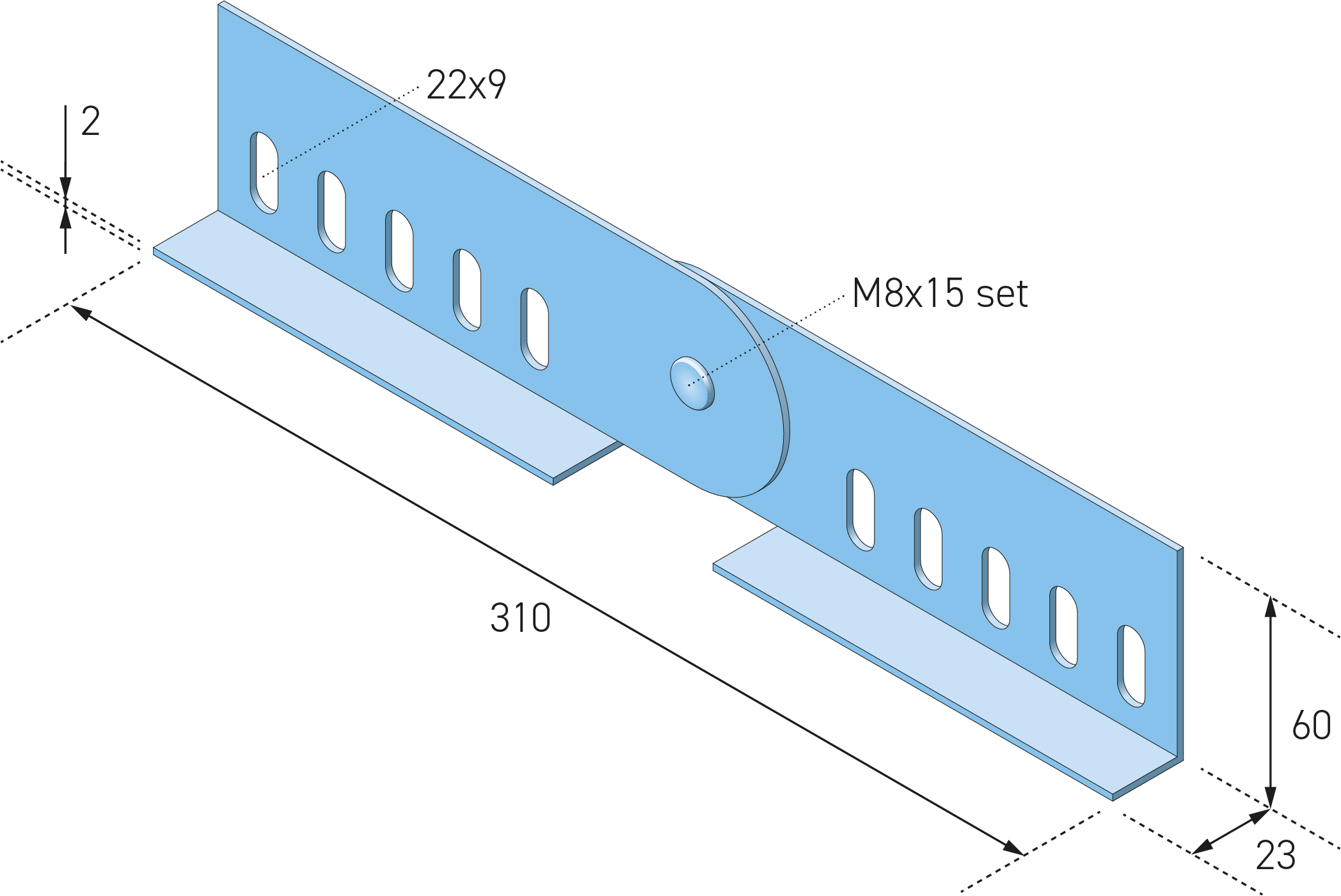

| Length : | 310 mm |
| Material : | Steel |
| Material quality : | Rustproof and acidproof steel |
| Surface protection : | Hot-dip galvanised |
| Colour : | Zinc |
Vertical coupling plate ECTVCP60 is an accessory for the ECT60 cable tray system and is used to create vertical bends within cable routes. With this coupling plate, two straight cable trays can be connected at a vertical angle, allowing both rising and falling sections to be formed in a flexible manner without the use of fixed inside or outside risers. This accessory is suitable for heavy industrial, utility, and infrastructure installations.
The standard version is manufactured from hot dip galvanized carbon steel according to NEN-EN-ISO 1461, with an increased zinc coating thickness of at least 80 µm. This heavy-duty corrosion protection makes the vertical coupling plate suitable for heavy industrial and outdoor environments. The hot dip galvanizing process is applied after fabrication and provides full protection of the surface, including cut edges and fixing holes, in accordance with IEC 61537 and installations compliant with NEN 1010.

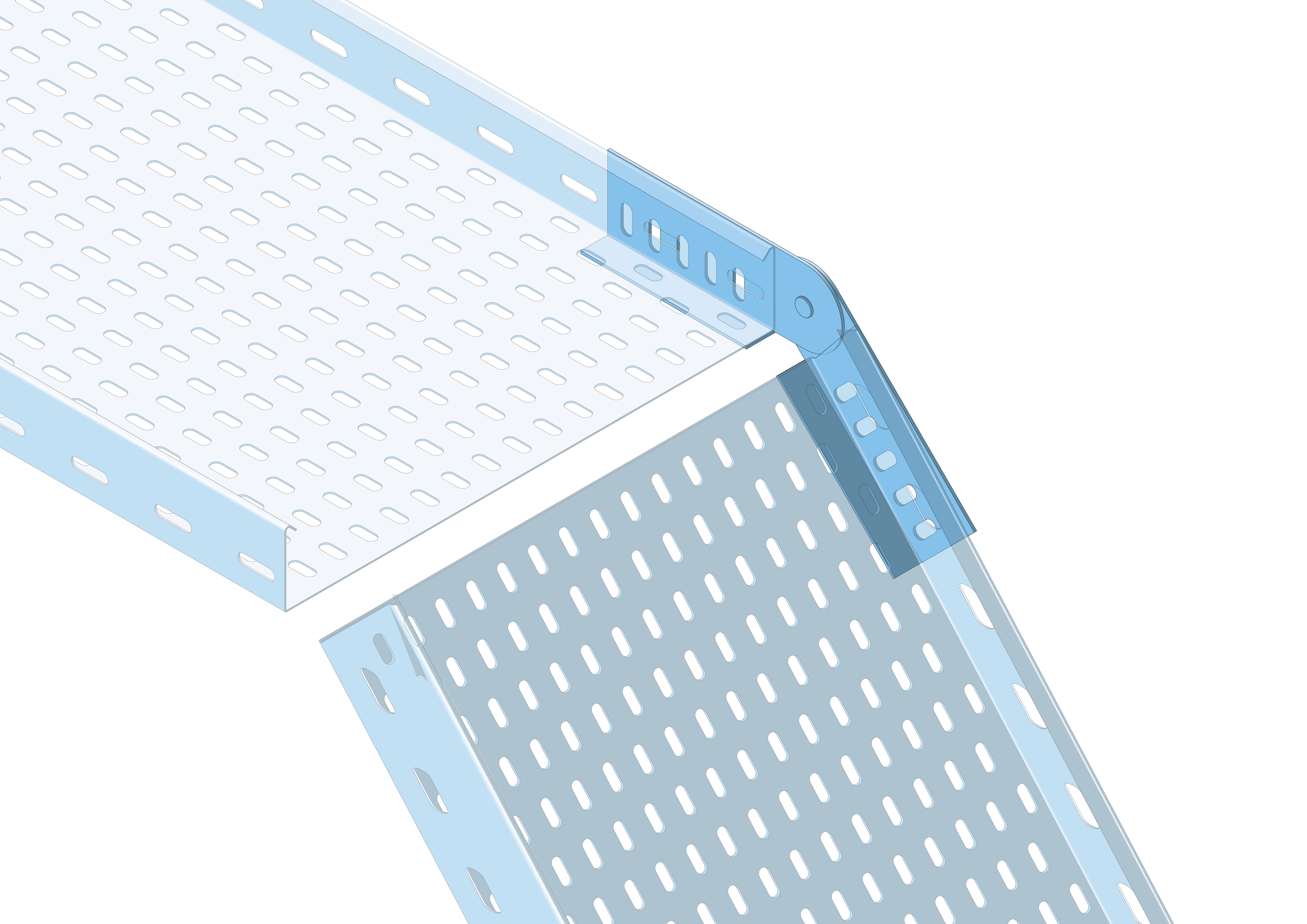

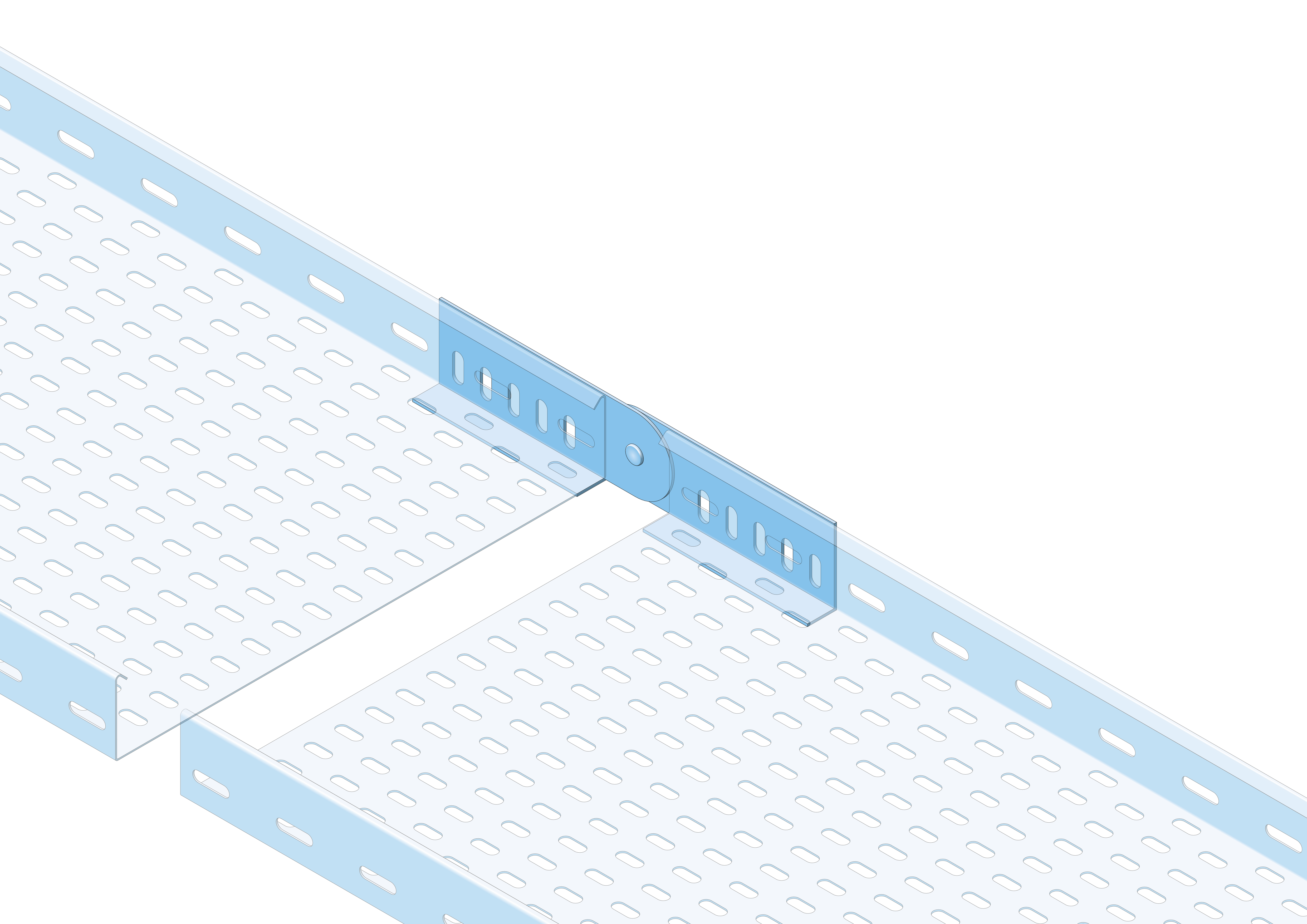

The vertical coupling plate is designed for installation between two ECT60 cable trays and allows the creation of variable vertical angles. The execution is provided with fixing holes and is supplied including fixing material, enabling fast and stable installation. The accessory is fully compatible with other ECT60 components and contributes to a flexible and system-compliant cable tray installation.
Technical Specifications
- Product type: Accessory – vertical coupling plate for cable tray
- System: ECT60
- Application: Formation of vertical bends (rising and falling)
- Execution: Vertical coupling plate

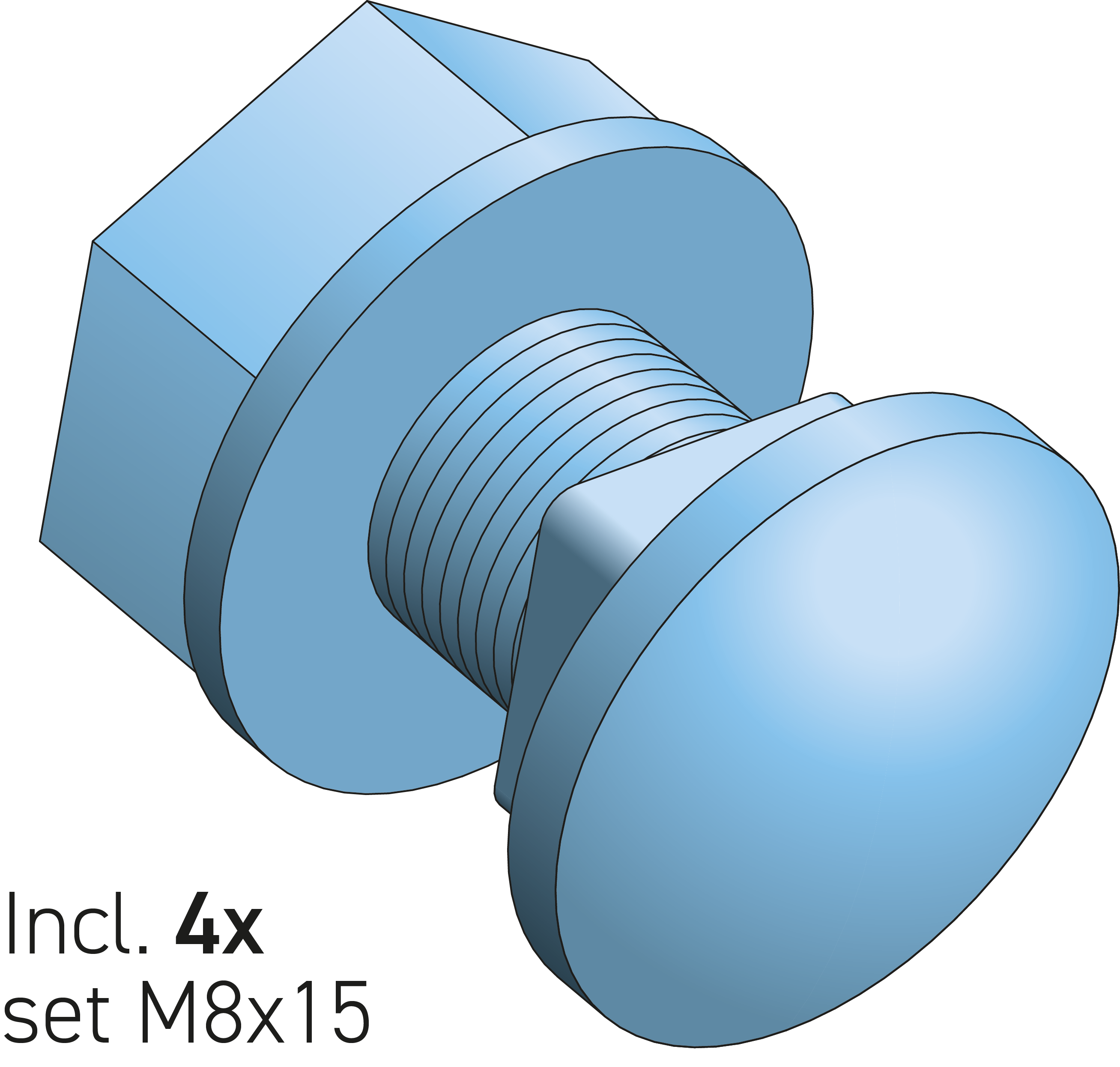

- Execution: Including 4x EFS08x15 fixing set (bolt M08x15, nut and washer)
- Standard material: Carbon steel
- Surface finish: Hot dip galvanized according to NEN-EN-ISO 1461
- Zinc coating thickness: minimum 80 µm
- Standards: IEC 61537, applicable within installations compliant with NEN 1010
Typical Applications
- Creation of vertical bends in ECT60 cable tray systems
- Rising and falling cable routes
- Flexible vertical direction changes without fixed riser components
- Heavy industrial and outdoor installations
Available Material Variants
- HDG: Hot dip galvanized carbon steel according to NEN-EN-ISO 1461, with a zinc coating thickness of at least 80 µm, suitable for heavy industrial and outdoor environments.
- PG: Pre galvanized carbon steel according to EN 10346, suitable for dry indoor environments and light industrial applications.
- Stainless steel 304 (A2 / 1.4301): Stainless steel for indoor environments and lightly corrosive conditions.
- Stainless steel 316 (A4 / 1.4404): Stainless steel with enhanced corrosion resistance for chemical, maritime, and offshore applications.
Complementary Products
For a complete installation within the ECT60 system, the following components are relevant:
- Straight cable trays: ECT60 cable trays in various widths
- Other coupling plates: Standard coupling plates and horizontal coupling plates for ECT60 systems
- Fixed accessories: Inside risers, outside risers, T-pieces, and cross pieces
These components together ensure a safe, compatible, and maintenance-friendly installation.
Other executions available on request.

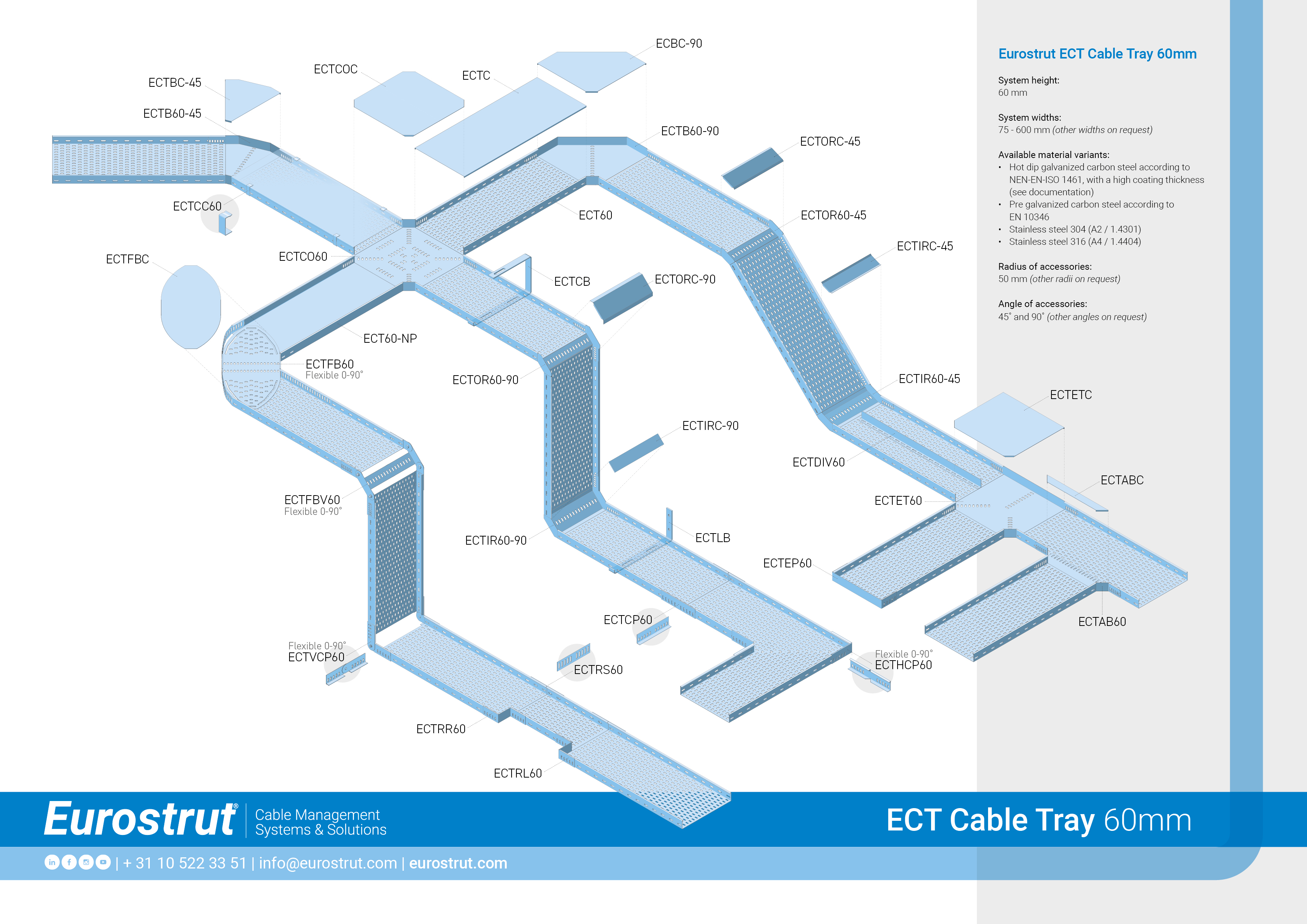

ECT60_Cable Tray 60mm_Overview.pdf
