Vulcan Cable Cleat 1x(142x162mm) 3x(89-97mm) SS136L
Want to view our prices?
Our pricing is exclusively available to registered customers.
Variations
Product information
| Suitable for pipe diameter : | 142 - 162 mm |
|---|---|
| Closed : | Yes |
| Material : | Stainless steel |
| Material quality : | Stainless steel 316 (V4A) |
| Max. number of tubes : | 3 |
| Type of fastening : | Screw hole |
| With inlay : | Yes |
| Colour : | Stainless steel |
| Working temperature : | -40 - 60 °C |
| Halogen free : | Yes |
Standard Duty Compact Stainless Steel Cable Cleat, for cables in single & trefoil formation.
- 316L stainless steel frame and fixings.
- Soft LSF polymeric liner protects cable sheath.
- Captive closure fixings for fast install.
- Short circuit and mechanically tested to IEC 61914.
- ABS and DNV type approved and also UL listed.

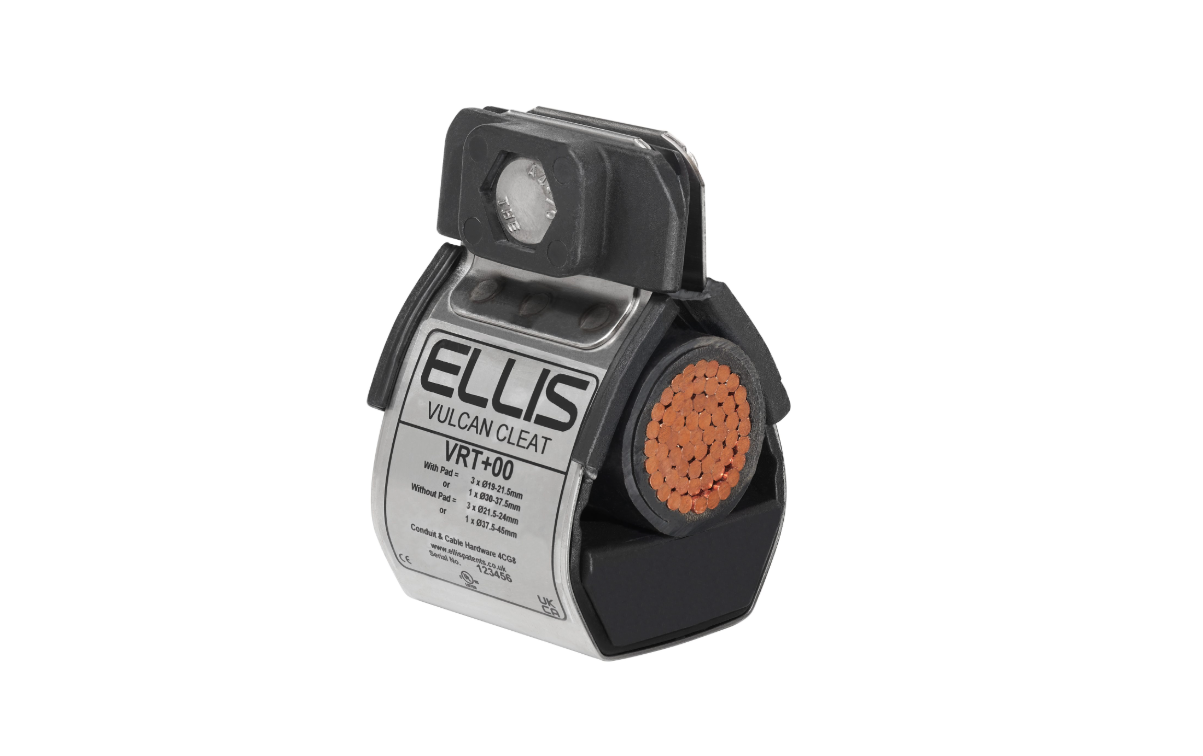

The Ellis Vulcan+™ cable cleat has been designed, developed, tested and manufactured in accordance with IEC 61914 (cable cleats for electrical installations).

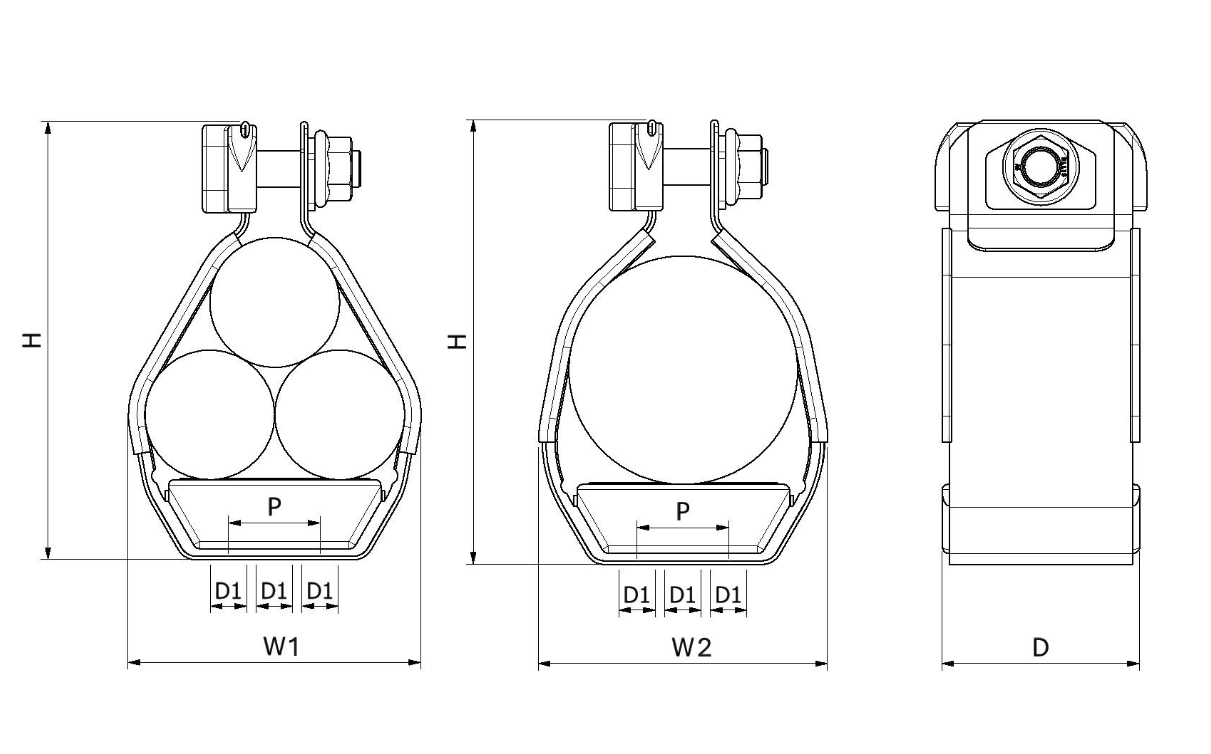

The cleat is available in a range of sizes with range taking ability to suit single and trefoil cable formations (also available in quad formation). The frame of the cleat is manufactured from corrosion-resistant 316L grade stainless steel, the cable is supported by a liner manufactured from a low smoke zero halogen (LSOH) material.
The closure fixings are manufactured from A4-70 grade stainless steel. Vulcan+ can be fixed to the supporting structure by either one or two M10 fixings. Non-standard cleat designs can be supplied upon request. For data sheets and installation instructions head to the Downloads section.
