Vulcan+ Cable Cleat 77-85
Product number:
VRT+16TTFM10-4
Brand:
Ellis Patents Limited
Fast delivery
20 years of expertise and experience
Own brand of high quality
Variations
Product number
For pipe diameter
Material quality
For pipe diameter:
30 - 42 mm
Material quality:
Hot dip galvanized
Product number
For pipe diameter
Material quality
For pipe diameter:
30 - 42 mm
Material quality:
Stainless Steel 316
Product number
For pipe diameter
Material quality
For pipe diameter:
30 - 42 mm
Material quality:
Electro zinc galvanized
Product number
For pipe diameter:
38 - 50 mm
Material quality:
Electro zinc galvanized
Product number
For pipe diameter:
43 - 58 mm
Material quality:
Electro zinc galvanized
Product number
For pipe diameter:
49 - 64 mm
Material quality:
Electro zinc galvanized
Product number
For pipe diameter:
55 - 70 mm
Material quality:
Electro zinc galvanized
Product number
For pipe diameter:
58 - 75 mm
Material quality:
Electro zinc galvanized
Product number
For pipe diameter:
63 - 84 mm
Material quality:
Electro zinc galvanized
Product number
For pipe diameter:
73 - 90 mm
Material quality:
Electro zinc galvanized
Product number
For pipe diameter:
83 - 100 mm
Material quality:
Electro zinc galvanized
Product number
For pipe diameter:
86 - 104 mm
Material quality:
Electro zinc galvanized
Product number
For pipe diameter:
88 - 110 mm
Material quality:
Electro zinc galvanized
Product number
For pipe diameter:
90 - 115 mm
Material quality:
Electro zinc galvanized
Product number
For pipe diameter:
100 - 125 mm
Material quality:
Electro zinc galvanized
Product number
For pipe diameter:
107 - 132 mm
Material quality:
Electro zinc galvanized
Product number
For pipe diameter:
120 - 145 mm
Material quality:
Electro zinc galvanized
Product number
For pipe diameter:
125 - 150 mm
Material quality:
Electro zinc galvanized
Product number
For pipe diameter:
132 - 153 mm
Material quality:
Electro zinc galvanized
Product number
For pipe diameter:
136 - 156 mm
Material quality:
Electro zinc galvanized
Product number
For pipe diameter:
139 - 159 mm
Material quality:
Electro zinc galvanized
Product number
For pipe diameter:
142 - 162 mm
Material quality:
Electro zinc galvanized
Product number
For pipe diameter:
160 - 170 mm
Material quality:
Electro zinc galvanized
Product information
| Suitable for pipe diameter : | 132 - 153 mm |
|---|---|
| Closed : | Yes |
| Material : | Stainless steel |
| Material quality : | Stainless steel 316 (V4A) |
| Surface protection : | Other |
| Max. number of tubes : | 3 |
| Type of fastening : | Clamp |
| With inlay : | Yes |
| Colour : | Stainless steel |
| Working temperature : | -40 - 60 °C |
| Halogen free : | Yes |
Fits 3 cables size 77-85mm, fits 1 cable size 132-153mm, RVS316, with Zero Halogene Polymer Nylon inlay and stainless steel twist foot fixing set.

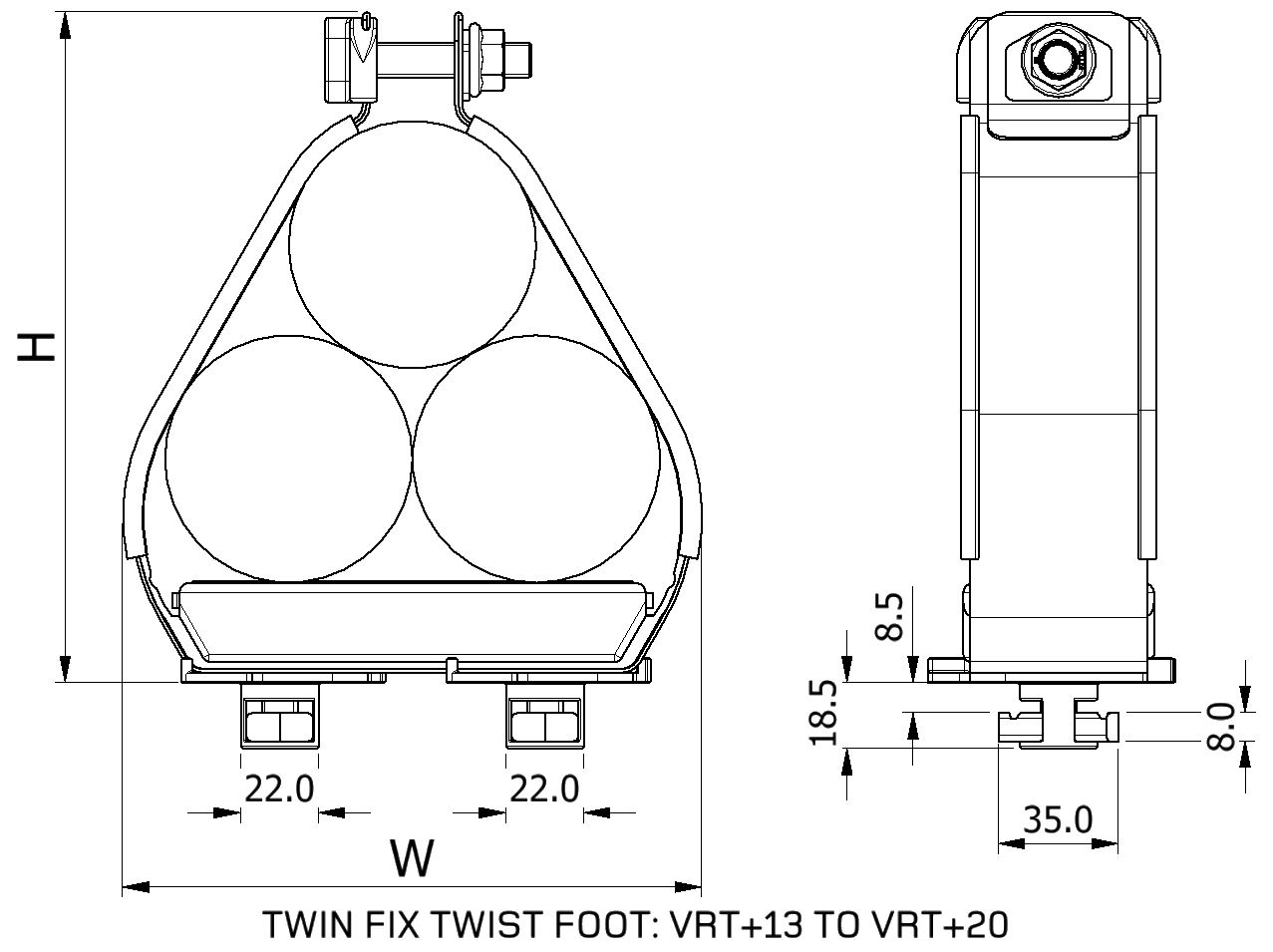

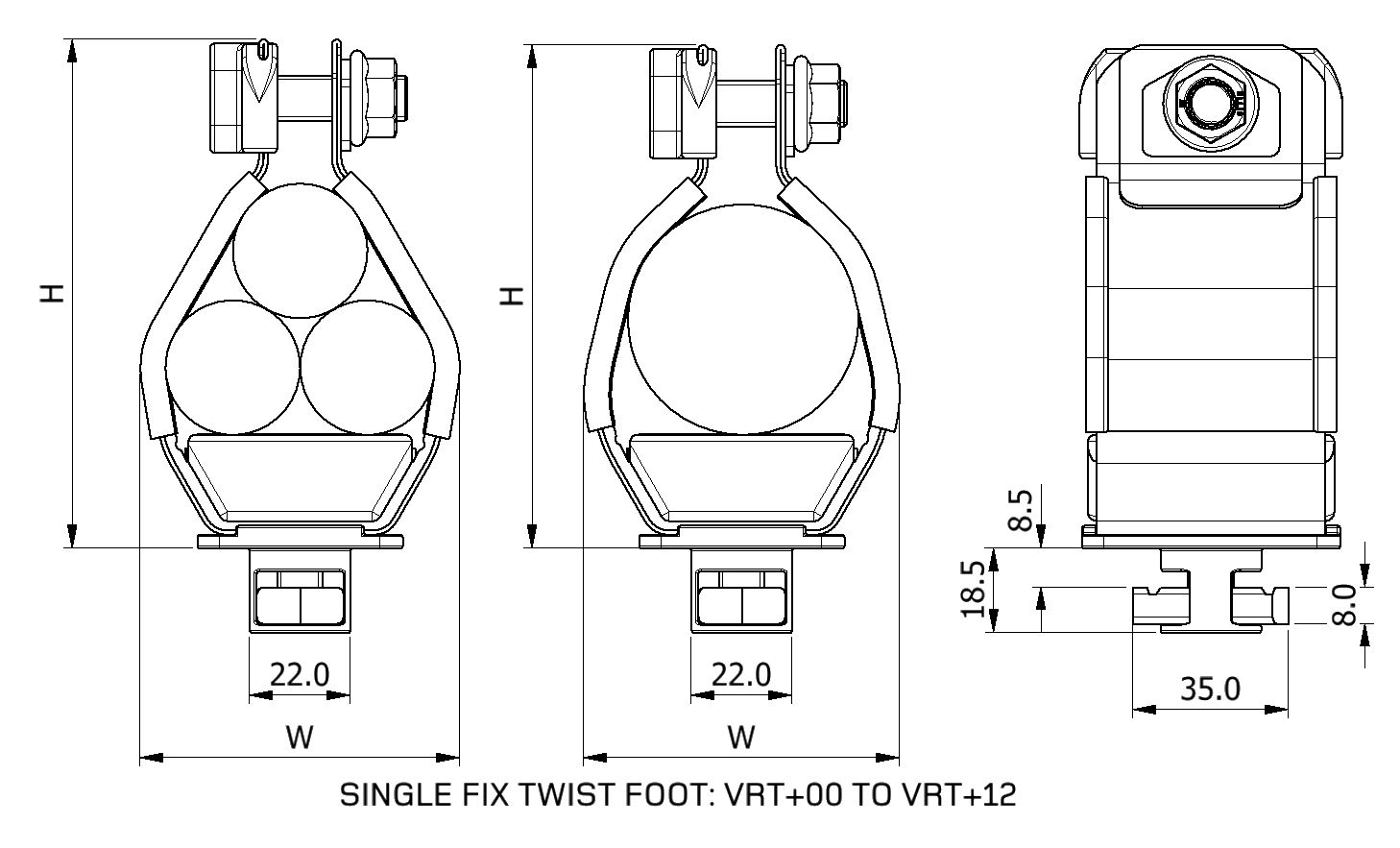

Twist-Foot-VRT-Data-Sheet-English
