Bend 90° Cable Tray ECT60 100mm HDG
Want to view our prices?
Our pricing is exclusively available to registered customers.
Variations
Product information
| Change of direction : | Horizontal |
|---|---|
| Angle : | 90° |
| Construction type : | Bend rigid |
| Bend model : | Segmental bend |
| Suitable for connection with screws : | Yes |
| Suitable for screwless connection : | No |
| With cover : | No |
| Inner radius : | 50 mm |
| Suitable for cable tray height : | 60 mm |
| Suitable for cable tray width : | 100 mm |
| Material thickness : | 1 mm |
| Side perforation : | No |
| Bottom perforation : | No |
| Model : | Integrated connector |
| Material : | Steel |
| Material quality : | Rustproof and acidproof steel |
| Surface protection : | Hot-dip galvanised |
| Colour : | Zinc |

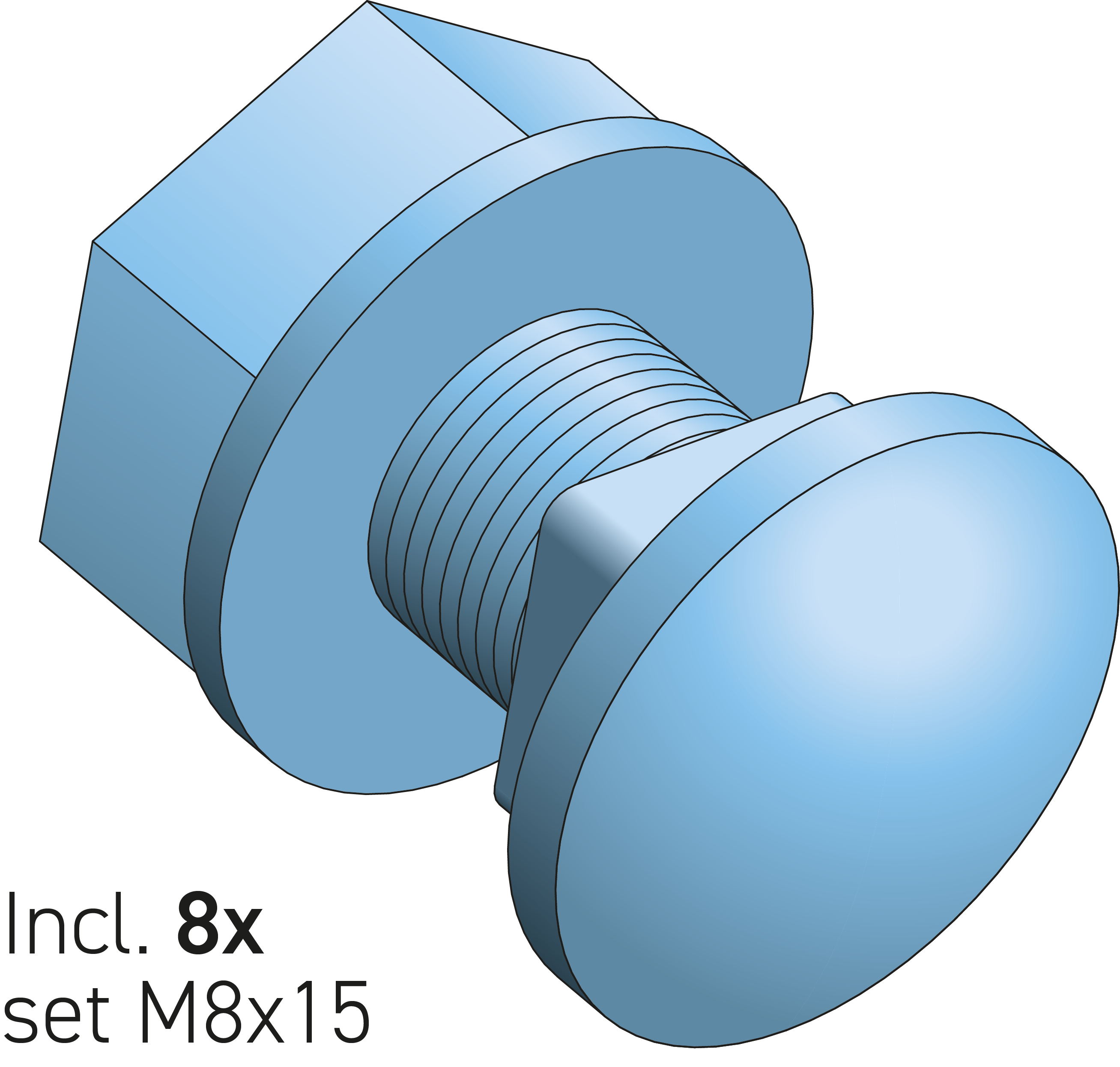

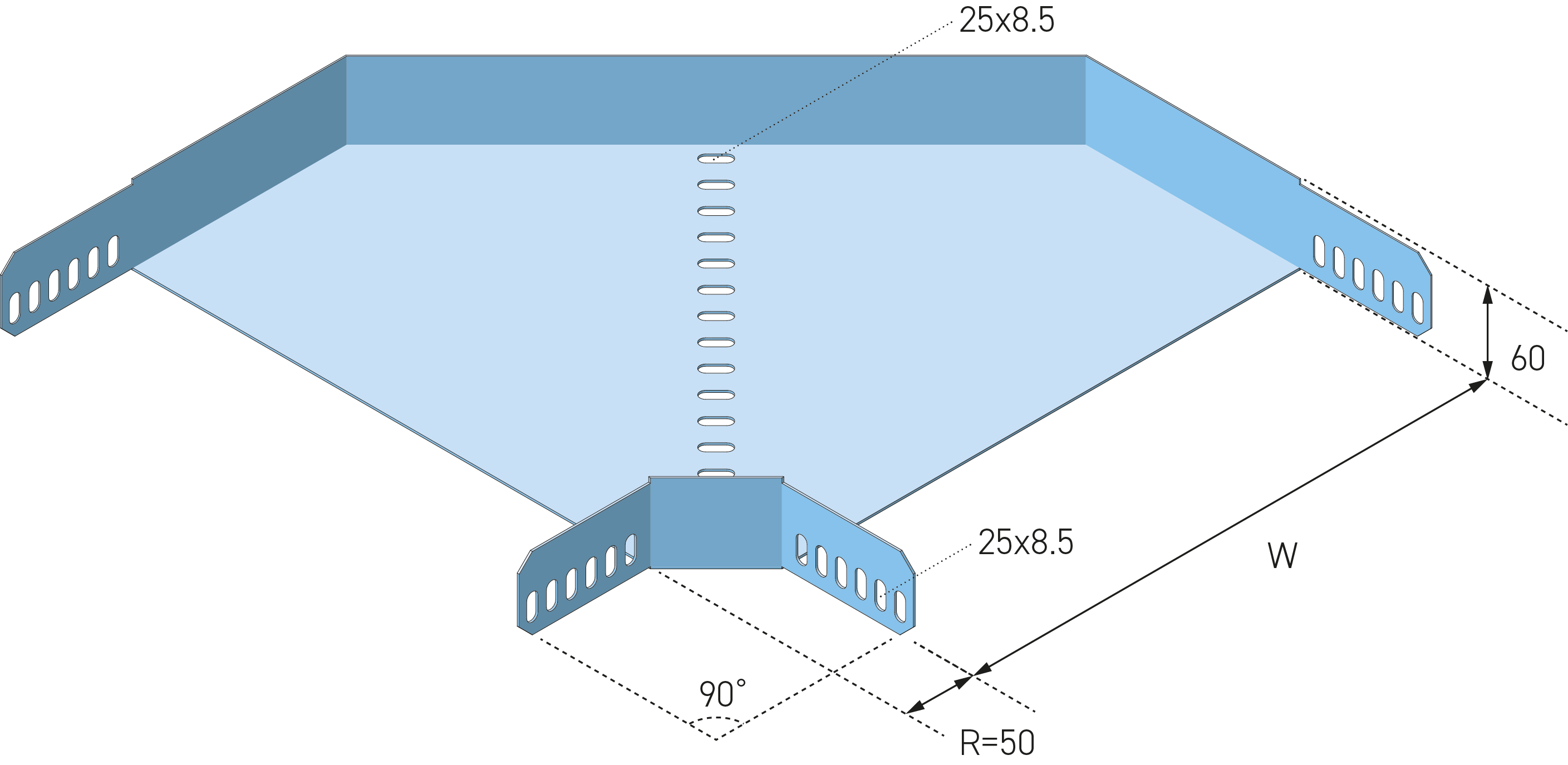

Bend 90° for cable tray ECT60 with sizes H = 60mm, W = 95 mm, E (thickness) = 1.0 mm, 90°, carbon steel, hot dip galvanized according to NEN-EN-ISO 1461, minimum layer thickness 60 µm, including 8x EFS08x15-GEO Eurostrut fixing set (bolt M8x15, nut and washer).

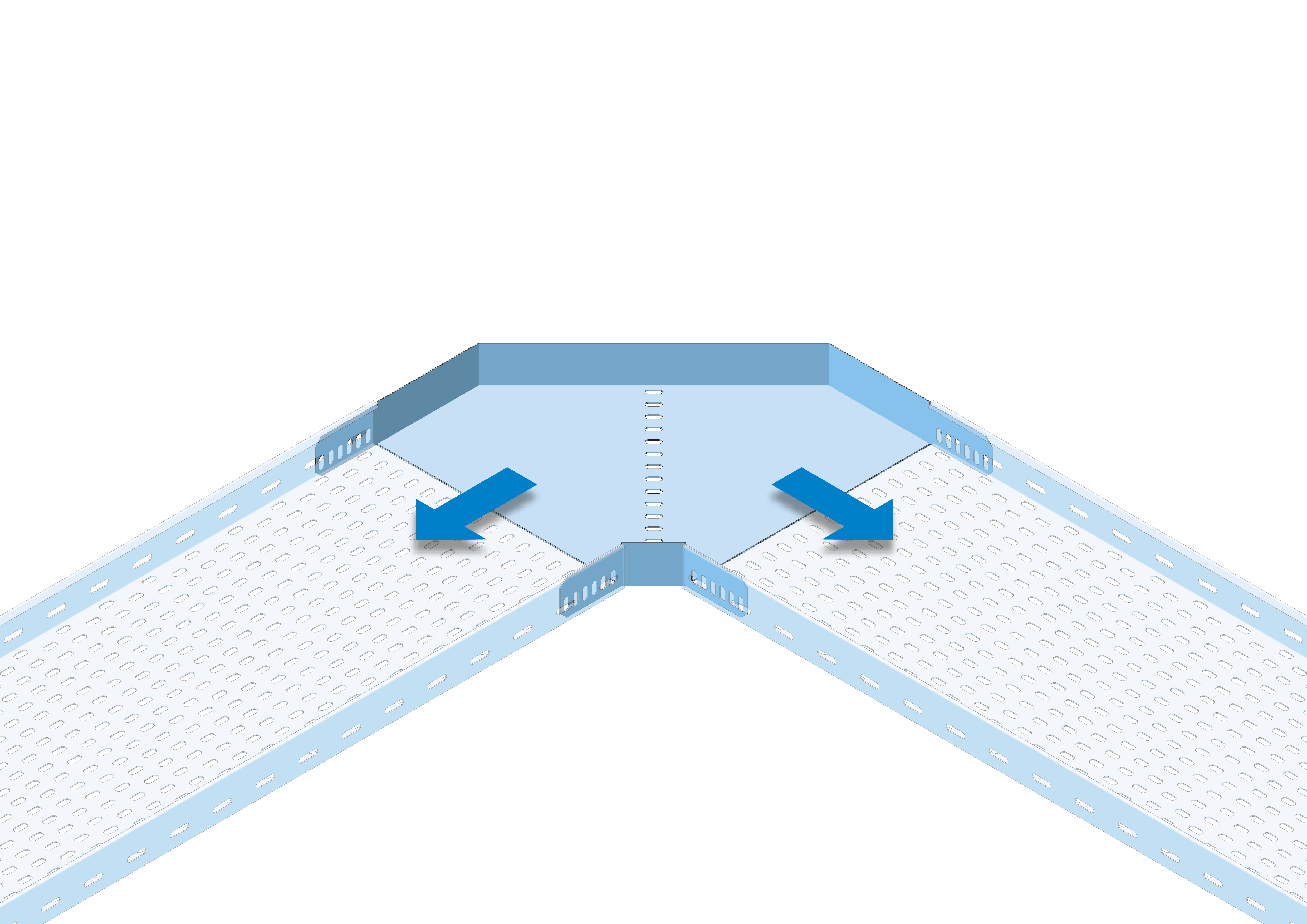

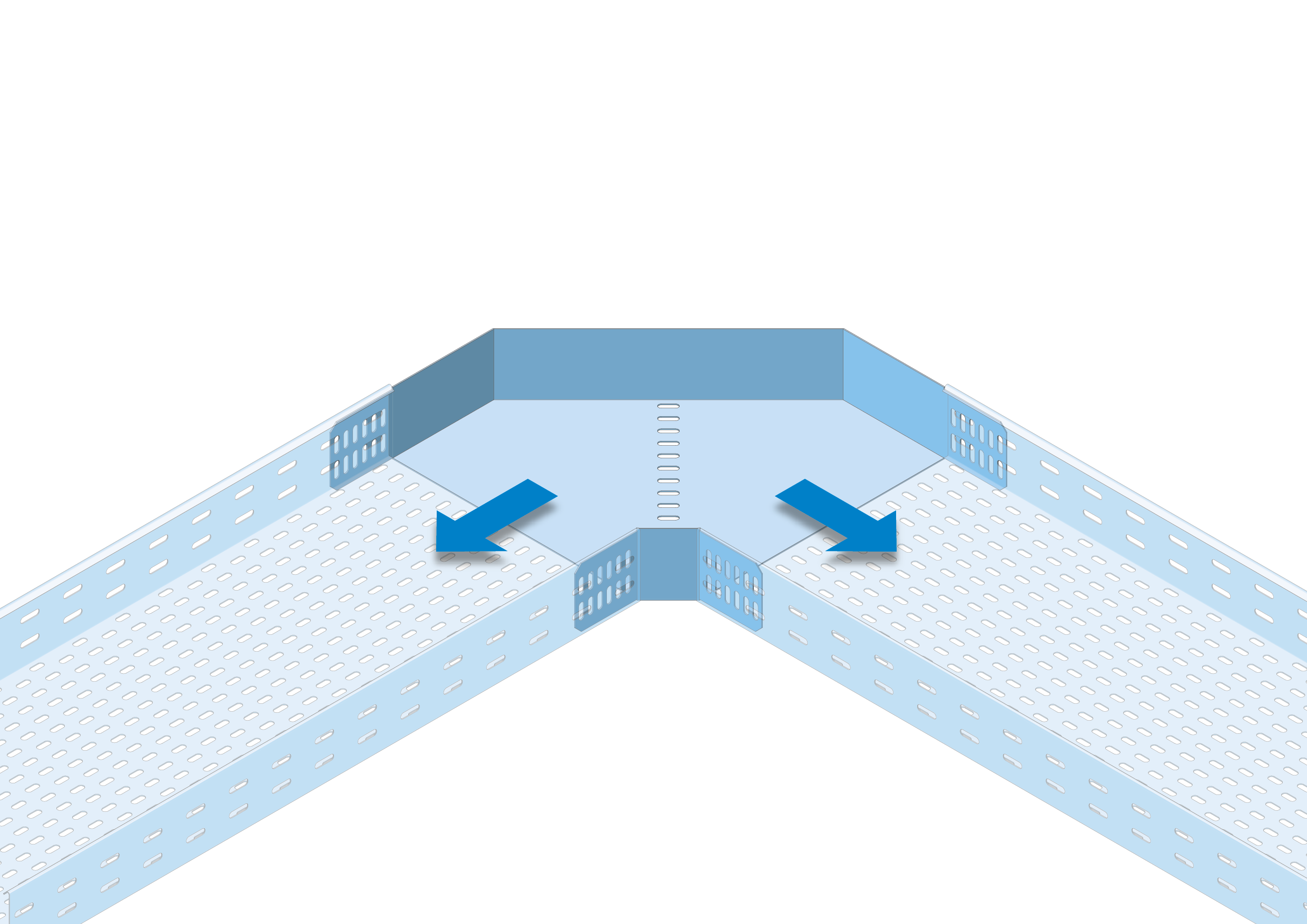

Bend ECTB60-90 is an accessory for the ECT60 cable tray system and is used to create a horizontal change of direction within cable routes. The 90° bend enables a right-angle transition, guiding cables in a controlled manner without introducing unwanted mechanical stress. This accessory is suitable for heavy industrial, utility, and infrastructure installations.
The standard version is manufactured from hot dip galvanized carbon steel according to NEN-EN-ISO 1461, with a high coating thickness of minimum 60 µm, suitable for heavy industrial and outdoor environments. The hot dip galvanizing process is carried out after fabrication and provides full protection of the surface, including cut edges and fixing holes. This makes the accessory suitable for applications with increased corrosive and mechanical loads, in accordance with IEC 61537 and installations compliant with NEN 1010.
The bend is designed as a fixed accessory with a 90° angle and is intended for direct connection to straight ECT60 cable trays. The execution is equipped with integrated connectors, enabling fast and alignment-stable installation. The accessory is fully compatible with other ECT60 components and contributes to a stable and uniform cable route.
Technical Specifications
- Product type: Accessory – horizontal bend for cable tray
- System: ECT60
- System height: 60 mm
- System width: 75 to 600 mm
- Angle: 90°
- Radius: 50 mm
- Execution: With integrated connectors, including 8x EFS08x15 fixing set (slot bolt M08x15, nut and washer)
- Standard material: Carbon steel
- Surface finish: Hot dip galvanized according to NEN-EN-ISO 1461
- Zinc coating thickness: minimum 60 µm
- Standards: IEC 61537, applicable within installations compliant with NEN 1010
Typical Applications
- Right-angle horizontal changes of direction in ECT60 cable trays
- Heavy industrial installations
- Outdoor installations and harsh industrial environments
- Cable routes with requirements for mechanical strength and corrosion resistance
Available Material Variants
- HDG: Hot dip galvanized carbon steel according to NEN-EN-ISO 1461, with a high coating thickness of minimum 60 µm, suitable for heavy industrial and outdoor environments.
- PG: Pre galvanized carbon steel according to EN 10346, suitable for dry indoor environments and light industrial applications.
- Stainless steel 304 (A2 / 1.4301): Stainless steel for indoor environments and lightly corrosive conditions.
- Stainless steel 316 (A4 / 1.4404): Stainless steel with enhanced corrosion resistance for chemical, maritime, and offshore applications.
Complementary Products
For a complete installation, Eurostrut offers various accessories, such as:
- Couplers: Coupling plates and bolt sets for ECT60 cable trays
- Straight cable trays: ECT60 cable trays in various widths
- Other accessories: 45° bends, T-pieces, and cross pieces
These components ensure a safe, compatible, and maintenance-friendly installation.
Other widths, angles, and radii available on request.
Eurostrut_ECTB60-90_Bend 90.rfa
