Cable Ladder 1000mm HDG
Product number:
ECL100-1000-6-HDG
Brand:
Eurostrut
Fast delivery
20 years of expertise and experience
Own brand of high quality
Want to view our prices?
Our pricing is exclusively available to registered customers.
Variations
Product number
Length
Width
Material quality
Length:
6000 mm
Width:
100 mm
Material quality:
Hot dip galvanized
Product number
Length:
6000 mm
Width:
1000 mm
Material quality:
Hot dip galvanized
Product number
Length
Width
Material quality
Length:
6000 mm
Width:
100 mm
Material quality:
Stainless Steel 316
Product number
Length:
6000 mm
Width:
1000 mm
Material quality:
Stainless Steel 316
Product number
Length
Width
Material quality
Length:
6000 mm
Width:
100 mm
Material quality:
Stainless Steel 304
Product number
Length:
6000 mm
Width:
1000 mm
Material quality:
Stainless Steel 304
Product information
| Type of side joist : | Profile (open) |
|---|---|
| Side perforation : | Yes |

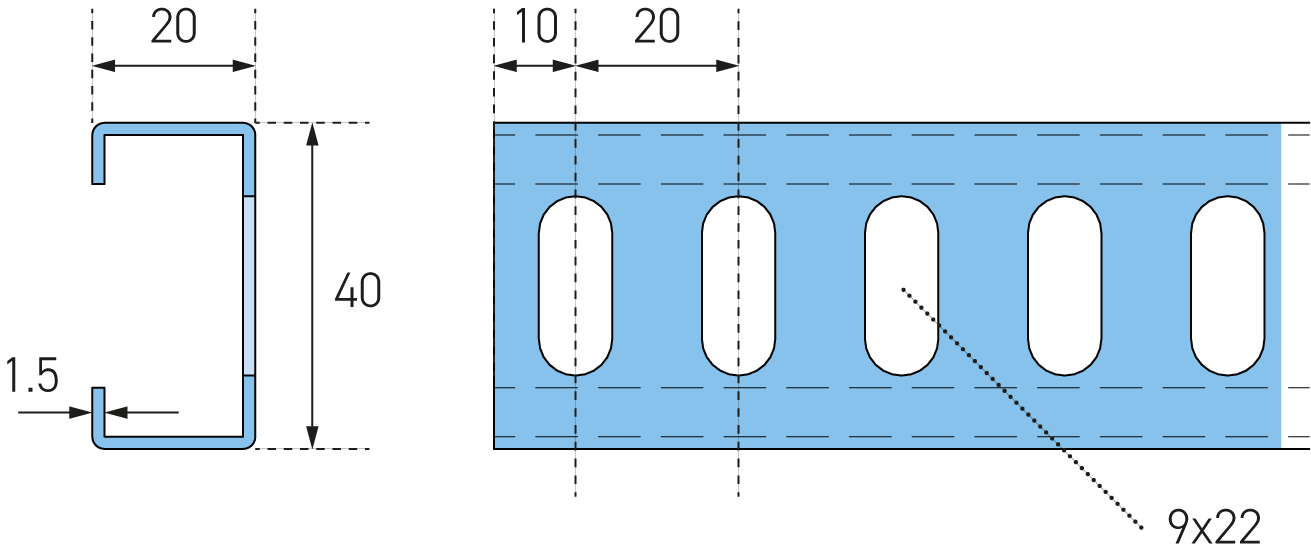

| Type of rung : | Perforated profile |
| Fixation rung : | Welded |
| Height : | 100 mm |
| Width : | 1000 mm |
| Length : | 6000 mm |
| Rung centre spacing : | 300 mm |
| Material : | Steel |
| Material quality : | St 37.2 (1.0037) |
| Surface protection : | Hot-dip galvanised |
| Colour : | Zinc |
H=100mm, W=1000mm, L=6000mm, T=1,5mm, Hot Dip Galvanized Carbon Steel, layer 65 to 70µm.
Properties
- Manufactured in accordance with BS EN 61537/IEC 61537.
- Standard surface finish of the cable ladder is hot dip galvanized (HDG) according to EN-ISO 1461.
- All rungs are welded to the side wall of the cable ladder.
- Accessories must be supported on all sides.
- Standard length 6 meters.
Variations
- On request also available in stainless steel 304 or 316L.
- Length 3 meters available on request.
- Other widths available on request.
Eurostrut_Product Datasheet_ECL100_NL_1
