Pacman Clamp XL HDG
Product information
| Model : | Horizontal |
|---|---|
| Plate height : | 125 mm |
| Plate width : | 100 mm |
| Type of fastening : | Clamp mounting |
| Material : | Steel |
| Material quality : | Rustproof and acidproof steel |
| Surface protection : | Hot-dip galvanised |
| Colour : | Zinc |

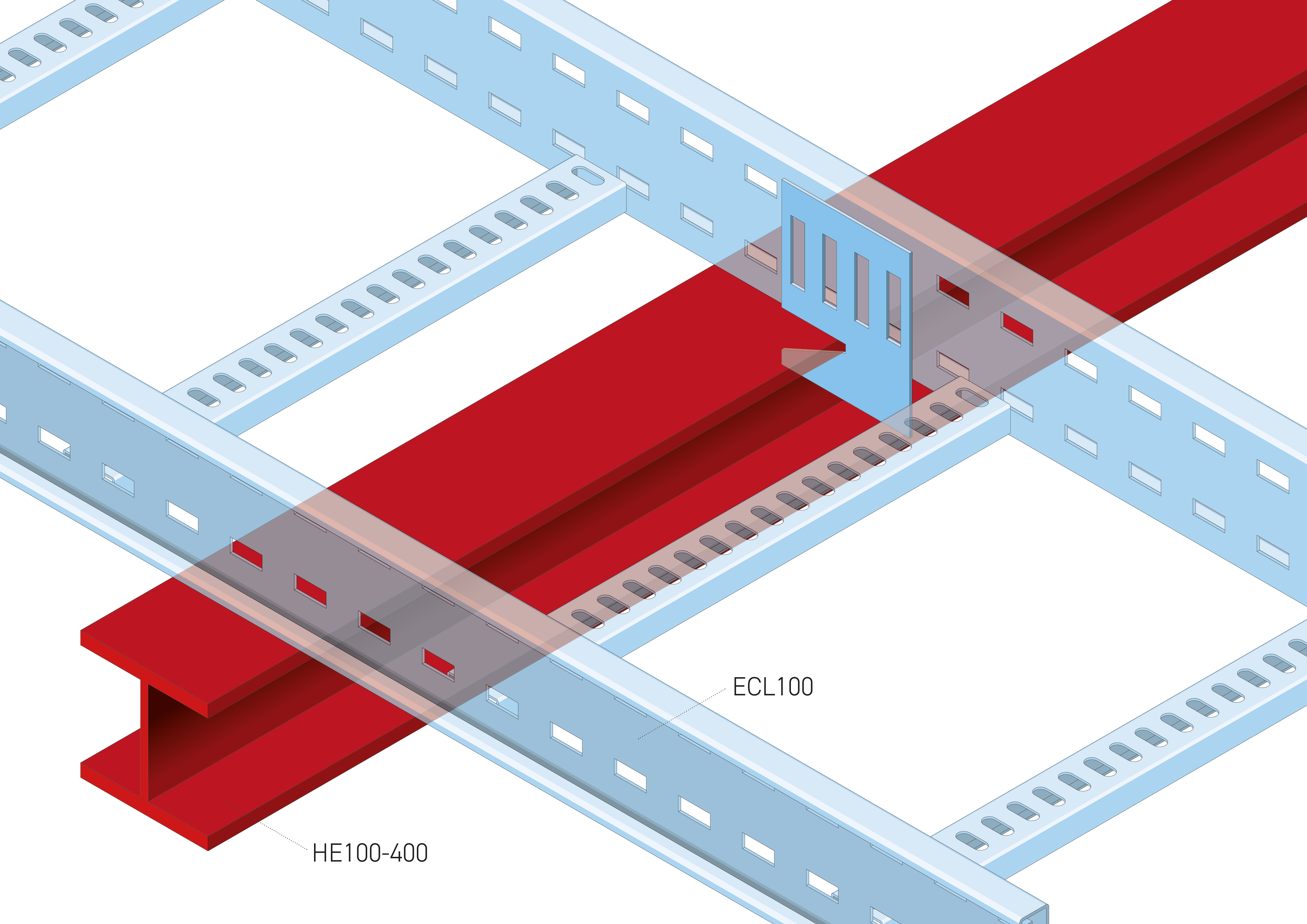

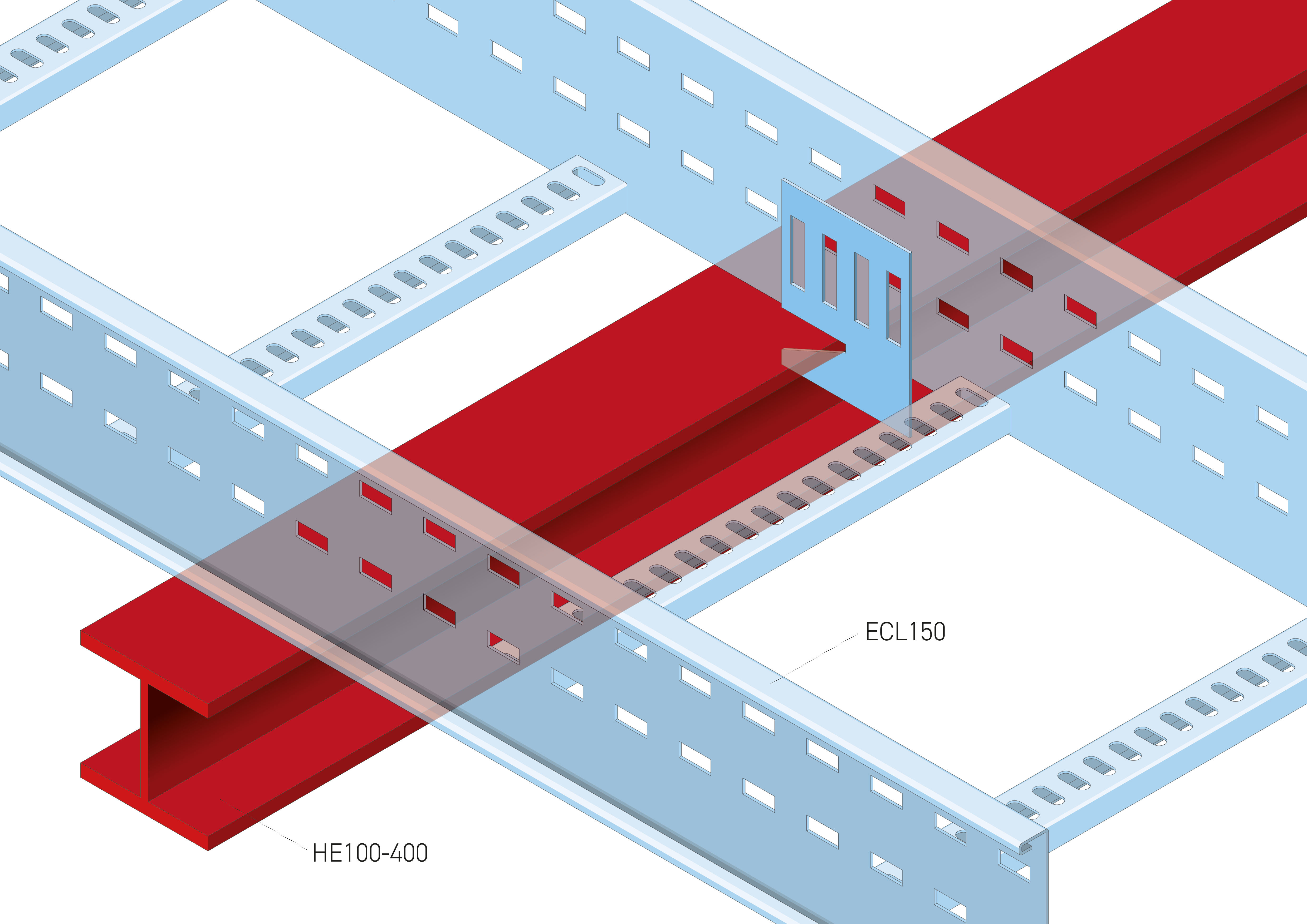

For Eurostrut cable ladders ECL100 en ECL150. Clamping range HE100 to HE400.

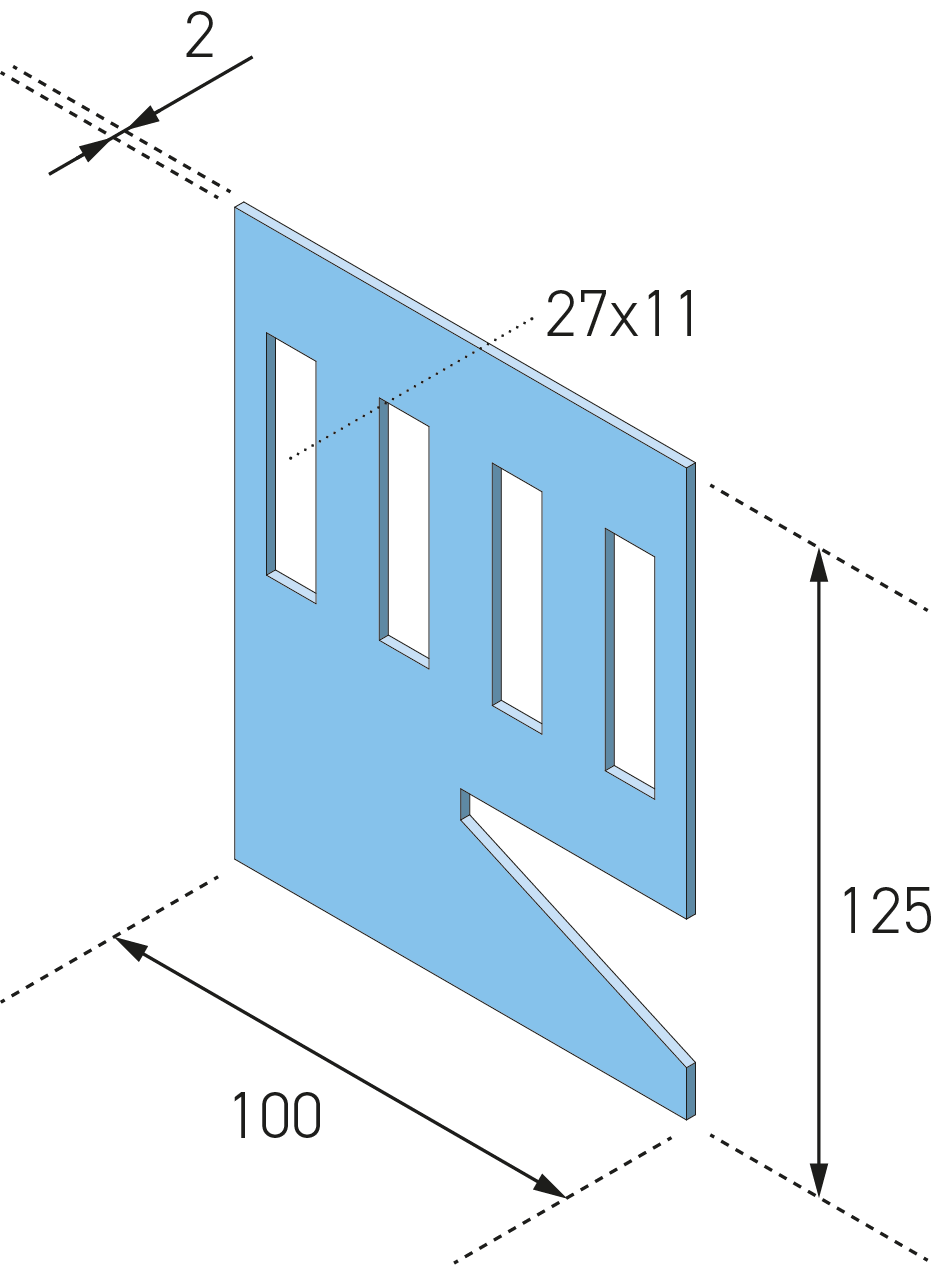

L = 125 mm, W = 100 mm, E (thickness) = 2,0 mm.
Hot Dip Galvanized Carbon Steel in according to NEN-EN-ISO 1461, layer minimum 60µm.
Pacman clamp EPC-XL is a mounting accessory for cable support systems and is used to fix cable ladders to steel H-beam structures. The clamp enables a drill-free installation and provides a stable and mechanically secure fixation to structural supports. Specifically suitable for Eurostrut cable ladders ECL100 and ECL150 in industrial and utility installations.
The execution is manufactured from carbon steel and hot dip galvanized according to NEN-EN-ISO 1461, with a minimum zinc coating thickness of 60 µm. This corrosion protection makes the clamp suitable for use in industrial and outdoor environments. The hot dip galvanizing process is applied after fabrication and protects the entire surface, including cut edges, in accordance with IEC 61537 and installations compliant with NEN 1010.
The pacman clamp features a robust construction with a material thickness of 2.0 mm and is suitable for installation on H-beams with a clamping range from HE100 up to and including HE400. The clamp is mounted directly onto the flange of the steel structure and secures itself without additional processing. The execution is fully compatible with Eurostrut cable ladders and associated fixing components.
Technical Specifications
- Product type: Fixing accessory – pacman clamp XL
- Application: Mounting on H-beams (steel structures)
- Compatibility: ECL100 and ECL150 cable ladders
- Clamping range: HE100 to HE400
- Length (L): 125 mm
- Width (B): 100 mm
- Material thickness (D): 2.0 mm
- Material: Carbon steel
- Surface finish: Hot dip galvanized according to NEN-EN-ISO 1461
- Zinc coating thickness: minimum 60 µm
- Standards: IEC 61537, applicable within installations compliant with NEN 1010
Typical Applications
- Fixing cable ladders to steel structures
- Mounting on H-beams without drilling
- Heavy industrial installations
- Utility and infrastructure cable routes
Available Variants
- EPC-XL: Hot dip galvanized (HDG), suitable for industrial and outdoor environments
Complementary Products
For a complete installation within the Eurostrut system, the following components are relevant:
- Cable ladders: ECL100 and ECL150 for heavy-duty cable routes
- Fixing materials: Bolt sets and connectors for installation
- Support structures: Steel profiles and H-beams
These components together ensure a safe, compatible, and maintenance-friendly installation.
Other executions available on request.
